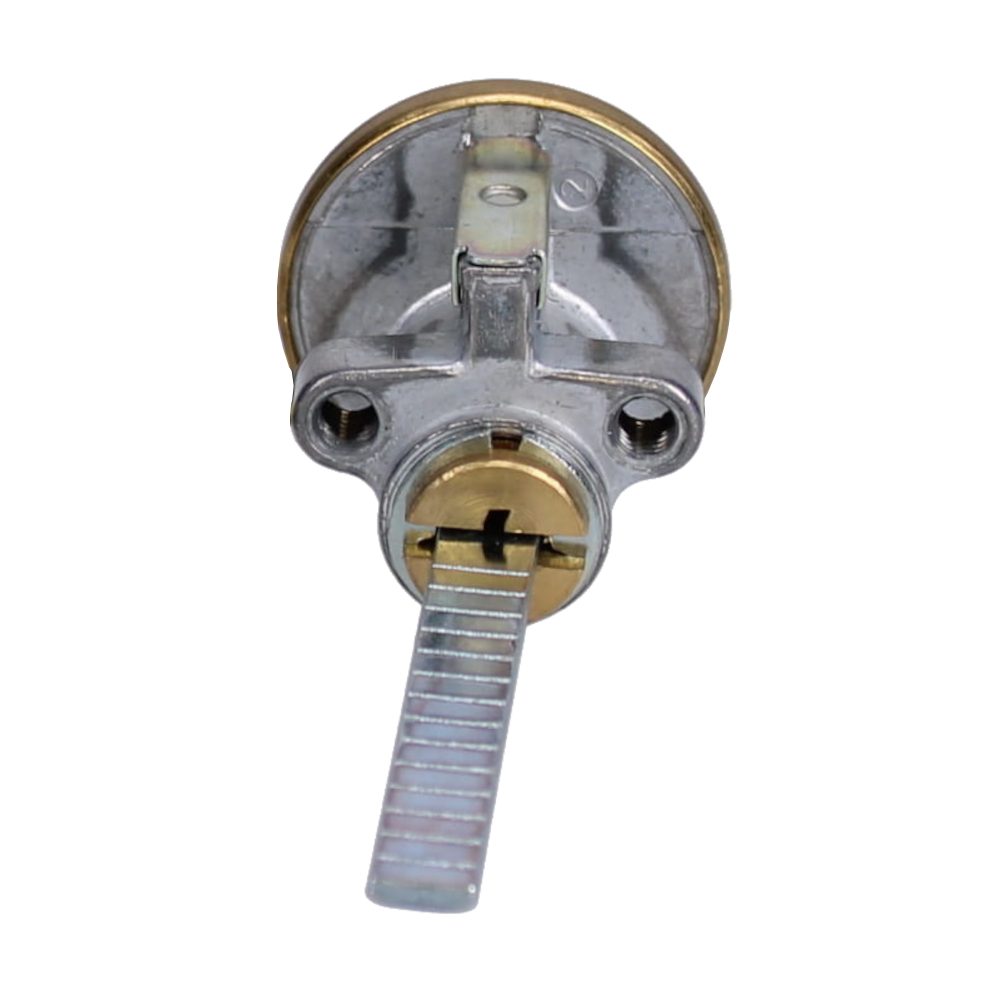

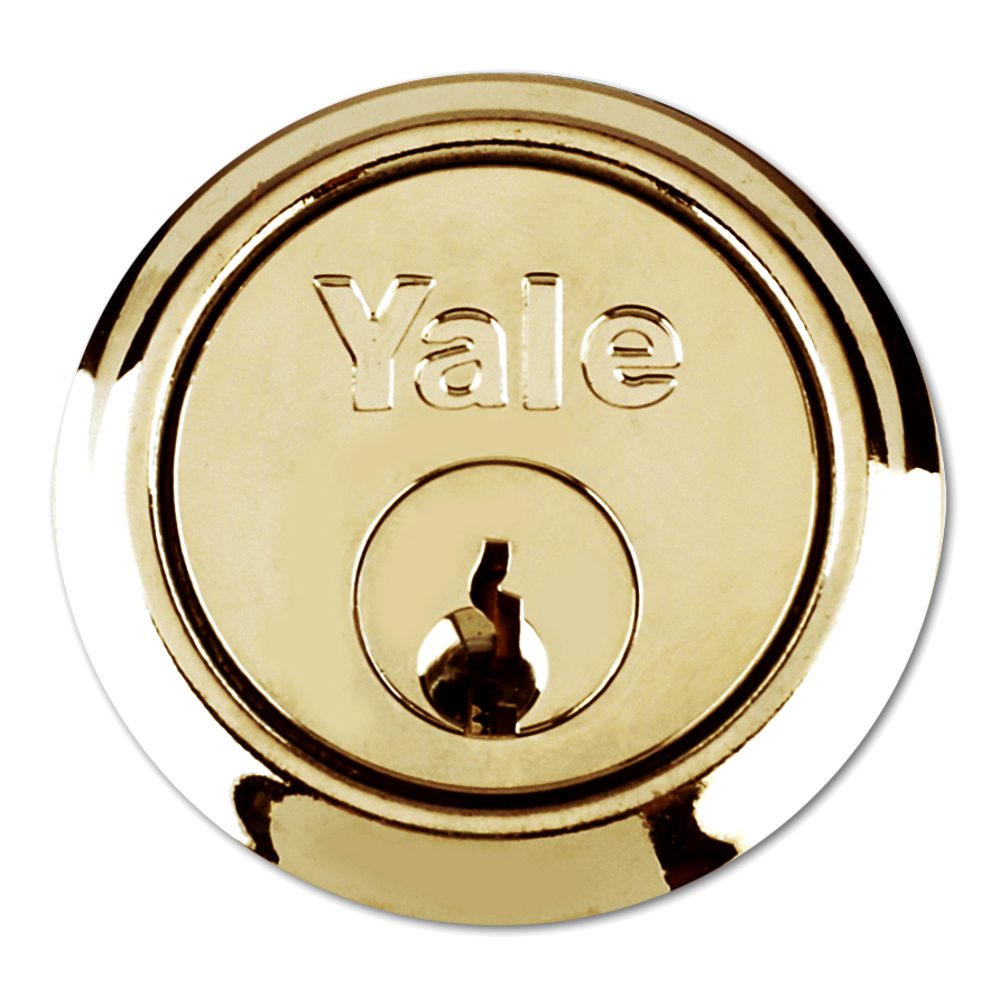

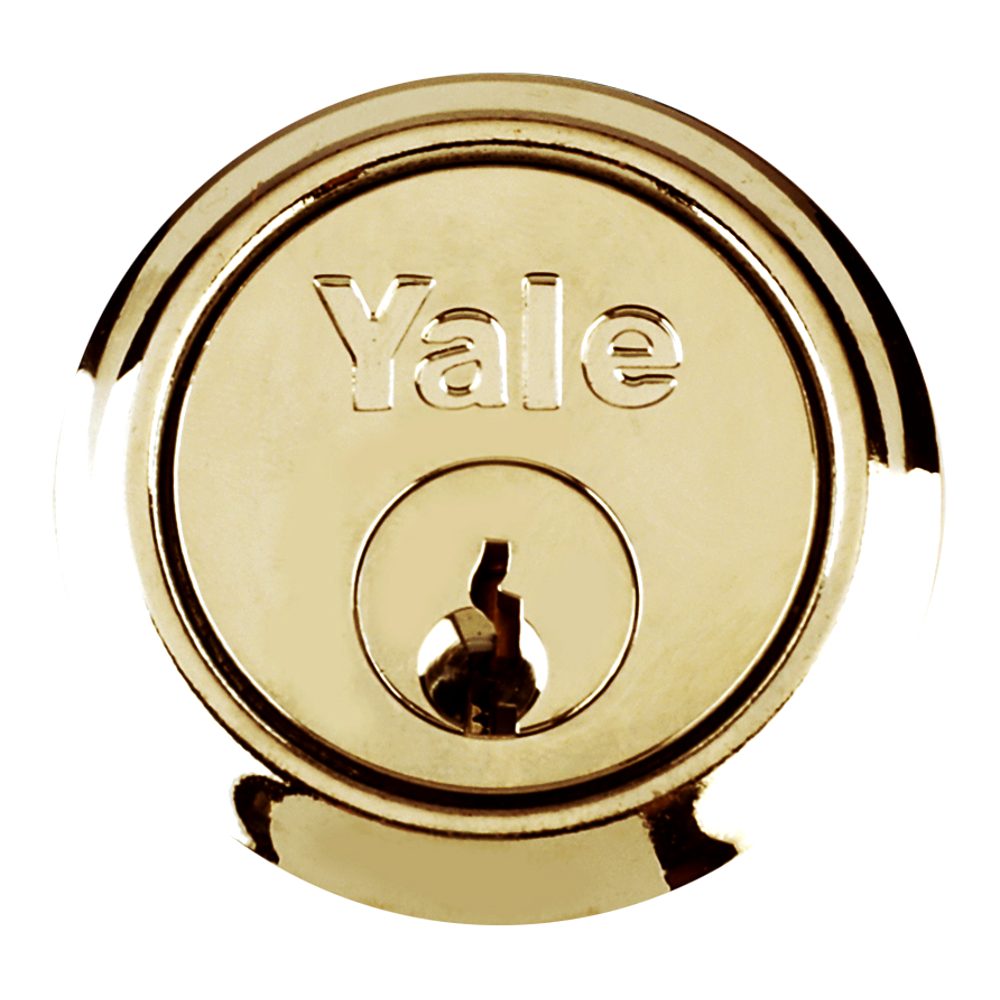

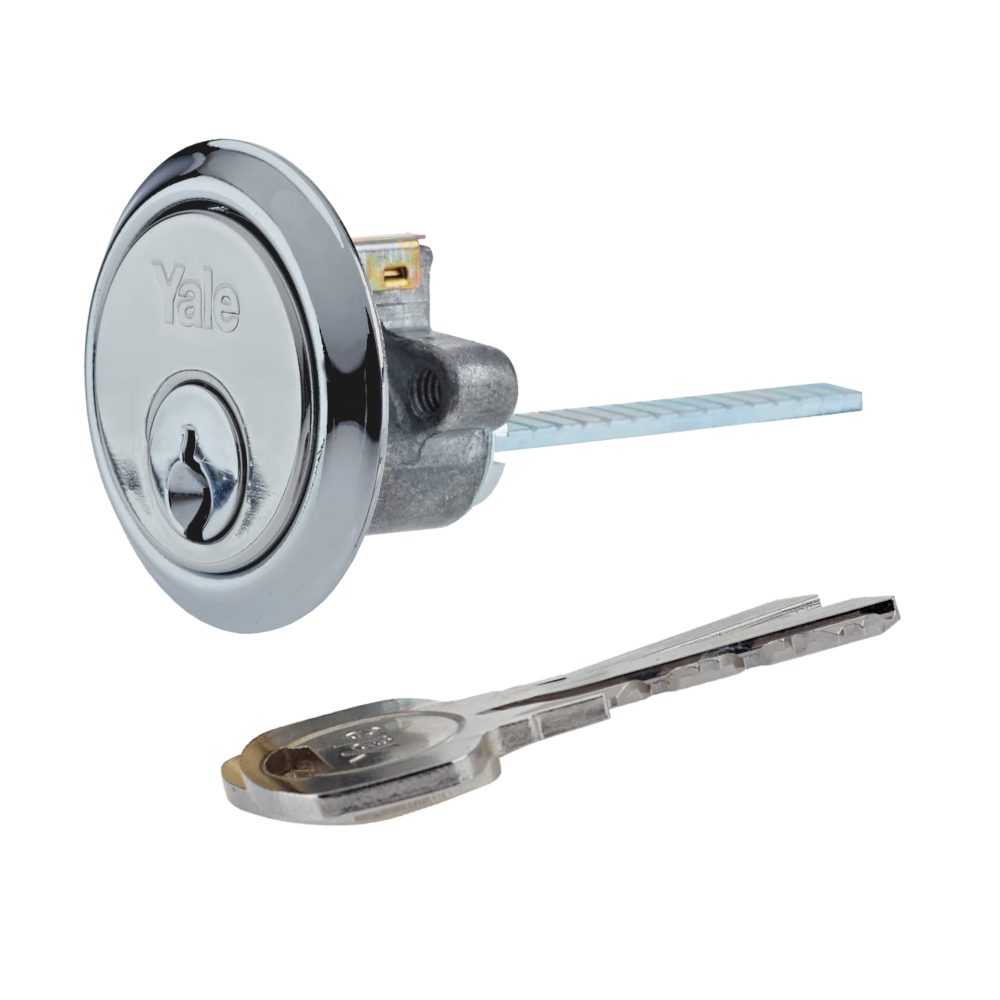

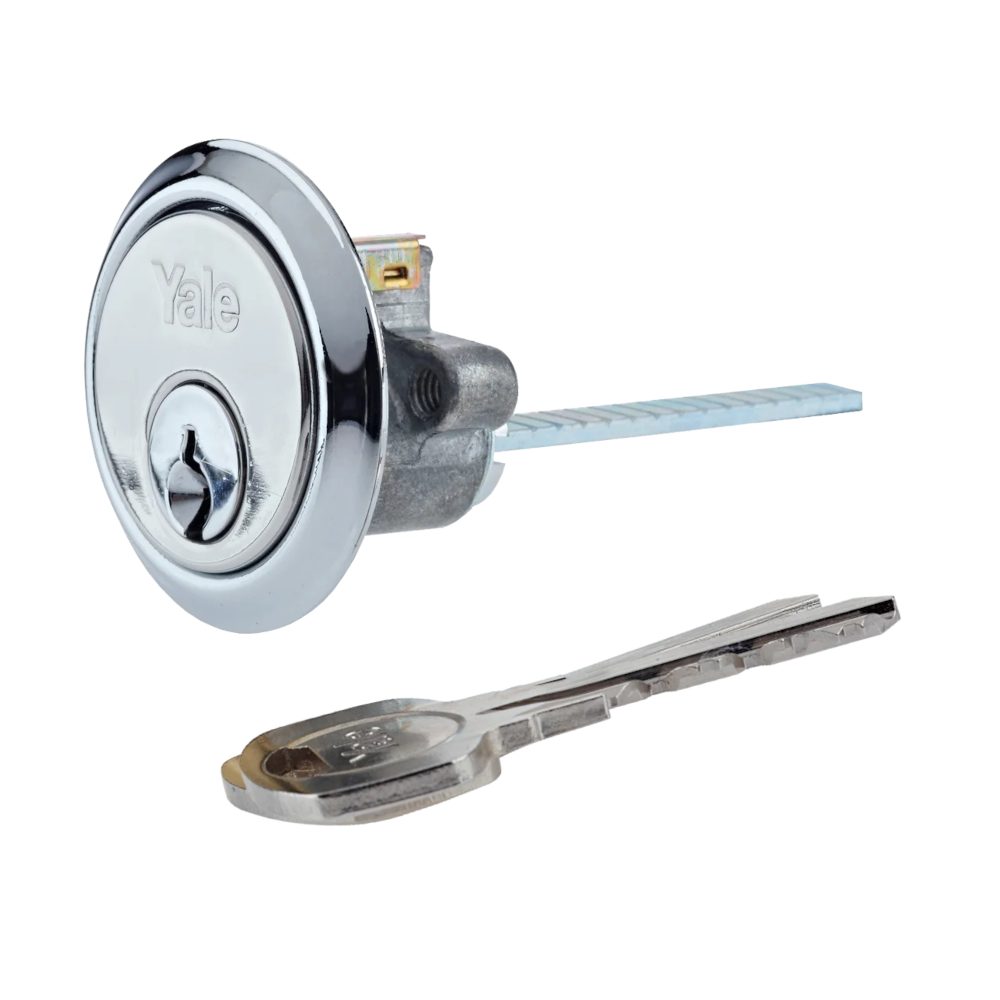

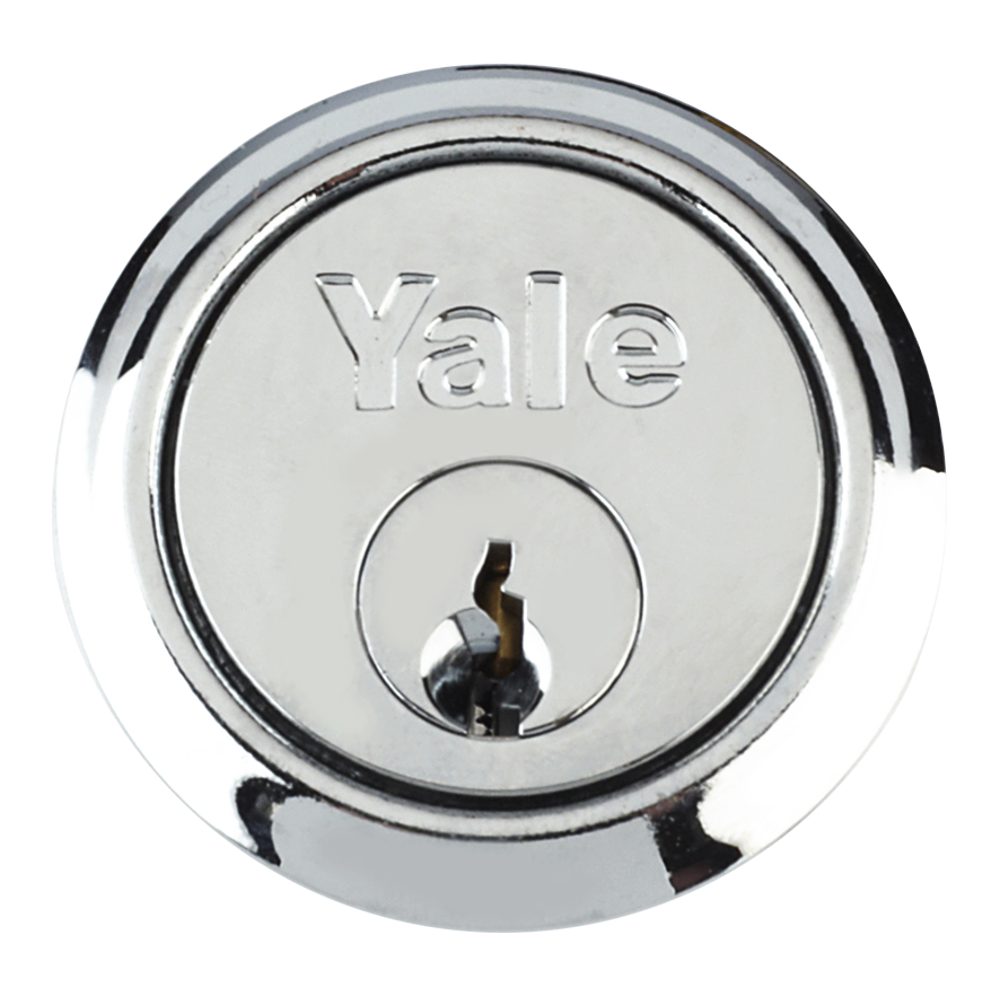

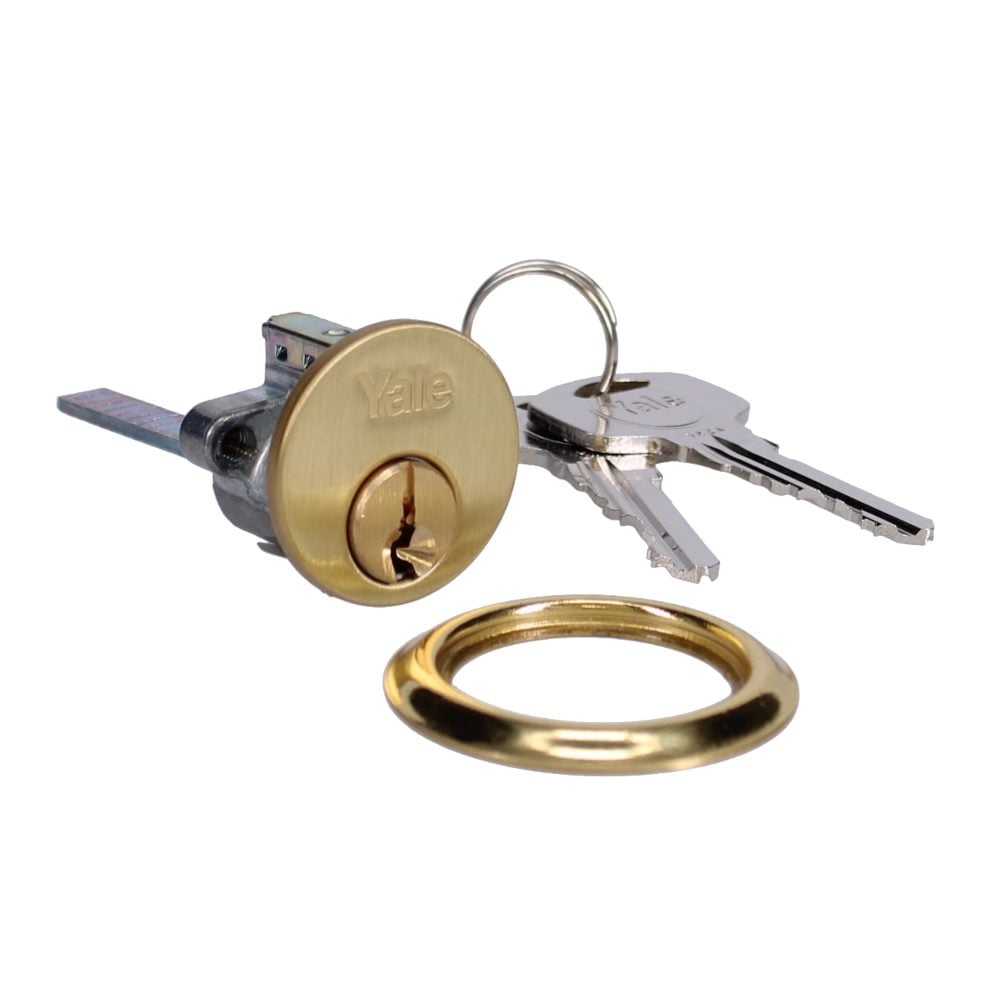

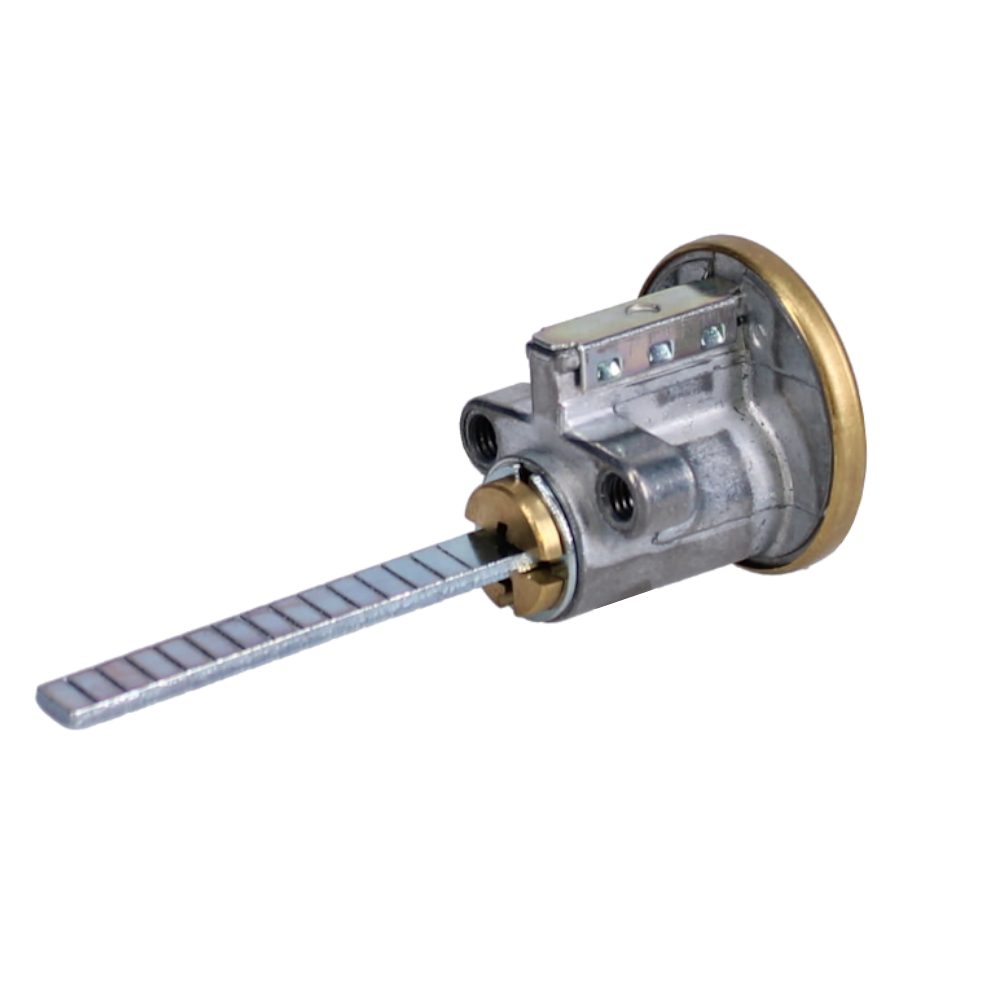

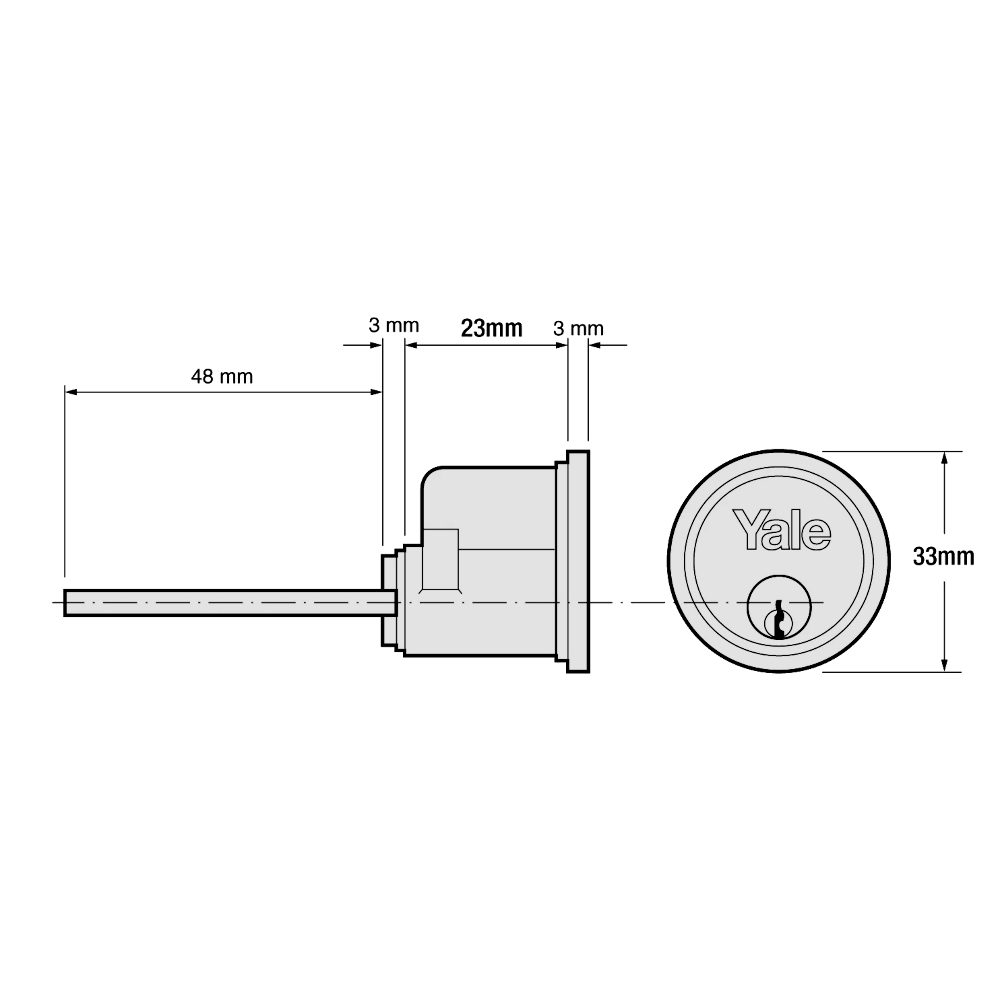

YALE 1109 Rim Cylinder

The Yale 1109 Rim Cylinder is a highly dependable and popular replacement cylinder designed for traditional nightlatches, including the Yale 77, 82, 84, and 85. Trusted by locksmiths and installers alike, this cylinder provides smooth key operation and reliable security for inward-opening timber doors. It is the ideal choice for upgrading or replacing an existing rim cylinder without needing to replace the entire lock case.

This versatile cylinder is available in a variety of configurations to suit your specific requirements. You can choose from multiple finishes, including Chrome Plated, Polished Brass, Polished Chrome, and Satin Chrome, to perfectly match your existing door hardware. It also offers flexible keying options, including Keyed To Differ, Keyed Alike (with options for specific key numbers or MEB utility keying), and Master Keyed suites. Additionally, the cylinder is available in either Boxed or Visi packaging, with weights ranging from 120g to 150g. Please select your preferred options from the choices below.

Technical Specifications

• Brand: Yale
• Cylinder Type: Rim Cylinder
• Cylinder Profile: Other
• Cylinder System: Yale 5 Pin
• Mechanism: 5 Pin
• Keys Supplied: 2 (with in-house key cutting available)
• Fire Tested: Grade 0
• Finishes Available: Chrome Plated, Polished Brass, Polished Chrome, and Satin Chrome (please choose below)
• Keying Options: Keyed To Differ, Keyed Alike, and Master Keyed (please choose below)
• Packaging: Boxed or Visi (please choose below)
• Weight: 120g to 150g (please choose below)

Key Features

• Broad Compatibility: Designed as a direct retrofit replacement for standard nightlatches, such as the Yale 77, 82, 84, and 85.
• Smooth Operation: Features a reliable 5-pin mechanism for smooth, everyday key operation.
• Multiple Finishes: Available in a range of finishes to complement your existing door furniture - please select from the options below.
• Flexible Keying: Choose between Keyed To Differ, Keyed Alike, or Master Keyed options to fit your security setup.
• Durable Construction: Built for long-lasting performance in both residential and light commercial applications.
