WILLENHALL LOCKS EP1 Euro Sashcase

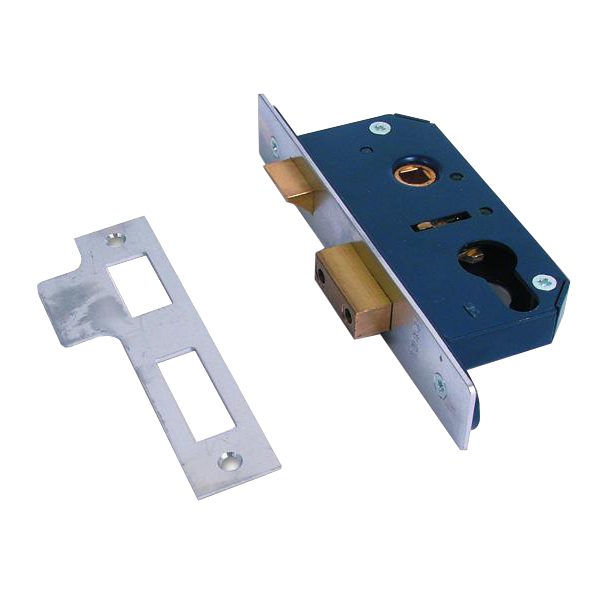

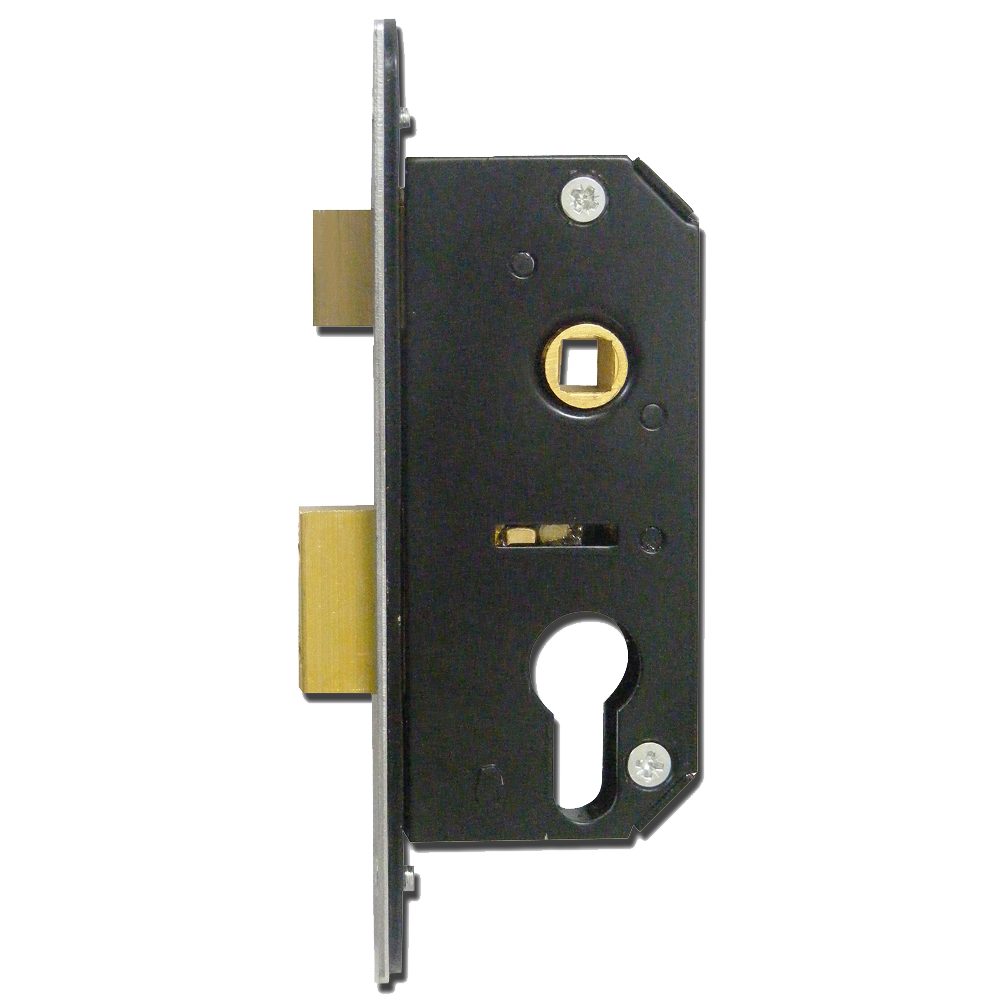

The Willenhall Locks EP1 Euro Sashcase is a compact and reliable mortice lock case, specifically designed for narrow-stile doors, such as glazed and French doors. With a slim 50mm case depth and a 32mm backset, this sashcase is the ideal solution where space within the door profile is limited.

Featuring a standard sashlock operation, the deadbolt is operated by a Euro profile cylinder, while the latchbolt is operated by a lever handle. The latchbolt is fully reversible, allowing for easy handing on both left and right-opening doors. To reverse the latch, simply remove the case lid, flip the latchbolt, and reassemble.

Finished in Satin Anodised Aluminium (SAA), this sashcase offers a clean, modern aesthetic that blends seamlessly with contemporary door hardware.

Please note: The Euro cylinder and strike plate are not included and must be purchased separately.

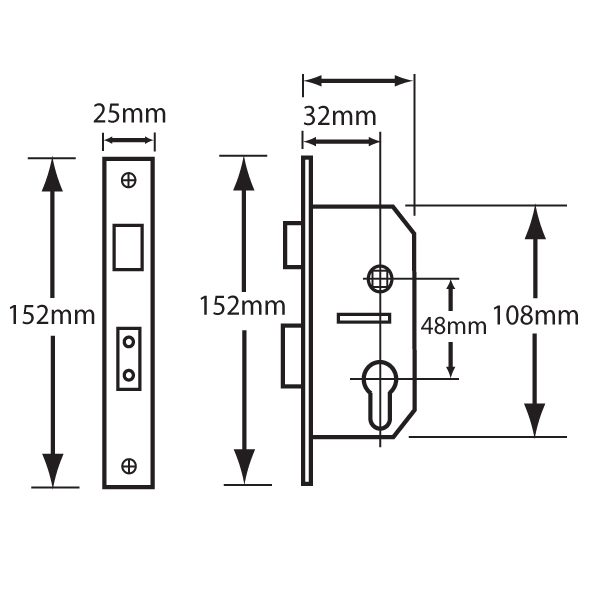

Technical Specifications

• Brand: Willenhall Locks
• Manufacturer Reference: EP1
• Finish: Satin Anodised Aluminium (SAA)
• Backset: 32mm
• Centres: 48mm
• Case Depth: 50mm
• Case Height: 108mm
• Case Width: 50mm
• Faceplate Width: 25mm
• Forend Length: 152mm
• Mechanism: Euro Cylinder
• Spindle: Single

Key Features

• Narrow Stile Design: Ideal for narrow-profile doors, including glazed and French doors.
• Reversible Latch: Easily adjusted for left or right-hand doors by removing the case lid and flipping the latch.
• Standard Sashlock Operation: Latchbolt is operated by the handle, and the deadbolt is operated by a Euro cylinder.
• Durable Finish: Satin Anodised Aluminium (SAA) faceplate for a clean, modern look.
• Compact Dimensions: Slim 50mm case depth with a 32mm backset and 48mm centres.
