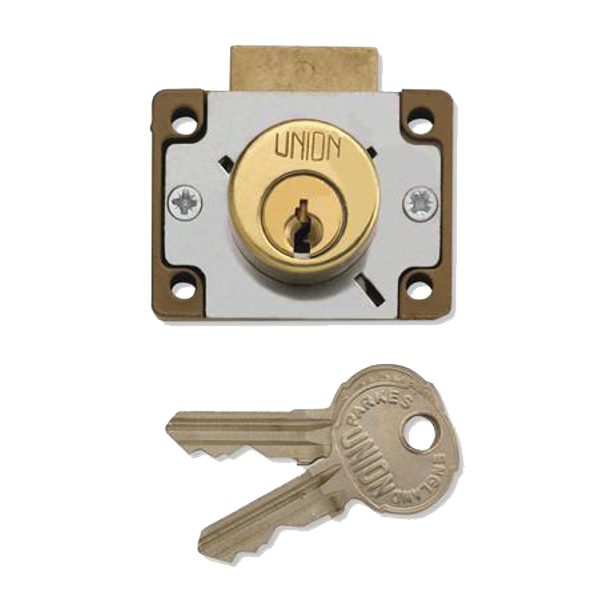

UNION 4148 Cylinder Springbolt Cupboard / Till Lock
Union
The UNION 4148 Cylinder Springbolt Cupboard / Till Lock is a highly versatile security solution designed specifically for wooden doors, cupboards, and tills. Featuring a clever rotatable cylinder, this lock can be easily configured to function as a till lock, or as a left-hand or right-hand cupboard lock, making it incredibly adaptable for various installations.

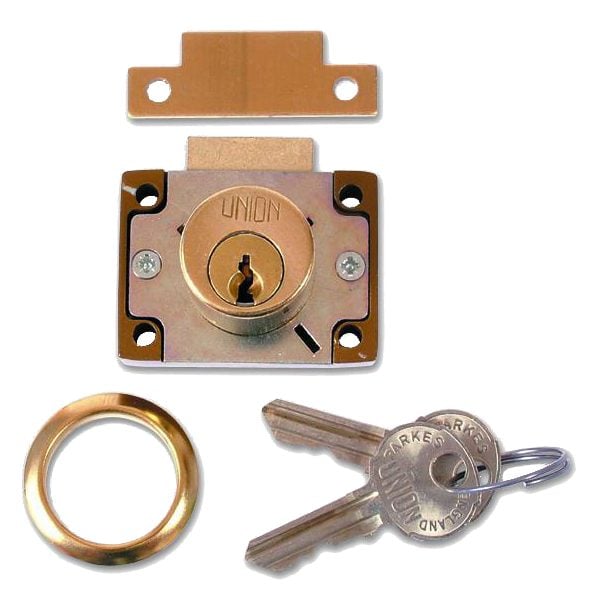

This springbolt lock automatically engages when the cupboard door or drawer is closed, providing convenient, self-locking security. The bolt is then easily withdrawn using one of the two supplied keys. It is designed to suit wooden materials with a maximum thickness of 12.5mm and comes complete with a cylinder rose, strike plate, and all necessary fixing screws for a straightforward installation.
This lock is available in different keying options (including Keyed Alike and Keyed To Differ), weights, and barcodes. Please select your preferred options from the choices below to find the perfect fit for your security needs.

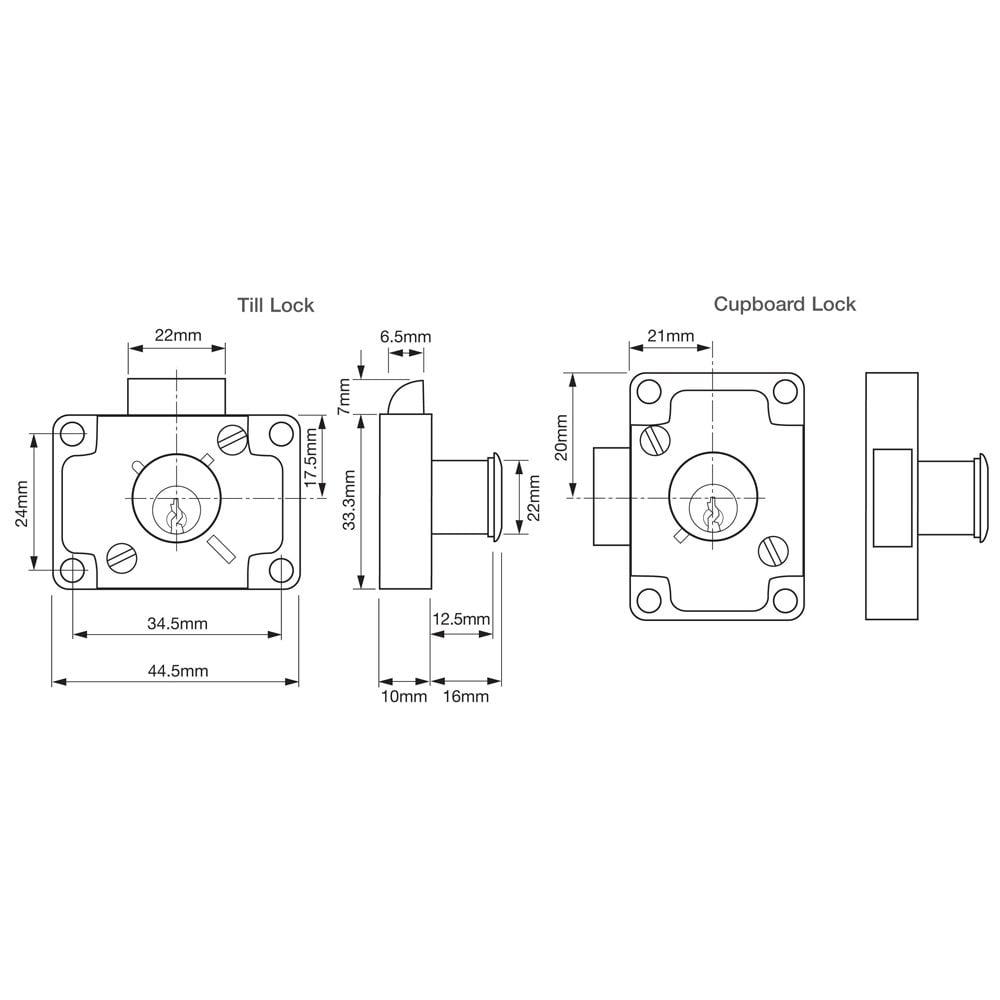

Technical Specifications
- Brand: Union
- Manufacturer Reference: 4148
- Case Width: 44.5mm
- Case Height: 33.3mm
- Backset: 17.2mm
- Bolt Throw: 7mm
- Cylinder Projection: 16mm
- Maximum Material Thickness: 12.5mm
- Mechanism: 4 Pin
- Finish: Polished Lacquered Brass
- Keys Supplied: 2
- Guarantee: 3 Year
Key Features
- Rotatable cylinder allows configuration as a till lock, or a left-hand or right-hand cupboard lock
- Springbolt action automatically engages the bolt upon closing
- Suitable for wooden doors, drawers, or tills up to 12.5mm thick
- Supplied complete with cylinder rose, strike plate, and fixing screws
- Available in Keyed Alike and Keyed To Differ options to suit your security setup
