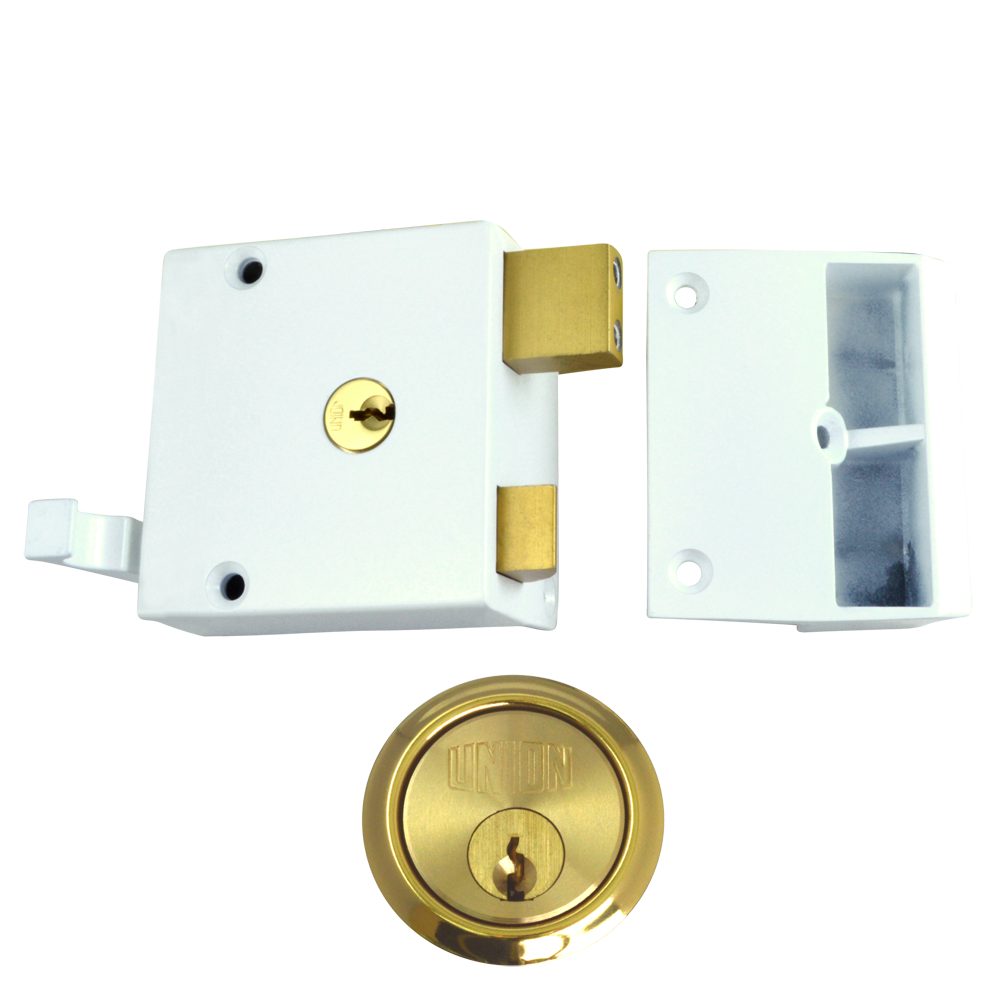

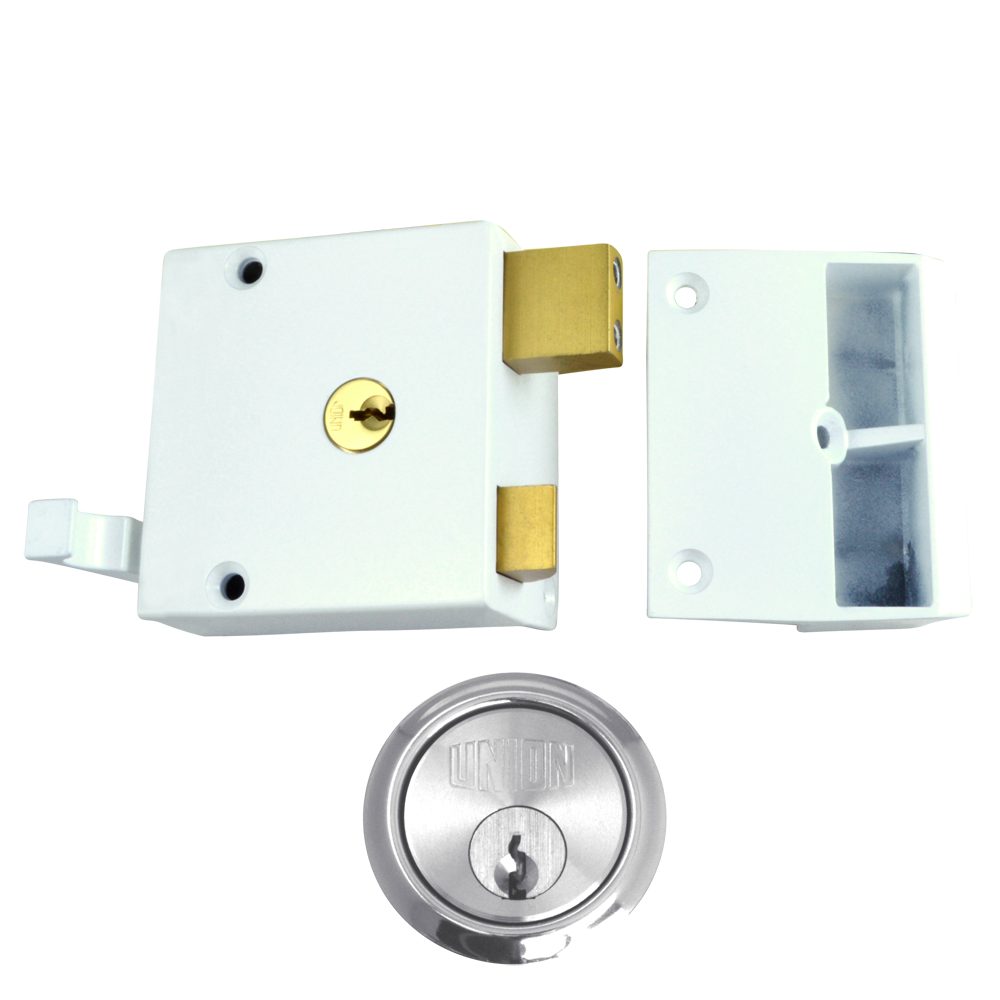

UNION 1332 & 1334 Drawback Rimlock

The UNION 1332 & 1334 Drawback Rimlock is a highly reliable, UK-manufactured drawback nightlatch designed to provide dual-function security for inward-opening timber doors. Combining a standard latchbolt with a heavy-duty double-throw deadbolt, this lock is particularly suited for glass-panelled doors. If an intruder breaks the glass, they cannot simply reach inside and bypass the lock, as the deadbolt can be locked or unlocked by key from either side.

The latchbolt is easily operated by the internal pull handle or an external key, and it features an integrated hold-back (snib) function to keep the latch retracted when required. The double-throw deadbolt provides a substantial 20mm throw for enhanced physical protection.

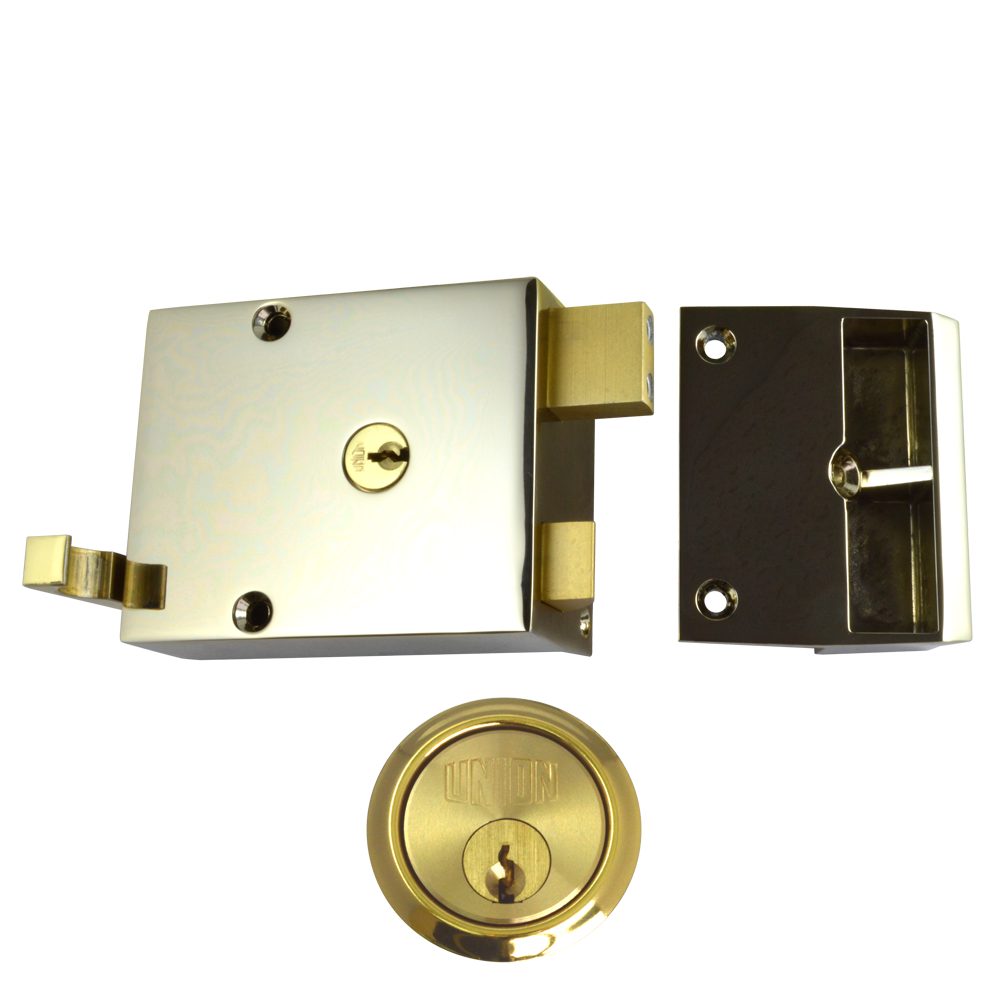

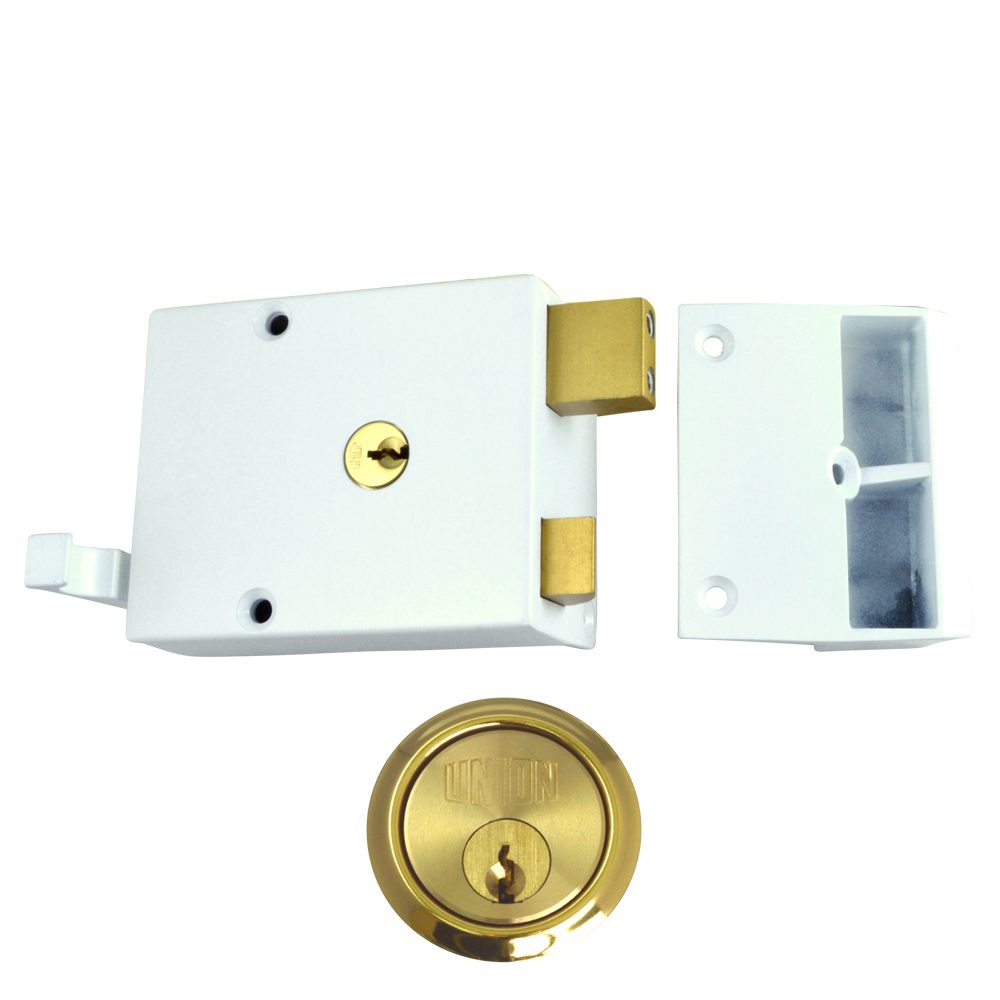

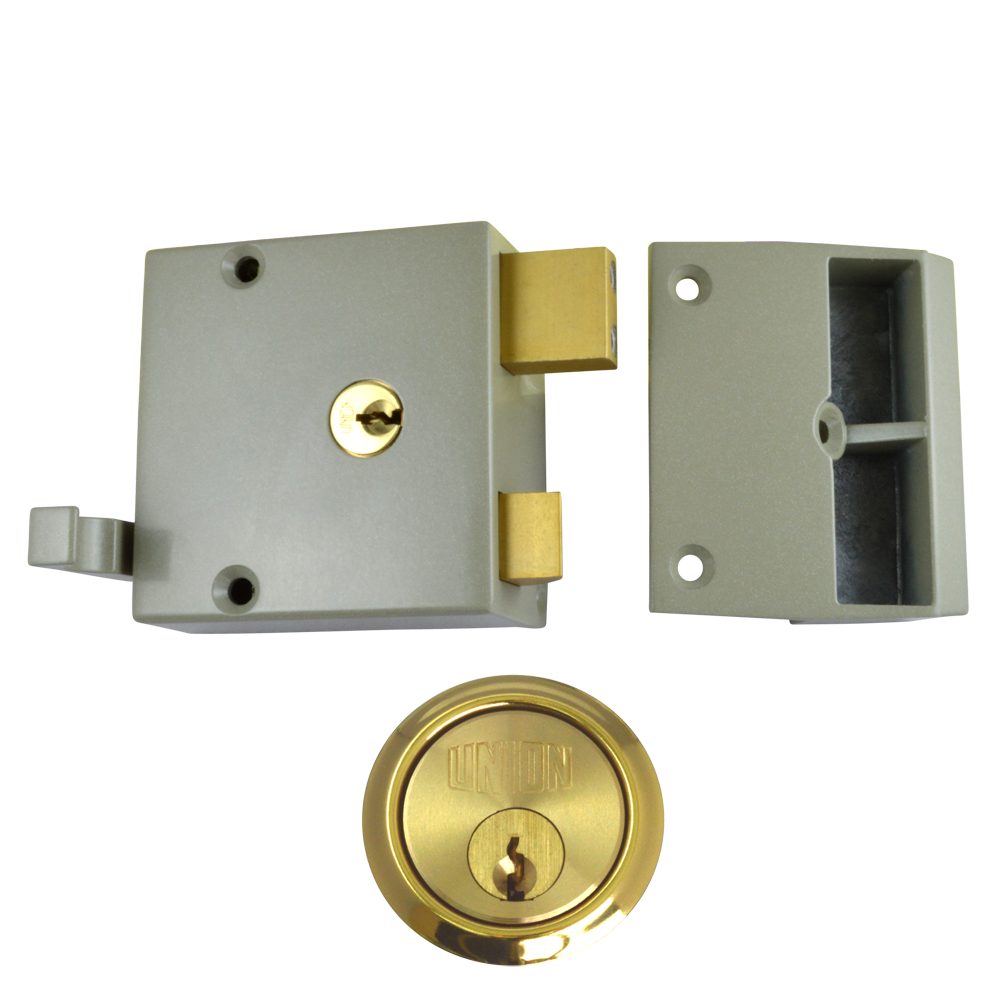

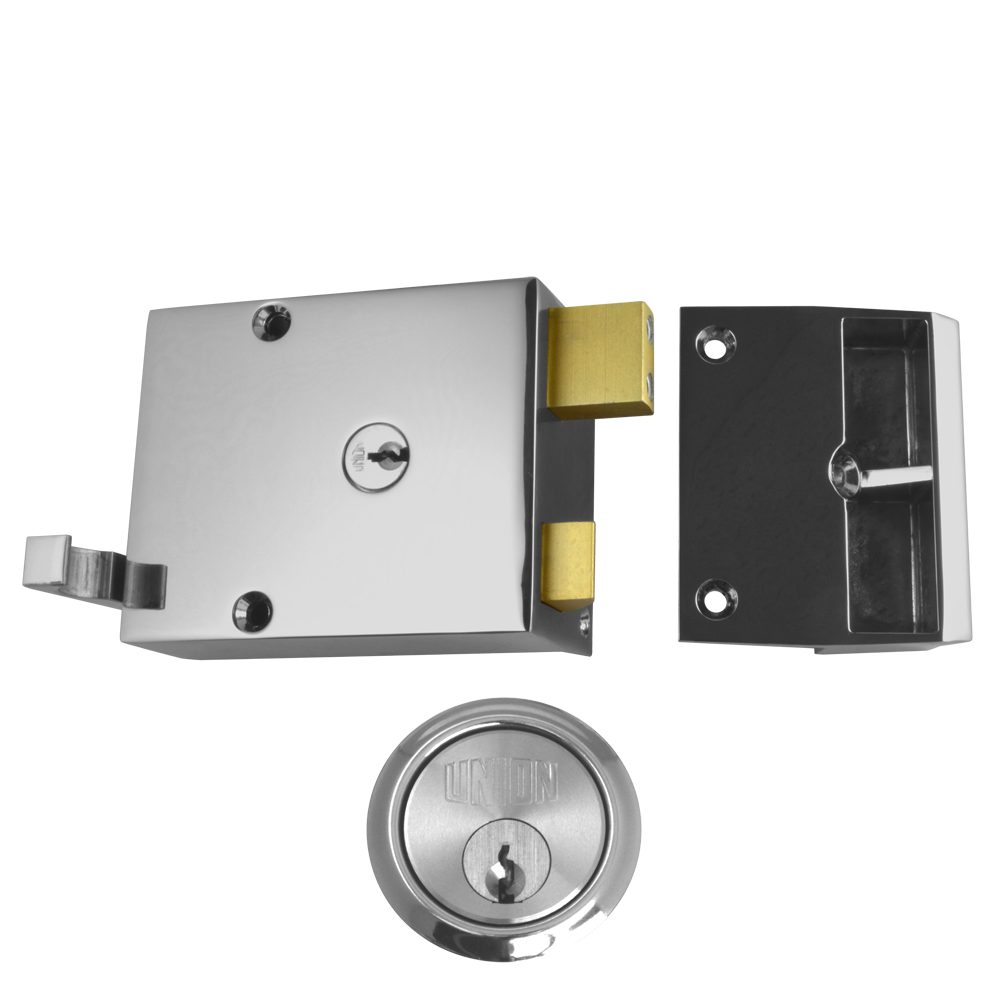

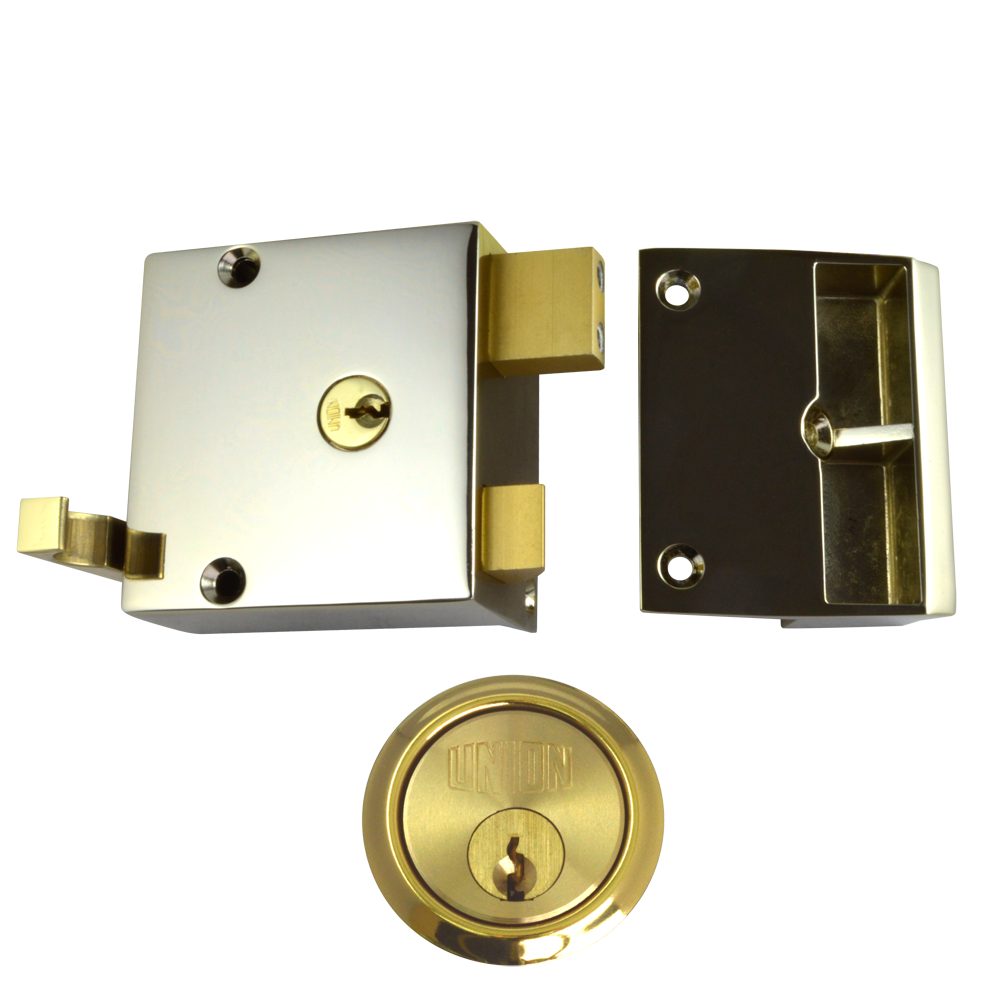

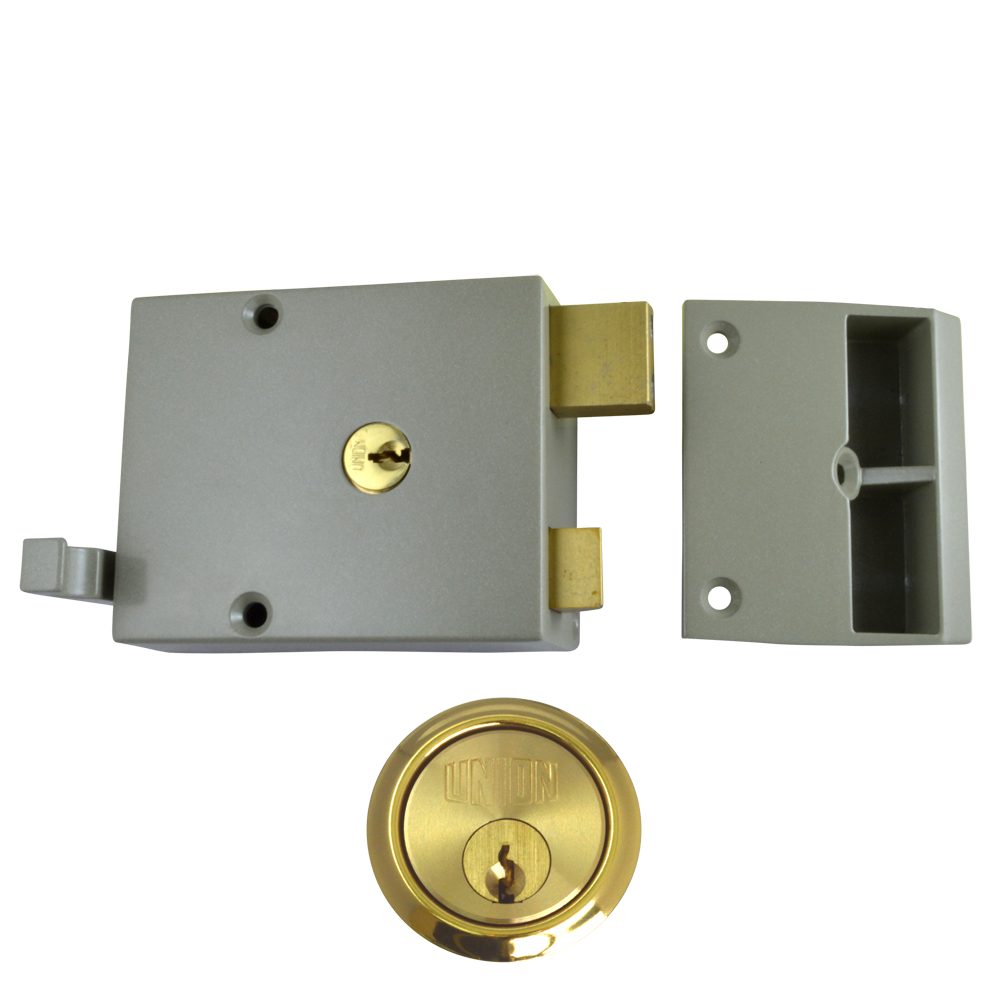

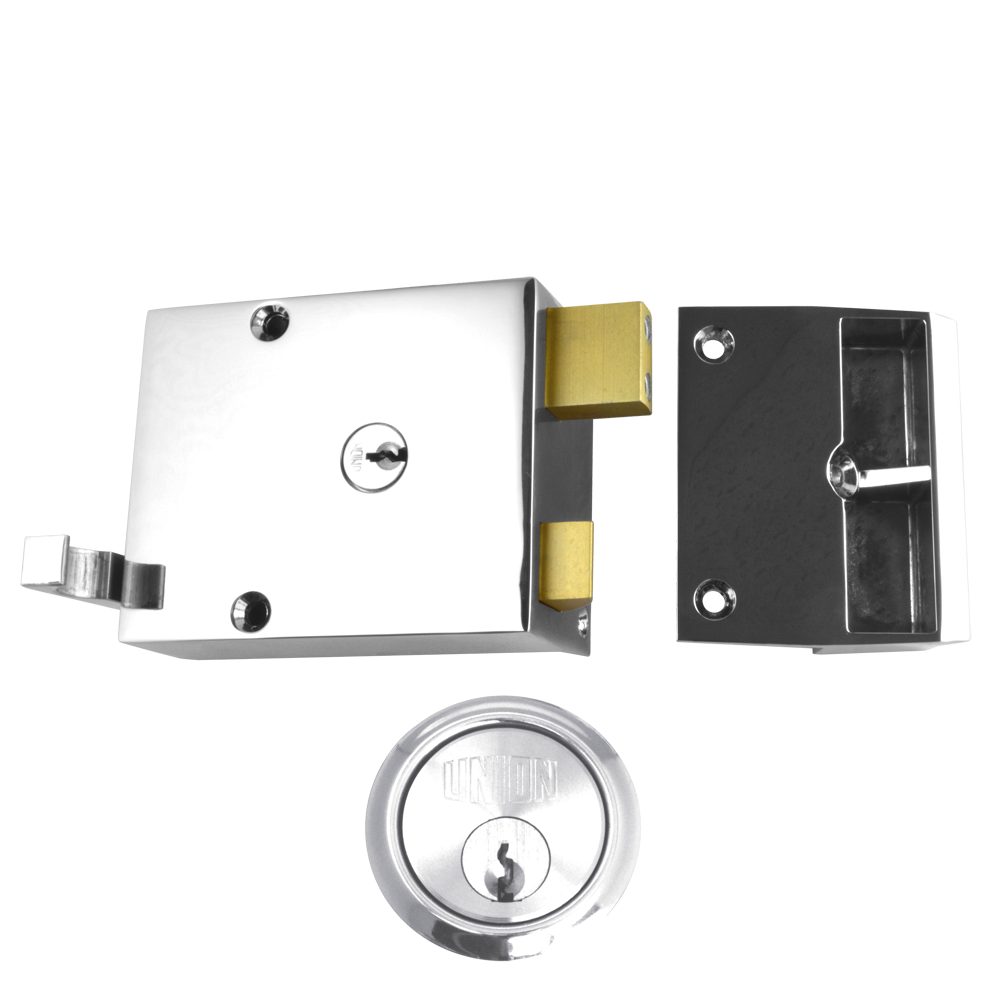

This versatile rimlock is available in a range of configurations. You can choose from 50mm or 60mm backsets, and case finishes including Champagne Gold, Chrome Plated, Electro Brass, and White. Cylinder finishes are also available in Chrome Plated, Polished Lacquered Brass, or Satin Chrome. Please select your preferred backset, case finish, cylinder finish, and packaging options from the selections below.

Technical Specifications

• Backset: 50mm or 60mm (please choose from the options below)
• Door Thickness: Suitable for timber doors 35mm to 60mm thick
• Bolt Throw: 20mm (double throw)
• Cylinder System: Union 5-pin rim cylinder
• Keys Supplied: 3 keys

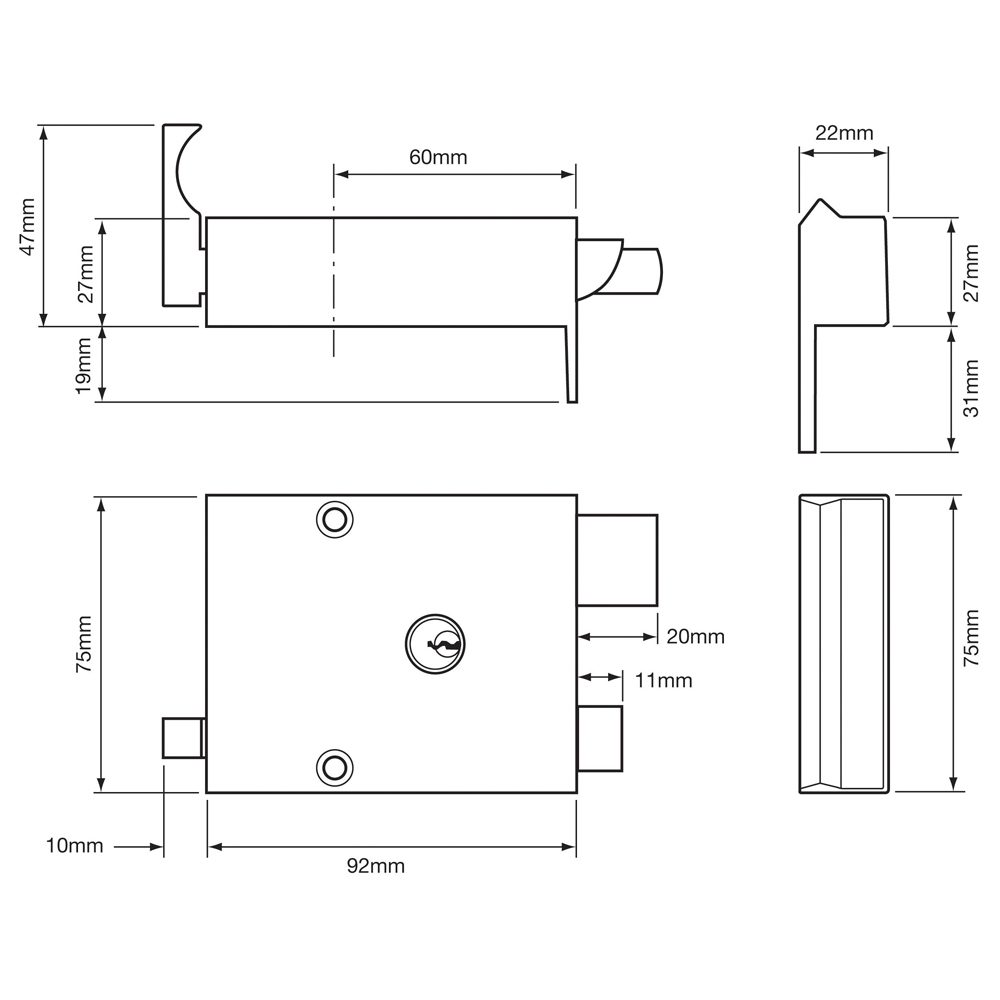

• Case Dimensions: 75mm or 76mm height, 73mm or 92mm width (please choose from the options below)
• Case Finishes: Champagne Gold, Chrome Plated, Electro Brass, or White (please choose from the options below)
• Cylinder Finishes: Chrome Plated, Polished Lacquered Brass, or Satin Chrome (please choose from the options below)
• Handing: Suitable for left or right-hinged doors opening inwards

Key Features

• Double-Throw Deadbolt: Can be locked or unlocked by key from either side for enhanced security.
• Glass Panel Door Security: Ideal for glass-panelled doors to prevent unauthorised access via the internal handle if glass is broken.
• Dual Functionality: Operates as a standard nightlatch with a pull handle, but converts to a secure deadlock with a turn of the key.
• Hold-Back Feature: Integrated snib allows the latchbolt to be held in the withdrawn position.
• UK Manufactured: High-quality construction backed by a 10-year manufacturer's guarantee.
