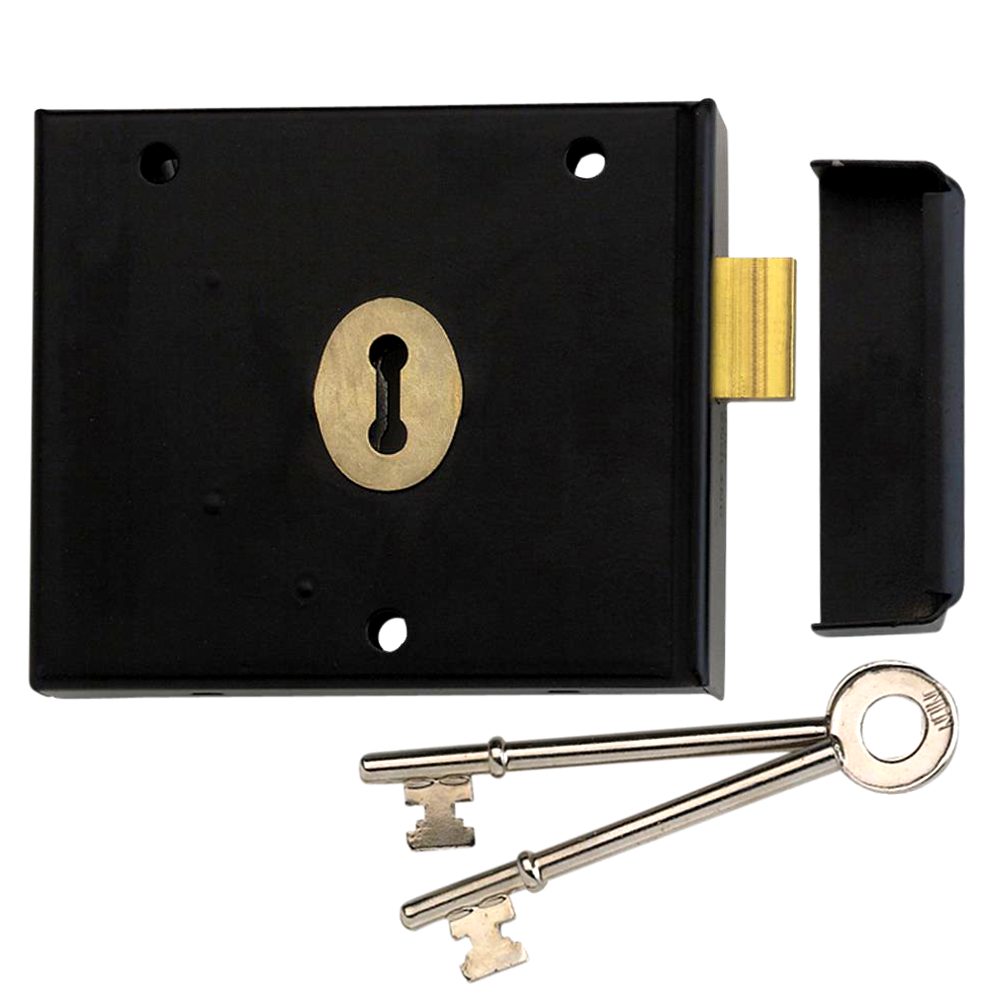

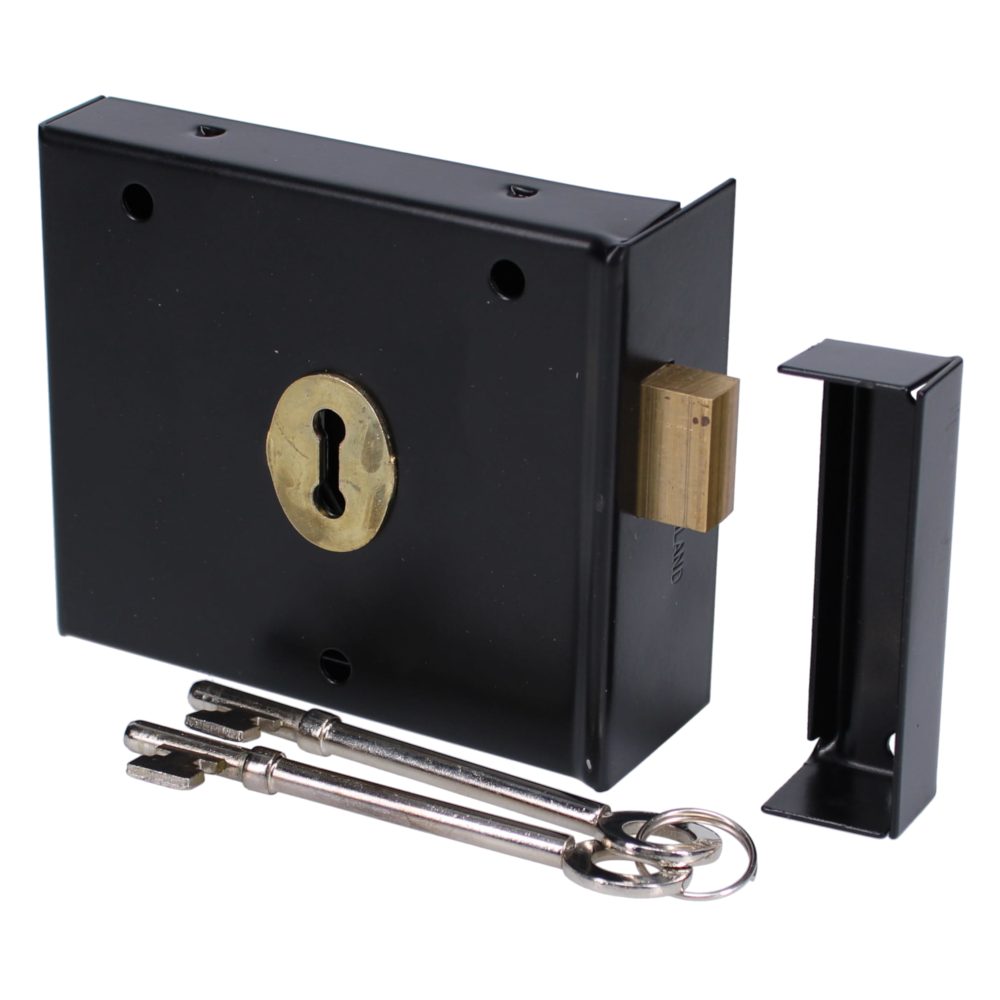

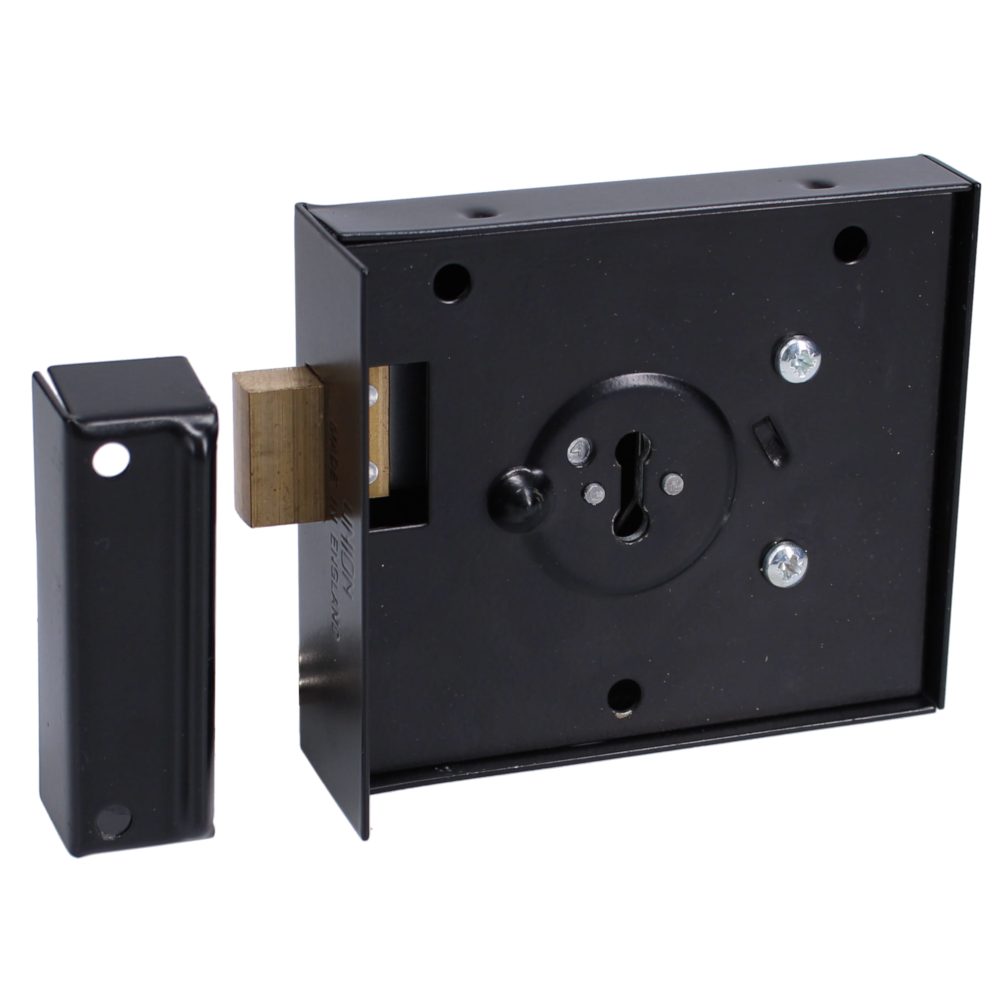

UNION 1116 1 Lever Rim Deadlock

The UNION 1116 1 Lever Rim Deadlock is a classic, UK-manufactured rim lock designed to secure inward-opening timber doors up to 50mm thick. Featuring a robust steel case with a durable black finish and a solid brass deadbolt, this lock offers reliable performance for both residential and light commercial applications.

Its fully reversible design means it can be easily installed on doors hinged on either the left or right side. The deadbolt is operated by key from either side of the door, providing straightforward security. Each lock is supplied complete with two nickel-plated steel keys.

This rim deadlock is available in multiple configurations, including Keyed Alike (KA) and Keyed To Differ (KD) options, with corresponding manufacturer references and barcodes. Please select your preferred keying option and specifications from the options below.

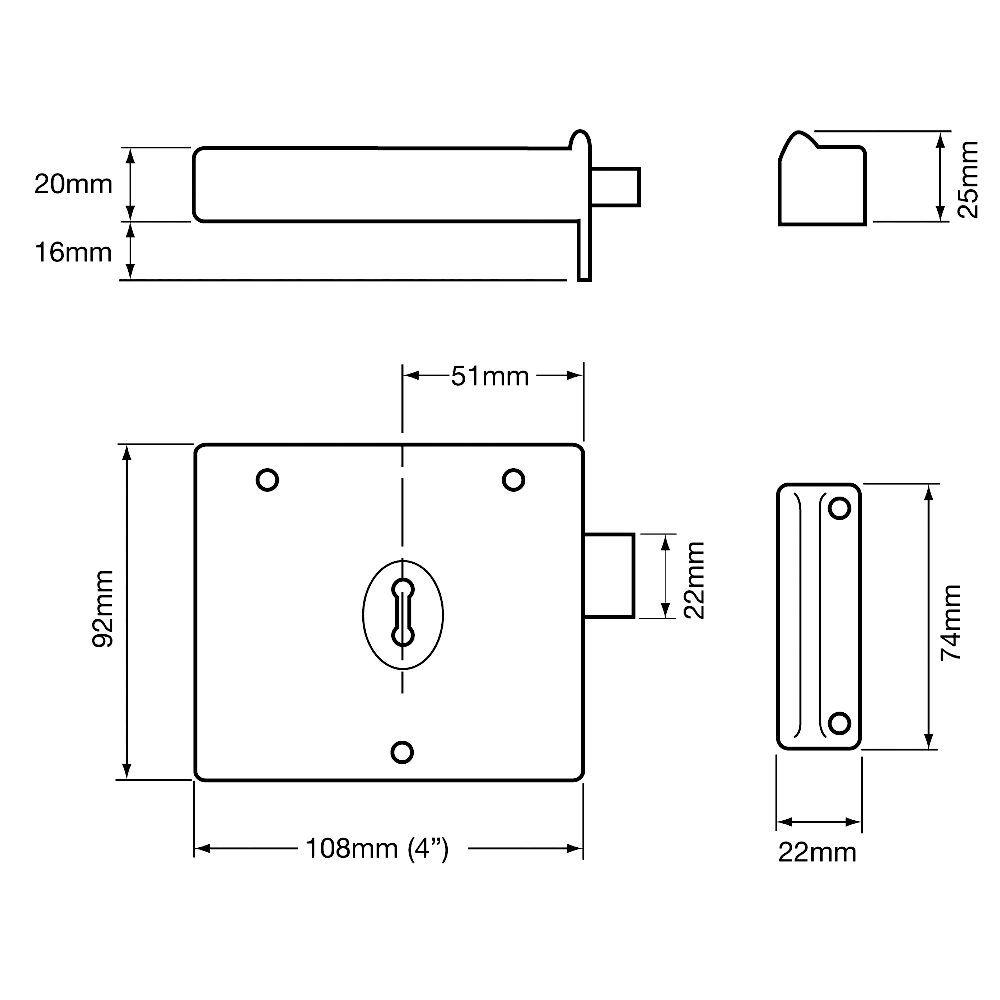

Technical Specifications

• Backset: 51mm
• Case Depth: 108mm
• Case Height: 92mm
• Case Width: 20mm
• Case Finish: Black
• Mechanism: 1 Lever
• Keys Supplied: 2
• Handing: Reversible
• Door Compatibility: Inward-opening timber doors up to 50mm thick
• Keying Options: Keyed Alike or Keyed To Differ (please choose from the options below)
• Manufacturer Reference: 1116 or J1116-BJ-4.00 (please choose from the options below)
• Barcode: 5011802003798 or 5055120772837 (please choose from the options below)

Key Features

• Proudly manufactured in the UK for trusted quality
• Reversible design fits both left and right-hand hung doors
• Operated by key from either side of the door
• Durable steel case and keep with a black finish
• Solid brass deadbolt for dependable locking
• Supported by a 5-year manufacturer's guarantee
