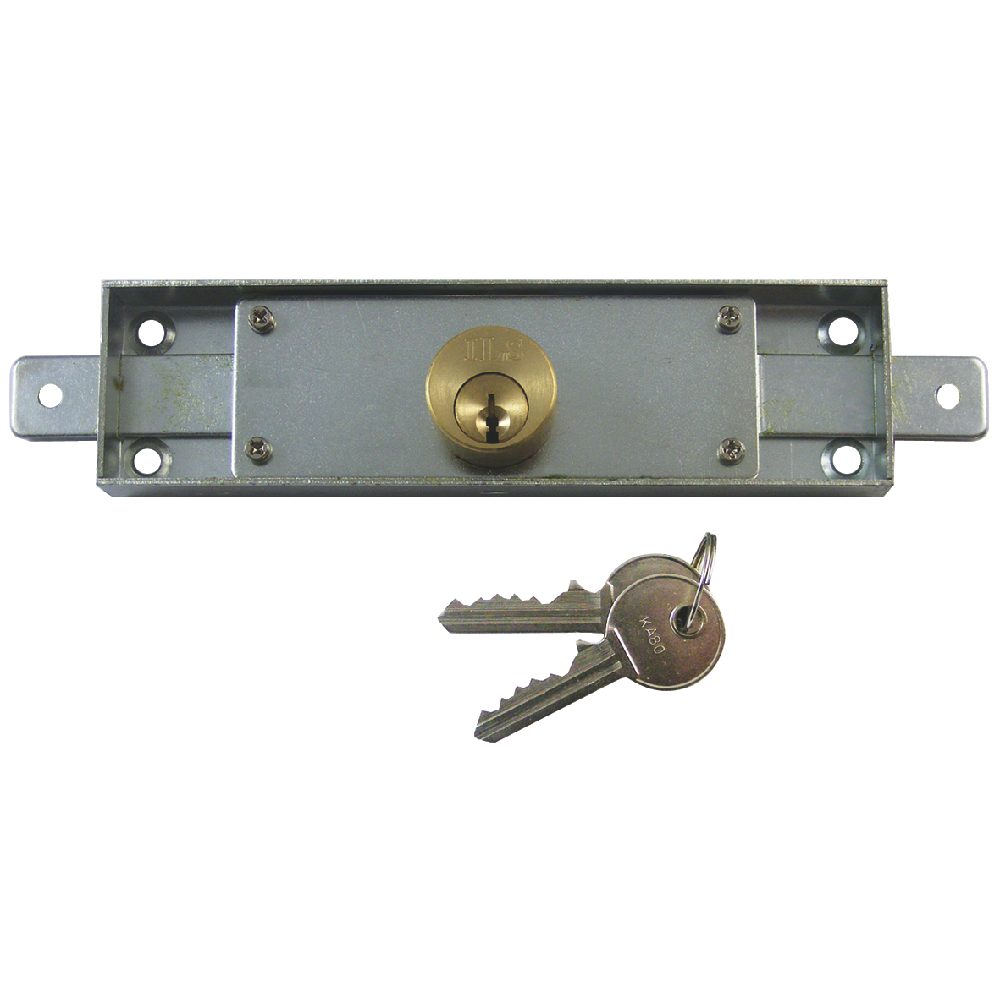

Tessi 6430 Narrow Central Shutter Lock

The Tessi 6430 Narrow Central Shutter Lock is designed for installation in the centre of manual roller shutters and gates. Featuring a narrow-profile design, it is ideal for slim-line shutter slats.

When operated, both side arms extend to link with the shutter's locking bars, securing the shutter into both sides of the frame for enhanced security. The lock case is mounted on the inside of the door, with the brass cylinder protruding through to allow key access. It is supplied with two keys and is keyed to differ as standard.

Technical Specifications

• Brand: Tessi
• Model: 6430

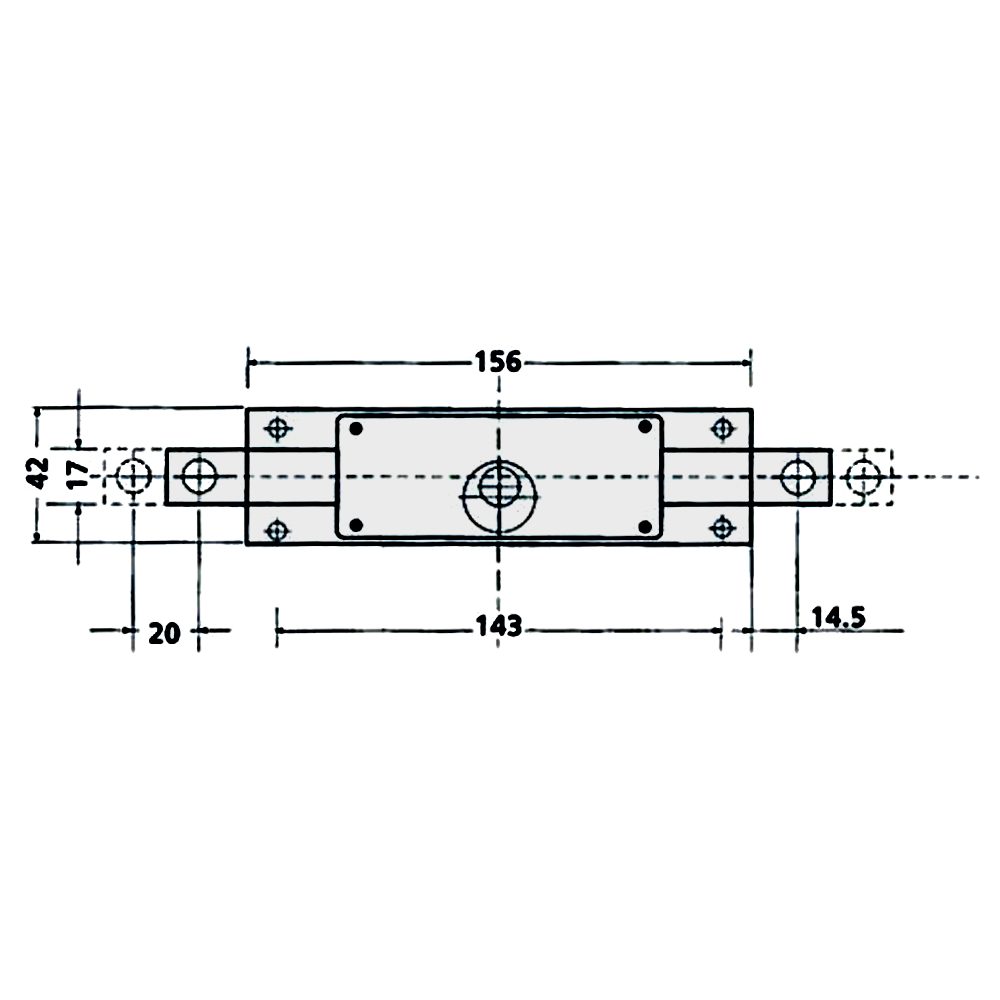

• Case Dimensions: 156mm x 42mm
• Case Depth: 15mm
• Bolt Throw: 19mm
• Cylinder Finish: Polished Brass
• Cylinder Projection: 15mm
• Keying: Keyed to differ
• Keys Supplied: 2

Key Features

• Narrow Profile: Ideal for installation on slim-line shutter slats and gates.
• Dual-Action Locking: Both side arms extend to secure the shutter into both sides of the frame.
• Central Installation: Designed to be mounted in the centre of the door for balanced security.
• Brass Cylinder: Features a polished brass cylinder finish for a clean look.
• Complete with Keys: Supplied with 2 keys as standard.
