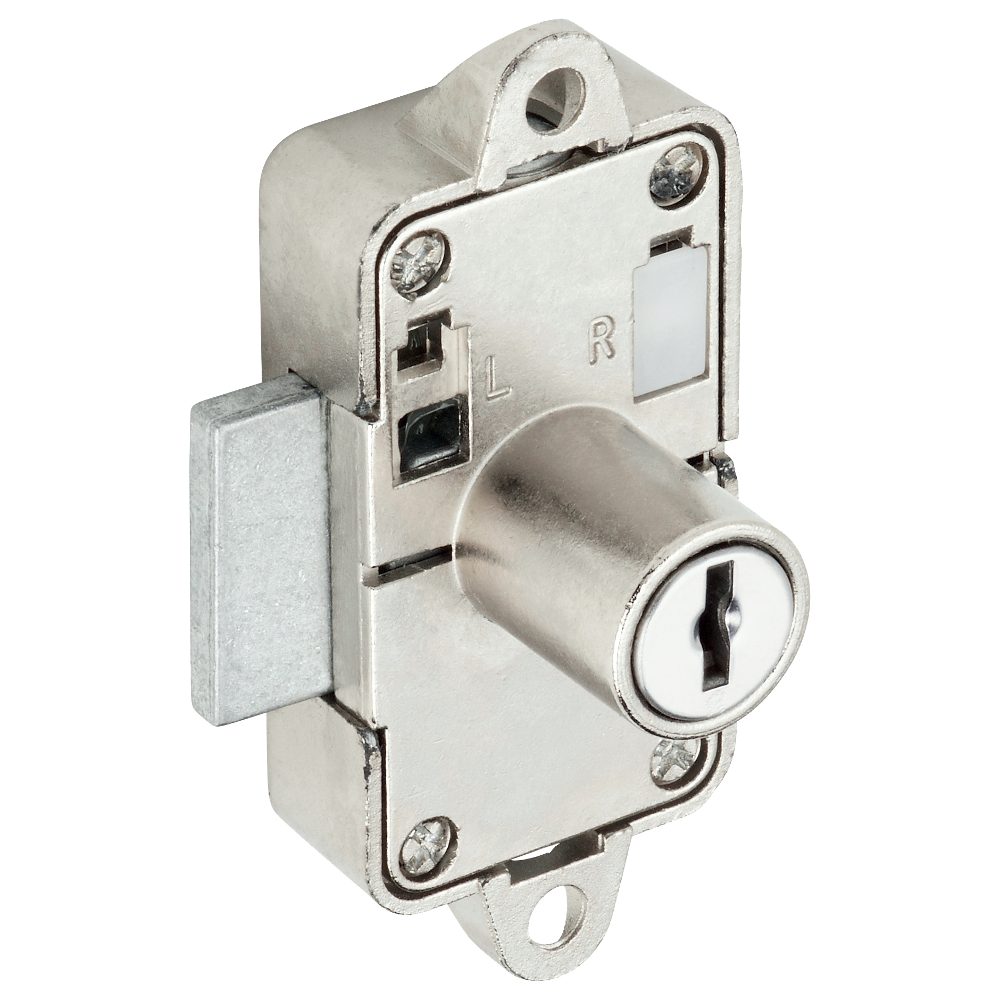

RONIS 32900 Flange Fix Drawer Furniture Lock

The RONIS 32900 Flange Fix Drawer Furniture Lock is a robust and reliable locking solution designed to secure wooden drawers up to 19mm thick. Featuring a round face and a bright nickel finish, this lock is ideal for office, educational, retail, and domestic storage applications. It is supplied under the SM Master Key Series, offering up to 200 different key combinations.

Constructed from high-quality Zamak, this lock features a flange fix design with two screw fixing holes (64mm centres) to ensure a secure and stable installation. It is designed with a removable barrel, allowing the lock barrel to be easily replaced or re-keyed without needing to replace the entire lock body. The key operates with a 90-degree clockwise rotation to unlock, and for added convenience, the key can be removed in both the locked and unlocked positions.

Technical Specifications

• Brand: Ronis
• Manufacturer Reference: 32900-9-D04-L3-SM
• Finish: Bright Nickel
• Material: Zamak

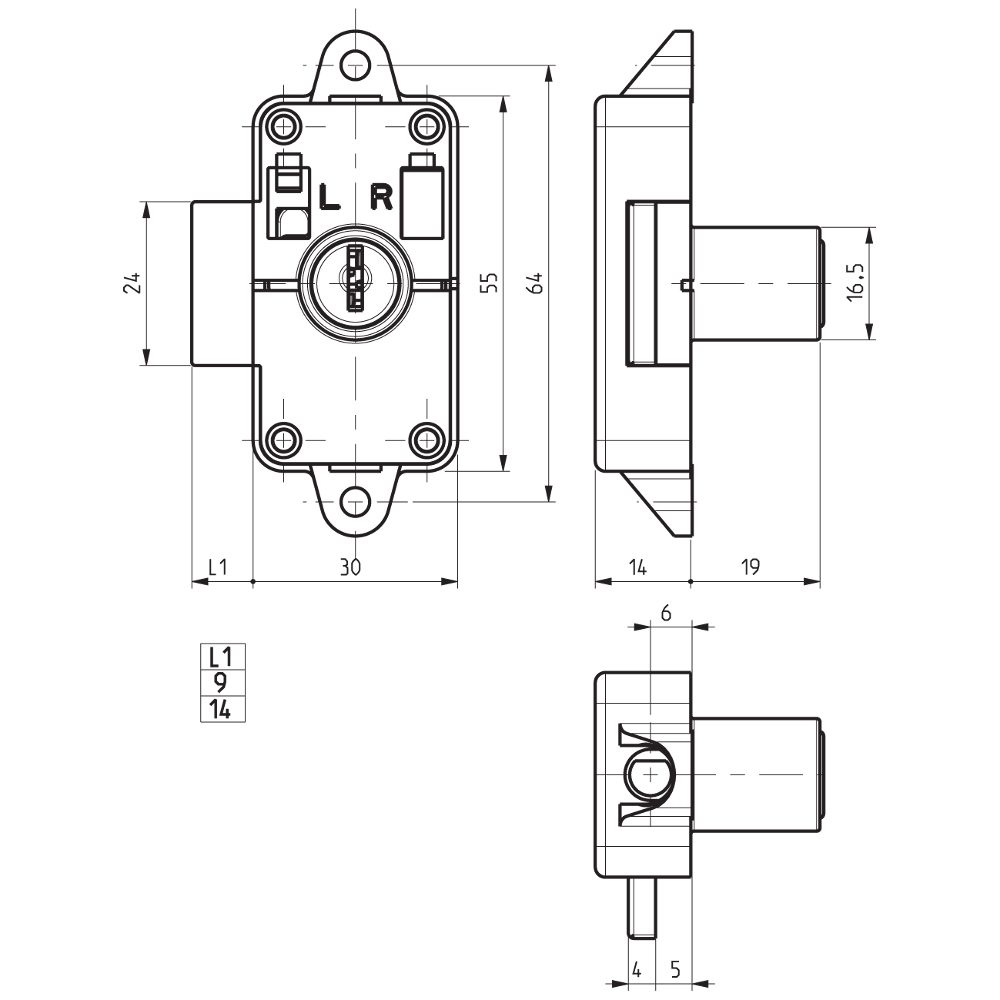

• Body Width: 30mm
• Body Height: 55mm
• Body Depth: 14mm
• Nozzle/Body Diameter: 16.5mm
• Screw Centres: 64mm
• Bolt Throw: 9mm
• Key Series: SM Series (up to 200 differs)
• Keys Supplied: 2
• Lock Fixing: Screw (2-hole flange)
• Key Rotation: 90° clockwise
• Key Removal: Locked and unlocked positions

Key Features

• Removable Barrel: Offers maximum flexibility by allowing the lock barrel to be replaced or master-keyed without changing the lock body.
• Secure Flange Fixing: Features two screw location holes with 64mm centres for a stable and secure fit.
• Versatile Operation: Key operates 90° clockwise to unlock and can be removed in both locked and unlocked positions.
• Durable Construction: Made from high-quality Zamak with a bright nickel finish for long-lasting performance.
• Drawer Compatibility: Suitable for use on drawers up to 19mm thick.
