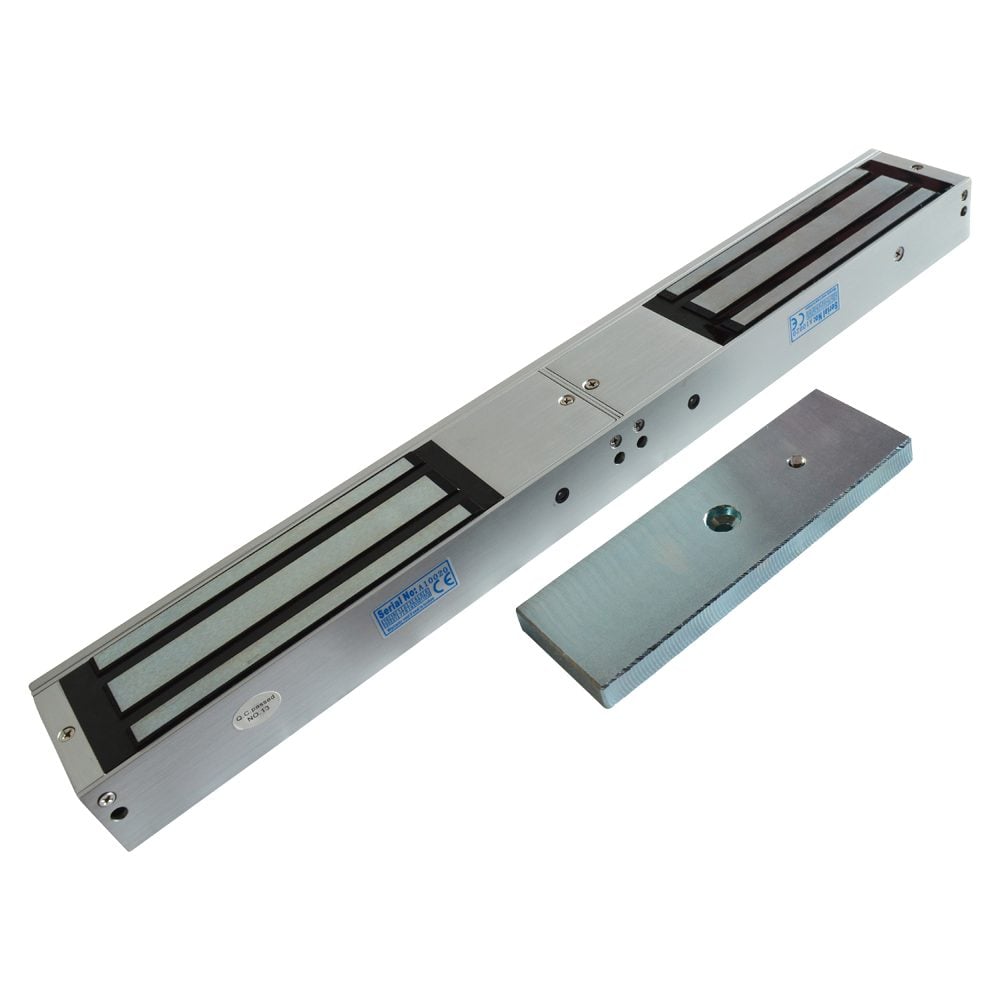

ICS Double Magnet With Door Status

The ICS Double Magnet with Door Status (U10005DS) is a high-quality, surface-mounted double mini magnetic lock designed for outward-opening double doors. Offering a robust holding force of up to 544kg (272kg per door), this fail-safe (fail unlocked) maglock provides reliable security for commercial and residential access control systems.

Constructed with a durable satin anodised aluminium housing, the unit is built to withstand demanding environments, operating efficiently in temperatures ranging from -10°C to 55°C. It features selectable dual-voltage operation (12V or 24V DC) and integrated door status monitoring, allowing security systems to verify whether the doors are physically open or closed.

This complete kit is supplied boxed with the double magnet housing and two armature plates, making it an excellent choice for professional installers seeking a dependable, monitored locking solution.

Technical Specifications

• Manufacturer Reference: U10005DS (L30077)
• Holding Force: 544kg / 1200lbs total (272kg / 600lbs per door)
• Input Voltage: 12V / 24V DC (Selectable)
• Current Consumption: 0.5A @ 12V DC / 0.25A @ 24V DC (per door)
• Operation: Fail-safe (Fail Unlocked)
• Fitting: Surface mounted
• Handing: Outward opening
• Material: Aluminium housing with Satin Anodised Aluminium finish
• Operating Temperature: -10°C to 55°C
• Magnet Dimensions: 500mm (L) x 42.5mm (H) x 25mm (D)
• Armature Plate Dimensions: 185mm (W) x 38mm (H) x 12mm (D)
• Weight: 3.8kg

Key Features

• Integrated Door Status Monitoring: Provides real-time feedback on whether the doors are open or closed.
• Dual Voltage Operation: Selectable 12V or 24V DC input to suit your access control system.
• Fail-Safe Security: Automatically unlocks in the event of a power failure to ensure safe egress.
• High Holding Force: Delivers a reliable 272kg (600lbs) of holding force per door.
• Durable Construction: Housed in robust satin anodised aluminium for long-lasting performance.
• Complete Kit: Supplied boxed with double magnet and armature plates.
