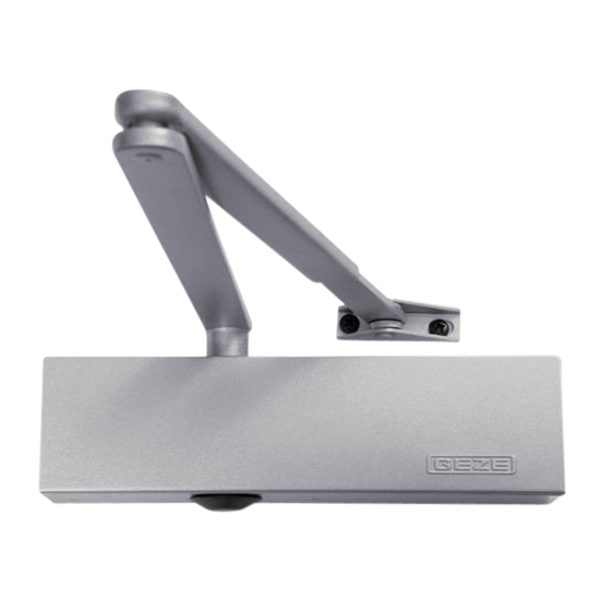

GEZE TS1500 Size 3-4 Overhead Door Closer
Geze
The GEZE TS1500 is a reliable overhead door closer designed for single-leaf internal doors. This surface-mounted, rack-and-pinion closer is fully reversible, making it suitable for both left and right-handed doors without the need for conversion. It is designed for doors with a maximum leaf width of 1100mm and a maximum weight of 60kg.
Featuring a template-adjustable closing force of EN size 3 to 4, the TS1500 allows you to easily set the closing power to suit your door's requirements. It also offers fully adjustable hydraulic closing speed and latch action (end stop) to ensure a smooth, controlled close every time.
This door closer is available in a choice of finishes, including Polished Brass, Satin Stainless Steel, and Silver, with varying manufacturer references, barcodes, and standards (such as BS EN 1154, BS EN 1634-1, CE Marking, and Certifire approval) depending on the model. Please select your preferred finish and options from the list below.
Technical Specifications
- Brand: Geze
- Strength Size: EN 3 to 4 (template adjusted)
- Max Door Width: 1100mm
- Max Door Weight: 60kg

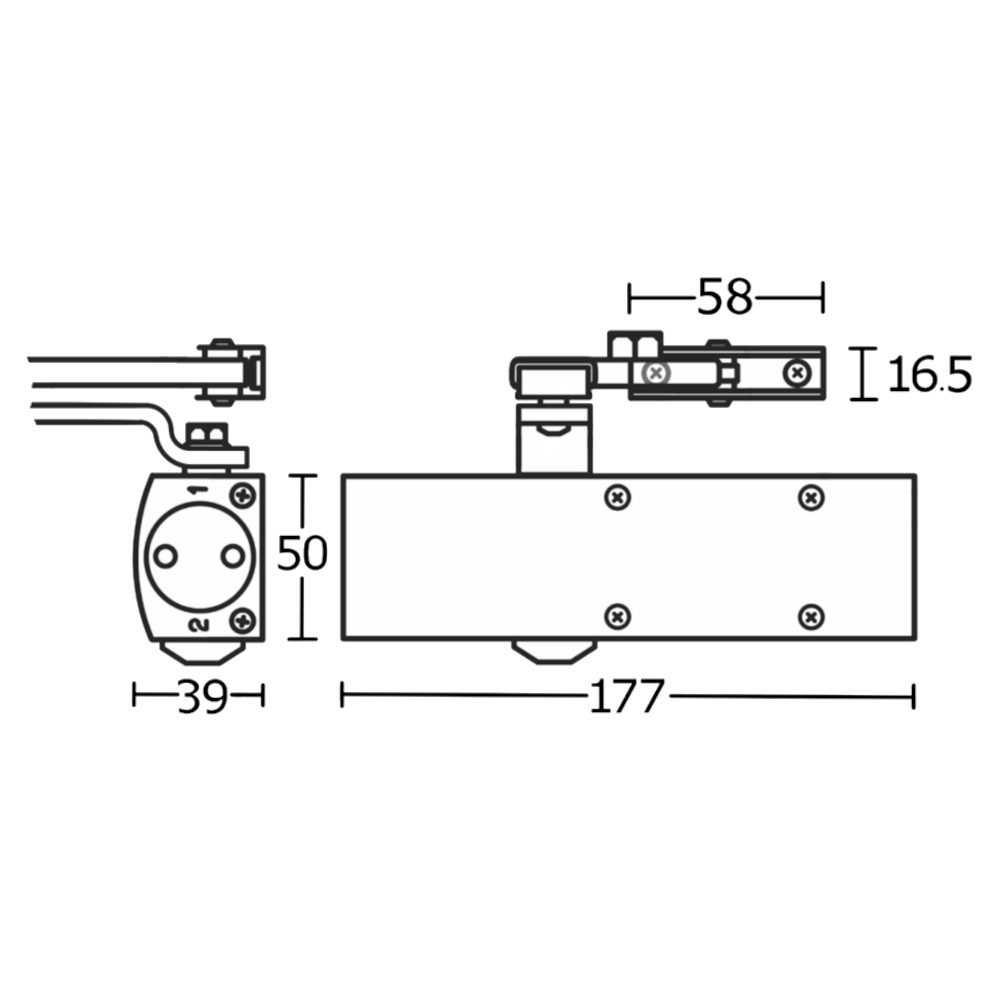

- Dimensions: 177mm (W) x 50mm (H) x 39mm (D)
- Handing: Reversible (suitable for left or right-mounted doors)
- Adjustable Closing Speed: Yes
- Adjustable Latch Action: Yes
- Backcheck: No
- Finishes: Silver, Polished Brass, or Satin Stainless Steel (please choose from the options below)
- Standards: BS EN 1154, BS EN 1634-1, CE Marked, Certifire (varies by variant; please choose from the options below)
- Manufacturer References: 99387, 99388, or 102012 (please choose from the options below)
- Barcodes: 5055120786278, 5056240136547, or 5056240136554 (please choose from the options below)
Key Features
- Reversible Design: Suitable for both left and right-hand single-action internal doors without conversion
- Adjustable Closing Force: Template-adjustable EN size 3 to 4 to suit different door widths
- Controlled Closing: Fully adjustable hydraulic closing speed and latch action (end stop) for smooth operation
- Internal Door Suitability: Ideal for single-leaf internal doors up to 1100mm wide and 60kg in weight
- Premium Finishes: Available in multiple high-quality finishes to match your existing architectural hardware
Master locksmiths with BSI accreditation
MLA approved locksmiths, BSI certified key systems, and independently audited security standards.
| Image | Part No. | Manufacturer Ref | Price | Actions |
|---|---|---|---|---|
|
L27484 | 102012 |
£
91.76
|
|
|
L33942 | 99388 |
£
151.20
|
|
|
L33943 | 99387 |
£
151.20
|
