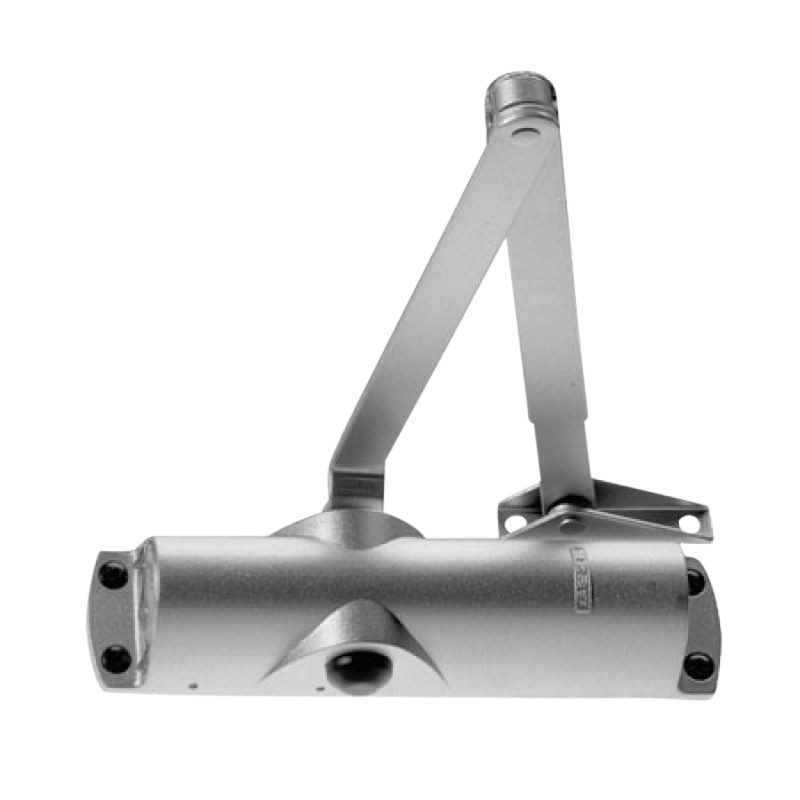

GEZE TS1000C Size 2-3 Overhead Door Closer

The GEZE TS1000C is a versatile overhead link arm door closer designed for single-leaf internal doors. Ideal for both residential and commercial settings, it is fully reversible and can be installed on left- or right-handed doors without any conversion. It is also suitable for use on fire and smoke protection doors.

This door closer offers a variable closing force of EN size 2 or 3, which is easily adjusted by turning the link arm's bearing block. Setting it to EN 2 is ideal for door widths up to 850mm, while EN 3 supports doors up to 950mm wide with a maximum door weight of 60kg.

The TS1000C features fully adjustable closing speed and hydraulic latching action, allowing you to fine-tune the door's closing cycle to suit your specific environment. This ensures a smooth, controlled close and reliable latching every time.

Technical Specifications

• Brand: GEZE
• Model: TS1000C
• Power Size: EN 2 to 3 (adjustable via bearing block)
• Max Door Width: 950mm
• Max Door Weight: 60kg

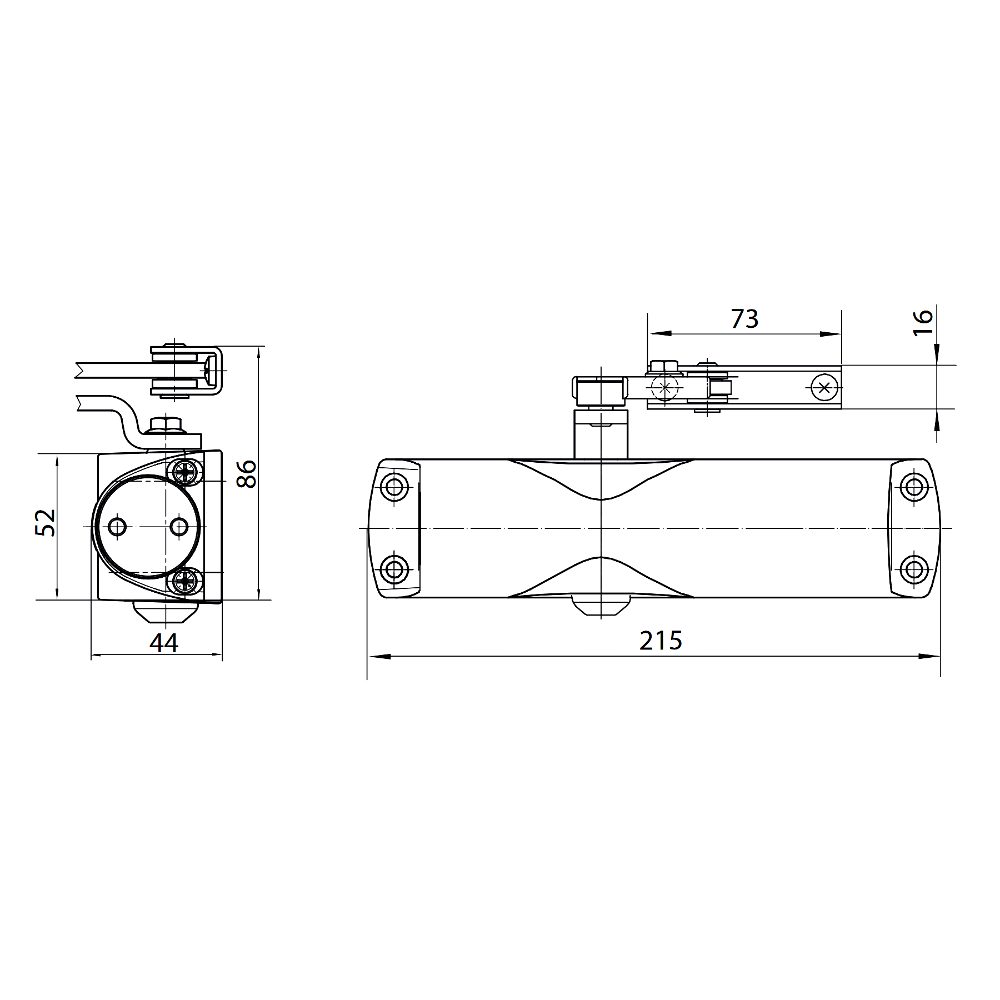

• Body Length: 215mm
• Body Height: 52mm
• Body Depth: 44mm
• Finish: Silver
• Handing: Reversible (non-handed)
• Adjustable Closing Speed: Yes
• Adjustable Latch Action: Yes
• Backcheck: No
• Hold Open: No

Key Features

• Variable Closing Force: Easily switch between EN size 2 and 3 by simply turning the link arm bearing block.
• Fully Adjustable: Features independent adjustments for both closing speed and hydraulic latching action.
• Reversible Design: Suitable for both left- and right-handed single-action internal doors without conversion.
• Fire Door Suitable: Approved for use on fire and smoke protection doors.
• Compact Profile: Sleek silver body with a depth of just 44mm, offering a neat and unobtrusive installation.
