GATEMASTER SBQEKL Bolt On Cylinder Exit Pushpad

Gatemaster More Gatemaster Gate Locks

Price

£269.15

Select size, finish, and quantity from the variant table.

View options

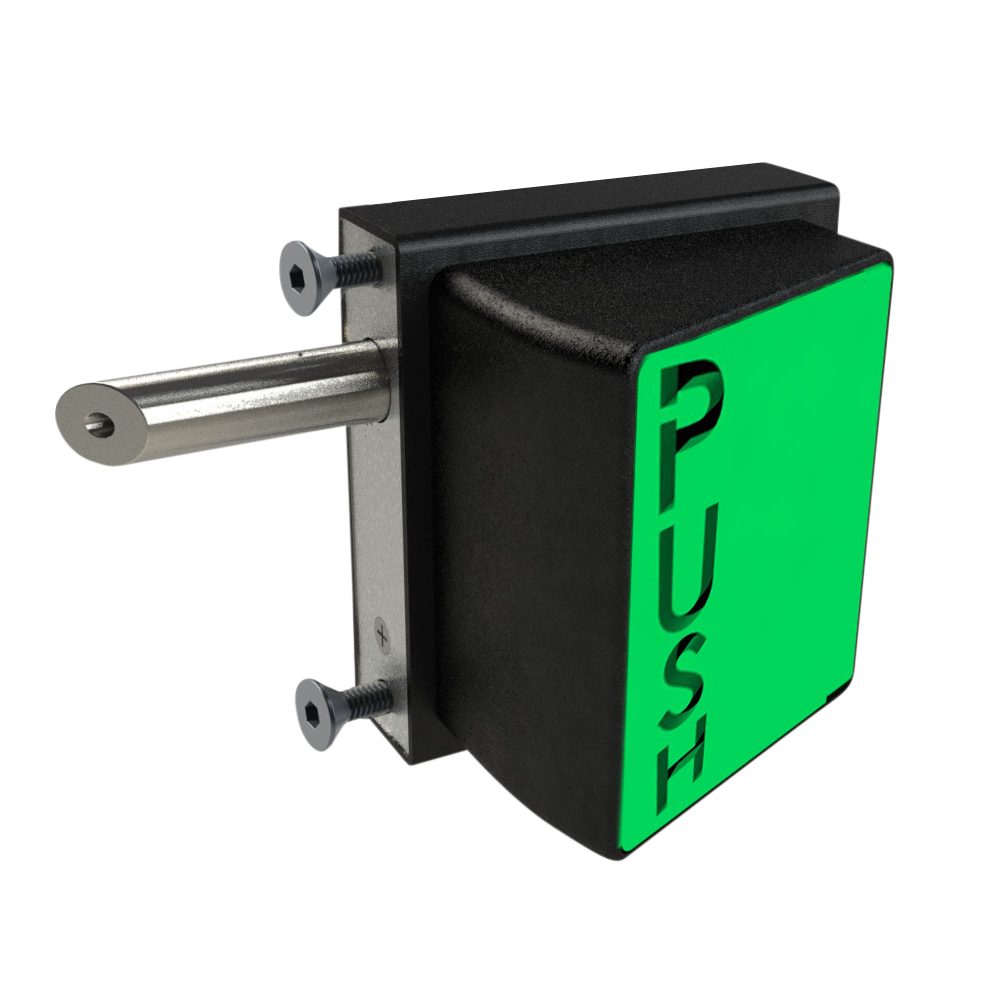

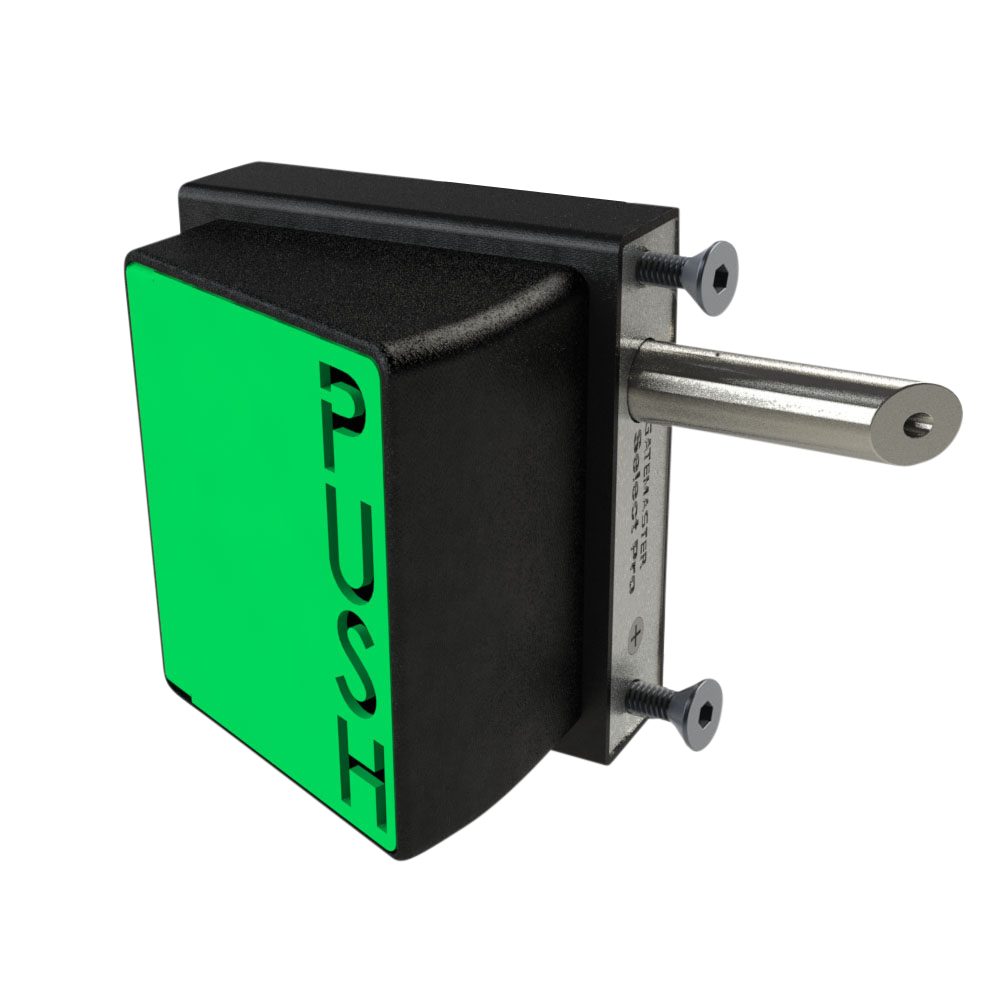

The Gatemaster SBQEKL Bolt On Cylinder Exit Pushpad is a robust, marine-grade gate lock designed to provide quick and secure egress for metal gates. Combining a green pushpad on the inside for rapid exit with a key-operated cylinder on the outside, it is ideal for communal areas, schools, and commercial premises where emergency or quick exit is required.

Built for durability, this lock features a marine-grade construction that is highly weather-resistant. It is designed to be bolted directly onto the gate frame, making installation straightforward without the need for welding. The 16mm stainless steel latchbolt is adjustable in length and springs 22mm into the gate post, ensuring a secure and smooth locking action.

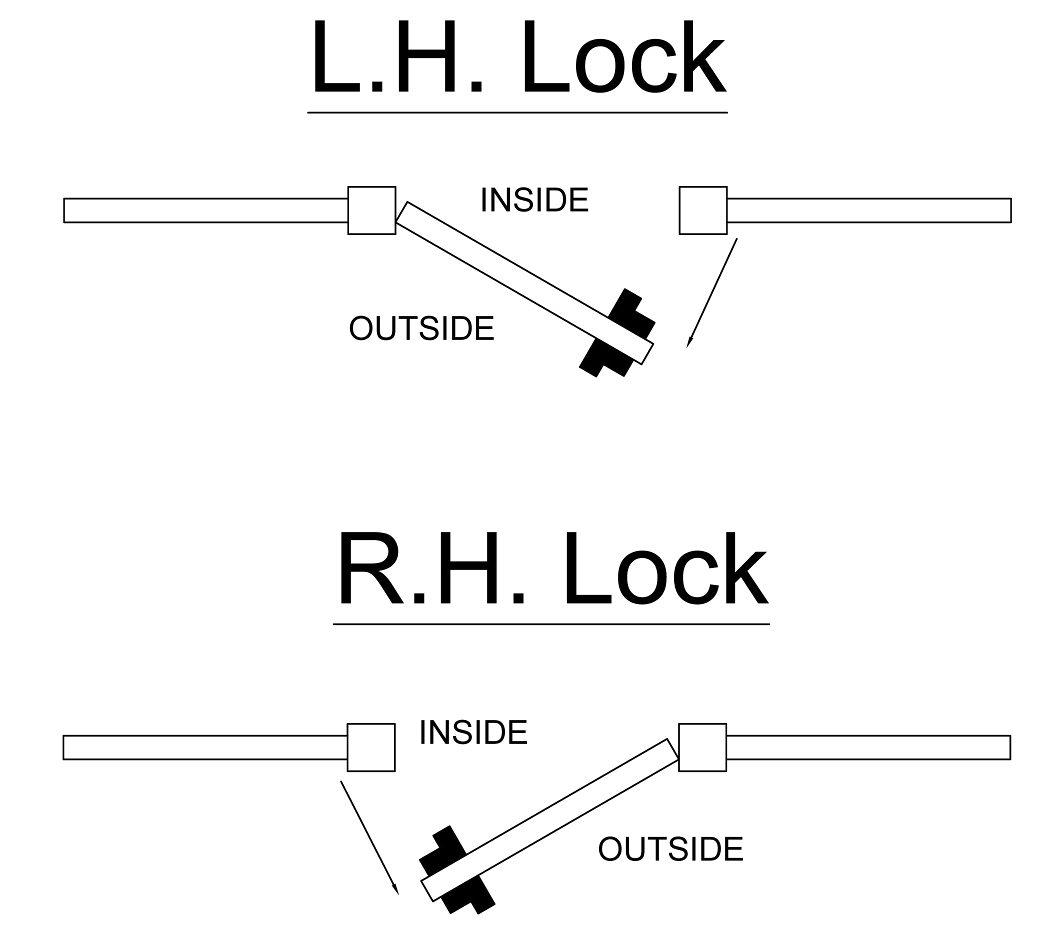

This gate lock is available in multiple configurations to suit your specific installation requirements. It comes in both Left Hand and Right Hand versions, and is designed to fit gate frames measuring either 10mm to 30mm or 40mm to 60mm in thickness. Please select your required handing, gate frame size, and corresponding latchbolt length from the options below to ensure the perfect fit for your gate.

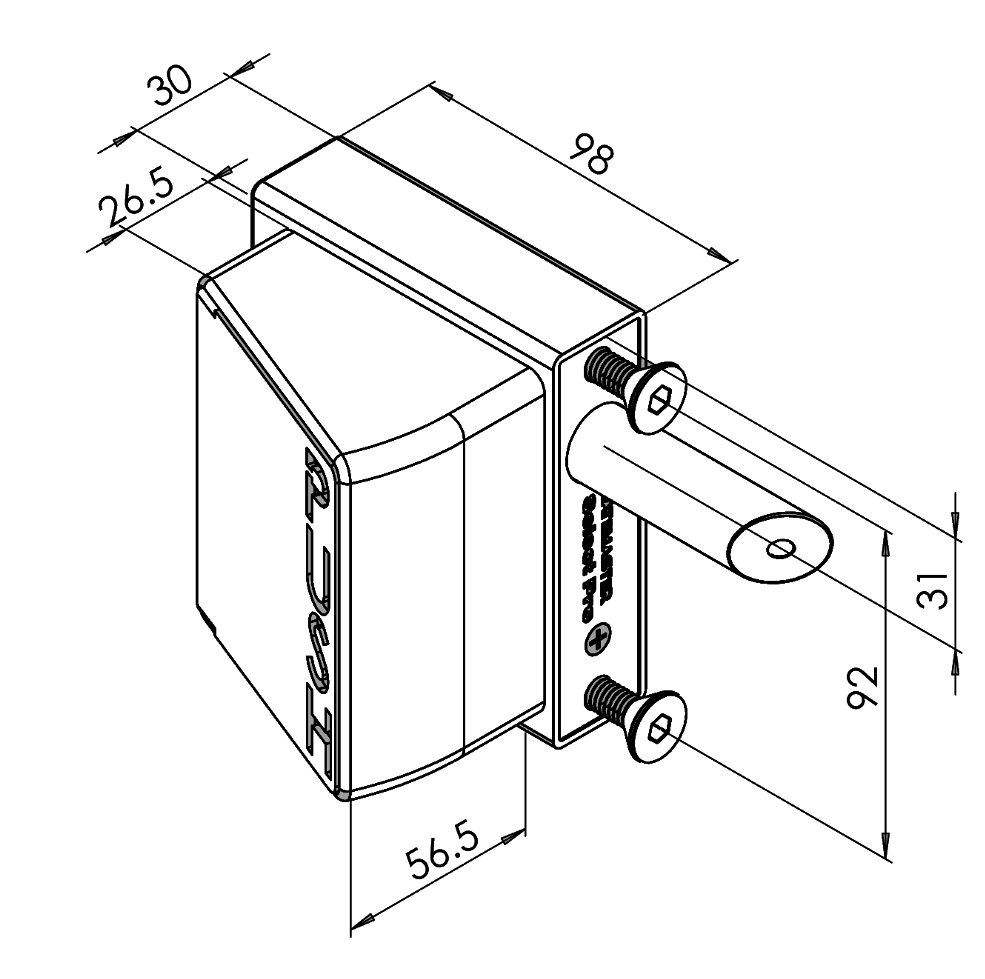

Technical Specifications

Brand: Gatemaster
Finish: Black & Green
Latchbolt: 16mm stainless steel latchbolt (springs 22mm into the gate post)
Gate Frame Size: To suit 10mm to 30mm or 40mm to 60mm frames (please choose from the options below)
Handing: Left Hand or Right Hand (please choose from the options below)
Latchbolt Length: 35mm (15mm in closed position) or 70mm (48mm in closed position) depending on variant
Width: 98mm
Weight: 1.687kg

Key Features

Quick Exit Pushpad: Green pushpad on the inside allows for rapid and easy egress.
Secure Key Entry: Key-operated cylinder on the outside provides secure access control.
Marine Grade & Weather Resistant: Designed to withstand harsh outdoor environments.
Easy Bolt-On Installation: Simple to install with the supplied fixing bolts, requiring no welding.
Adjustable Latchbolt: 16mm stainless steel latchbolt can be adjusted in length for a precise fit.
Complete Kit: Supplied with a bolt support plate, gate post strike plate, and 3 keys.
