GATEMASTER SBQEDGL Bolt On Digital Exit Pushpad

The Gatemaster SBQEDGL Bolt On Digital Exit Pushpad is a robust, marine-grade gate lock designed specifically for metal gates. Combining secure, coded entry with a quick-exit pushpad, it is ideal for communal areas, commercial properties, or residential gates requiring rapid, keyless egress.

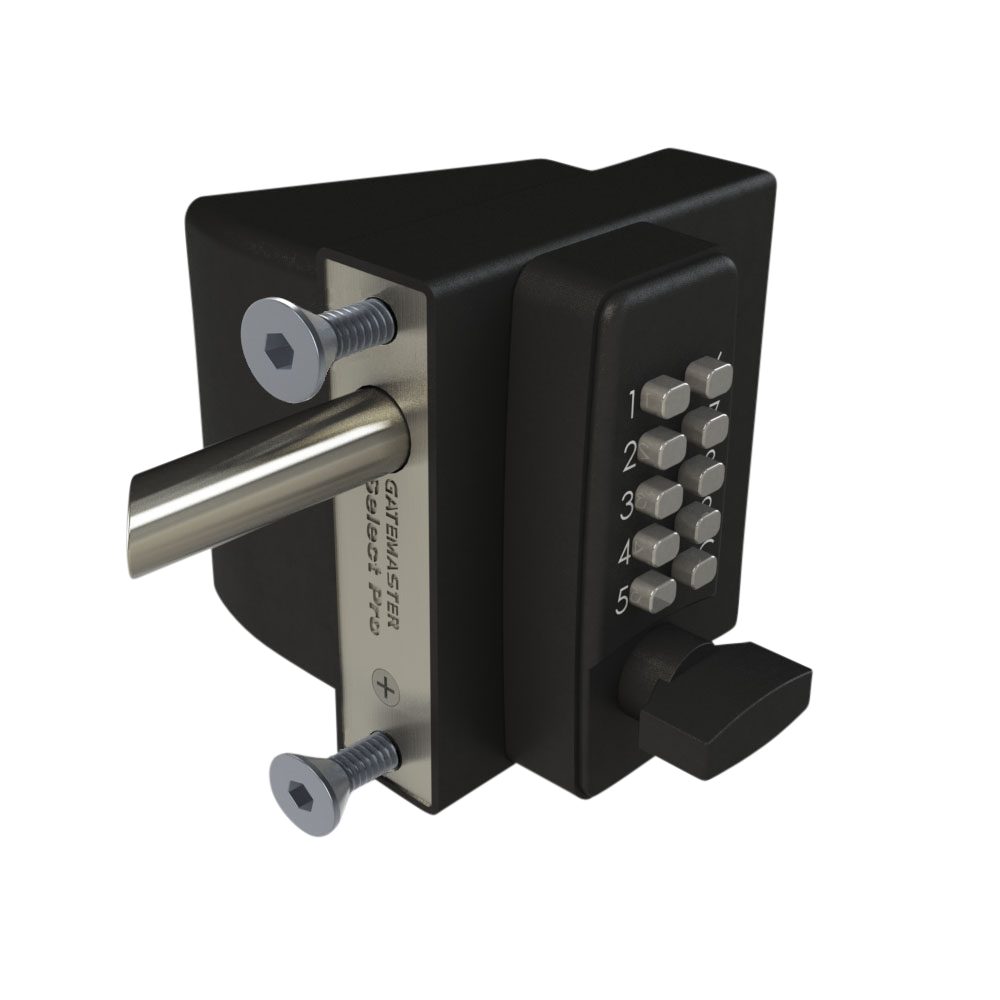

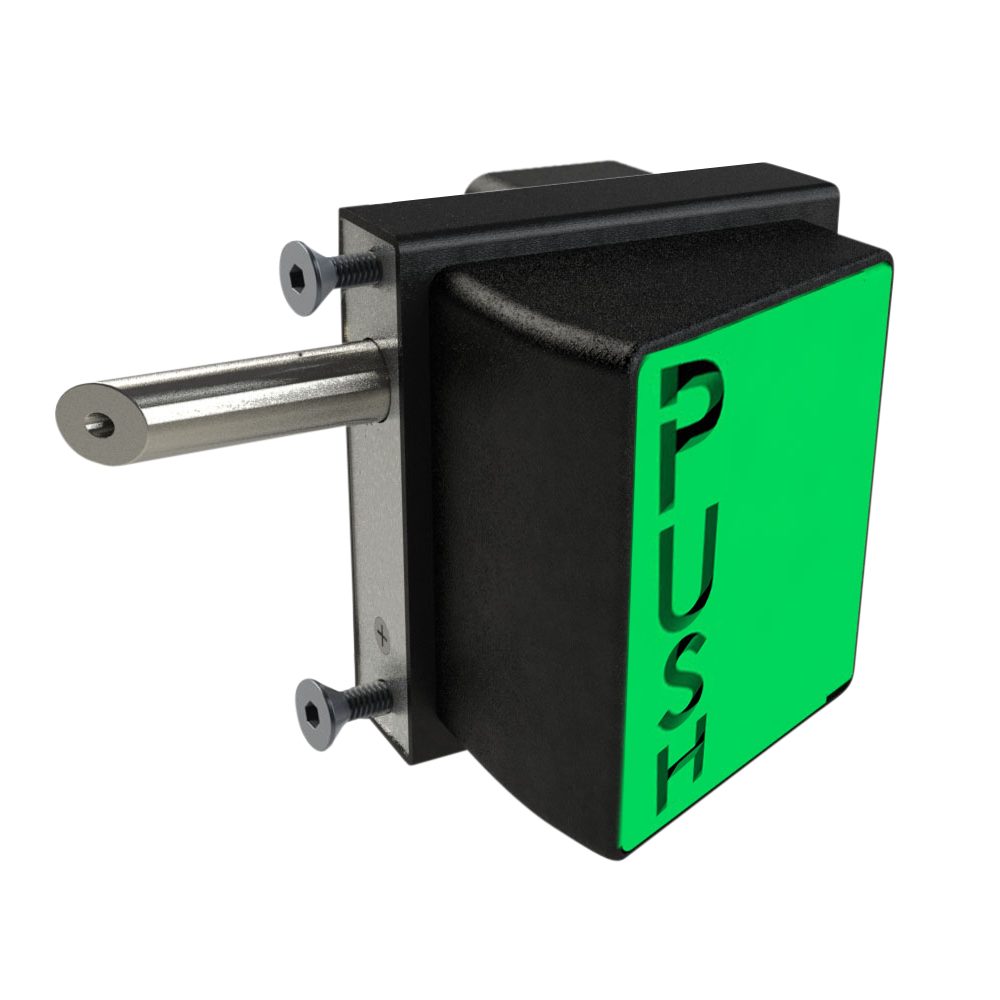

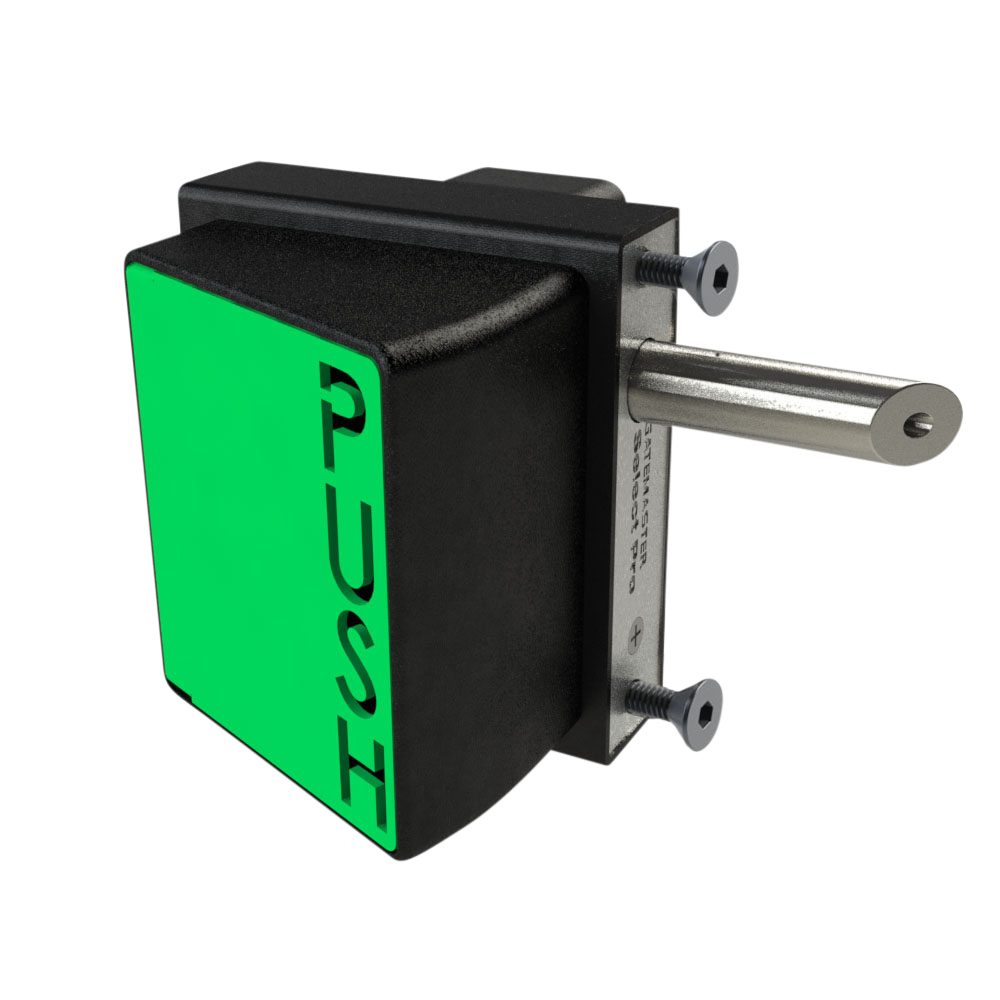

On the outside, entry is gained via a mechanical digital keypad with a thumbturn, requiring a 3 to 5-digit code (offering over 500 combinations). On the inside, a green pushpad allows for a smooth, free-exit operation. The lock automatically latches shut when the gate is closed, providing reliable security.

Built to withstand harsh outdoor environments, this marine-grade lock is highly weather-resistant. It features an adjustable 16mm stainless steel latchbolt with a 20mm throw, ensuring a precise fit on site.

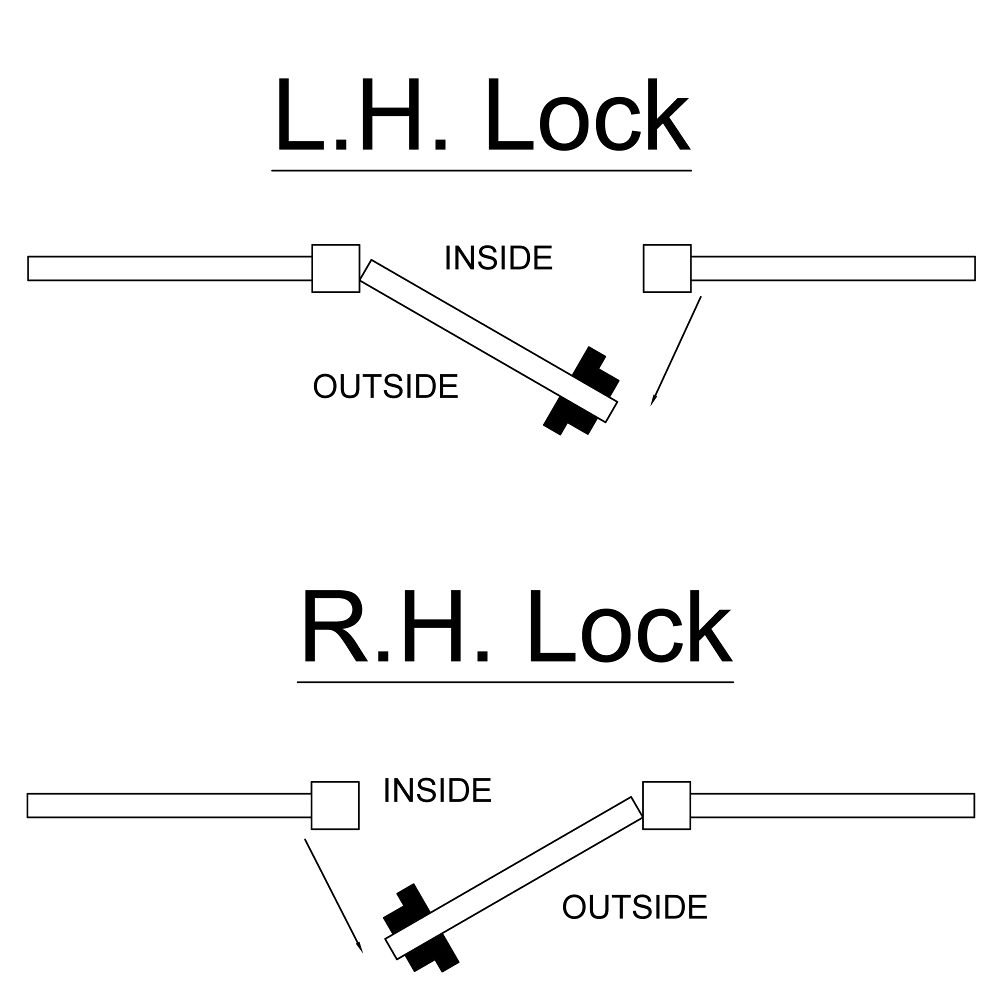

This lock is available in left-handed or right-handed configurations, and in versions to suit either 10mm - 30mm or 40mm - 60mm gate frames. Please select your required handing and gate frame size from the options below to ensure the correct fit for your gate.

Technical Specifications

• Brand: Gatemaster

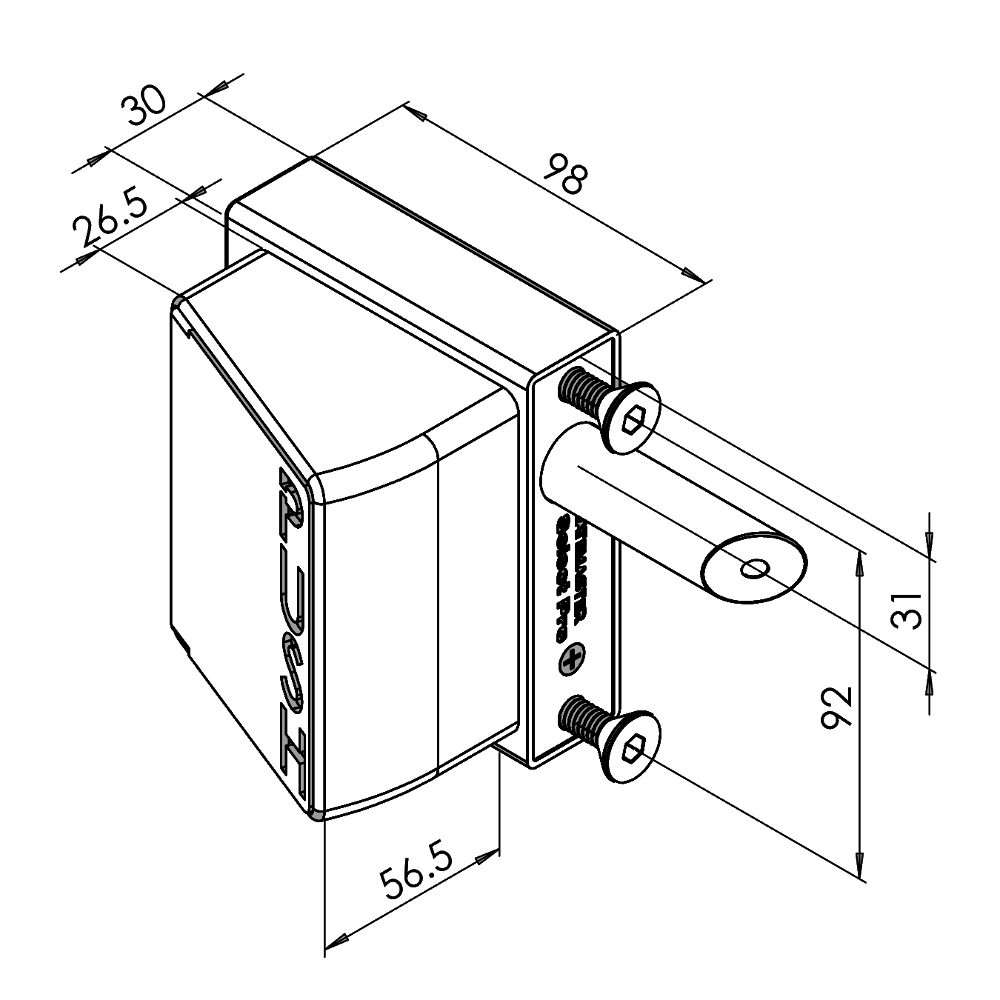

• Case Width: 30mm
• Overall Width: 98mm
• Weight: 1.926kg
• Latchbolt: 16mm (adjustable length)
• Bolt Throw: 20mm
• Code Length: 3 to 5 digits (500+ combinations)
• Operation Outside: Thumbturn on entry of code
• Operation Inside: Pushpad free exit
• Finish: Black & Green
• Gate Frame Size: Options to suit 10mm to 30mm or 40mm to 60mm frames (please select below)
• Handing: Left Hand or Right Hand options available (please select below)

Key Features

• Marine-Grade Durability: Highly weather-resistant construction designed for reliable outdoor use.
• Quick-Exit Pushpad: Green pushpad on the inside allows for rapid, keyless egress.
• Secure Keypad Entry: Mechanical keypad on the outside with over 500 code combinations.
• Adjustable Latchbolt: 16mm stainless steel latchbolt with adjustable length for a precise fit on site.

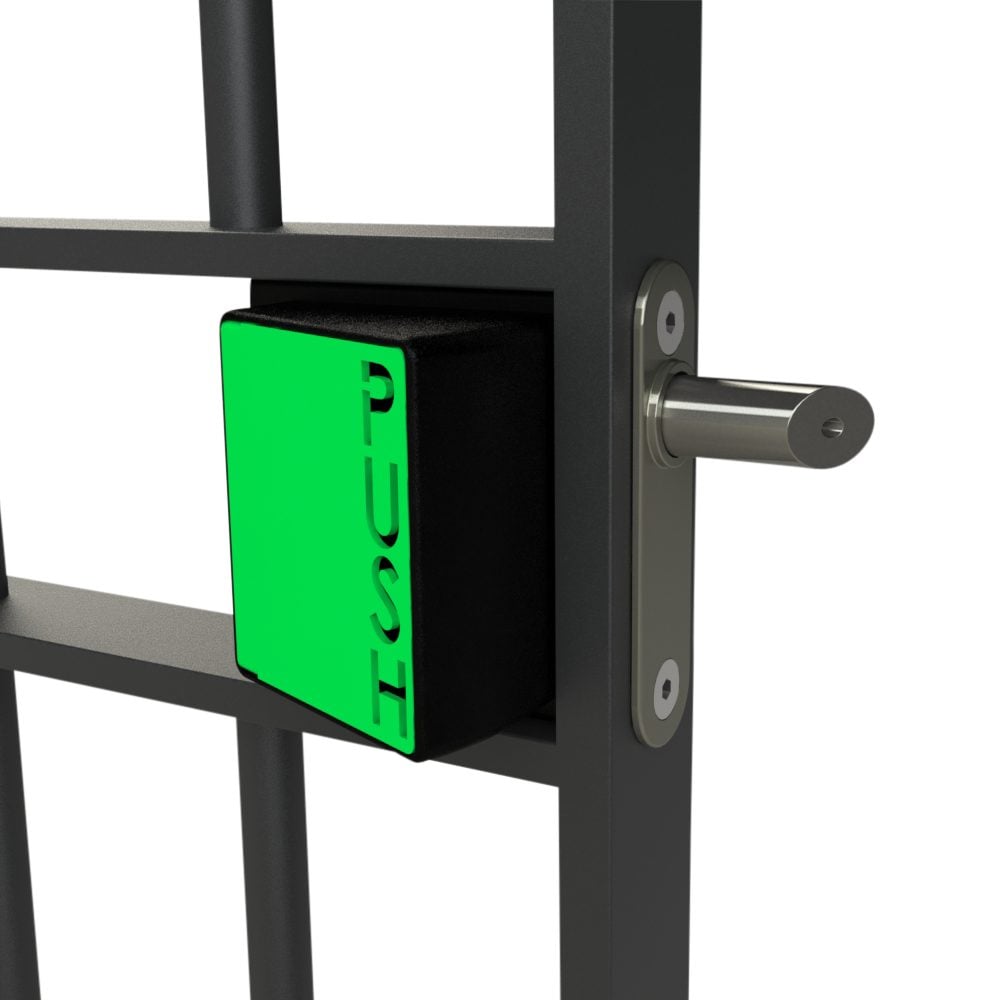

• Easy Bolt-On Installation: Designed to be bolted securely in place on metal gates.
• Complete Kit: Supplied with bolt support plate, gate post strike plate, and fixing bolts.
