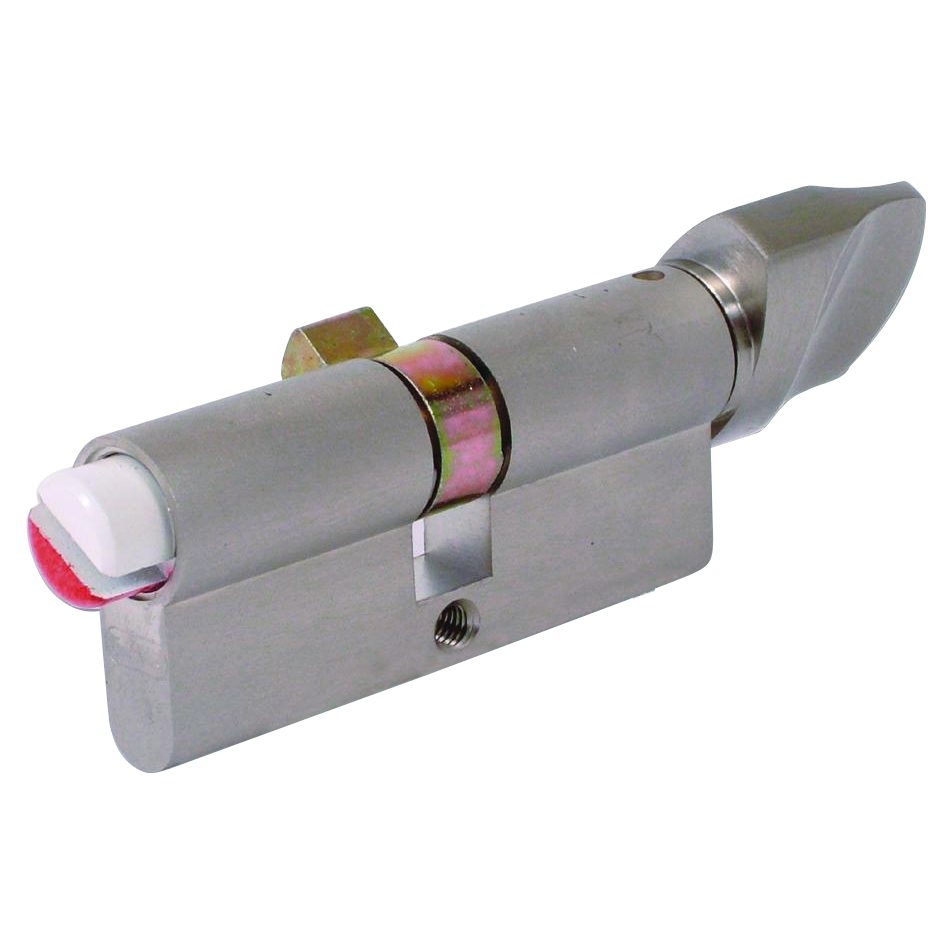

EVVA KDZ Euro WC Cylinder

The EVVA KDZ Euro WC Cylinder is a high-quality, standard euro profile cylinder designed specifically for bathroom and privacy lock applications. Operating on the robust EVVA A5 5-pin locking system, this cylinder features a convenient thumbturn on one side and a red/white slot-operated emergency release on the other. This design allows for quick emergency access from the outside using a coin or flat tool, making it ideal for public toilets, commercial premises, and residential bathrooms.

Please note that the cam is designed specifically for WC privacy locks and only operates on a 180-degree rotation (from 3 o'clock to 9 o'clock). It offers 30-minute fire resistance up to 821°C and is supplied complete with a connecting screw and three keys.

This cylinder is available in multiple finishes, including Polished Brass and Nickel Plated, and under different manufacturer references. Please select your preferred finish and specification from the options below. Optional special features, such as a Pre-Determined Break Point (PBP) for snap resistance (please note this is not TS007 rated) or sequential key numbering (TXT), are available upon request.

Technical Specifications

• Cylinder Profile: Euro
• Cylinder Type: WC Cylinder (Privacy)
• Body Length: 72mm (36mm A Side / 36mm B Side Turn)
• Mechanism: 5-pin locking system (EVVA A5)
• Cam Rotation: 180° (3 o'clock to 9 o'clock only)
• Fire Resistance: 30 minutes to 821°C
• Keys Supplied: 3

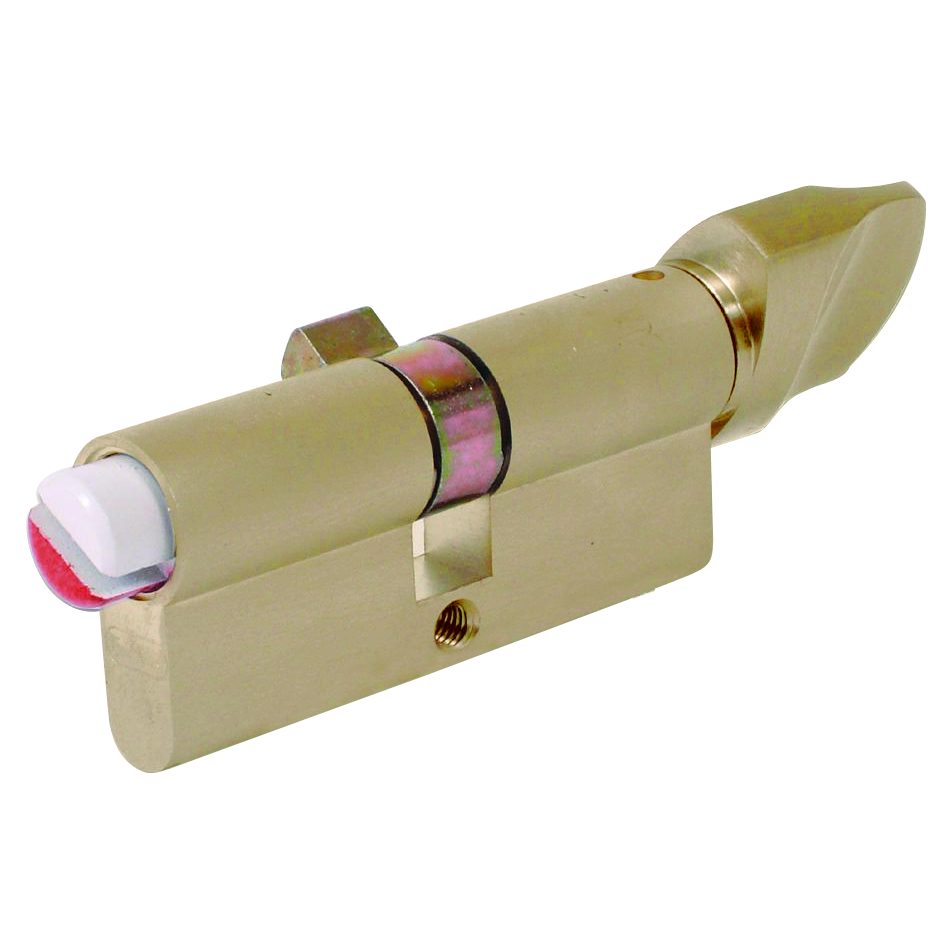

• Finishes: Polished Brass or Nickel Plated (please choose from the options below)
• Manufacturer References: KDZ 36-K36 WC / OKZ 36-K36 WC (please choose from the options below)

Key Features

• Emergency Access: External red/white slot-operated turn allows quick emergency override from the outside using a coin or tool.
• Privacy Control: Internal thumbturn provides easy locking for bathrooms, WCs, and public toilets.
• Robust Mechanism: Built on the reliable EVVA A5 5-pin system for durable, long-term performance.
• Fire Rated: Tested for 30-minute fire resistance up to 821°C.
• Complete Kit: Supplied ready to fit with a connecting screw and three keys included.
• Customisable Options: Contact us for optional upgrades including Pre-Determined Break Points (PBP) and custom key numbering (TXT).
