EVVA AirKey Euro Double Proximity - Key EPS Cylinder

The EVVA AirKey Euro Double Proximity - Key EPS Cylinder is an innovative access control solution designed to replace a standard Euro profile cylinder. It combines the convenience of modern electronic proximity access on one side with the robust security of a mechanical EVVA EPS key cylinder on the other.

The electronic proximity side can be operated using an NFC-compatible smartphone (iOS and Android), Bluetooth, or Evva AirKey cards and fobs. This weather-resistant (IP65) electronic knob is powered by two CR2 batteries, delivering up to 30,000 operations, and features a built-in audit trail that logs the last 1,000 events. On the mechanical side, the high-security EPS cylinder features six spring-loaded locking elements, along with pick and drill protection, making it ideal for structured master key systems.

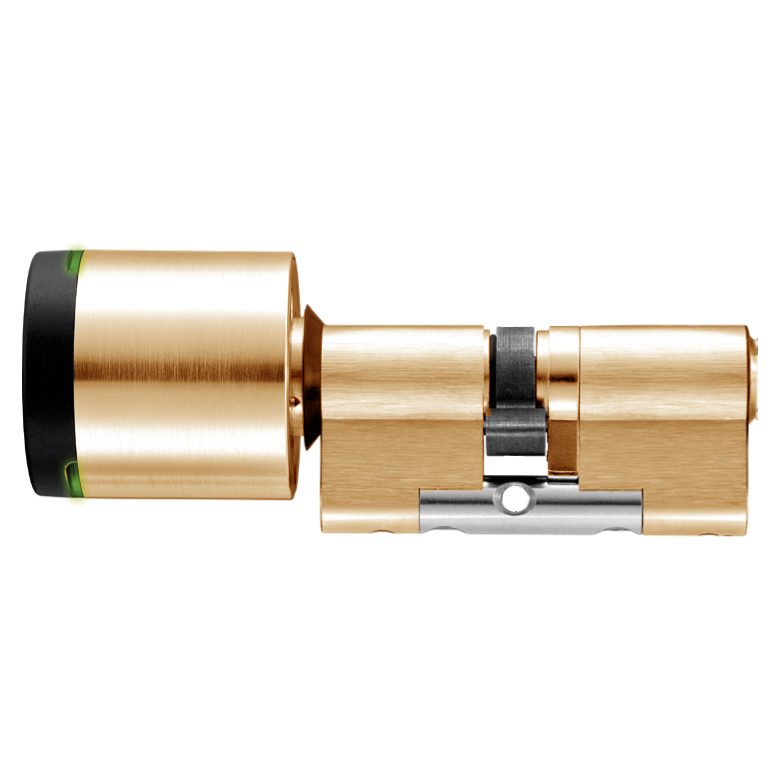

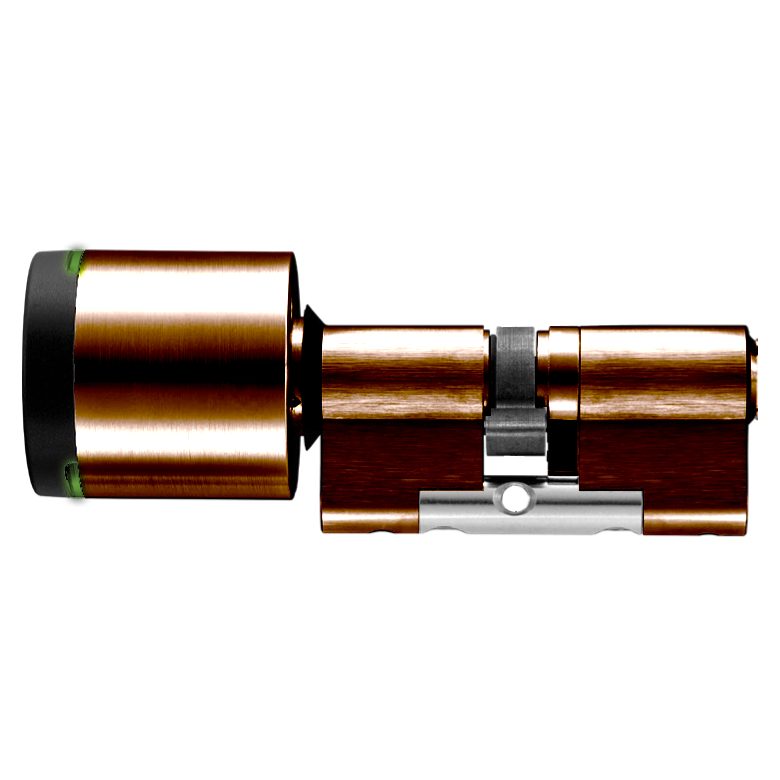

This cylinder is fire-tested to BS EN 1634-1, CE marked, and Certifire approved. It is available in a variety of finishes, including Nickel Plated, Polished Brass, and Patina Brown (Bronze), and in overall length ranges from 62mm to 92mm and 97mm to 122mm. Please choose your preferred finish, size range, and specification from the options below.

Technical Specifications

• Cylinder Profile: Euro
• Cylinder Type: Double Euro
• Mechanism: Proximity
• Power Supply: 2 x CR2 batteries (included)
• Battery Life: Up to 30,000 operations
• IP Rating: IP65
• Operating Temperature: -20°C to 55°C
• Audit Trail: Last 1,000 events
• Standards: BS EN 1634-1, CE Marked, Certifire
• Fire Tested: Grade 0
• Keys Supplied: 0
• Knob Diameter: 39mm
• Knob Projection: 45mm
• Handing: Reversible
• Weight: 356g

Key Features

• Dual-Access Design: Combines electronic proximity access on one side with a high-security mechanical EPS key cylinder on the other.
• Flexible Smart Access: Open doors using an NFC-compatible smartphone (Android or iOS), Bluetooth, or Evva AirKey cards and fobs.
• Robust Mechanical Security: The EPS cylinder side offers pick and drill protection with 6 spring-loaded locking elements.
• Weatherproof Protection: IP65 rated, making the electronic knob suitable for both indoor and outdoor installations.
• Comprehensive Audit Trail: Keeps track of the last 1,000 events for enhanced security monitoring.
• Multiple Options Available: Choose from Nickel Plated, Polished Brass, or Patina Brown (Bronze) finishes, and length ranges of 62mm - 92mm or 97mm - 122mm from the options below.
