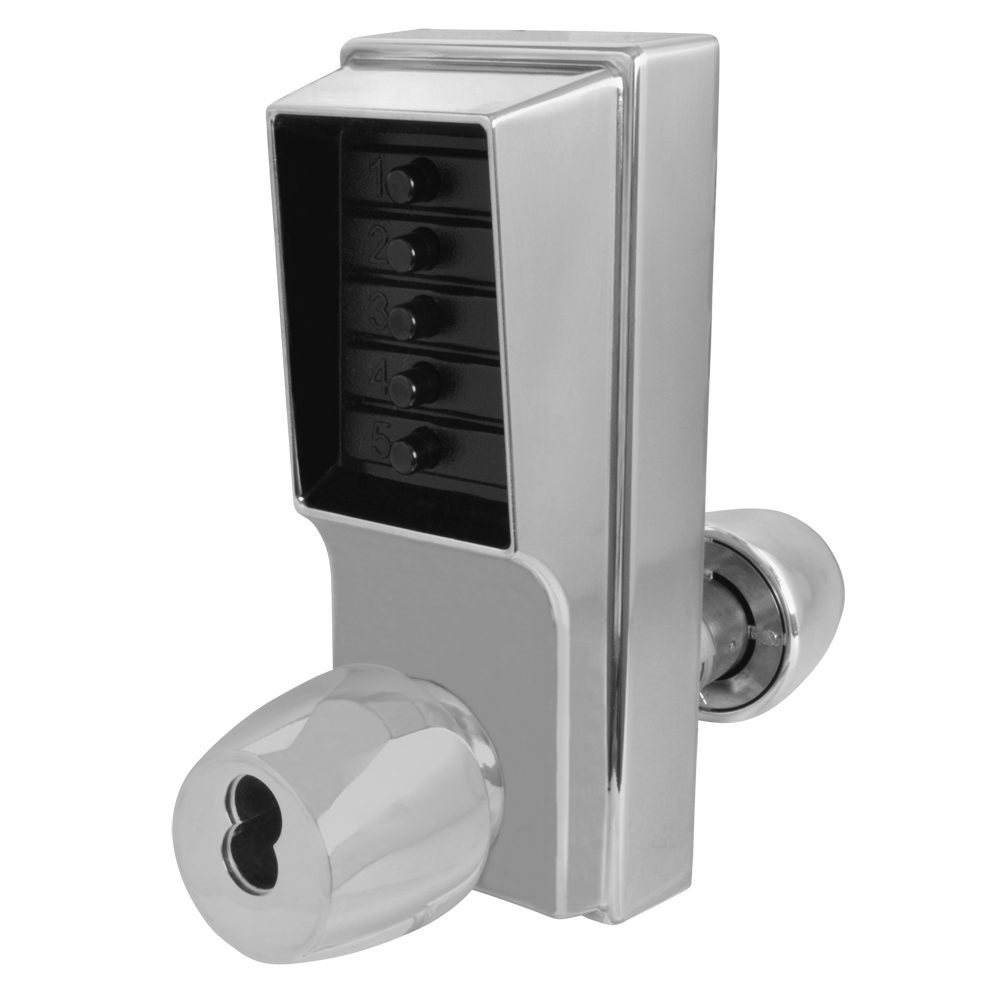

DORMAKABA Series 1000 1041B Knob Operated Digital Lock With Key Override & Passage Set

The dormakaba Simplex 1000 Series 1041B is a heavy-duty, fully mechanical digital lock that provides a robust keyless access control solution without the need for batteries or wiring. Featuring a durable knob-operated design, this lock is ideal for high-traffic commercial, public, and residential doors.

This model includes a convenient thumbturn-activated free passage set mode, allowing unrestricted entry when needed - perfect for periods of frequent use. It also features a key override for emergency access. The lock is fully reversible on-site, making it suitable for both left and right-handed doors, and can be easily programmed with a single access code directly via the vandal-resistant metal keypad without removing the unit from the door.

This lock is available in multiple finishes, cylinder configurations, and manufacturer references to suit your requirements. Please select your preferred finish, key override option, and manufacturer reference from the choices below.

Technical Specifications

• Brand: dormakaba
• Series: 1000 Series (1041B)
• Backset: 70mm
• Case Depth Required: 110mm
• Door Thickness: 35mm to 57mm
• Handing: Reversible
• Code Length: 1 to 5 digits
• Number of Codes: 1
• Combinations: 1,000+

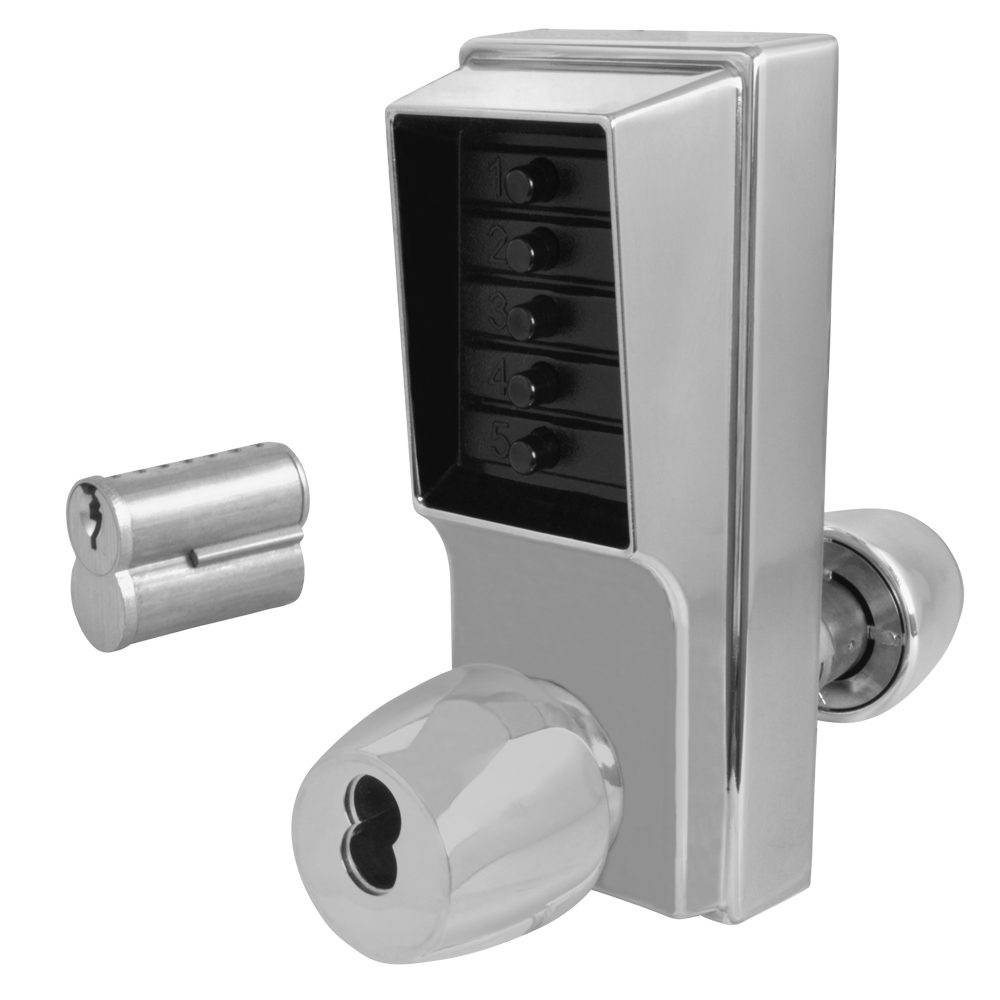

• Key Override: Yes (available with or without cylinder - please select from the options below)
• Keys Supplied: 0 or 2 (depending on option chosen)
• Latch: 70mm Standard
• Passage Set: Yes (key or thumbturn)
• Weather Resistant: Yes

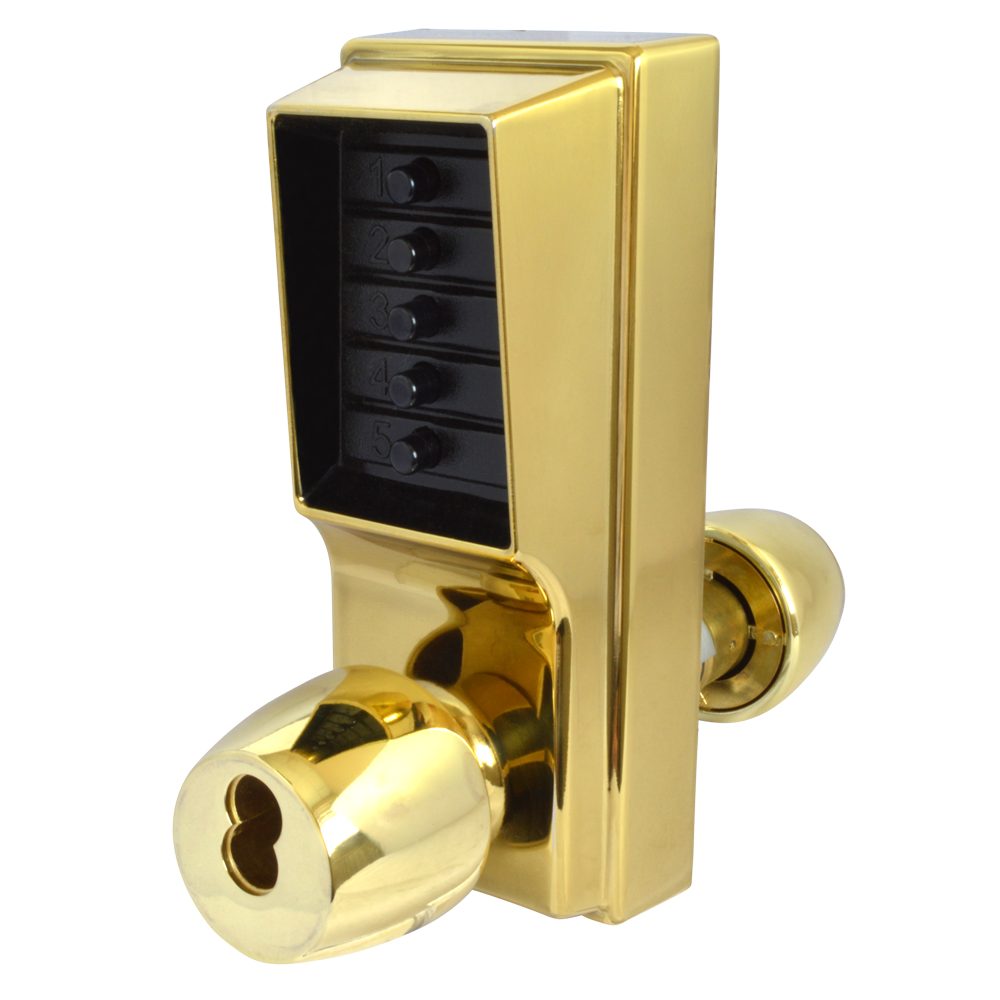

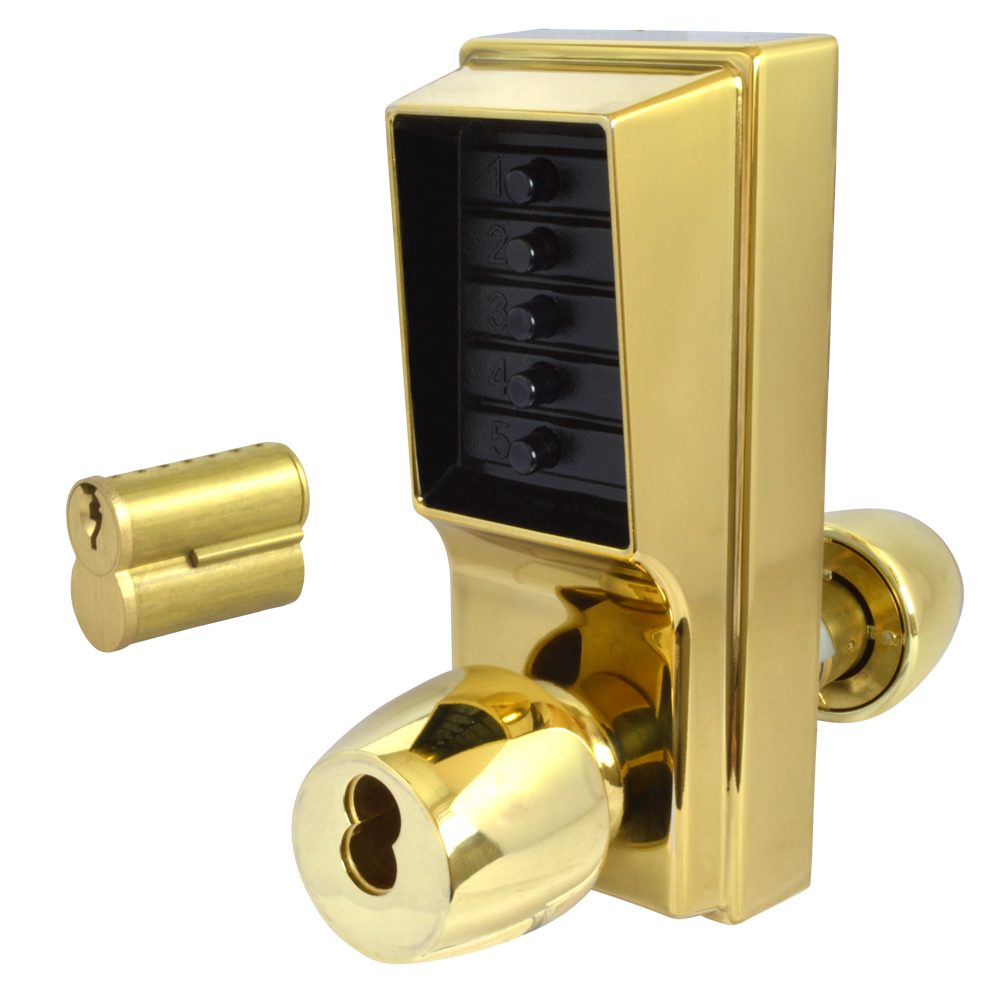

• Finish: Polished Brass or Satin Chrome (please select from the options below)
• Manufacturer Reference: 1041B-03 or 1041B-26D (please select from the options below)
• Notes: Cylinder supplied or supplied without cylinder (please select from the options below)
• Guarantee: 3 Year

Key Features

• Fully mechanical operation - eliminates the need for batteries or wiring
• Key override feature for emergency access
• Passage set mode allows free access without entering a code
• Heavy-duty, weather-resistant lock housing with solid metal pushbuttons
• Simple on-door programming via the 5-button keypad
• Reversible design to suit both left and right-handed doors
• Supports a single, easily changeable access code of 1 to 5 digits
