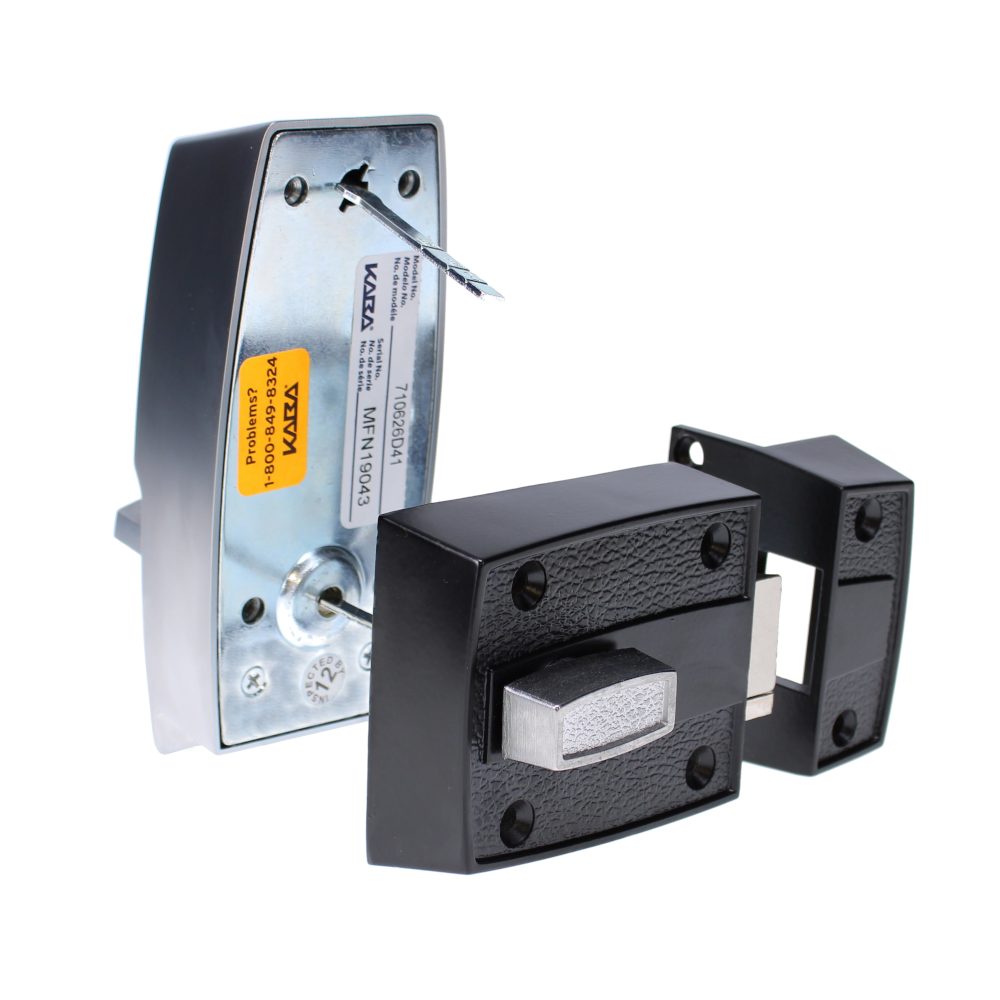

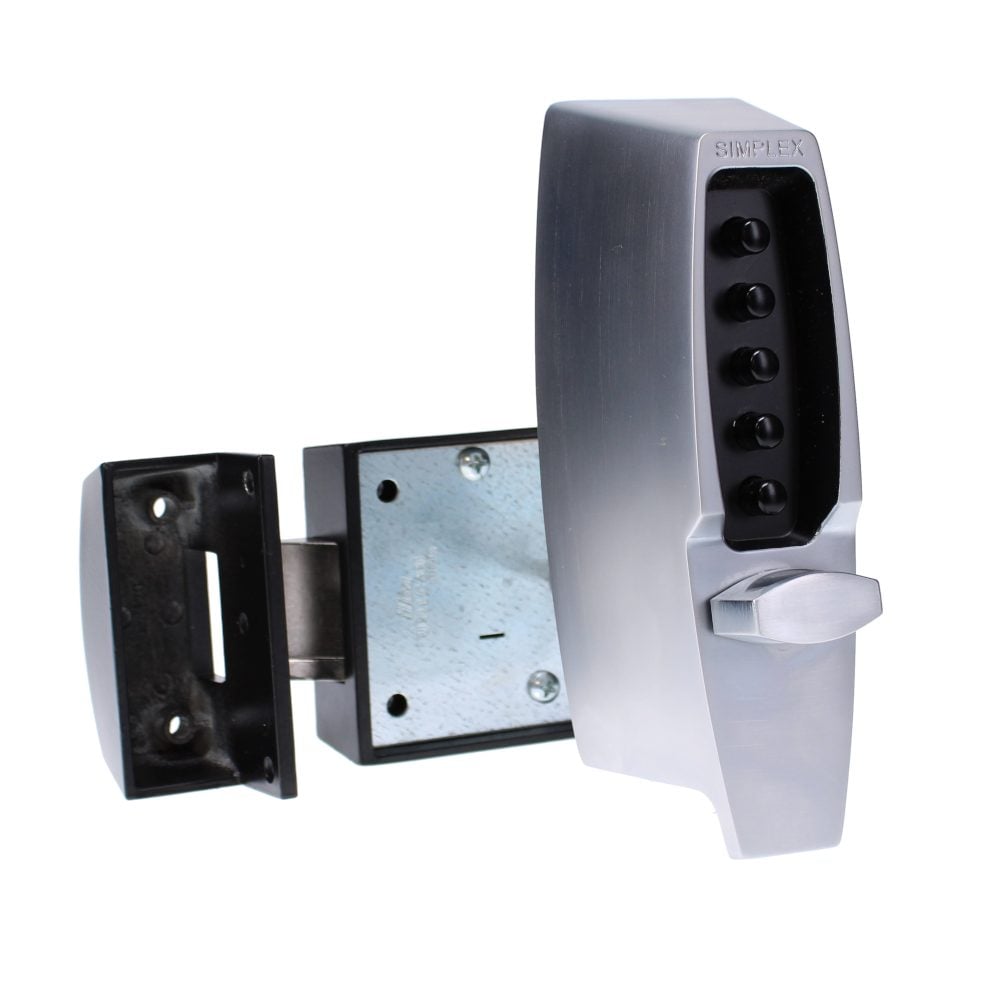

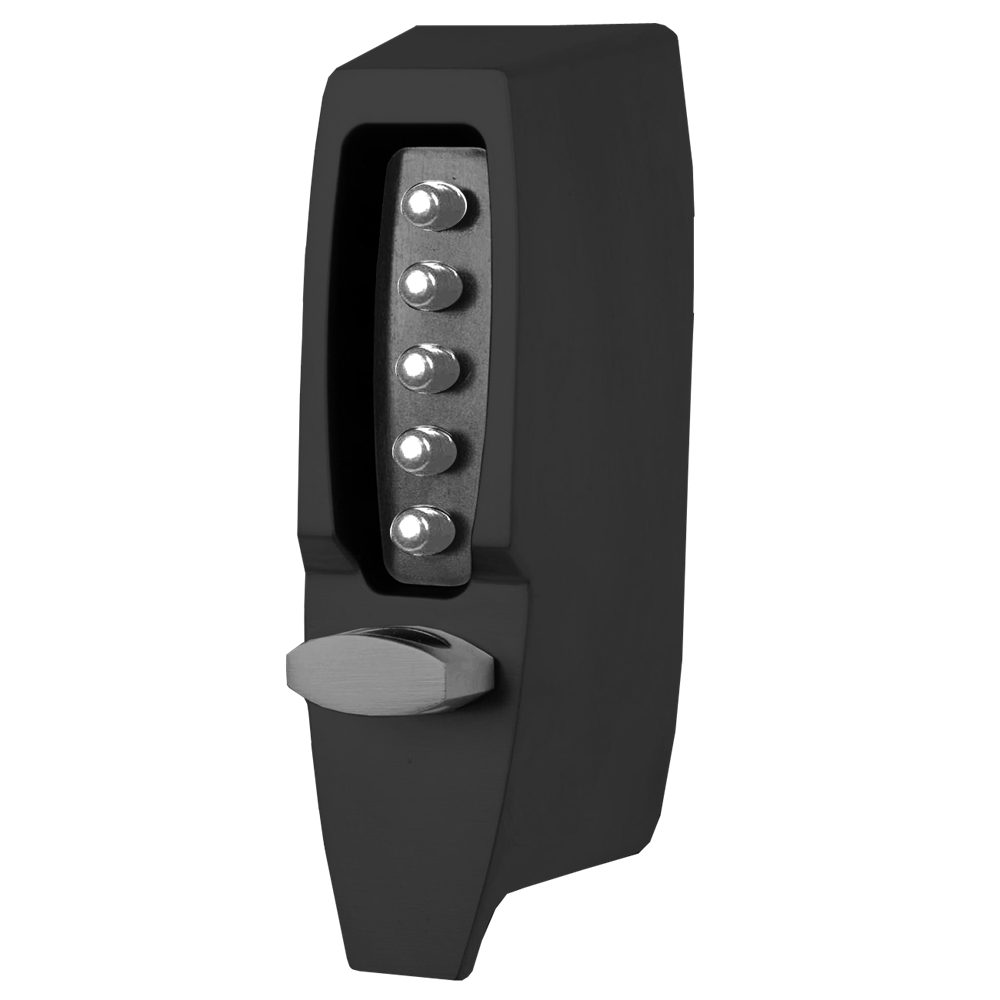

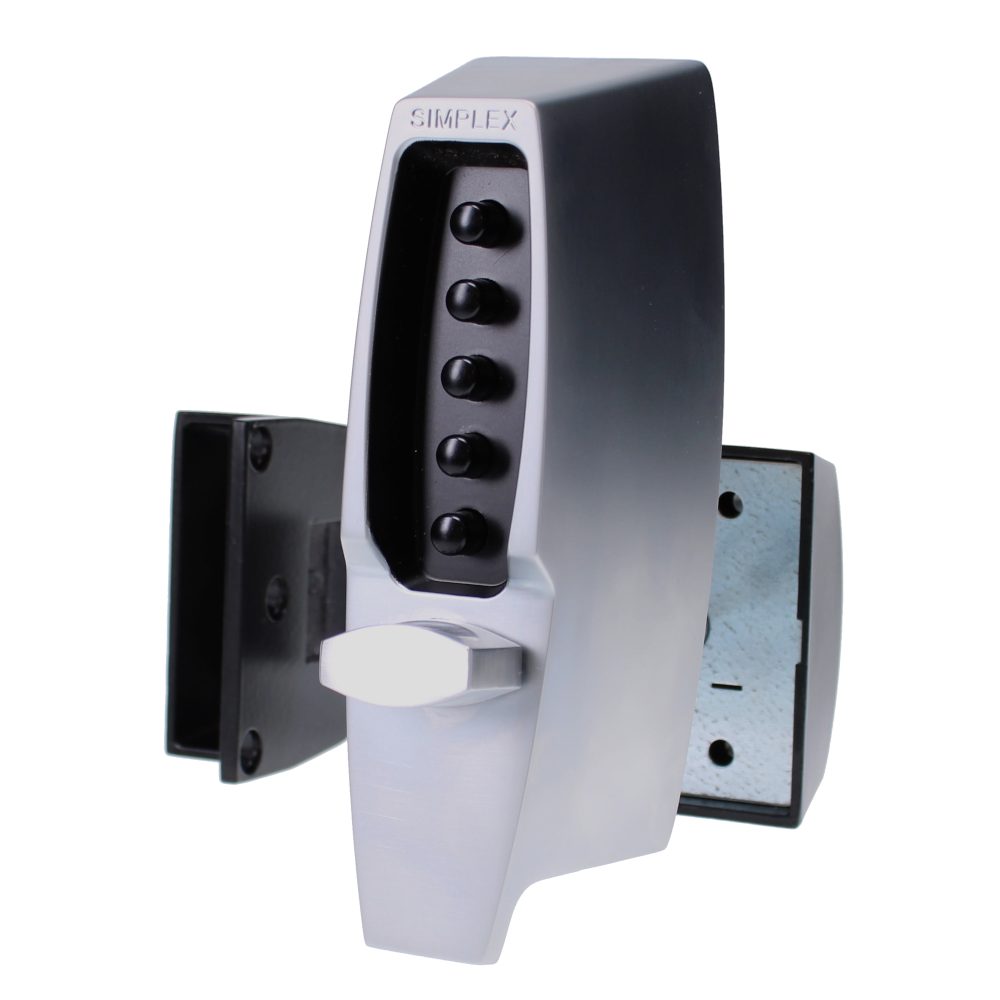

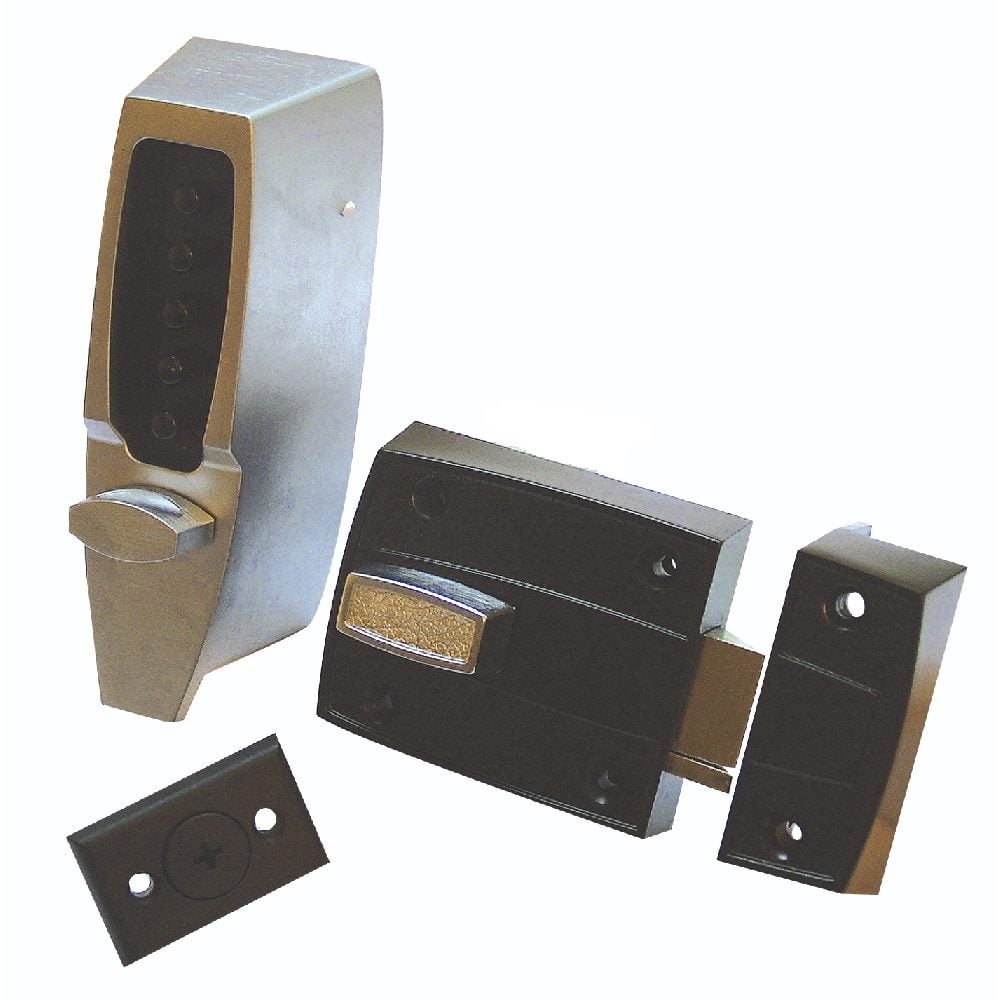

DORMAKABA 7100 Series 7106 Digital Lock Rim Deadlatch

The dormakaba Simplex 7100 Series 7106 is a fully mechanical digital lock solution designed for light commercial and residential applications. Operating entirely without batteries or wiring, this robust lock eliminates the maintenance and costs associated with frequent battery replacements. It features a 5-button keypad that supports a single, easily managed access code of 1 to 5 digits, which can be changed quickly on-site without removing the lock from the door.

Equipped with a medium-duty rim deadlatch, the 7106 model automatically relocks every time the door closes and includes a convenient latch holdback function. It provides free egress from the inside via a thumbturn and code-operated entry from the outside. The unit is non-handed and field-reversible, making it suitable for both left and right-handed timber doors. It also features a protective clutch mechanism to safeguard the lock against forced entry.

This digital lock is available in multiple finishes, including Black and Satin Chrome, with corresponding manufacturer references and barcodes. Please choose your preferred finish and option from the selection below.

Technical Specifications

• Brand: dormakaba
• Series: Simplex 7100 Series (Model 7106)
• Backset: 60mm
• Case Depth Required: 98mm
• Door Thickness: 35mm to 57mm
• Latch Type: Medium-duty rim deadlatch
• Keypad: 5 solid metal buttons
• Code Length: 1 to 5 digits
• Number of Codes: 1
• Combinations: 1,000+
• Handing: Reversible (non-handed)
• Holdback: Yes
• Key Override: No
• Weather Resistant: Yes
• Operation Outside: Thumbturn on code entry
• Operation Inside: Thumbturn free exit
• Finishes Available: Black or Satin Chrome (please select from the options below)
• Manufacturer References: 7106-19 or 7106-26D (please select from the options below)
• Barcodes: 887838707314 or 887838707321 (please select from the options below)
• Weight: 1.88kg
• Width: 56mm
• Guarantee: 1 Year

Key Features

• Fully Mechanical Operation: No batteries or wiring required, eliminating battery replacement costs.
• Vandal Resistant Keypad: Solid metal pushbuttons and robust metal cast front housing for durability.
• Protective Clutch Mechanism: Safeguards the lock against forced entry attempts.
• Fast Code Changes: Easily program a new single access code via the keypad without removing the lock from the door.
• Automatic Relocking: Latch automatically relocks whenever the door closes to maintain security.
• Latch Holdback Function: Allows the latch to be held back for free passage when security is not required.
• Weather Resistant: Built to withstand external conditions, making it suitable for both indoor and outdoor use.
• Reversible Handing: Non-handed design can be easily reversed on-site to suit left or right-handed doors.
