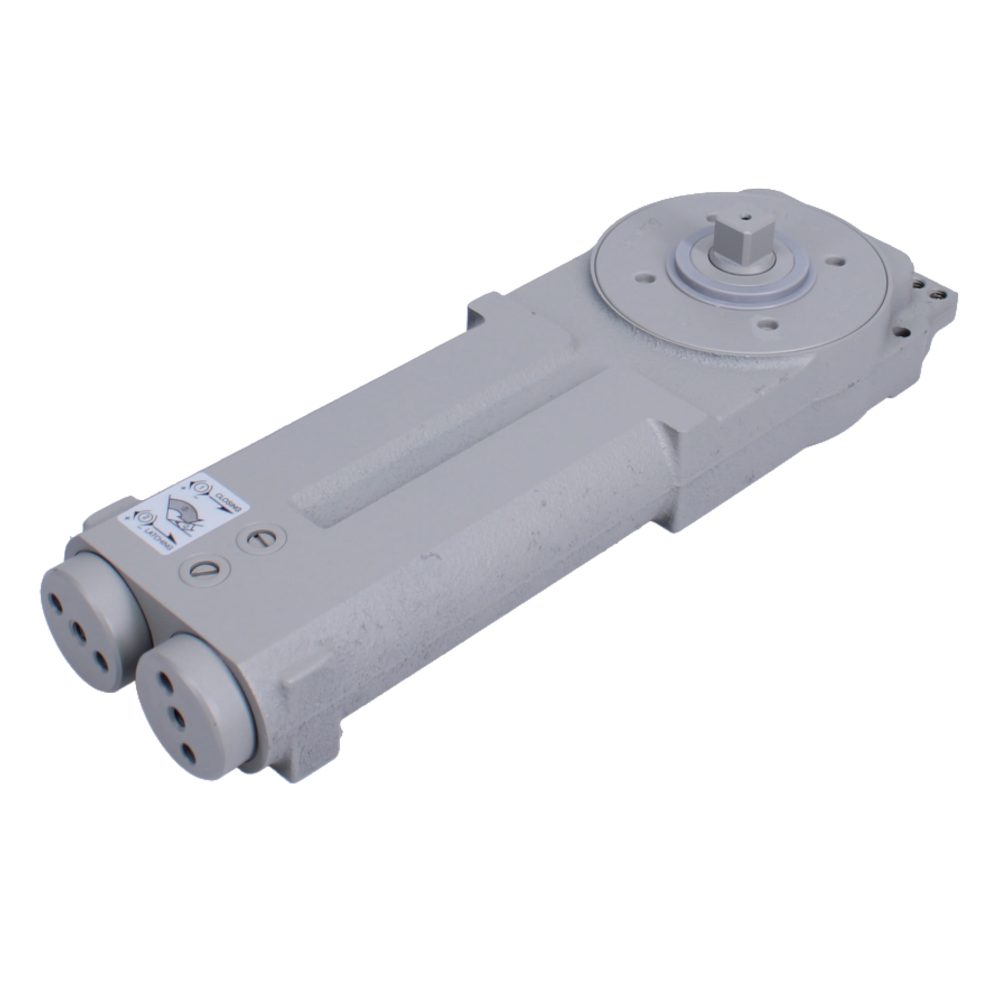

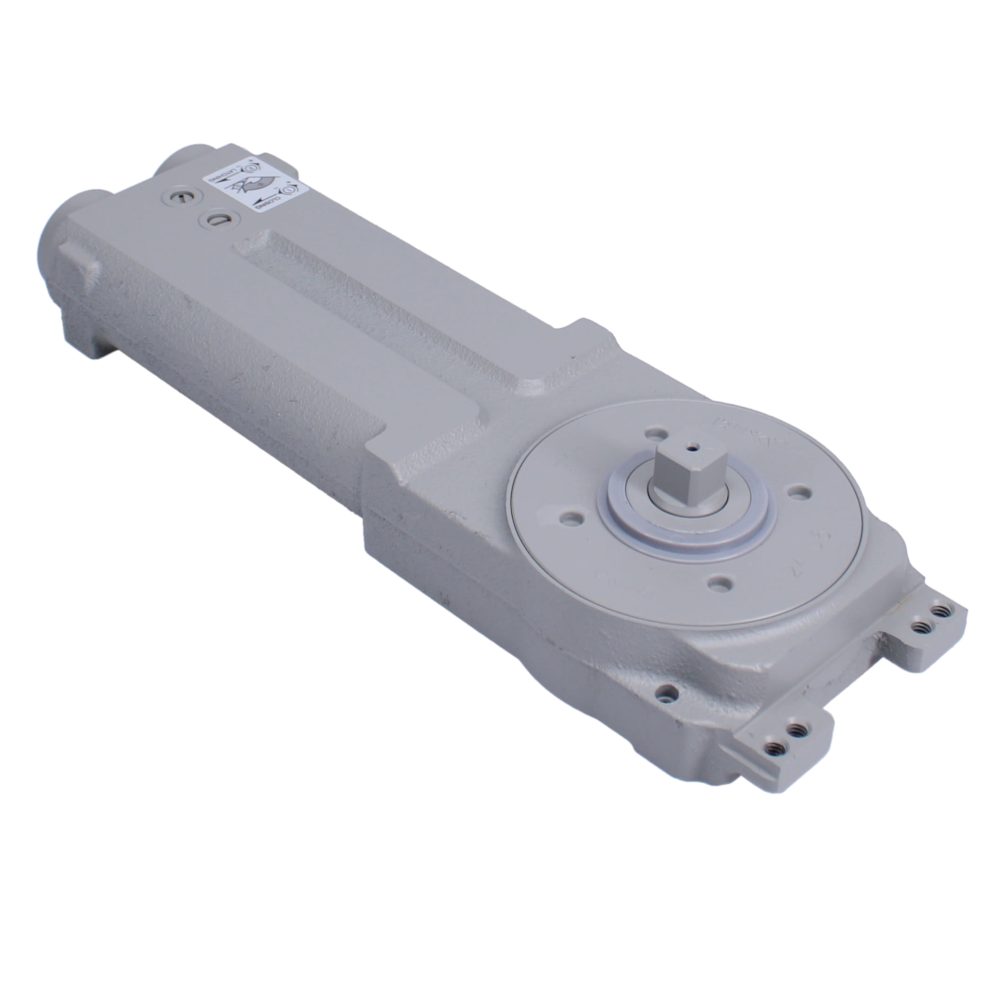

AXIM TC-9903 Concealed Transom Closer Body Only Size 3

The Axim TC-9903 Concealed Transom Door Closer (body only) is a robust and reliable overhead closer designed for concealed installation within the transom bar of a door frame. This size 3 closer is suitable for doors measuring between 951mm and 1150mm in width, with a maximum weight capacity of up to 100kg.

This universal closer is highly adjustable, offering independent control over both latching and sweep speeds, as well as a mechanical backcheck to prevent damage from over-opening. It features captivated adjustment screws to prevent accidental removal during setup. Ideal for retrofitting, the TC-9903 can directly replace older Axim 8800 series, Peters Jackson, Newman Tonks, Ryobi, and other leading transom closers without requiring costly modifications to the door or frame.

It is available in both Hold Open (90°) and Non-Hold Open versions, with manufacturer references TC-9903-00 and TC-9903-90 respectively. Please select your preferred hold-open option and barcode from the options below. Each unit is supplied complete with fixings, bearing plates, and fitting instructions.

Technical Specifications

• Brand: Axim
• Model Series: TC-9903
• Strength Size: 3
• Max Door Width: 951mm to 1150mm
• Max Door Weight: 100kg
• Spindle Height: 12mm
• Dimensions: 293mm (Length) x 94mm (Width) x 94mm (Depth)
• Finish: Satin Anodised Aluminium
• Handing: Reversible (Universal)
• Adjustable Closing Speed: Yes
• Adjustable Latch Action: Yes
• Backcheck: Yes (Mechanical)
• Hold Open Options: Yes (90°) or No (please select from the options below)
• Manufacturer Reference: TC-9903-00 or TC-9903-90 (please select from the options below)
• Barcode: 5055120784786 or 5055120784793 (please select from the options below)

Key Features

• Concealed Overhead Installation: Fits neatly inside the transom bar for a clean, unobtrusive aesthetic.
• Retrofit Compatibility: Directly replaces Axim 8800 series, Peters Jackson, Newman Tonks, Ryobi, and other leading transom closers without costly door or frame modifications.

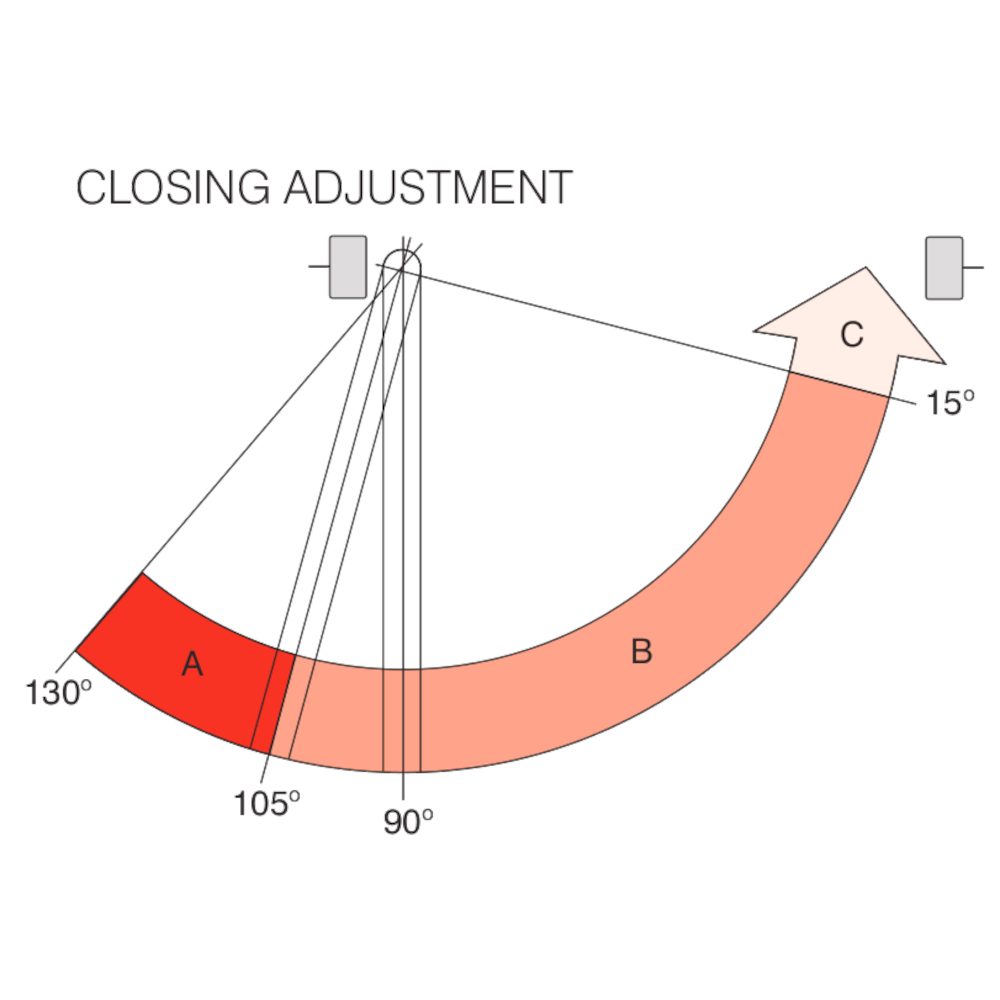

• Fully Adjustable: Independent control over sweep speed and latching speed to suit your door's environment.
• Mechanical Backcheck: Built-in protection to cushion the door if it is opened with excessive force.
• Captivated Screws: Adjustment screws are captivated to prevent accidental removal during installation or maintenance.
• Complete Package: Supplied with all necessary fixings, bearing plates, and fitting instructions.
