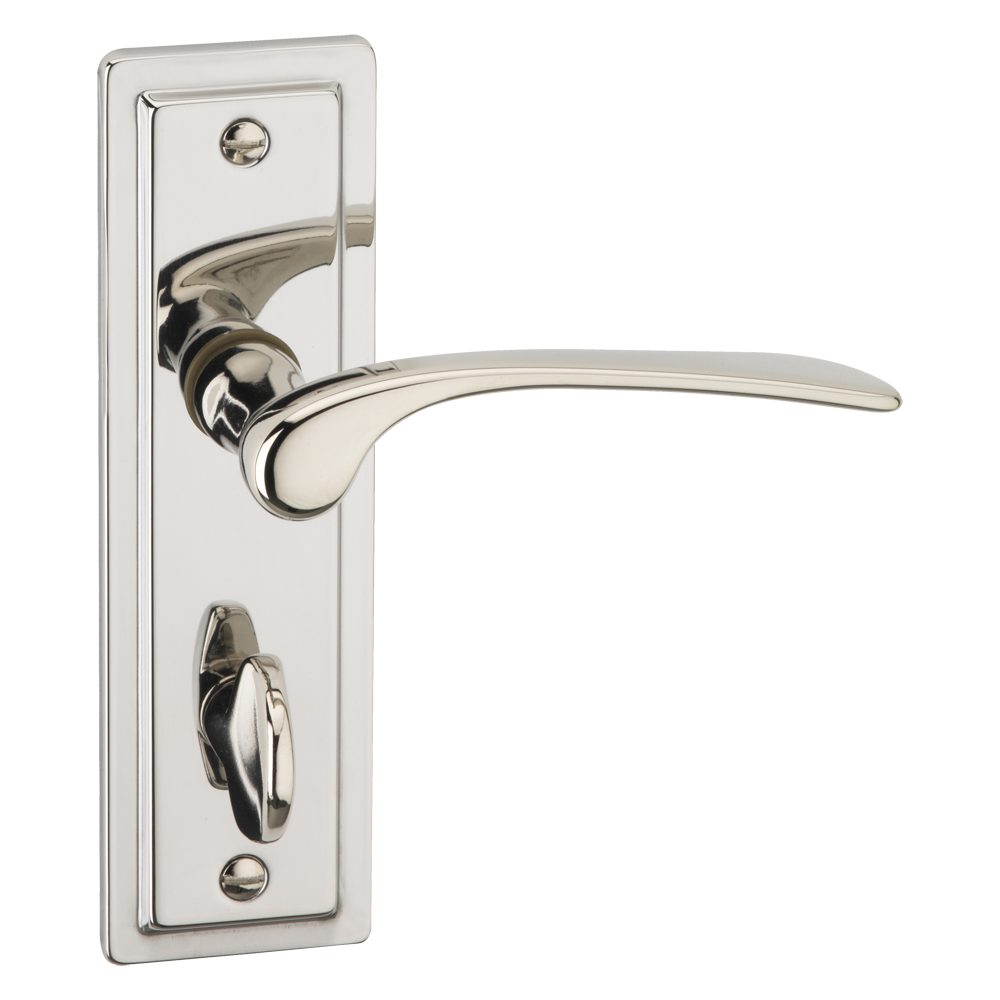

ASEC URBAN New York Bathroom Lever on Plate Door Furniture

Asec Urban More Asec Urban Lever Furniture

From

£70.22

Select size, finish, and quantity from the variant table.

View options

The Asec Urban New York Bathroom Lever on Plate Door Furniture is a premium-quality handle set crafted from solid brass, combining sleek modern design with robust durability. Engineered for smooth operation and outstanding protection, this stylish lever on backplate set is suitable for both internal and external use.

It has been rigorously tested to meet high performance standards, including salt spray testing up to 500 hours for corrosion resistance, and spring performance testing up to 200,000 cycles. It is also fire rated for 30 and 60-minute timber doors (FD30/FD60), making it a safe and reliable choice for residential and commercial environments alike.

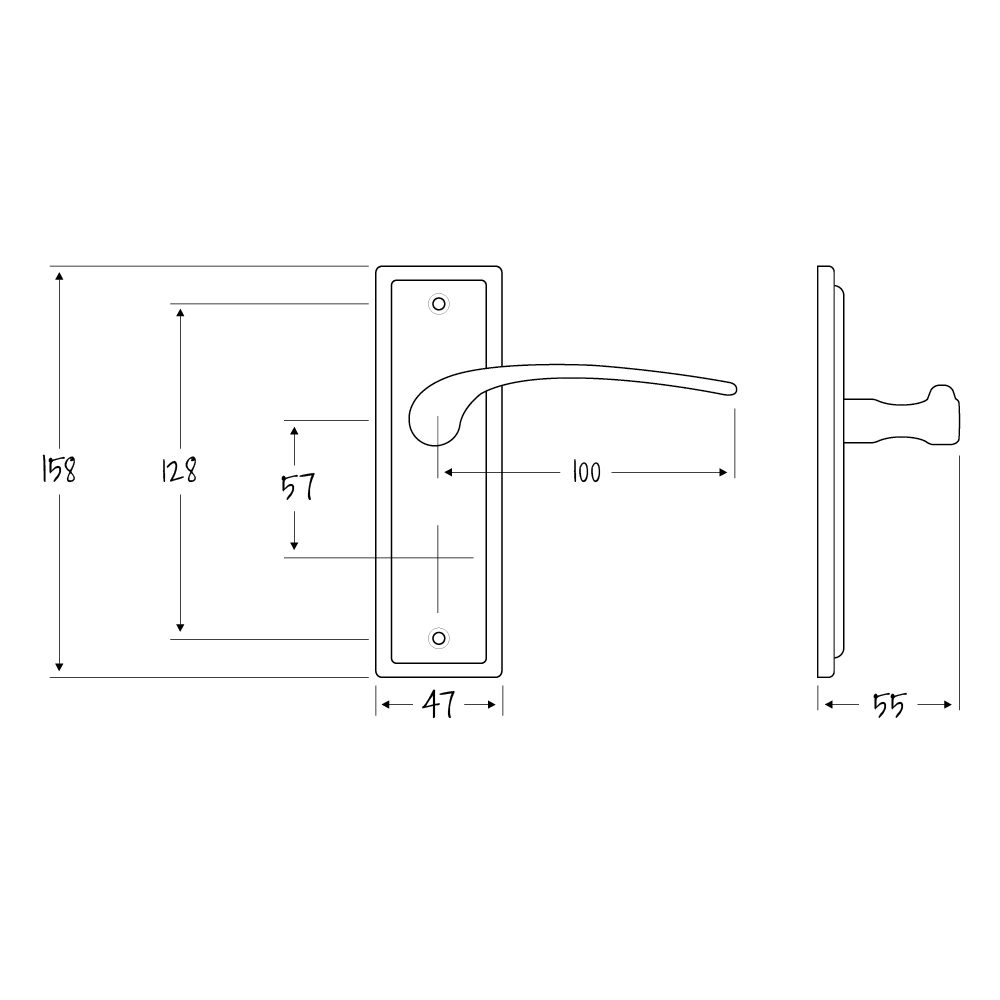

This bathroom lever set features a 158mm x 47mm backplate with a 57mm centre distance, designed to suit standard UK bathroom locks. It comes supplied in pairs complete with an 8mm spindle, a 5mm turn and release bar, wood screws, and 45mm inter bolts suitable for standard 35mm doors.

This product is available in multiple finishes, including Polished Nickel and Satin Nickel, with weights ranging from 660g to 681g. Please select your preferred finish, barcode, and manufacturer reference (AS10965 or AS12051) from the options below.

Technical Specifications

Brand: Asec Urban
Material: Premium quality solid brass
Backplate Size: 158mm x 47mm
Lever Length: 110mm (total handle length 123mm)
Centres: 57mm
Screw Centres: 128mm
Spindle: 8mm (supplied with 5mm turn bar)
Fire Rating: FD30/FD60 (30 and 60-minute fire doors)
Pack Quantity: 1 Pair
Finishes: Polished Nickel or Satin Nickel (please choose from the options below)
Manufacturer References: AS10965 or AS12051 (please choose from the options below)
Weight: 660g to 681g (please choose from the options below)
Barcodes: 5602816037352 or 5602816045586 (please choose from the options below)

Key Features

Premium Construction: Manufactured from high-quality solid brass for long-lasting durability.
Extensively Tested: Salt spray tested to 500 hours and spring performance tested to 200,000 cycles for reliable operation.
Fire Rated: FD30/FD60 fire tested, making it suitable for fire-rated timber doors.
Versatile Use: Suitable for both internal and external applications.
Complete Set: Supplied as a pair with a turn & release mechanism, wood screws, and 45mm inter bolts suitable for standard 35mm doors.
Peace of Mind: Backed by a 10-year manufacturer's guarantee.
