ASEC Euro / Oval Nightlatch Case

Asec More Asec Nightlatches

Price

£107.42

Select size, finish, and quantity from the variant table.

View options

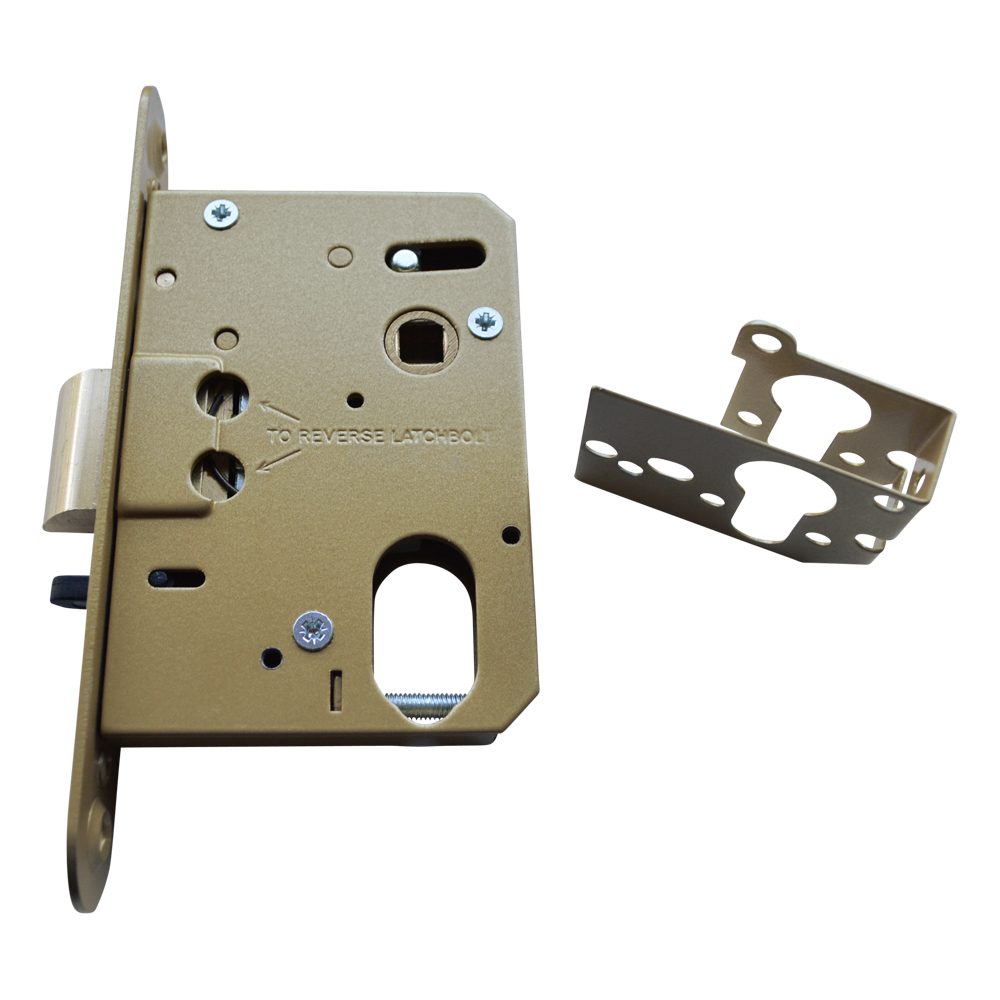

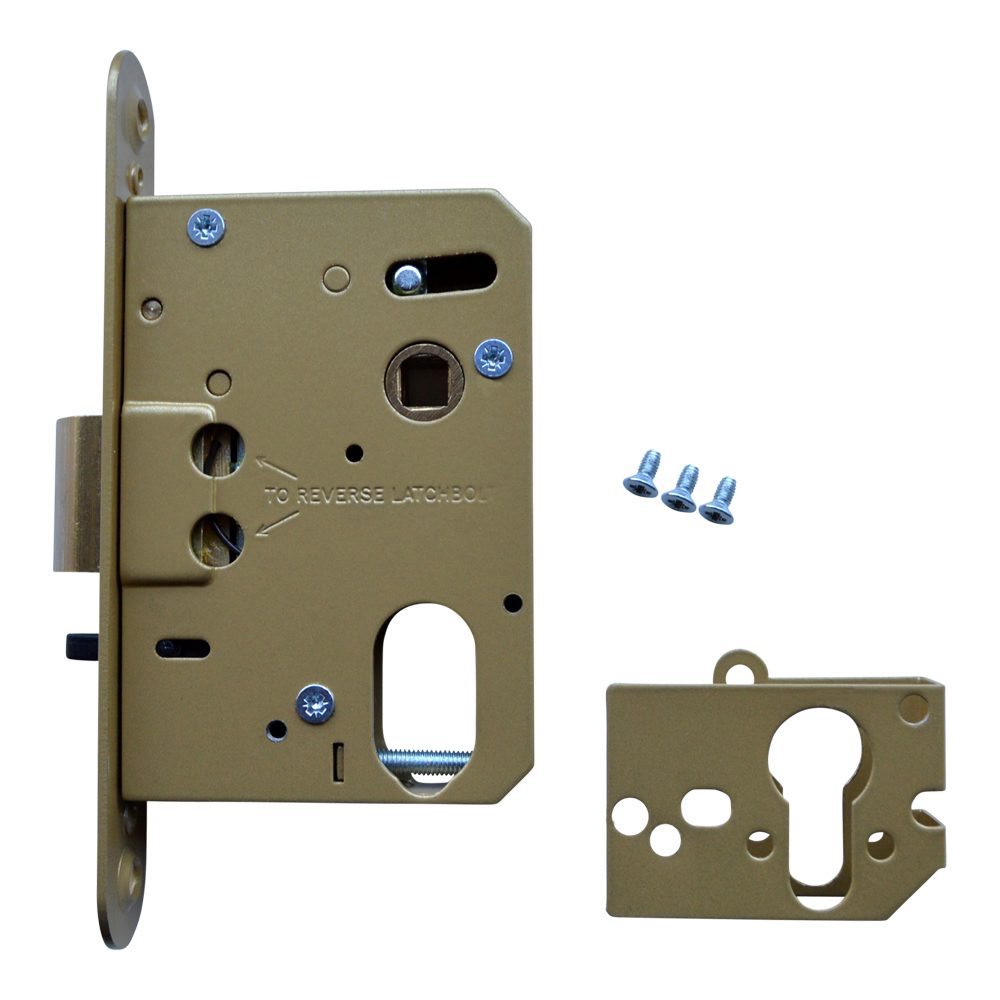

The Asec Euro / Oval Nightlatch Case is a highly versatile, dual-profile mortice nightlatch case designed to accommodate either Euro or Oval profile cylinders. Out of the box, the case is configured for Euro cylinders with a wrap-around conversion plate held securely by three machine screws. To switch to an Oval cylinder, simply remove the three screws and slide the plate off.

This nightlatch case is ideal for access control applications, featuring an anti-thrust device for enhanced security and a field-reversible latch bolt to suit both left and right-handed doors. It also includes an integral knurled wheel roller to hold the latch in a retracted position, enabling a convenient passage mode when required.

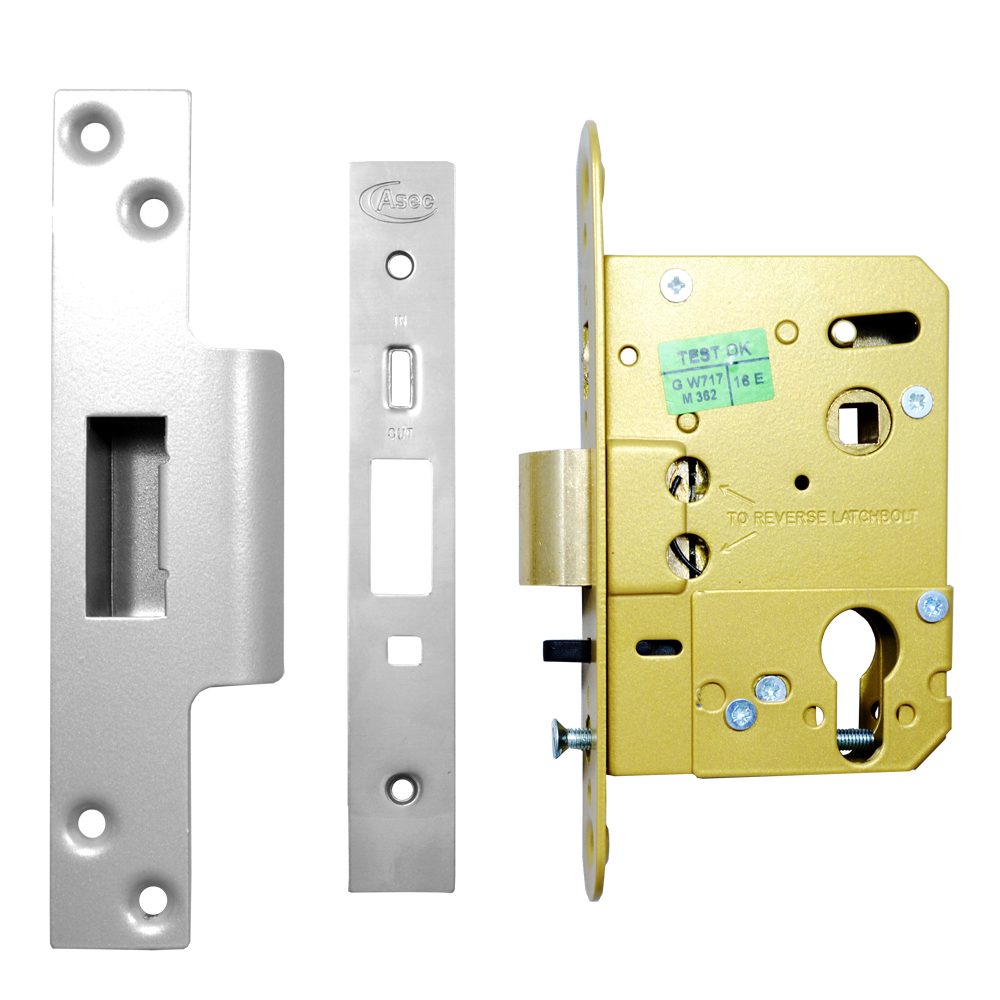

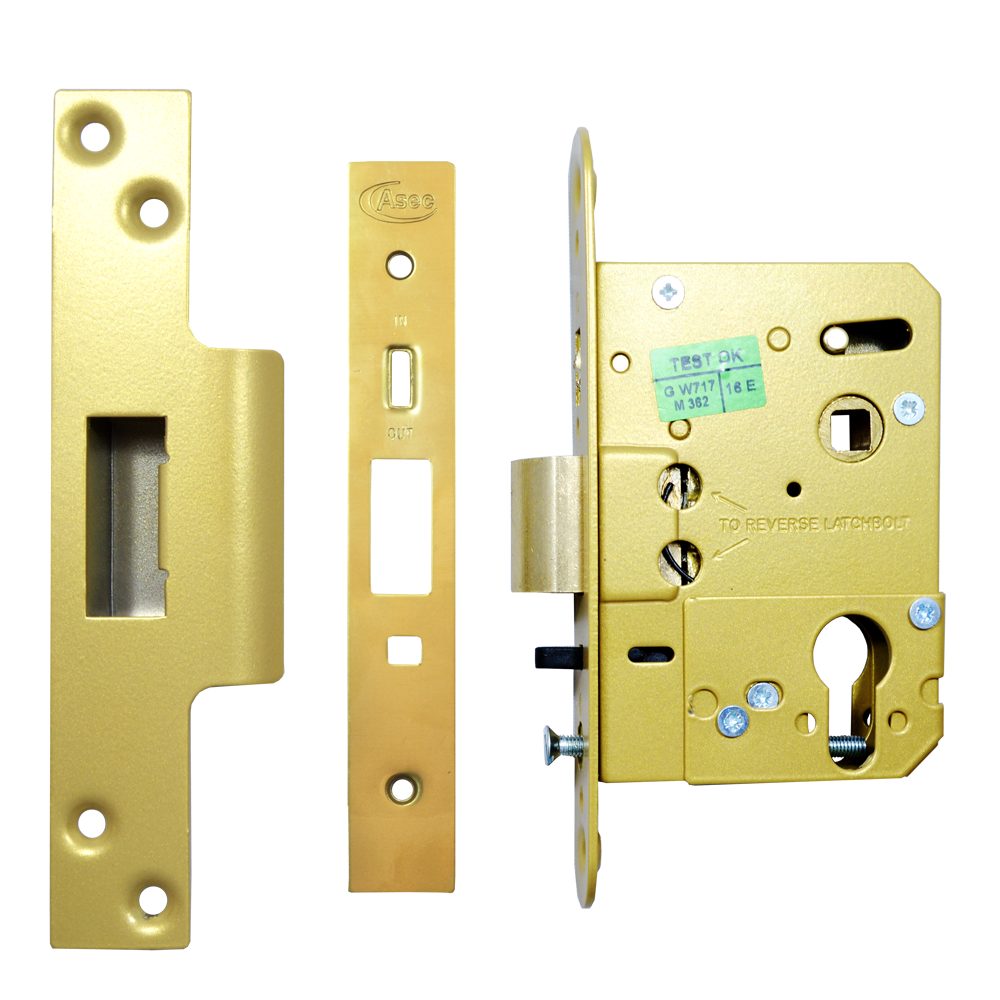

Supplied complete with a box strike, faceplate, fitting instructions (including a scale template), and all necessary fixings, this robust steel case is backed by a 10-year manufacturer's guarantee.

This product is available in multiple finishes, weights, and manufacturer references. Please choose your preferred option from the selection below.

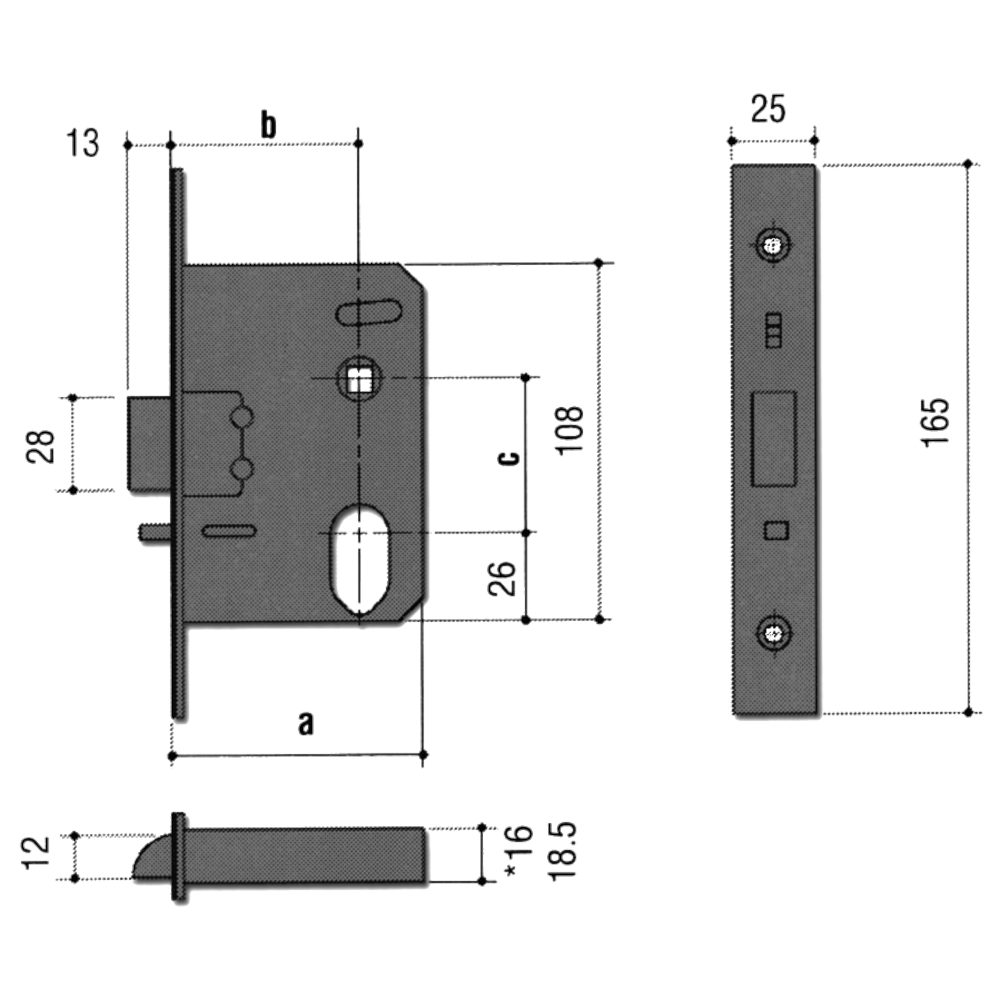

Technical Specifications

Backset: 57mm
Case Depth: 76mm
Case Height: 108mm
Centres: 48mm
Forend Length: 165mm
Forend Width: 25mm
Handing: Reversible
Mechanism: Euro / Oval Cylinder
Case Finish: Gold
Finish / Forend Finish: Polished Brass or Stainless Steel (please choose from the options below)
Weight: 740g or 760g (please choose from the options below)
Manufacturer Reference: AS1094 or AS1095 (please choose from the options below)
Barcode: 5010564601563 or 5010564601570 (please choose from the options below)

Key Features

Dual Profile Compatibility: Easily converts to suit either Euro or Oval profile cylinders by removing the three-screw wrap-around plate.

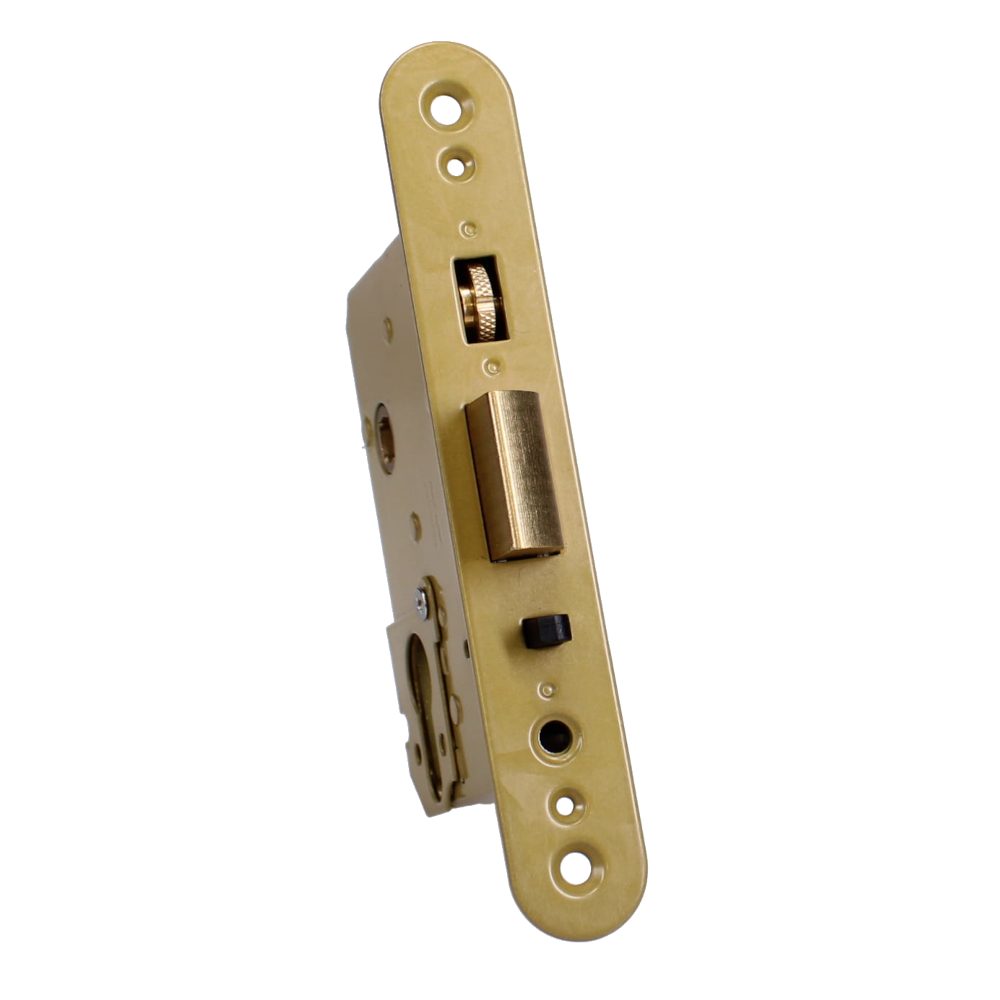

Passage Mode: Integral knurled wheel roller holds the latch in the retracted position for free passage.
Reversible Latchbolt: Field-reversible latch bolt makes it suitable for both left and right-handed doors.
Access Control Ready: Fitted with an anti-thrust device, making it ideal for integration with access control systems.
Complete Kit: Supplied with a box strike, faceplate, full fitting instructions (including a scale template), and all fixings.
10-Year Guarantee: Backed by a 10-year manufacturer's guarantee for peace of mind.
