ASEC AS4300 Series Lever Operated Easy Code Change Digital Lock With Optional Free Passage & Adaptor Kit For Panic Device
Asec

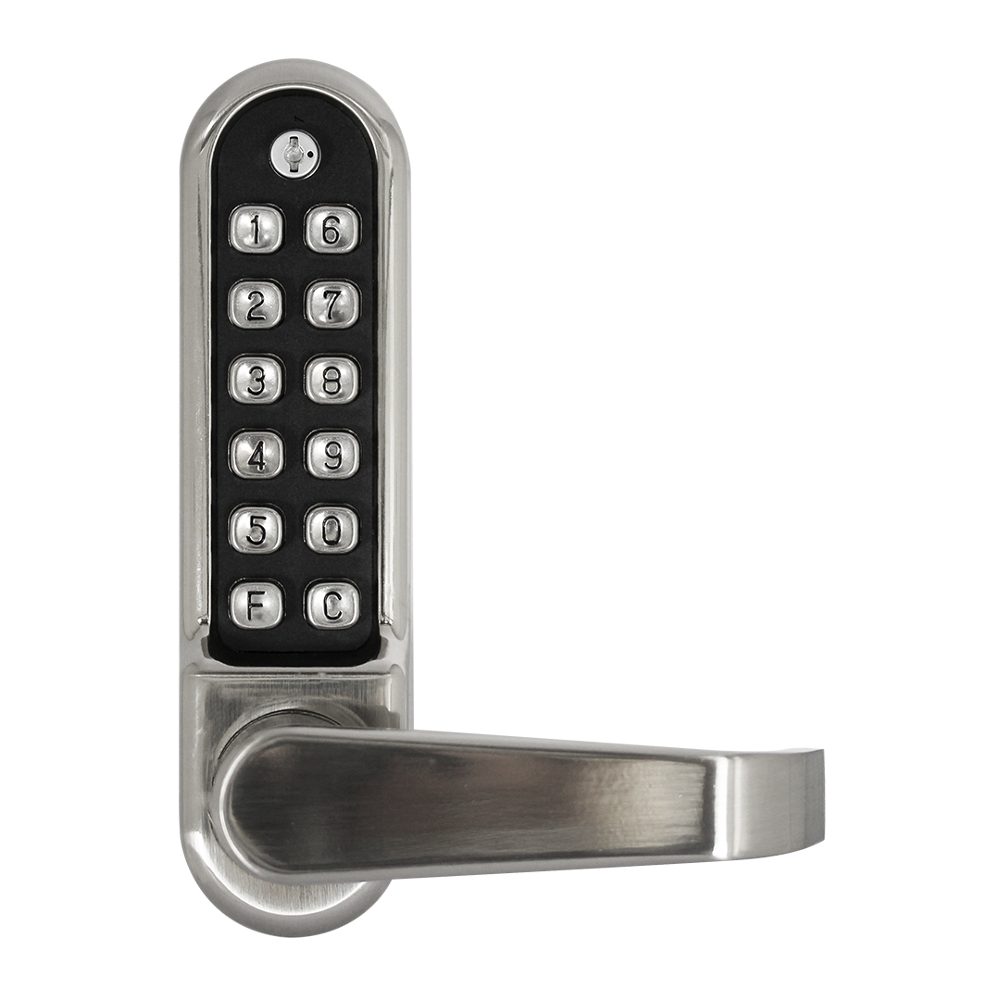

The Asec AS4300 Series Lever Operated Easy Code Change Digital Lock (AS4308) is a robust mechanical digital lock designed for medium to heavy-duty applications on internal or external timber doors. A standout feature of this model is its quick and easy code change function, which allows users to alter the entry code from the outside without having to remove the unit from the door.
This digital lock is supplied complete with an adaptor kit and spindles specifically for fitting to a panic device, making it ideal for use with Asec Panic Hardware or compatible third-party panic exit devices. It features a free-turning, clutched lever handle that rotates freely when locked to protect the internal mechanism against forced entry. For added convenience, it includes a free passage mode, allowing unrestricted access during busy periods. The unit is fully reversible for left or right-handed doors and is supplied without a latch.

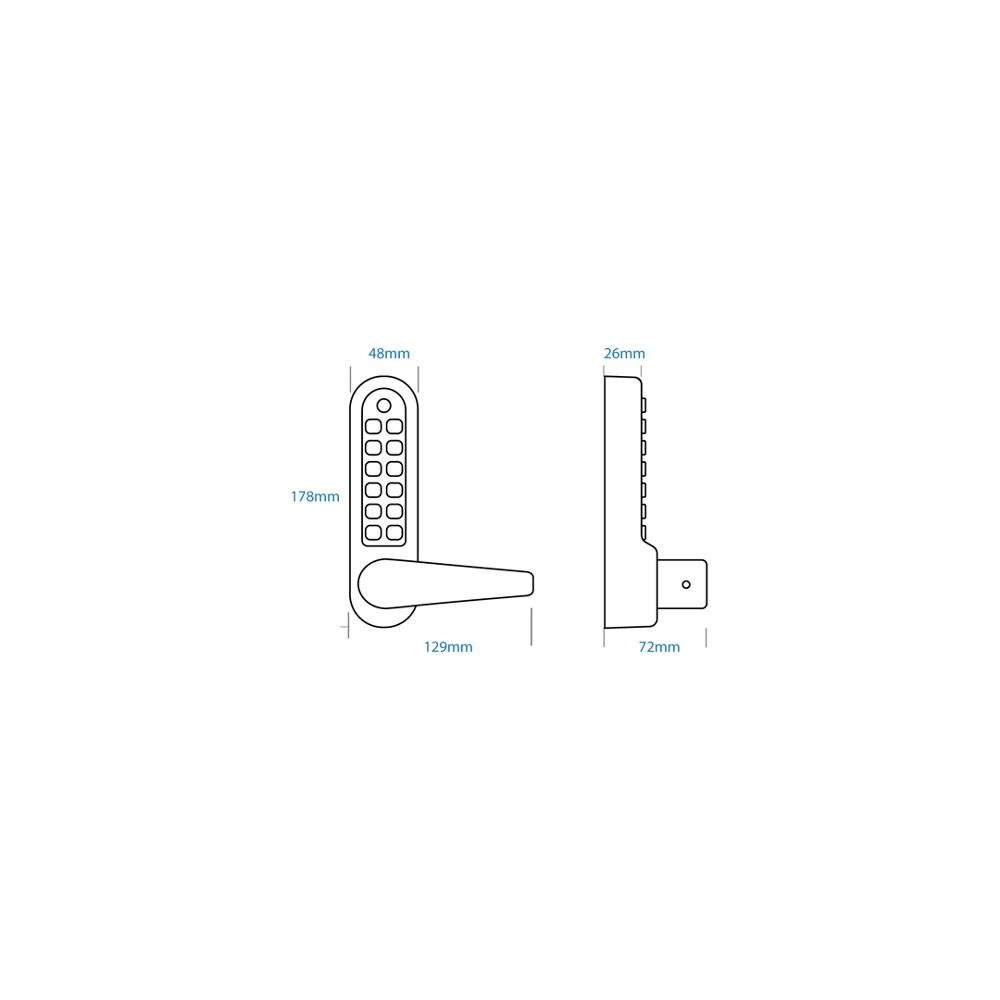

Technical Specifications
- Brand: Asec
- Manufacturer Reference: AS4308
- Finish: Stainless Steel
- Backset: 55mm
- Case Depth Required: 84mm
- Door Thickness: 35mm to 65mm
- Spindle: 8mm
- Handing: Reversible (left or right-handed)
- Buttons: 12 (10 coded, 1 clear, 1 free passage)
- Combinations: 1,000+
- Keys Supplied: 3 (for code change plug)
- Guarantee: 5 Year
Key Features
- Easy Code Change: Change the combination code quickly from the outside without removing the lock from the door.
- Panic Device Compatibility: Supplied with an adaptor kit and spindles for seamless integration with Asec or third-party panic hardware.
- Free Turning Handle: Clutched lever handle rotates freely when locked to protect the internal mechanism against force.
- Free Passage Mode: Allows the lock to be set for unrestricted entry and exit when security is not required.
- Heavy Duty Construction: Suitable for medium to heavy-duty use on both internal and external timber doors.
- No Latch Supplied: Designed for use with existing panic hardware setups.
