ASEC A8 Rim Release
Asec

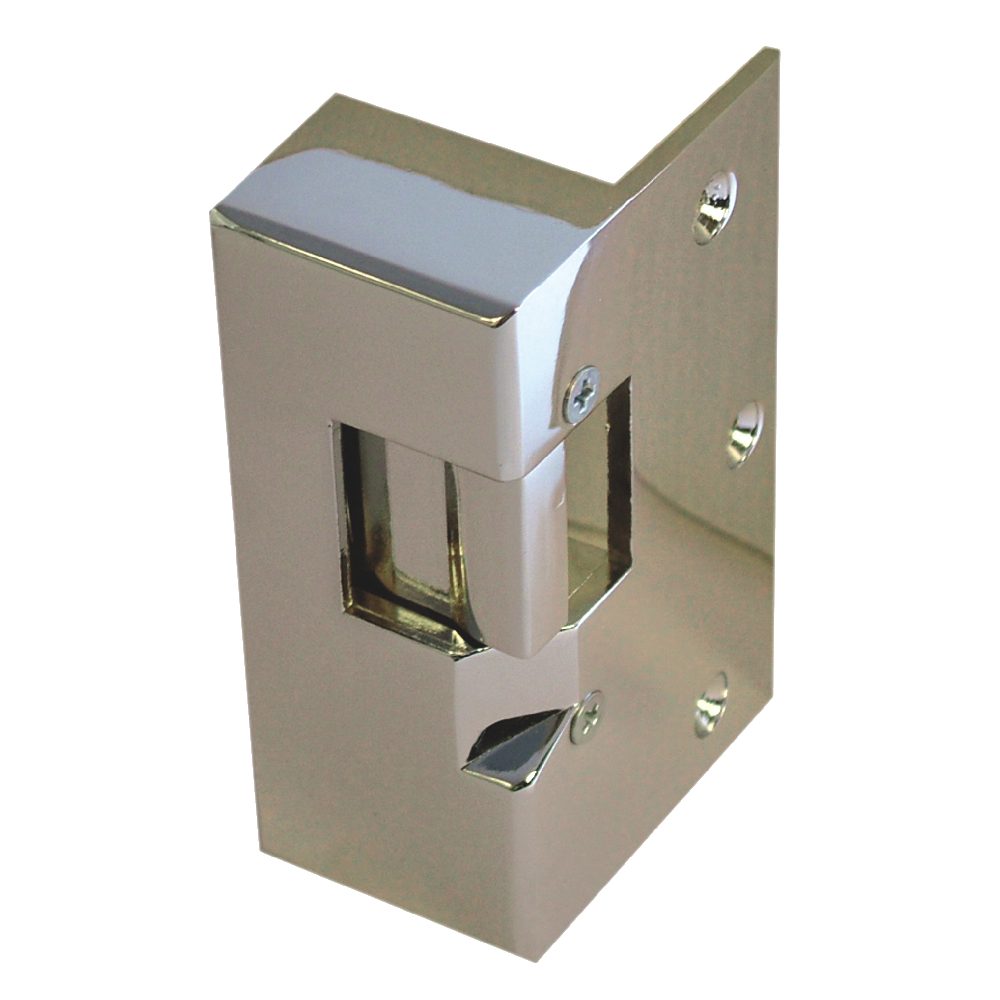

The Asec A8 Rim Release is a low-duty electric strike specifically designed to work with Ingersoll SC71 and SC73 nightlatches. Designed for inward-opening doors, this rim-mounted release offers a secure and convenient way to integrate electronic access control with your existing Ingersoll lock.
To suit your specific security setup and aesthetic preferences, this release is available in a range of configurations. Please choose from the options below to select your preferred:
- Operation: Available in Fail Locked (fail secure) or Fail Unlocked (fail safe) modes.
- Input Voltage & Current: Choose between 12V AC (0.65A current consumption) or 12V DC (0.16A current consumption, continuously rated) models.
- Finish: Available in Polished Brass or Chrome Plated finishes to complement your door hardware.
- Manufacturer Reference: Select from references AS9551, AS9552, AS9553, AS9554, AS9555, or AS9556, with weights ranging from 530g to 550g.
Technical Specifications
- Fitting: Rim mounted
- Compatibility: Designed to suit Ingersoll SC71 & SC73 nightlatches

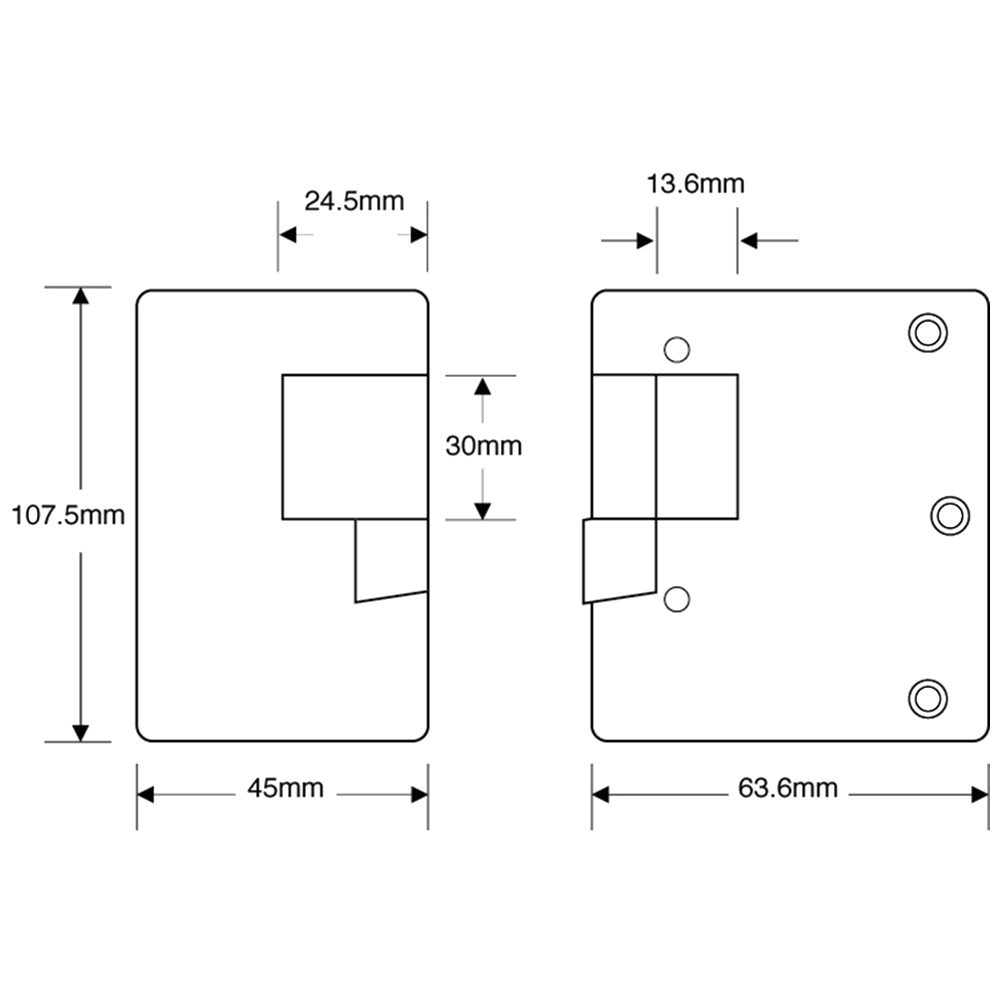

- Body Dimensions: 107mm (H) x 28mm (D)
- Faceplate Dimensions: 107mm (H) x 63mm (W)
- Jaw Dimensions: 30mm (H) x 15mm (W) x 14mm (D)
- Holding Force: 295kg (650lbs)
- Handing: Inward opening only
- Input Voltage: 12V AC or 12V DC (please choose from the options below)
- Current Consumption: 0.16A or 0.65A (please choose from the options below)
- Operation: Fail Locked or Fail Unlocked (please choose from the options below)
- Finish: Polished Brass or Chrome Plated (please choose from the options below)
- Weight: 530g to 550g (please choose from the options below)
- Monitoring: Non-monitored
- Weather Resistance: No (suitable for internal use)
- Guarantee: 1 Year
Key Features
- Ingersoll Compatibility: Specifically designed to work seamlessly with Ingersoll SC71 and SC73 nightlatches
- Inward Opening: Purpose-built for inward-opening doors
- Continuous Rating: 12V DC models are continuously rated for reliable performance
- Flexible Operation: Choose between fail-locked or fail-unlocked configurations to match your safety requirements
- Aesthetic Options: Available in polished brass or chrome plated finishes to match your door's style
- Low Duty Design: Ideal for standard, low-traffic internal access control applications
Downloads
Datasheets and product documents
Datasheet.pdf
PDF
Generated datasheet
