ASEC 20 Boxlock

The Asec 20 Boxlock is a traditional, high-quality 1-lever lock designed specifically for securing wooden boxes, chests, cupboards, and single desk drawers. This cut-in (or morticed) box lock is fitted internally, allowing the deadbolt to engage and secure the lid or drawer shut. It is operated by a key, with the deadbolt locking and unlocking smoothly to provide reliable, basic security for your decorative furniture, hobbyist woodworking projects, or office drawers.

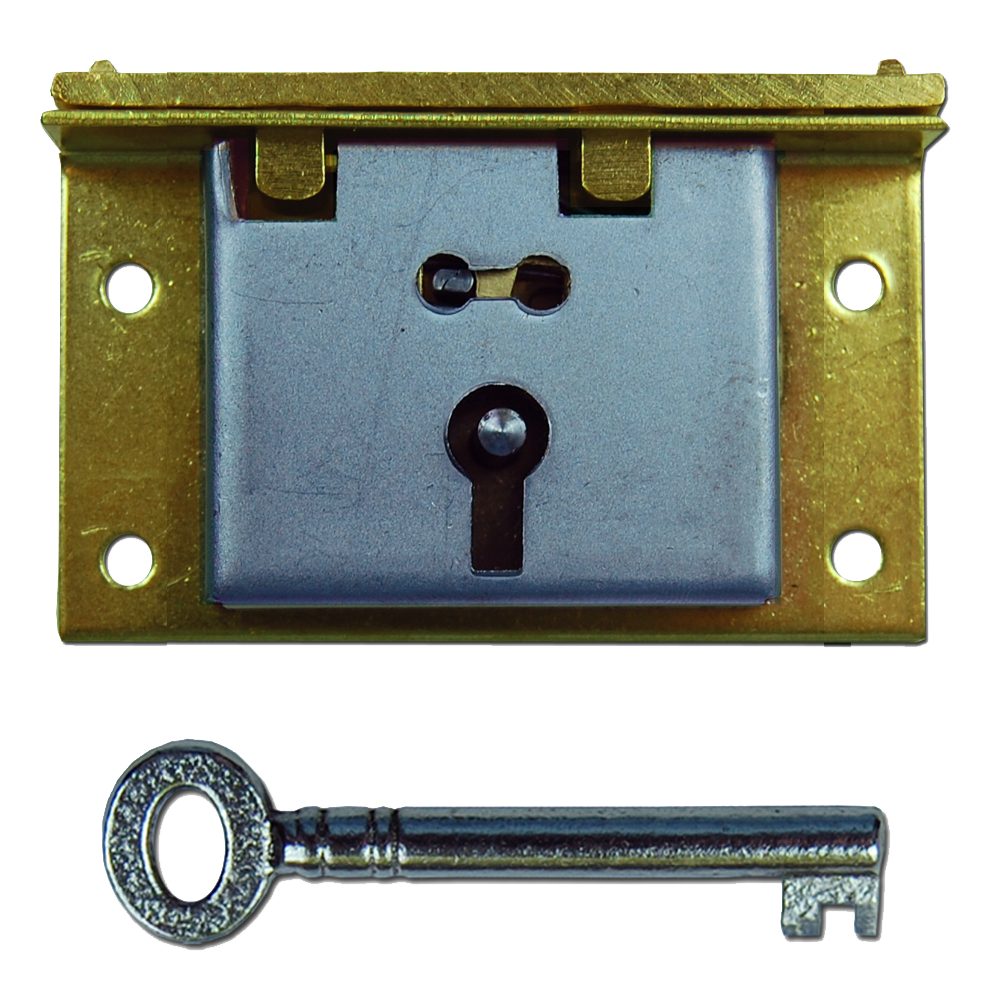

Featuring a classic satin brass finish, this lock is supplied keyed to differ and comes complete with one key. It is available in two sizes to suit your specific installation requirements: a 50mm width version (AS6500) with a 19mm backset, and a 64mm width version (AS6501) with a 21mm backset. Please select your preferred size and specifications from the options below to ensure the perfect fit for your project.

Technical Specifications

• Brand: Asec
• Mechanism: 1 Lever
• Finish: Satin Brass
• Keying: Keyed To Differ
• Keys Supplied: 1

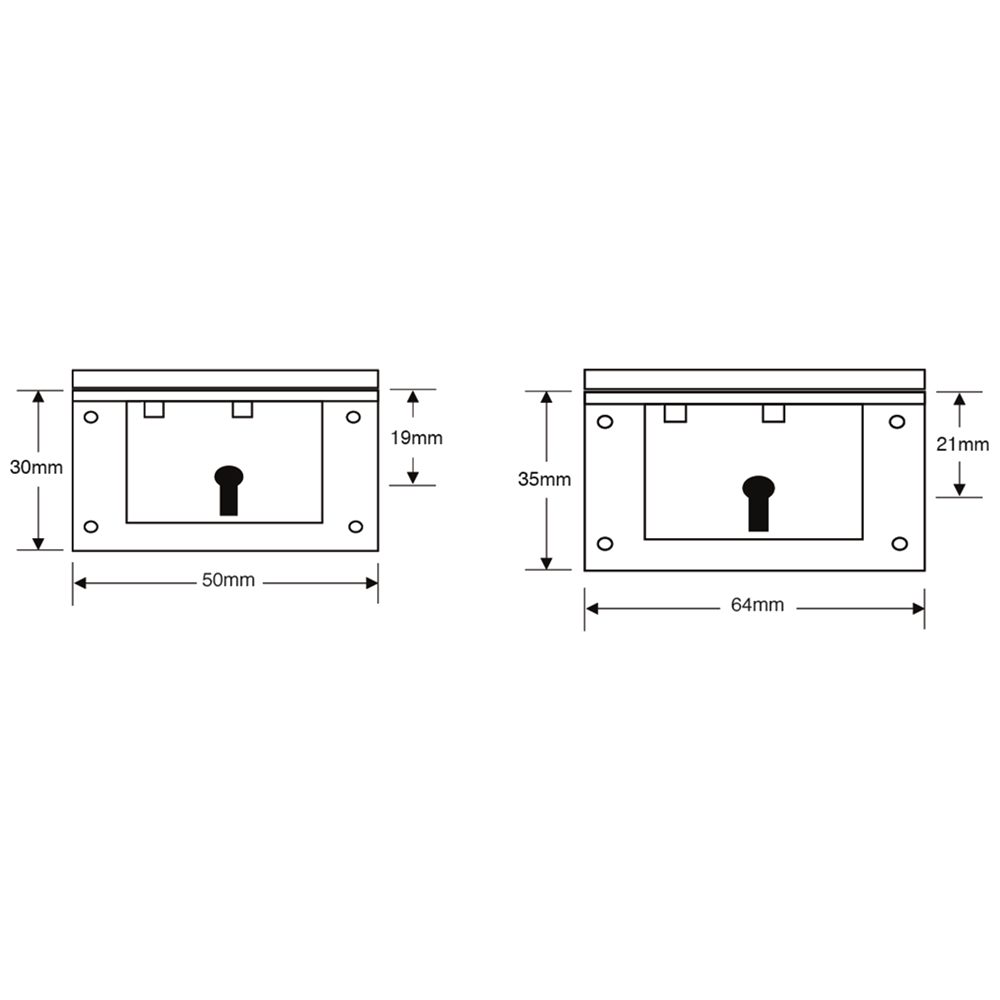

• Case Width: 50mm or 64mm (please choose from the options below)
• Case Height: 30mm or 35mm (please choose from the options below)
• Case Depth: 9mm
• Backset: 19mm or 21mm (please choose from the options below)
• Weight: 60g or 85g (depending on the selected size)
• Manufacturer Reference: AS6500 or AS6501 (please choose from the options below)
• Barcode: 5055120607986 or 5055120607979 (depending on the selected model)

Key Features

• Versatile Application: Ideal for securing wooden boxes, chests, cupboards, cabinets, and single desk drawers.
• Internal Fitment: Designed to be cut or morticed into the wood for a neat, internal installation.
• Smooth Operation: Key-operated deadbolt locks and unlocks reliably.
• Classic Finish: Elegant satin brass finish to complement traditional and decorative furniture.
• Keyed to Differ: Supplied with one key, offering individual security.
• Multiple Sizes Available: Choose between 50mm and 64mm widths to suit your specific project needs.
