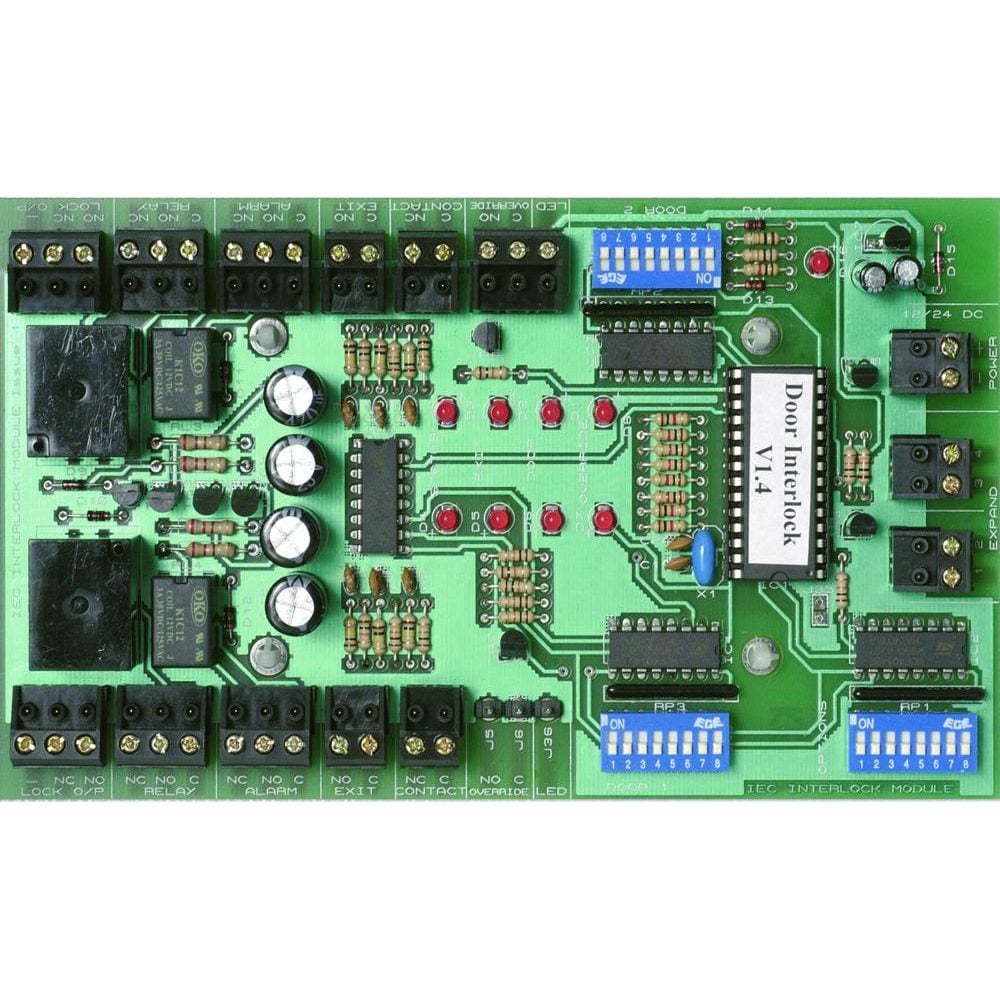

ALPRO IB1 Interlock Board

The Alpro IB1 Interlock Board is a high-performance 2-door interlock controller designed for access control systems where controlled door sequencing is essential, such as in clean rooms, airlocks, and secure lobbies. This microprocessor-controlled unit ensures that when one door is open, the other remains securely locked, preventing simultaneous opening.

Operating on a dual-voltage 12V or 24V DC input, the IB1 offers exceptional flexibility and high-load capability with a 5 Amp double-pole changeover relay per door. It features independent controls for each door, including adjustable door-open times (0 - 62 seconds) and alarm delays (0 - 45 seconds) managed via precise DIP switches.

Installation is straightforward thanks to pluggable terminal blocks and supplied nylon stick-on mountings. For larger security setups, the system is fully expandable to an infinite number of doors simply by cross-wiring additional IB1 boards together.

Technical Specifications

• Brand: Alpro
• Manufacturer Reference: IB1-PCB
• Input Voltage: 12/24V DC
• Outputs: 1 Output Volt-Free NO & NC Per Door
• Rating: 5 Amp (Double Pole)
• Time Delay: 0 - 62 seconds adjustable & 0 - 45 seconds adjustable
• Width: 101mm
• Depth: 30mm
• Weight: 350g
• Pack Quantity: 1

Key Features

• Microprocessor Controlled Logic: Ensures reliable, true interlocking where only one door can be operated at a time.
• Fully Expandable: Easily scale your system to support an infinite number of doors by cross-wiring additional IB1 boards.
• Independent Door Controls: Separate settings for each door, including individual timers and override inputs.
• On-Board Diagnostics: Features 9 engineering LEDs for rapid diagnostic testing and troubleshooting.
• Simple Installation: Supplied with pluggable terminal blocks and nylon stick-on mountings for flexible mounting.
• Dual Alarm Output: Selectable door forced or door left open alarm outputs to enhance site security.
