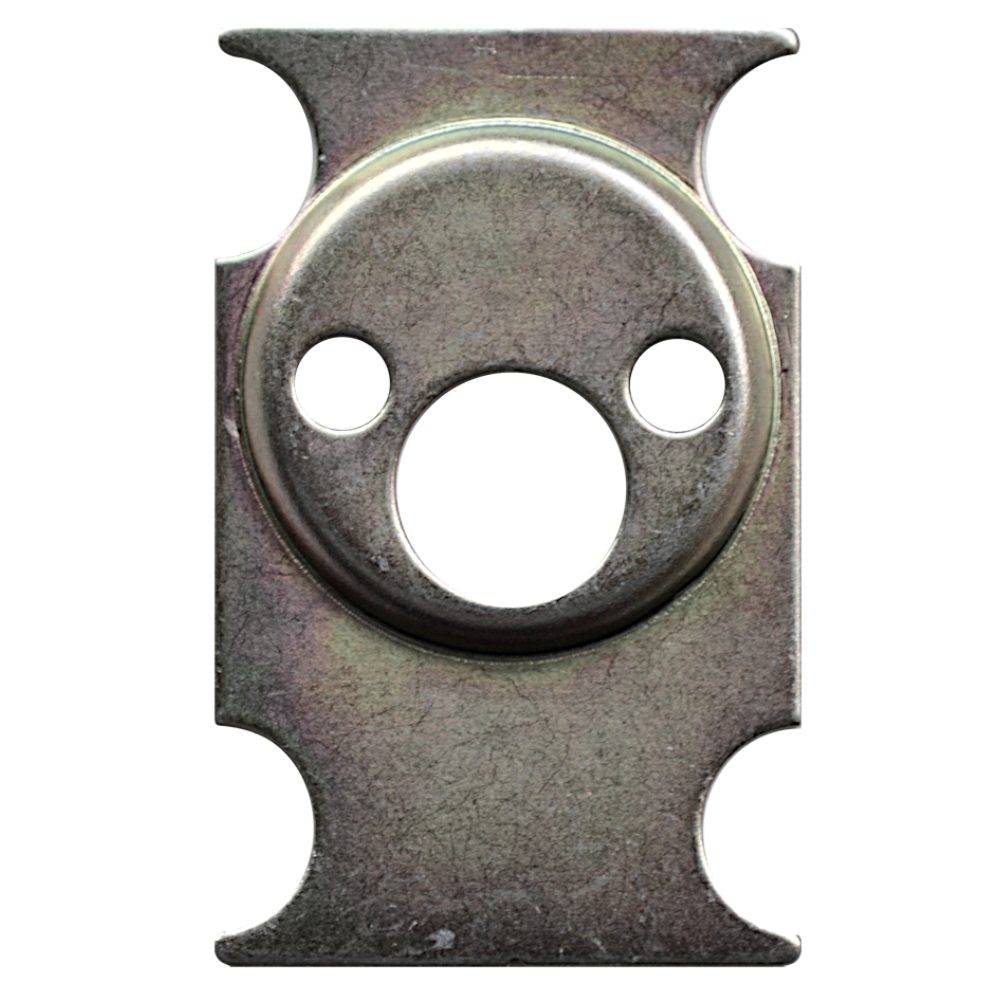

YALE Replacement Cylinder Backplate

The Yale Replacement Cylinder Backplate (manufacturer reference: 833765101168) is a genuine Yale spare part designed for use when fitting or replacing a Yale rim cylinder. Constructed from solid, durable steel, this plate provides a secure mounting base for the cylinder on the door.

This backplate is specifically designed for use with nightlatches featuring a standard 60mm backset. It features a 14.2mm central hole to allow the cylinder tailbar to pass through smoothly, and has standard 21mm screw centres for easy alignment and installation. Whether you are replacing a worn-out component or installing a new rim cylinder, this genuine Yale accessory ensures a reliable, professional fit.

Technical Specifications

• Brand: Yale
• Manufacturer Reference: 833765101168
• Part Number: L24697
• Material: Solid steel
• Plate Thickness: 1.2mm
• Height: 58.6mm
• Width: 36.5mm
• Screw Centres: 21mm
• Tailbar Hole Diameter: 14.2mm
• Compatibility: Yale rim cylinders and nightlatches with a 60mm backset
• Weight: 16g
• Pack Quantity: 1

Key Features

• Genuine Yale Spare: Authentic replacement part ensuring perfect compatibility and quality.
• Solid Metal Construction: Made from durable steel for long-lasting reliability.
• Standard Fit: Designed for nightlatches with a 60mm backset.
• Tailbar Clearance: Features a 14.2mm hole to accommodate the cylinder tailbar.
• Easy Installation: Pre-drilled with 21mm screw centres for quick alignment.
