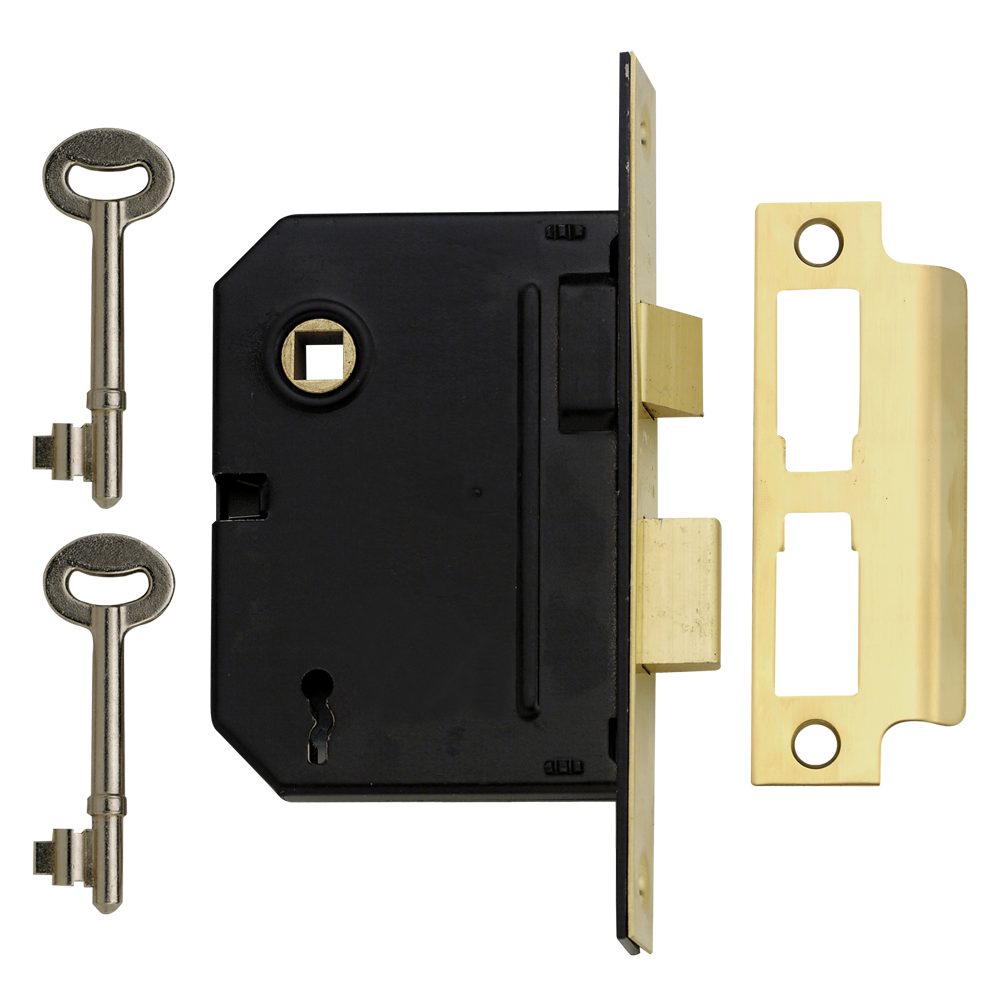

YALE PM320 3 Lever Sashlock

The Yale PM320 3 Lever Sashlock provides a standard level of security, making it an ideal choice for internal wooden doors. Designed for use with lever handles, this mortice sashlock features a latchbolt operated from either side and a deadbolt that can be locked or unlocked by key from either side.

This lock is engineered for versatility and ease of installation, featuring a fully reversible latchbolt to accommodate both left and right-handed doors. It is equipped with an 8mm spindle follower, making it suitable for use with unsprung lever handles. For added security, the lock incorporates a 13mm anti-saw deadbolt.

Available in multiple sizes, weights, and configurations, please select your preferred backset, case depth, weight, and barcode from the options below to find the perfect fit for your door.

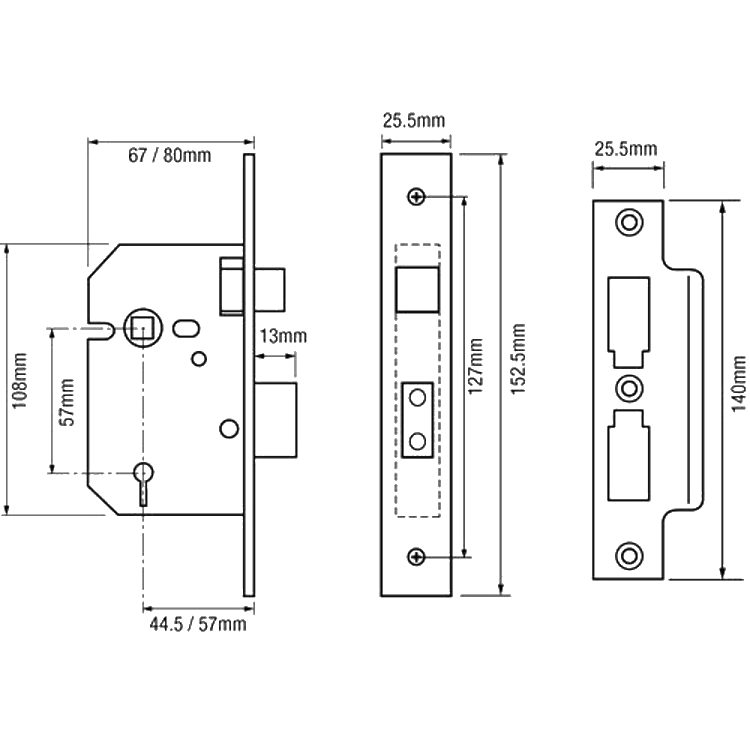

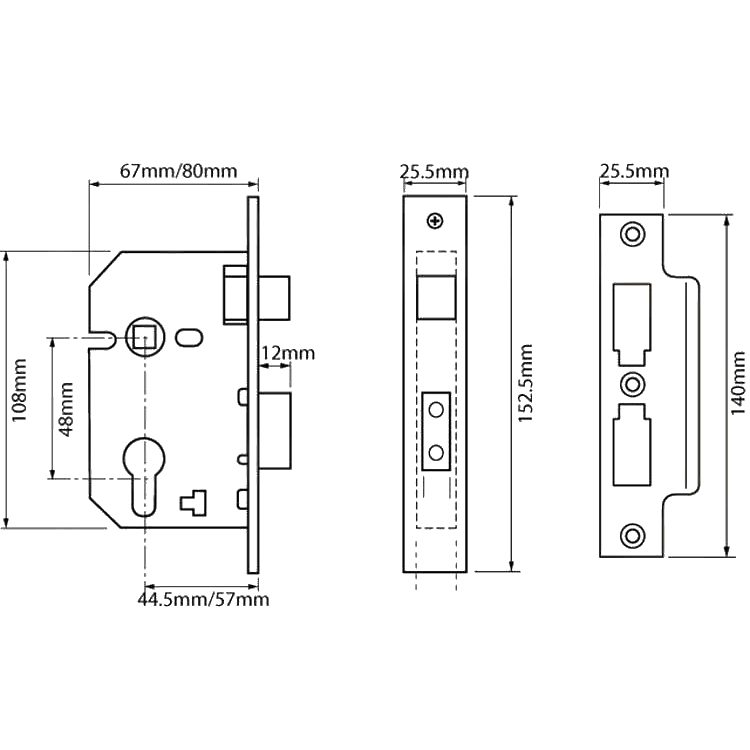

Technical Specifications

• Brand: Yale
• Mechanism: 3 Lever
• Backset: 45mm or 57mm (please choose from the options below)
• Case Depth: 64mm or 76mm (please choose from the options below)
• Case Height: 108mm
• Centres: 57mm
• Forend Length: 152mm
• Forend Width: 25mm
• Follower: 8mm
• Handing: Reversible
• Finish: Polished Brass
• Keying: Keyed to differ (150 differs)
• Keys Supplied: 2
• Weight: 580g or 650g (please choose from the options below)
• Barcode: Multiple options available (please choose from the options below)

Key Features

• Standard Security: Perfect for internal wooden doors with handles.
• Reversible Latchbolt: Easily adjusted to suit both left and right-handed doors.
• Anti-Saw Deadbolt: Features a 13mm deadbolt for enhanced physical security.
• Unsprung Handle Compatibility: Designed for use with unsprung lever handles.
• Manufacturer's Guarantee: Backed by a 2-year Yale guarantee.
• Keys Included: Supplied with 2 warded keys.
