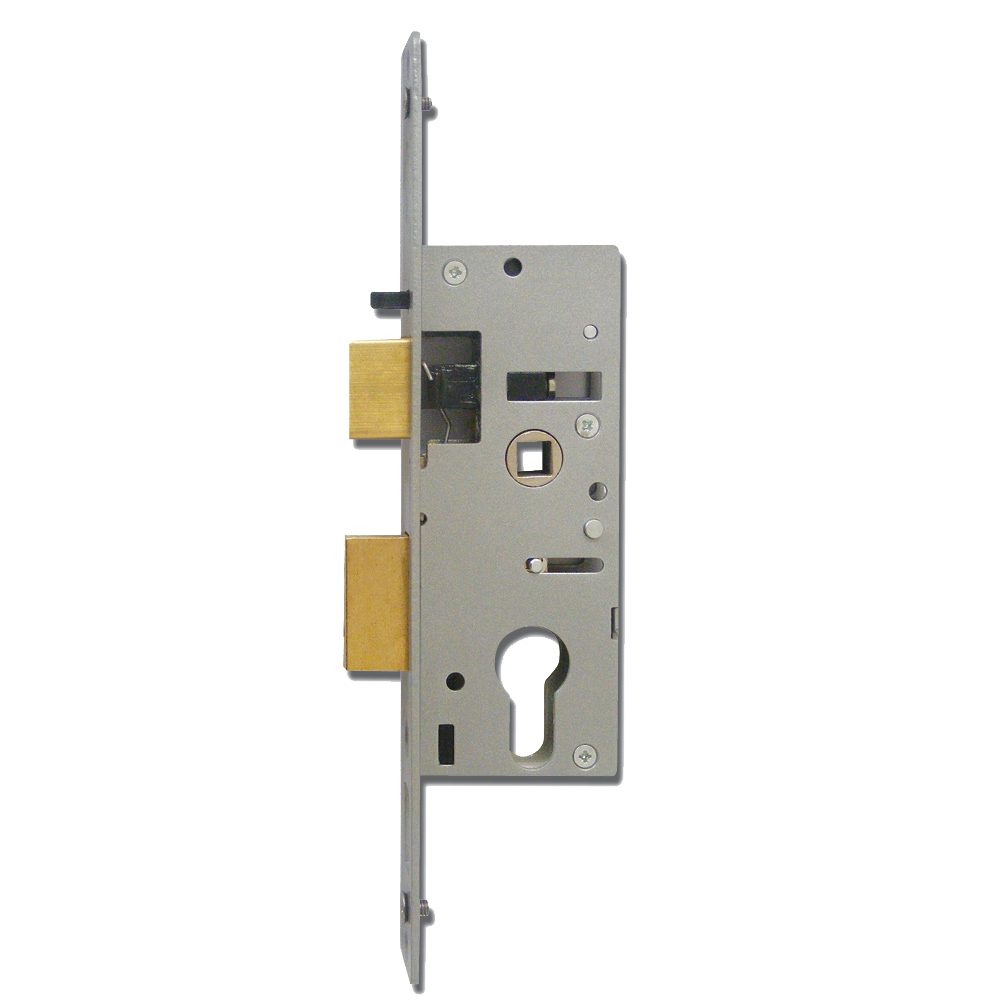

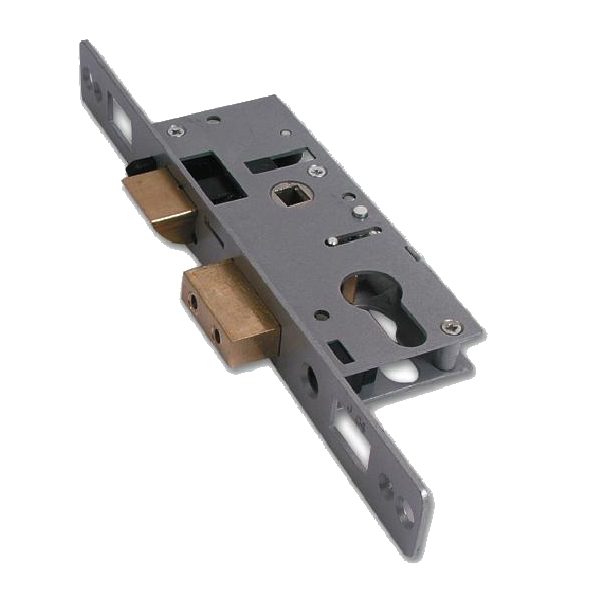

YALE L22080 Euro Sashcase

The Yale L22080 Euro Profile Sashcase is a robust and reliable latch and deadbolt lockcase, specifically designed for installation in metal doors. With its slim 30mm backset and 48mm centres, this sashcase is an ideal choice for narrow-profile metal door frames in both commercial and residential settings.

This lockcase features a standard sashlock operation where the deadbolt is thrown and retracted by a euro profile cylinder (sold separately), and the latchbolt can be operated by either a lever handle or the cylinder key. For added security, it is fitted with an anti-thrust snib that automatically deadlocks the latchbolt when the door is closed, preventing physical tampering.

The latchbolt is fully reversible, making it suitable for both left and right-handed doors. Handing can be adjusted quickly by inserting a screwdriver into the rear of the case, pushing the latch forward, and rotating it. Please note that this unit is supplied without a faceplate.

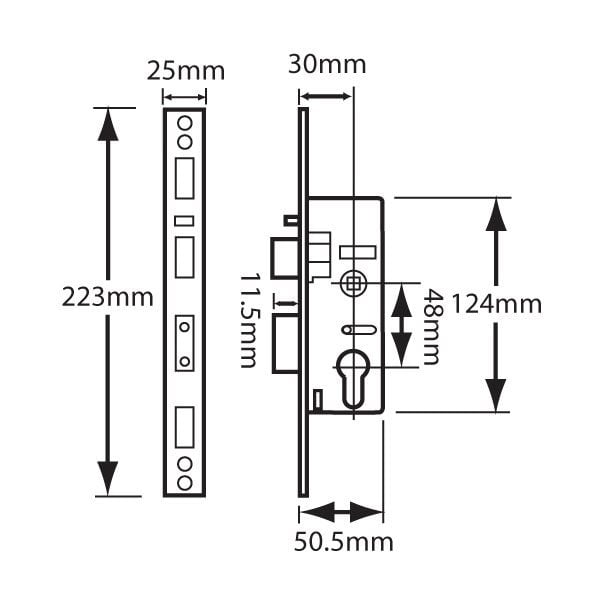

Technical Specifications

• Brand: Yale
• Manufacturer Reference: L22080 (L8501)
• Backset: 30mm
• Centres: 48mm
• Case Depth: 50mm
• Case Height: 124mm
• Case Width: 50mm
• Faceplate Width: 25mm
• Forend Length: 223mm
• Forend Width: 25mm
• Finish: Satin Chrome
• Mechanism: Euro Cylinder
• Spindle: Single
• Operation: Deadbolt operated by cylinder; latchbolt operated by handle or cylinder

Key Features

• Metal Door Compatibility: Specially designed and sized for use in metal door profiles.
• Anti-Thrust Snib: Automatically deadlocks the latchbolt upon closing to prevent tampering.
• Reversible Latch Bolt: Easily handed for left or right-hung doors using a screwdriver at the rear of the case.
• Euro Profile: Designed for seamless integration with standard euro profile cylinders.
• Supplied Without Faceplate: Ideal for direct replacements or custom architectural installations.
