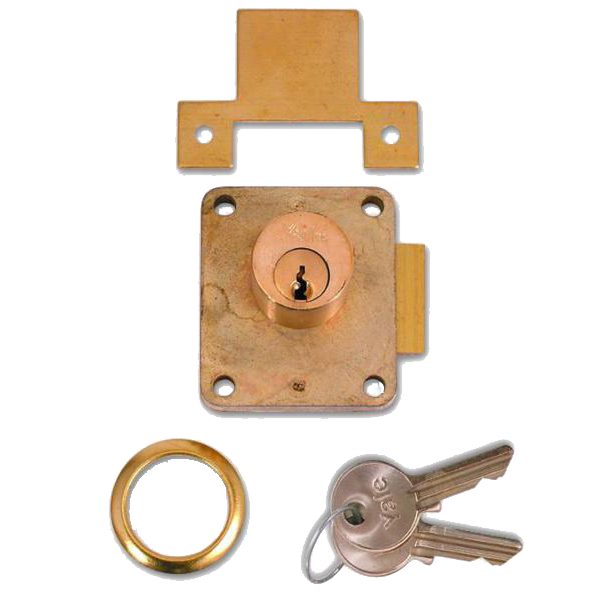

YALE 076S Cylinder Straight Cupboard Springlock

The Yale 076S is a high-quality cylinder straight cupboard springlock, designed to provide reliable security for cupboards, cabinets, and wardrobes. Featuring a springbolt action, this straight cupboard lock is ideal for timber doors and drawers with a maximum material thickness of 19mm.

Please note that this lock is handed and is not reversible. It is available in both Left Hand (LH) and Right Hand (RH) configurations, each associated with a unique barcode. Please select your required handing and barcode from the options below when ordering to ensure correct fitment.

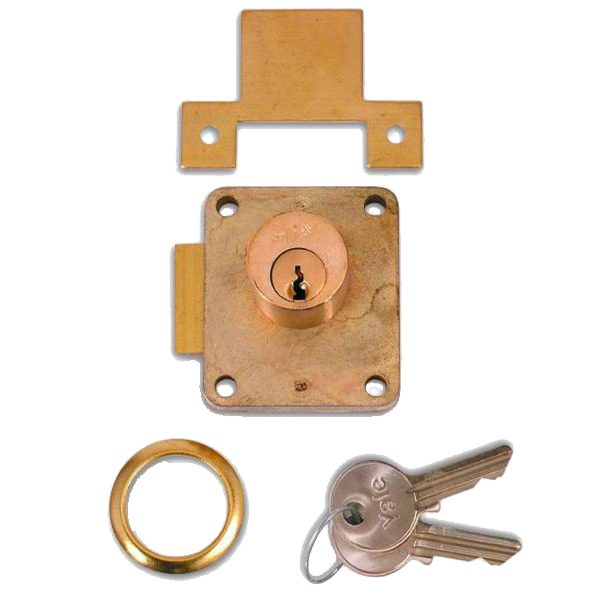

The lock is supplied keyed to differ on the SX key section and comes complete with two keys, a matching cylinder rose, a strike plate, and all necessary fixing screws for a straightforward installation.

Technical Specifications

• Brand: Yale
• Manufacturer Reference: 076S
• Backset: 22mm
• Bolt Throw: 10mm
• Cylinder Diameter: 22mm
• Cylinder Projection: 22mm
• Case Dimensions: 51mm (H) x 45mm (W) x 8mm (D)
• Max Material Thickness: 19mm
• Finish: Polished Brass
• Handing: Left Hand or Right Hand (please choose from the options below)
• Keying: Keyed to differ (SX section)
• Keys Supplied: 2

Key Features

• Springbolt Action: Ideal for straight cupboard doors and cabinets.
• Handed Options: Available in Left Hand and Right Hand versions (not reversible) to suit your specific door configuration.
• Complete Kit: Supplied with a cylinder rose, strike plate, and fixing screws for quick installation.
• Secure Keying: Keyed to differ on the SX key section with two keys included.
• Durable Construction: Features a polished brass finish to complement traditional and modern cabinet hardware.
