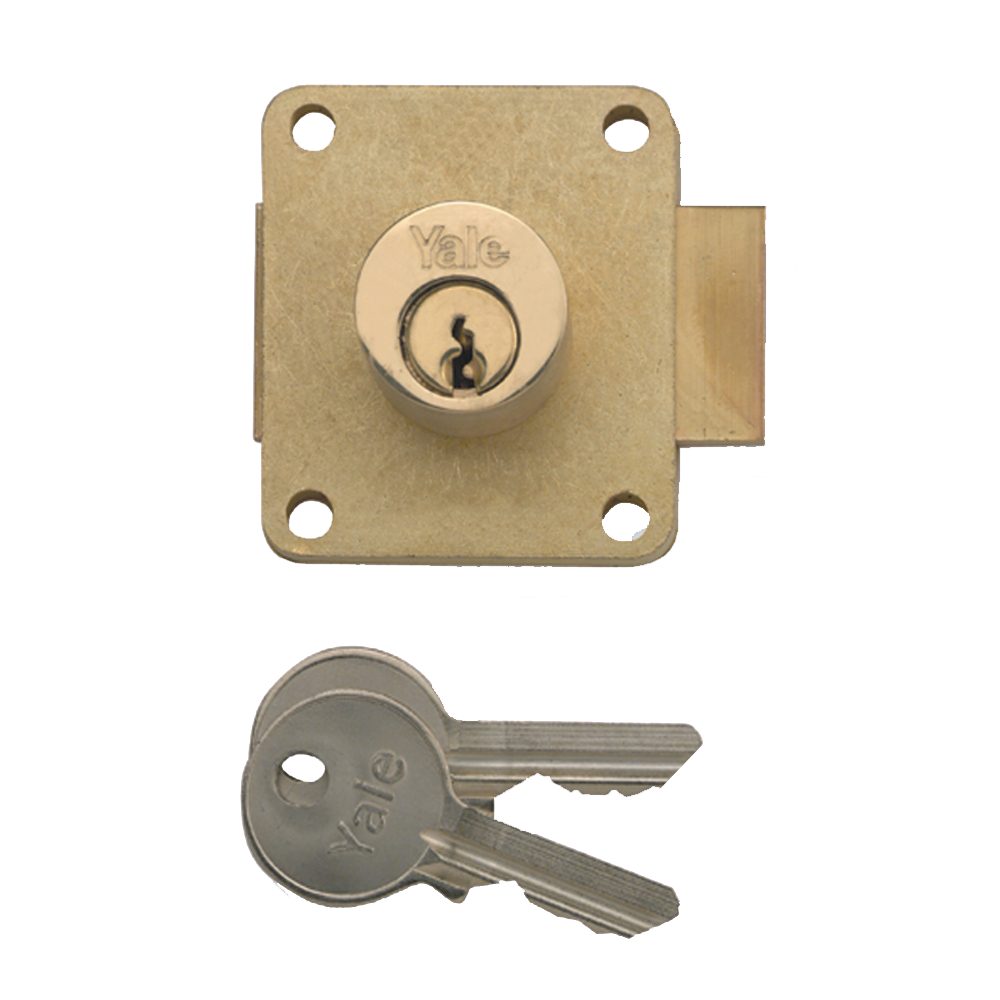

YALE 076 Cylinder Straight Cupboard Lock

The Yale 076 Cylinder Straight Cupboard Lock is a reliable, high-quality deadlock designed to secure wooden cupboard doors, drawers, and tills. Operated by a key, this straight cupboard lock provides robust security for residential or commercial furniture, ensuring your valuable items remain safe and restricted.

This lock features a 4-pin cylinder mechanism offering up to 1,000 key differs, and is supplied keyed to differ with two keys. It is designed for screw-in fixing on the back of the door or drawer, and comes complete with a cylinder rose and fixing screws for a straightforward installation. With a 22mm cylinder projection, this lock is suitable for cupboard doors and drawers with a material thickness of up to 19mm.

Available in multiple finishes, including Polished Brass and Satin Chrome, you can choose the perfect option to match your existing cabinet hardware. Please select your preferred finish and barcode option from the options below.

Technical Specifications

• Brand: Yale
• Manufacturer Reference: 76 (3045 / L11536)
• Lock Type: Cylinder Straight Cupboard Deadlock
• Mechanism: 4-Pin
• Keying: Keyed to differ (1,000 differs)
• Keys Supplied: 2
• Cylinder Diameter: 22mm
• Cylinder Projection: 22mm
• Backset: 22mm
• Bolt Throw: 10mm

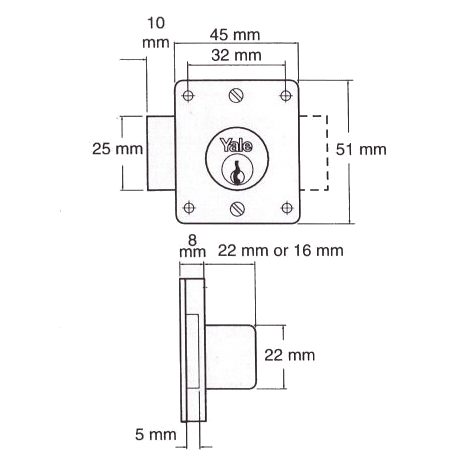

• Case Dimensions: 51mm (H) x 45mm (W) x 8mm (D)
• Material Thickness: Suitable for doors up to 19mm

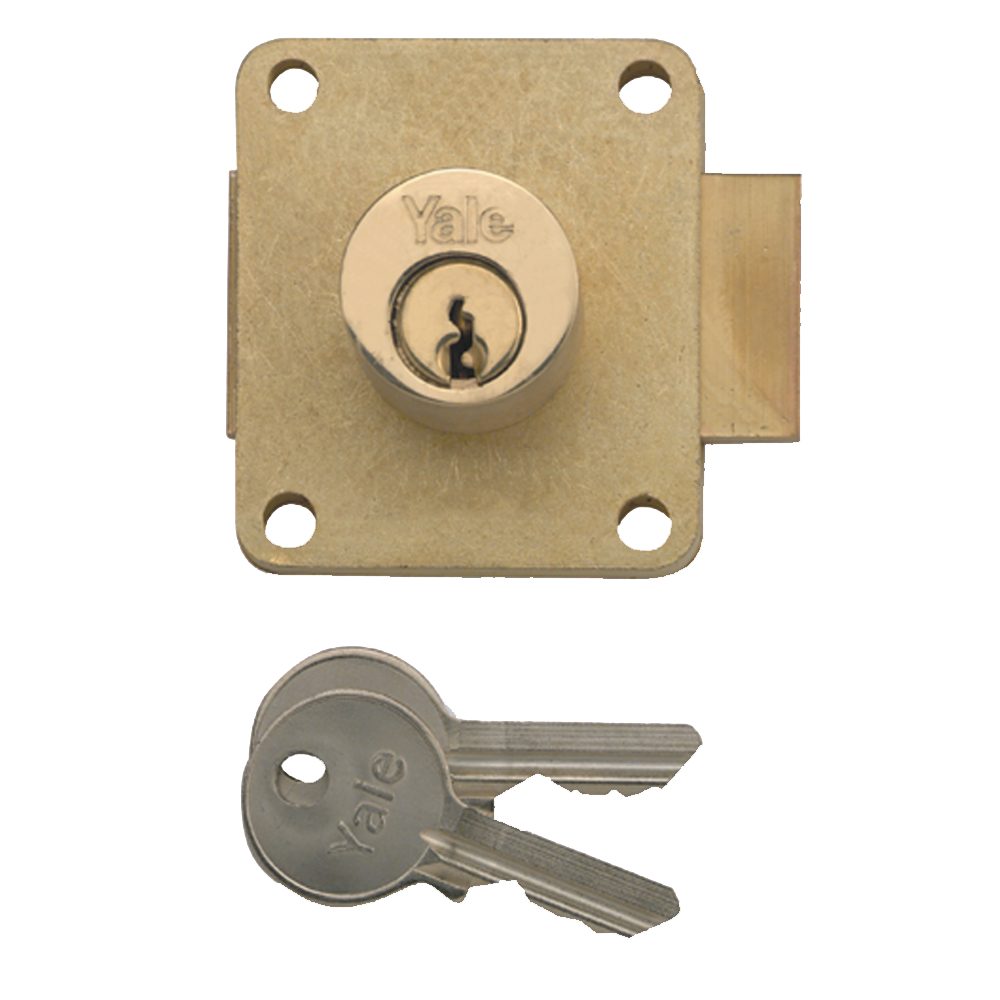

• Finishes Available: Polished Brass (with Satin Brass cylinder) or Satin Chrome (please select from the options below)

Key Features

• Reliable Security: Ideal for securing wooden cupboard doors, drawers, and tills.
• Complete Kit: Supplied complete with a matching cylinder rose and fixing screws for quick installation.
• Smooth Operation: Key-operated deadlock mechanism ensures robust and dependable locking.
• Multiple Finishes: Available in Polished Brass or Satin Chrome to complement your cabinet aesthetics.
• In-House Key Services: Key cutting and keyed alike (KA) options are available in-house.
