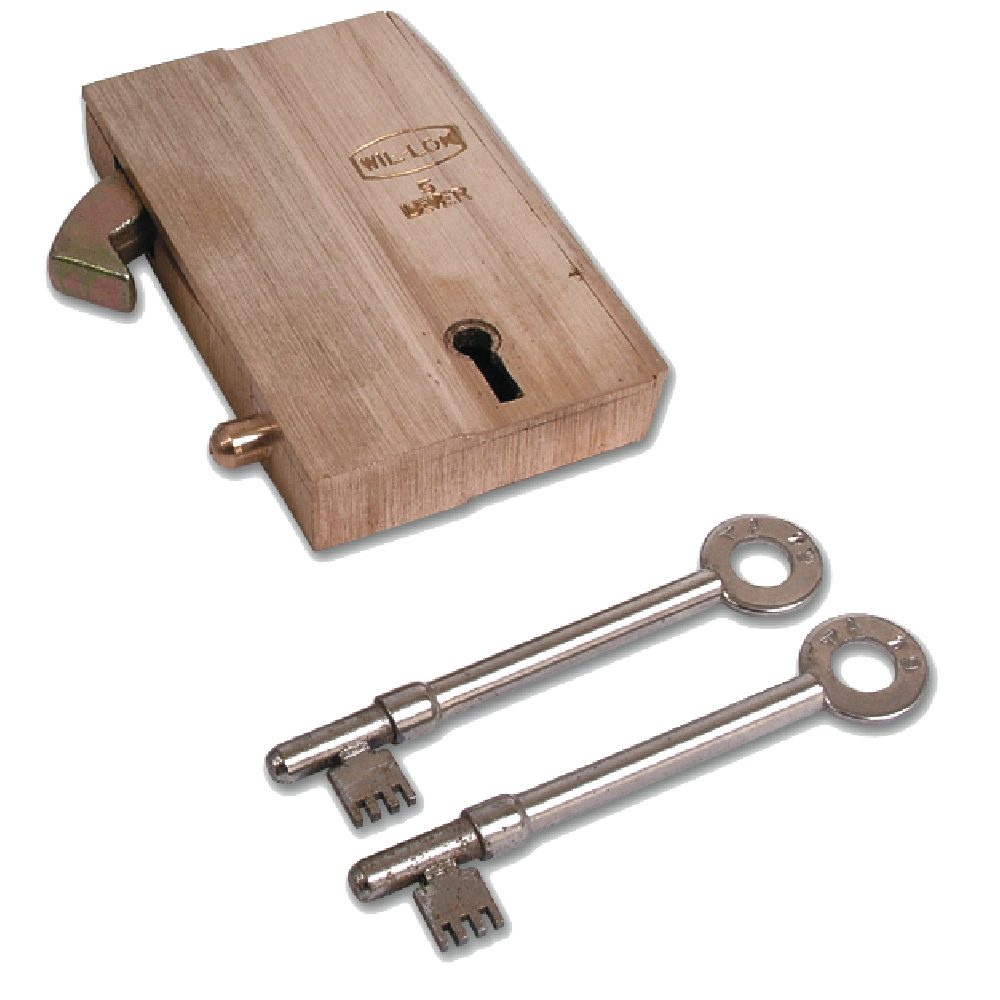

WILLENHALL LOCKS G8 5 Lever Gatelock

The Willenhall G8 5 Lever Gatelock is a robust, high-security hookbolt lock specifically designed to secure external gates. Its standout security feature is the integrated 'steady' bolt, which prevents the gate from being lifted upwards to release the hook, offering excellent protection against forced entry.

Constructed with a durable satin brass finish on both the case and forend, this lock is operated by key from either side, ensuring convenient access control. It features a 38mm backset, a 68mm case depth, and a reliable 5-lever mechanism. The lock is supplied keyed to differ with two keys as standard, while keyed alike (KA) and master keyed (MK) options are available as special orders. An optional steel locking box (catchbox) can also be purchased separately to provide a secure housing for the lock bolt, ensuring a neat and stable installation on timber or metal gates.

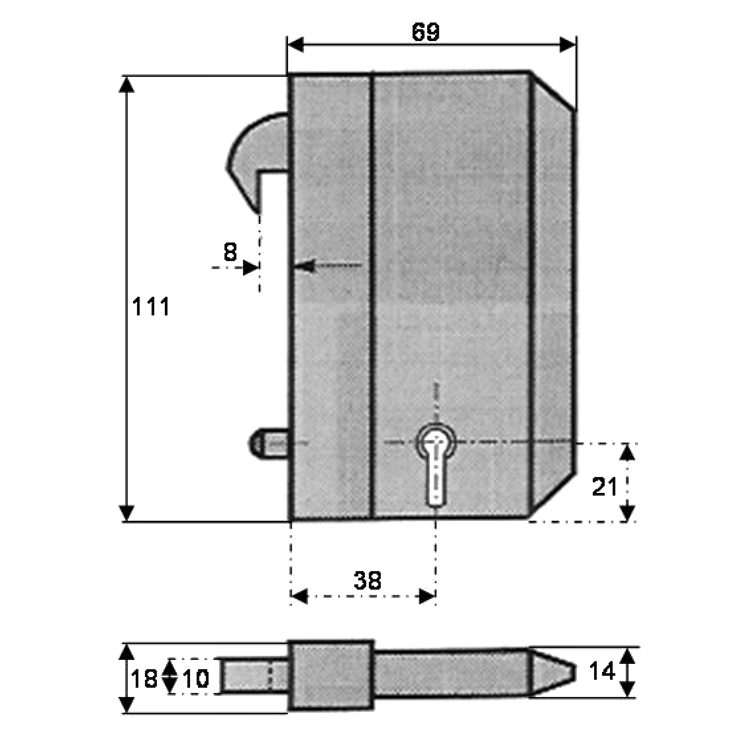

Technical Specifications

• Brand: Willenhall Locks
• Mechanism: 5 Lever
• Backset: 38mm
• Case Depth: 68mm
• Case Height: 110mm
• Case Width (Depth): 18mm
• Finish: Satin Brass (Case and Forend)
• Keying: Keyed to Differ (100 differs)
• Keys Supplied: 2
• Weight: 710g

Key Features

• Anti-Lift Design: Integrated 'steady' bolt prevents the gate from being lifted to release the hook bolt.
• Double-Sided Key Operation: Hookbolt can be locked or unlocked by key from either side of the gate.
• Robust 5-Lever Mechanism: Provides reliable security and resistance to tampering.
• Optional Steel Locking Box: Compatible with a steel catchbox (available separately) for a secure, professional finish.
• Special Order Keying Options: Keyed Alike and Master Keyed suites are available upon request.
