UNION L2349 Euro Nightlatch Case

Union More Union Nightlatches

From

£138.28

Select size, finish, and quantity from the variant table.

View options

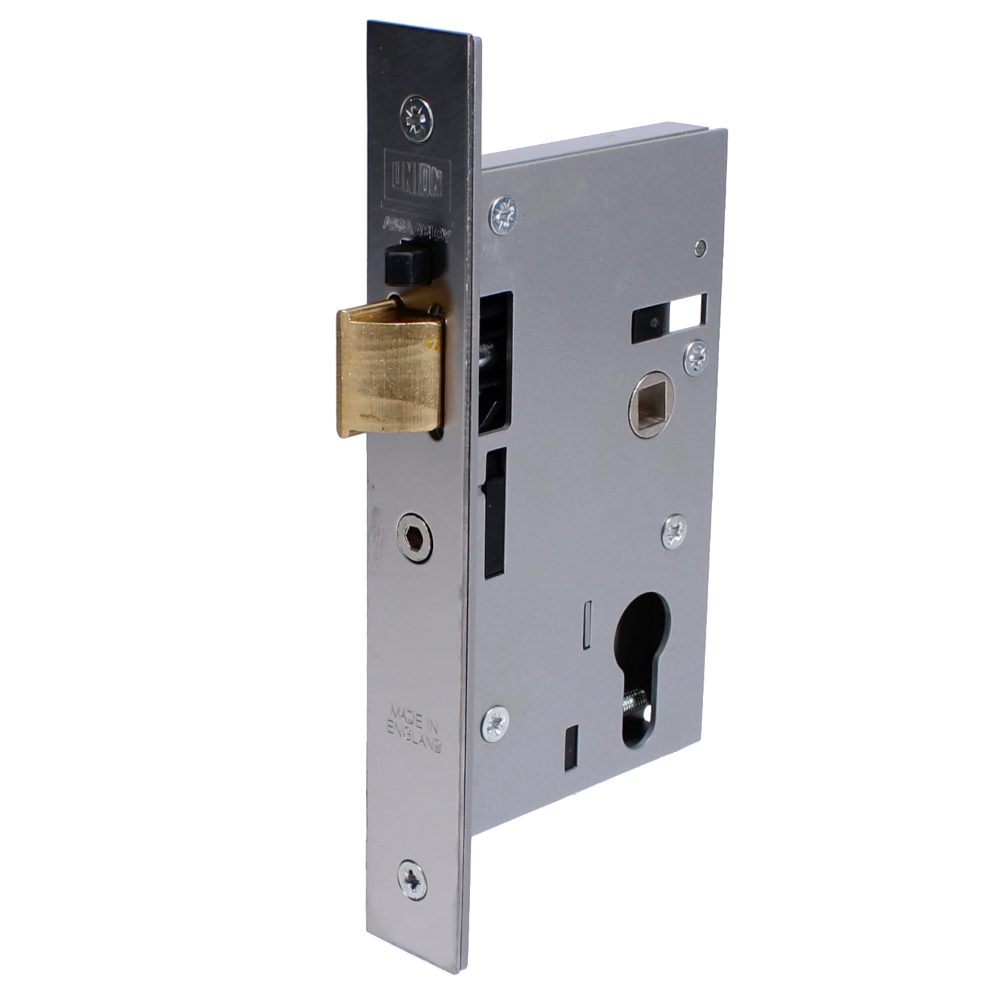

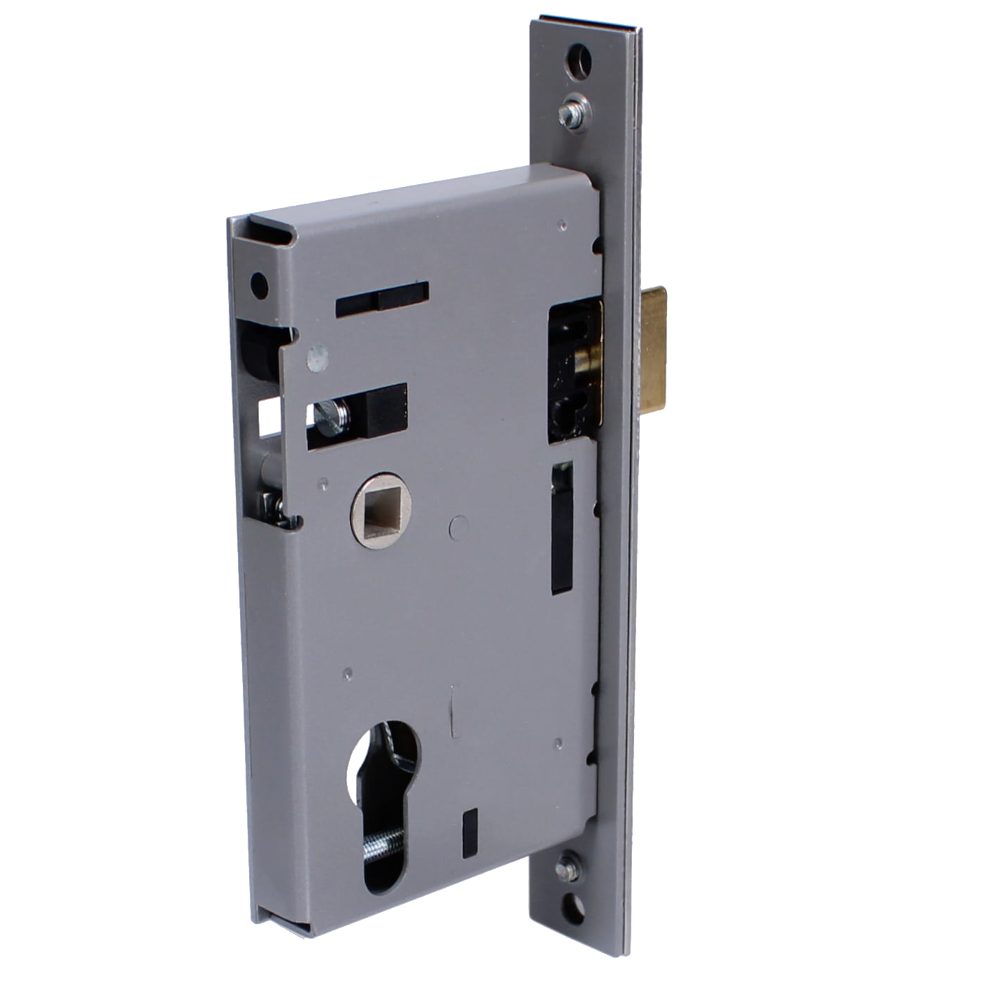

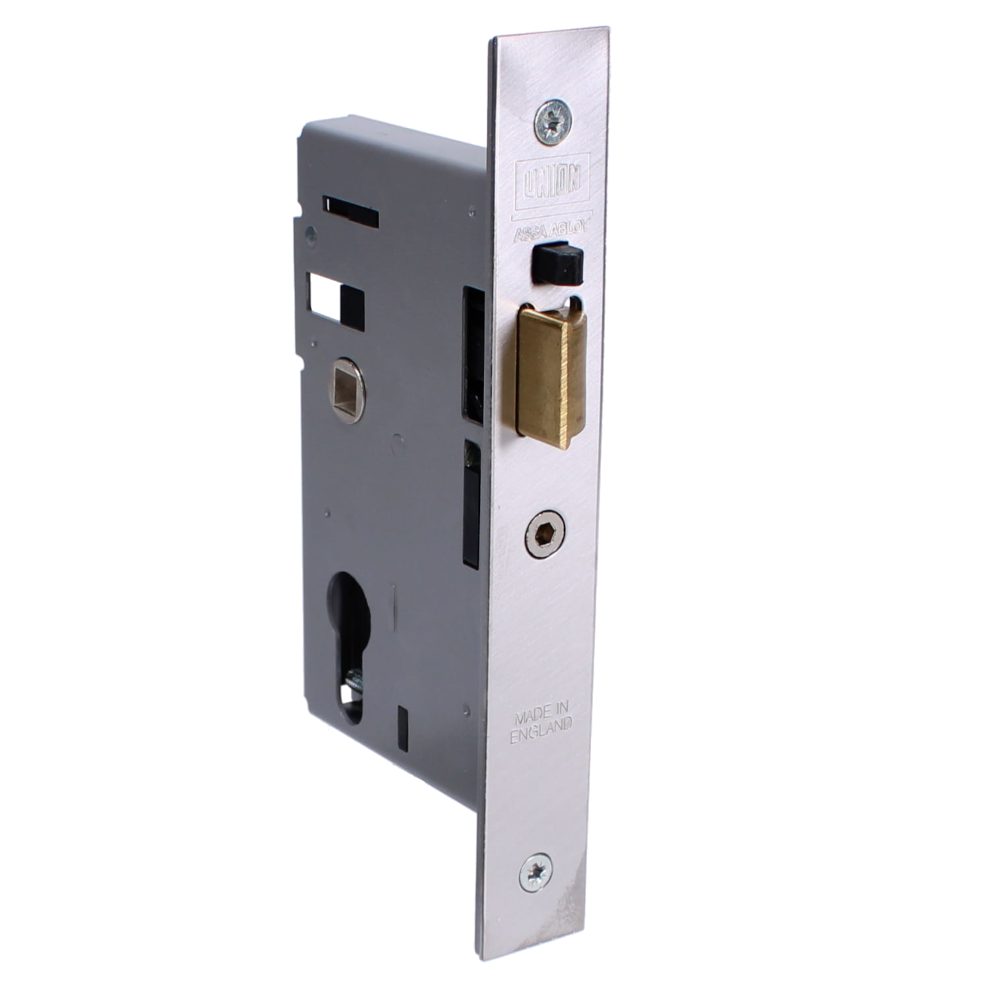

The UNION L2349 Euro Profile Mortice Nightlatch Case is a highly reliable, high-quality lock case designed for use with a Euro profile cylinder. Ideal for residential or commercial doors, this mortice nightlatch automatically locks when the door is shut, providing convenient and reliable security.

The latch bolt is easily reversible without opening the lock case, using a special key provided. It also features a hold-open function, allowing the latch to be held in the withdrawn position when required. Please note that this is the lock case only; the Euro cylinder is not included and must be purchased separately.

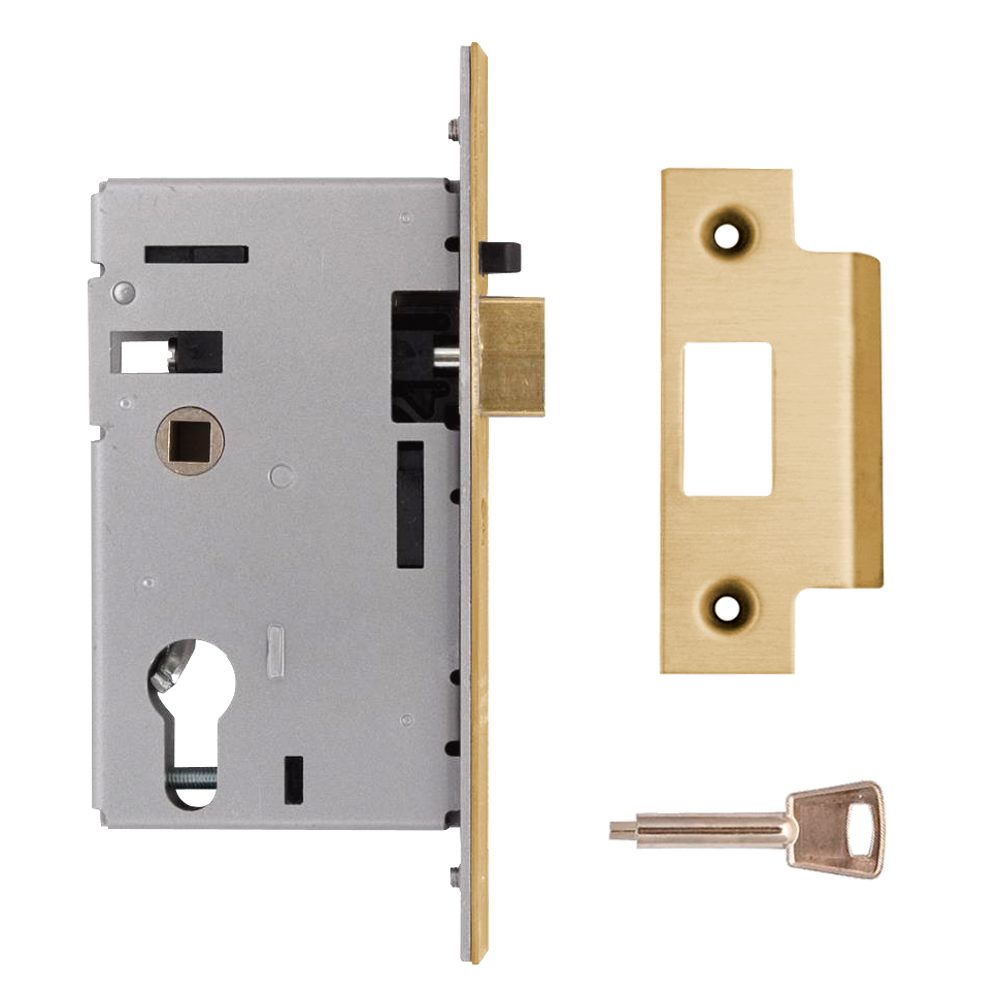

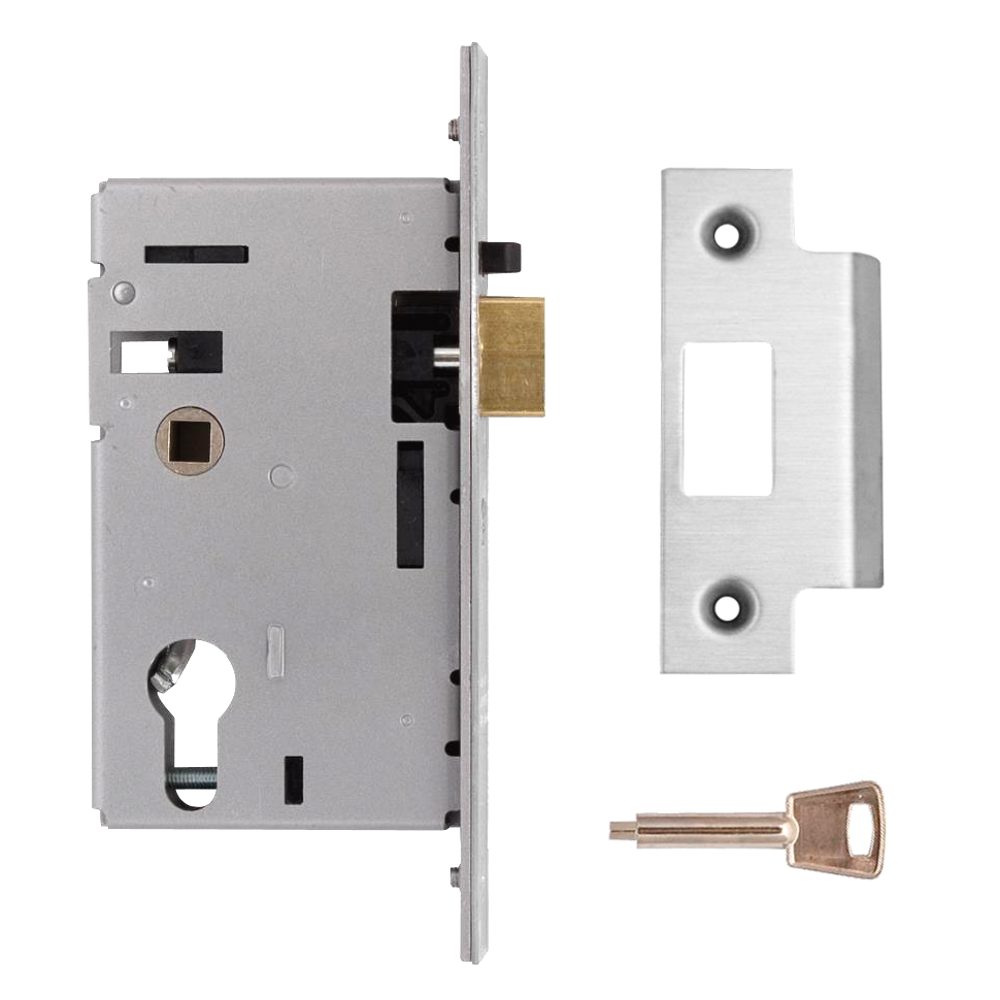

This nightlatch case is available in multiple finishes, including Polished Lacquered Brass and Satin Chrome, to match your existing door hardware. Please choose your preferred finish from the options below.

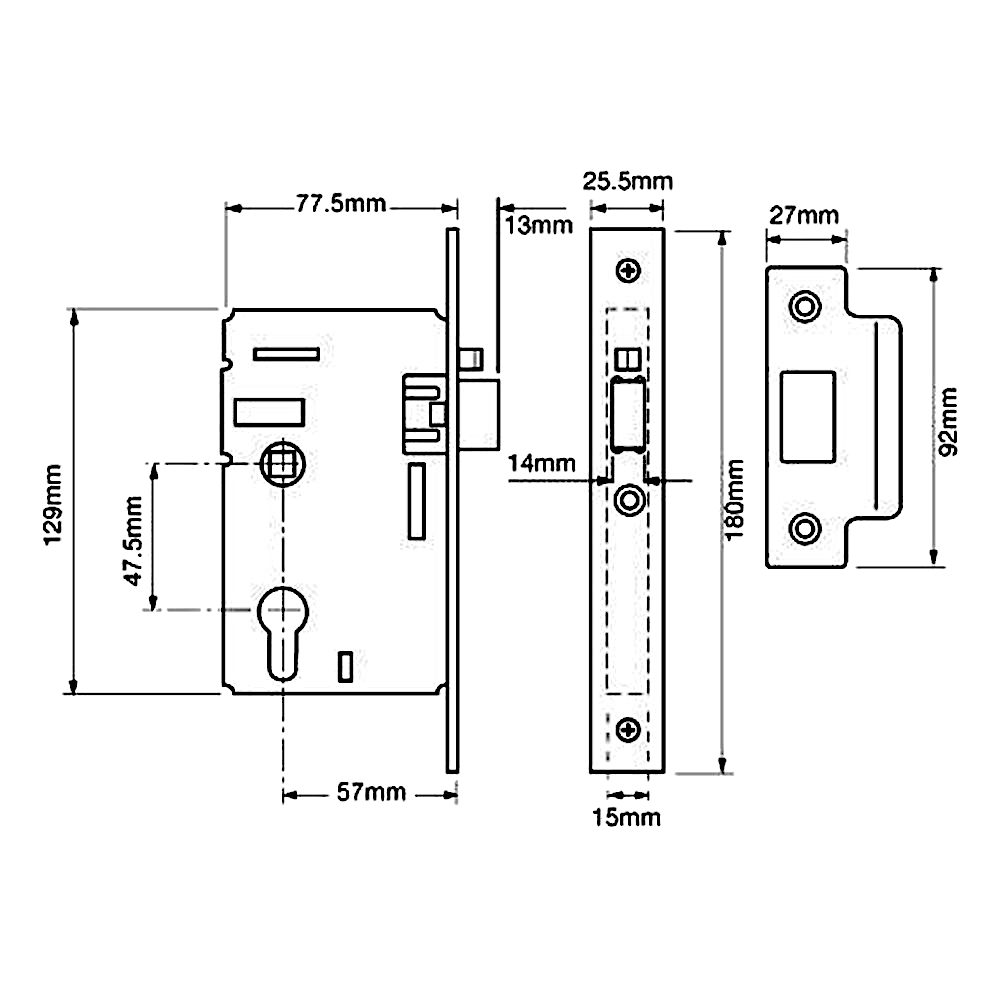

Technical Specifications

Brand: Union
Model: L2349
Backset: 57mm
Case Depth: 77mm
Case Height: 129mm
Centres: 48mm
Follower: 8mm (One Way Action)
Forend Length: 180mm
Forend Width: 25mm
Mechanism: Euro Cylinder (sold separately)
Finishes Available: Polished Lacquered Brass, Satin Chrome (please select below)

Key Features

Reversible Latch Bolt: Easily reversed without opening the lock case using the special key provided.
Hold-Open Function: Latchbolt can be held in the withdrawn position using the provided key.
10-Year Guarantee: Backed by a manufacturer's 10-year guarantee for peace of mind.
Flexible Installation: Standard cylinder length is suitable for doors up to 48mm thick (longer cylinders can be used for thicker doors).
