UNION L2341 Oval Nightlatch Case

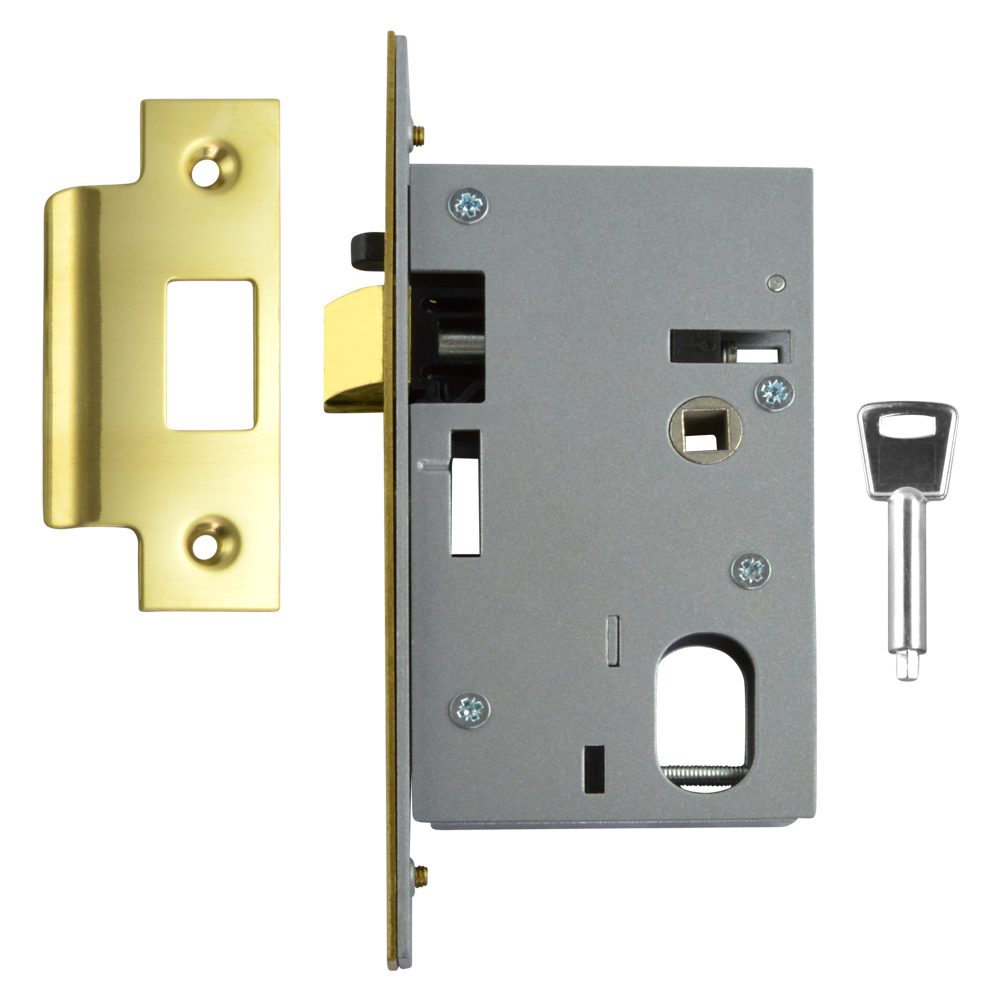

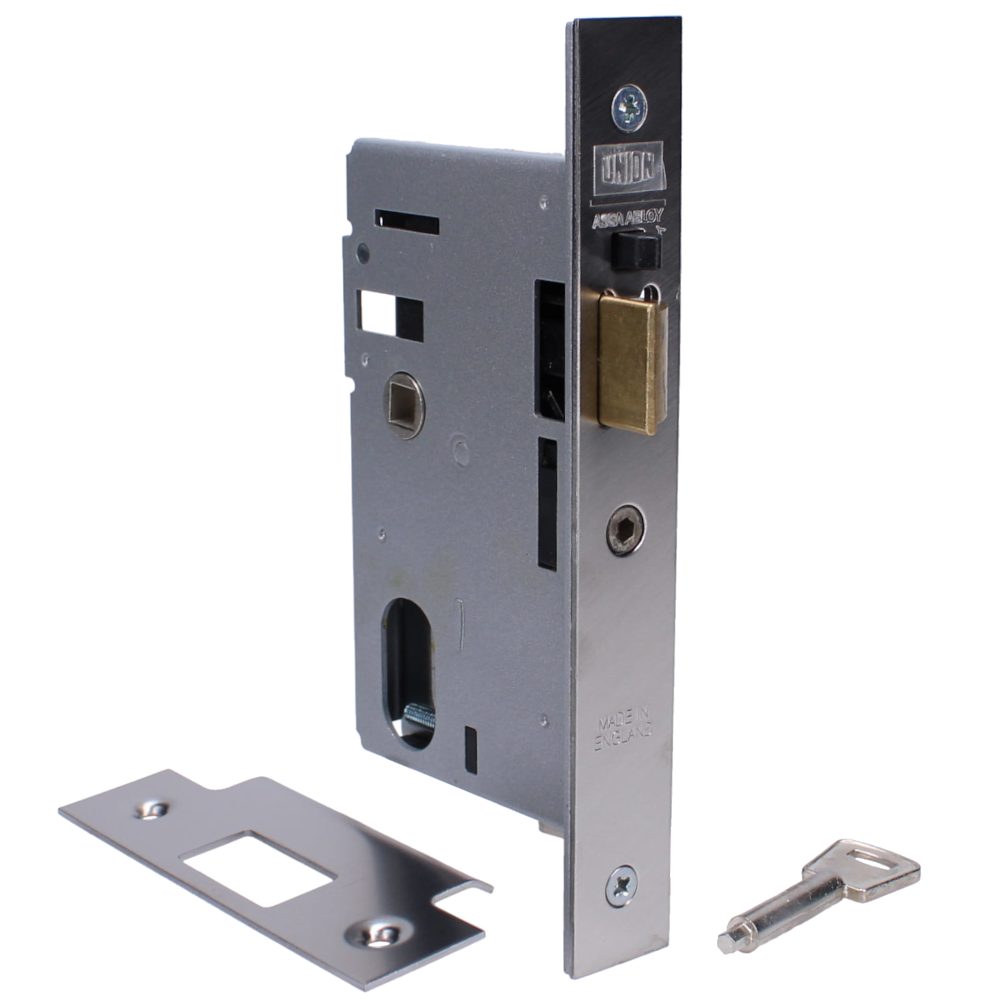

The UNION L2341 Oval Nightlatch Case is a robust, high-quality mortice nightlatch designed for use with an oval profile cylinder (supplied separately). It is ideal for timber doors requiring automatic deadlocking, ensuring the door is secured as soon as it is closed. The latchbolt is automatically locked against end pressure by an anti-thrust bolt for enhanced security.

This lock is operated by an oval cylinder from the outside and a sprung lever handle or turn from the inside. For added convenience, the latchbolt is easily reversible without opening the lock case, using a special key. It also features a hold-open function, allowing the latch to be held in the withdrawn position using the key provided.

This nightlatch case is EN 1634-1 assessed for use on 60-minute timber fire doors and comes with a 10-year manufacturer's guarantee. It is available in multiple finishes, including Polished Lacquered Brass and Satin Chrome, with matching forends and unique barcodes. Please select your preferred finish and barcode options from the selection below.

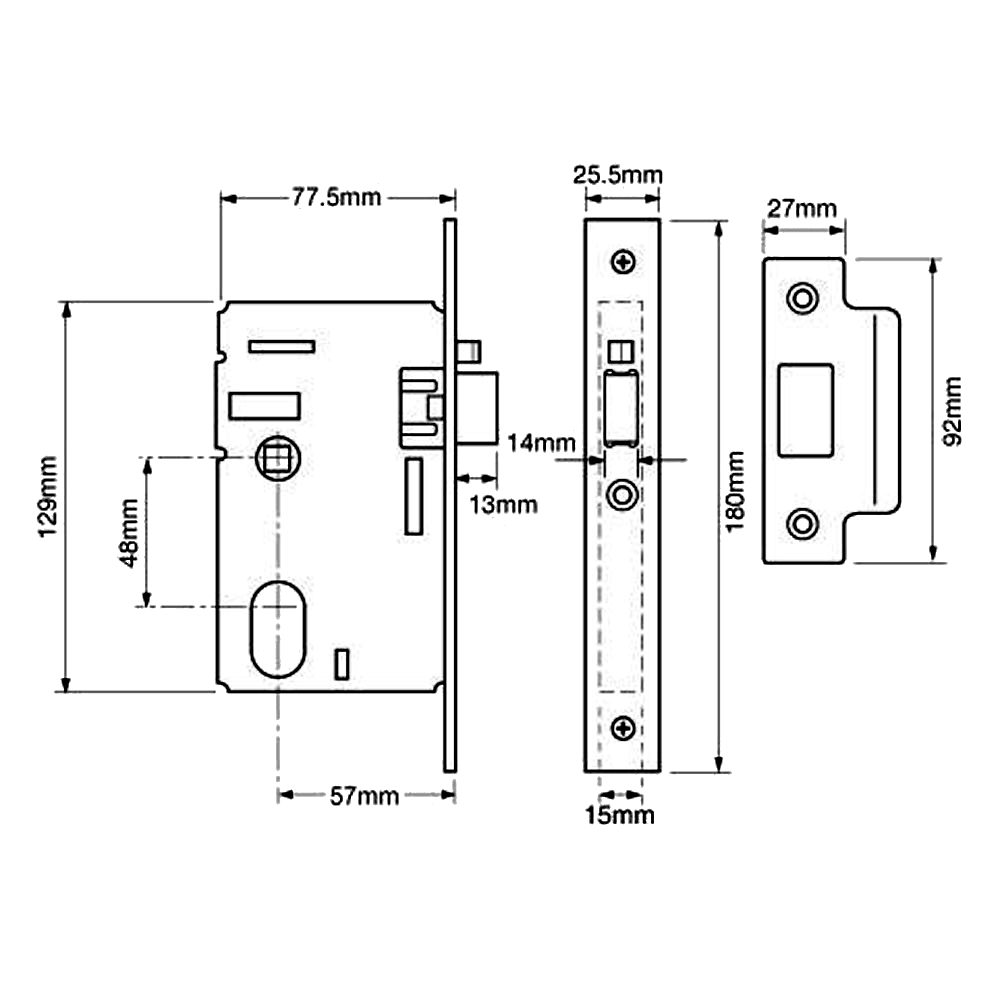

Technical Specifications

• Case Depth: 77mm
• Backset: 57mm
• Case Height: 129mm
• Centres: 48mm
• Follower: 8mm (One Way Action)
• Forend Dimensions: 180mm (Length) x 25mm (Width)
• Mechanism: Oval Cylinder (cylinder not included)
• Finishes: Available in Polished Lacquered Brass or Satin Chrome (please choose from the options below)
• Fire Rated: EN 1634-1 assessed for 60-minute timber fire doors
• Door Thickness: Suitable for doors up to 48mm thick with standard cylinders (longer cylinders required for thicker doors)

Key Features

• Automatic Deadlocking: Latchbolt is automatically locked against end pressure by the anti-thrust bolt for enhanced security.
• Easy Reversal: Reversible latchbolt can be easily reversed without opening the lock case, using the special key provided.
• Hold-Open Function: Latchbolt can be held in the withdrawn position using the supplied key.
• Flexible Operation: Operated by an oval cylinder from the outside and a sprung lever handle or turn from the inside.
• 10-Year Guarantee: Backed by a robust 10-year manufacturer's guarantee from Union.
• Multiple Finishes: Available in Satin Chrome or Polished Lacquered Brass to match your door hardware (please select below).
