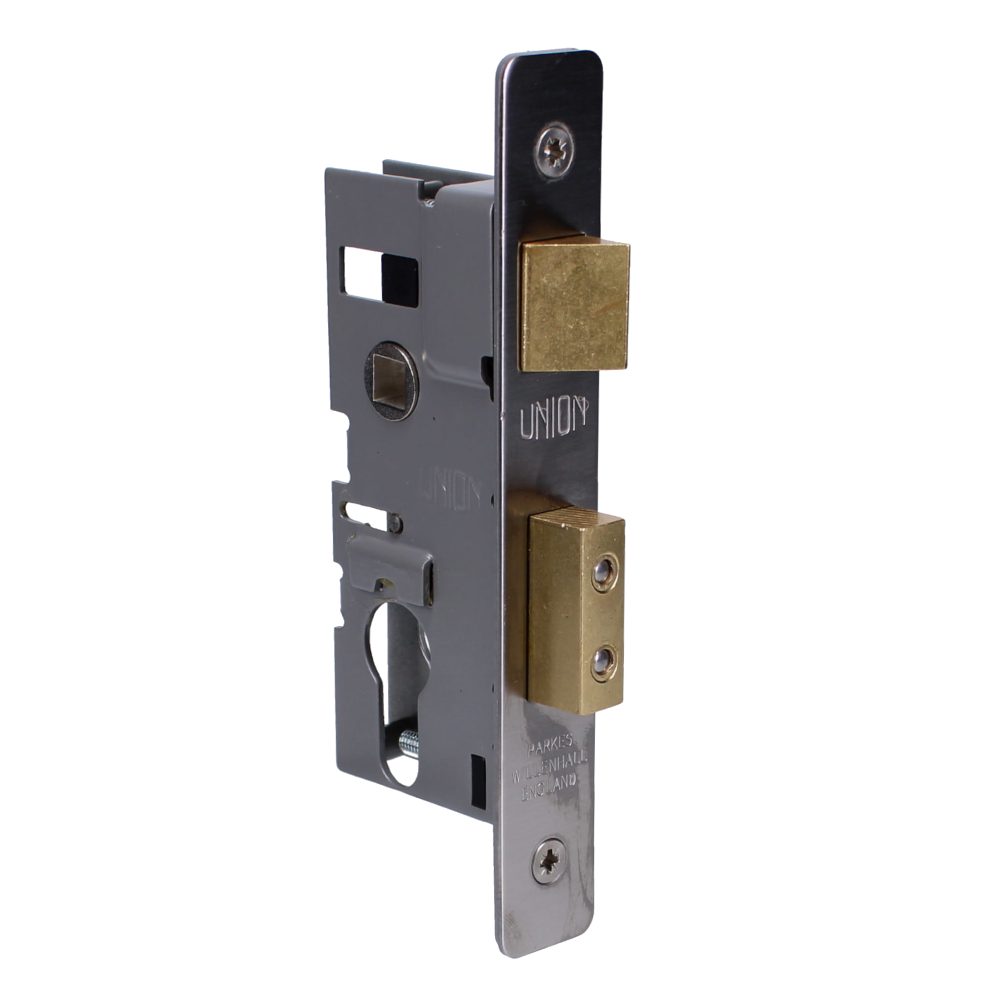

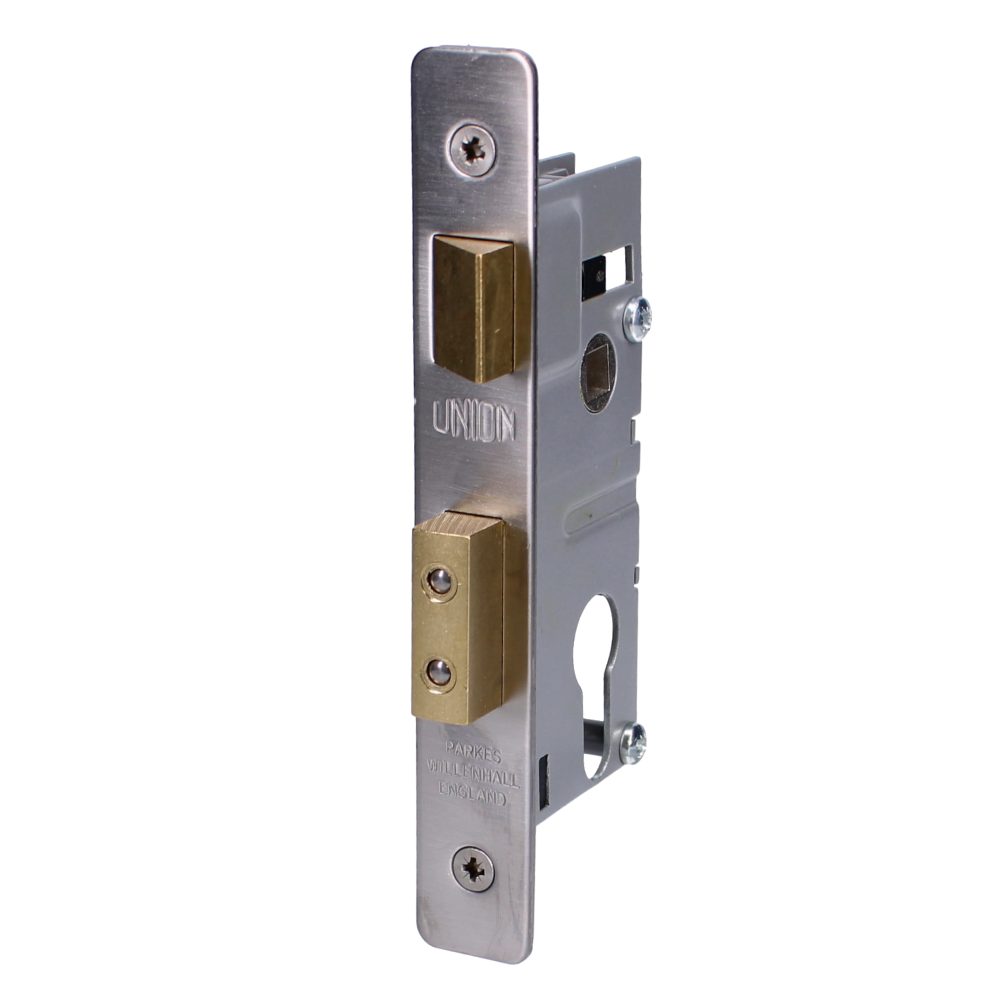

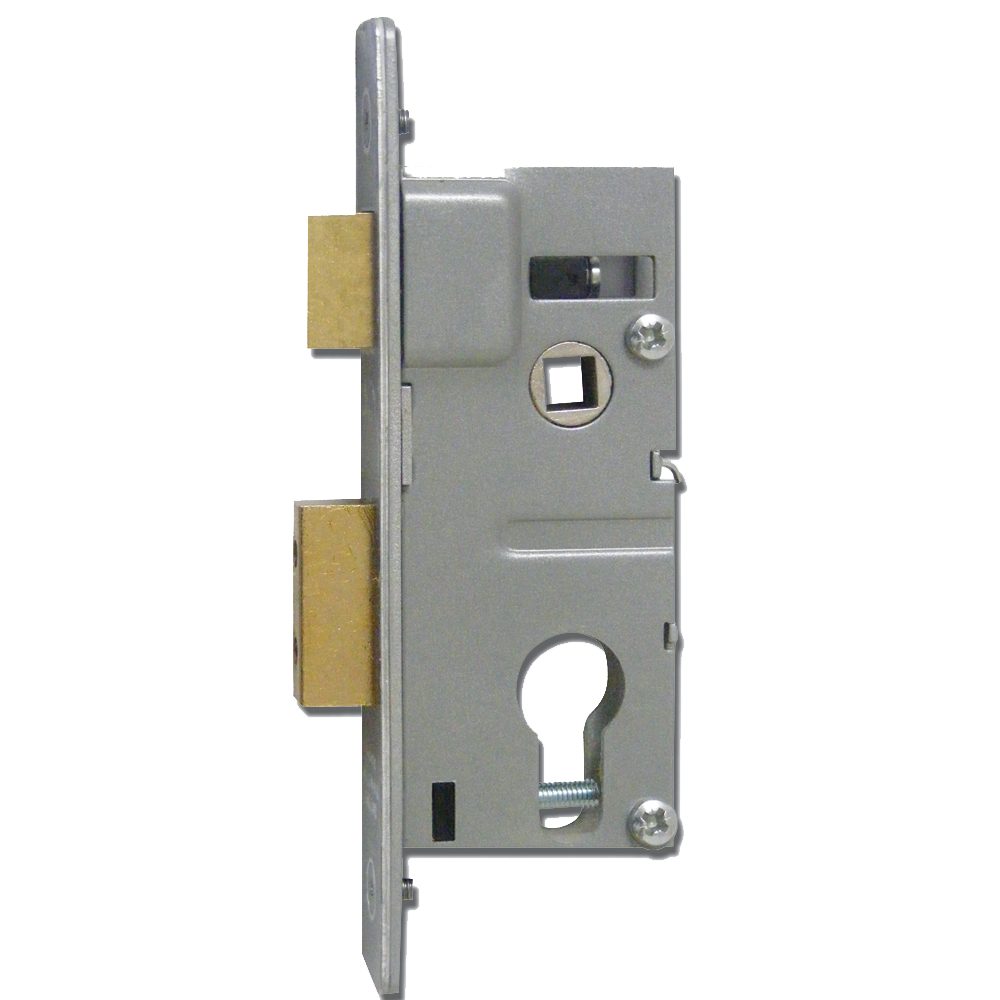

UNION L2224 Euro Sashcase

The UNION L2224 Euro Sashcase is a compact and reliable mortice lockcase designed specifically for metal doors, making it a popular choice for aluminium and steel door installations. This single-spindle sashcase features a latch and deadbolt configuration, offering standard sashlock operation where the deadbolt is operated by a Euro profile cylinder (sold separately) and the latchbolt is operated by the handle. For added convenience, the latchbolt can also be withdrawn by a full turn of the key.

This sashcase is highly versatile and accommodates unsprung lever handles. It features an easily reversible latch bolt, allowing for quick on-site handing. Simply remove the screw at the rear of the latch through the back of the case, flip the latch to the opposite hand, and refit the screw.

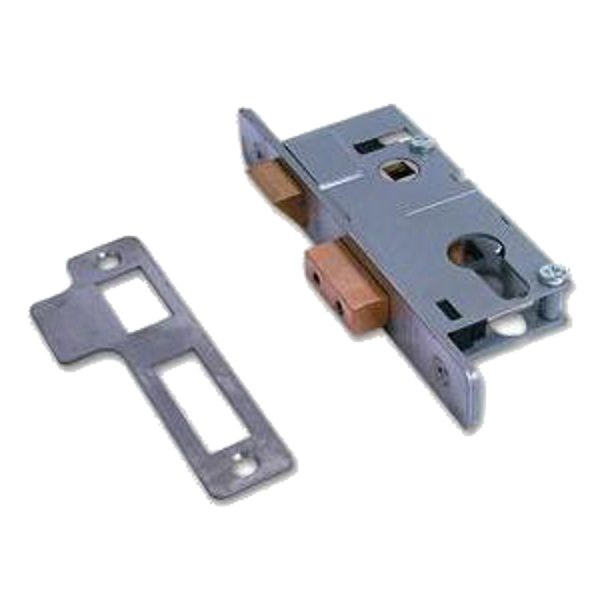

Please note that this product is supplied with a strike plate only; fixings and the Euro cylinder are not included.

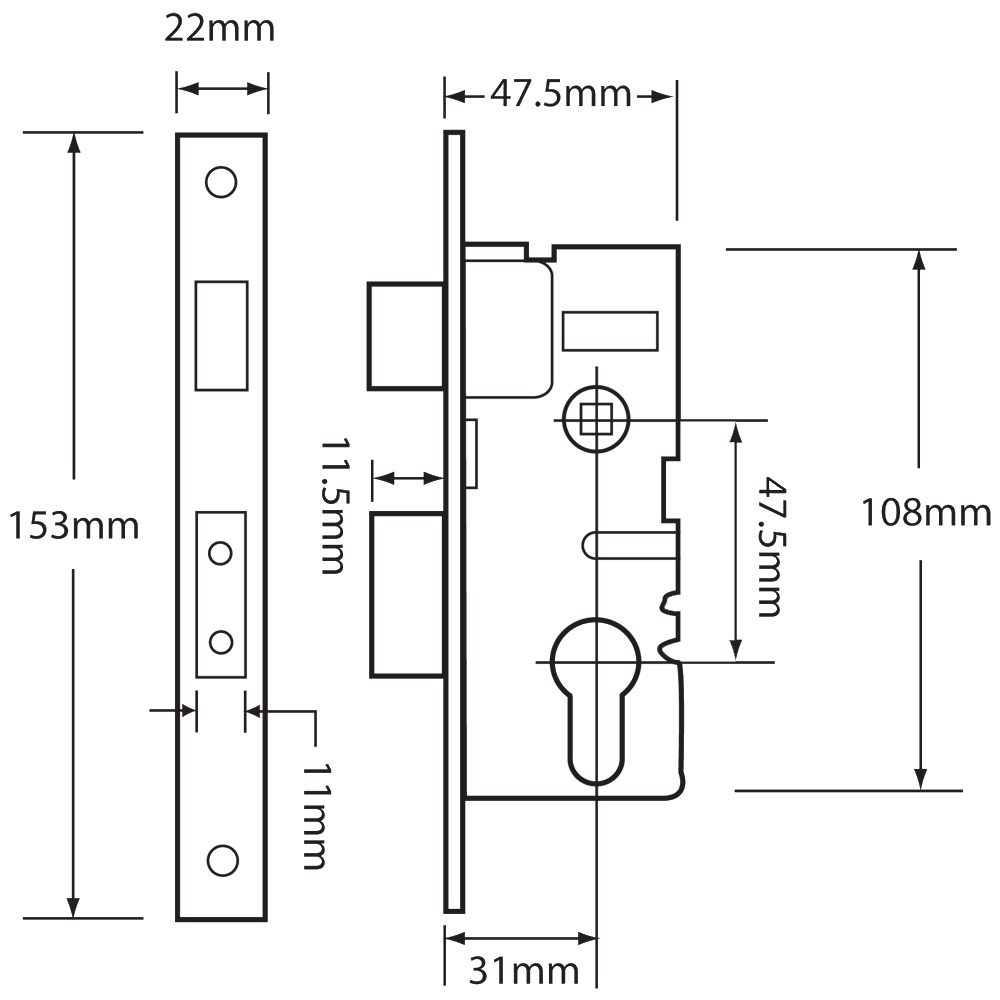

Technical Specifications

• Backset: 30.5mm
• Centres: 48mm
• Case Depth: 50mm
• Case Height: 108mm
• Case Width: 47mm
• Faceplate Width: 22mm
• Bolt Throw: 11.5mm
• Finish: Satin Chrome
• Mechanism: Euro Cylinder (sold separately)
• Spindle: Single
• Weight: 350g

Key Features

• Metal Door Compatibility: Ideal for installation on aluminium and steel doors.
• Reversible Latch Bolt: Easily handed on-site by removing the rear screw, flipping the latch, and refitting.
• Flexible Operation: Standard sashlock operation with the deadbolt operated by the cylinder, and the latchbolt operated by either the handle or the key.
• Unsprung Handle Friendly: Designed for use with unsprung lever handles.
• Satin Chrome Finish: Durable and modern aesthetic to match contemporary commercial and residential metal doors.
