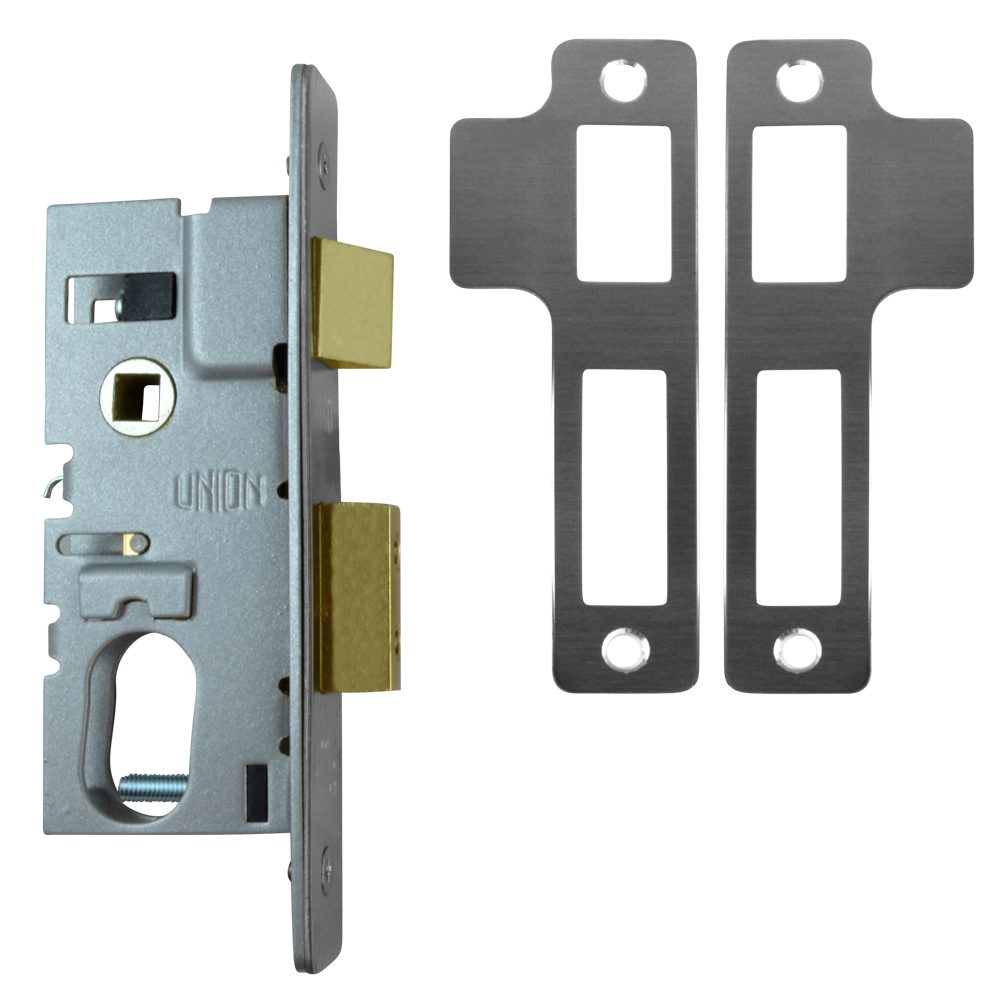

UNION L2214 Oval Sashcase

The UNION L2214 Oval Sashcase is a robust, narrow-profile mortice lock case specifically designed for use on metal doors, such as aluminium shopfronts and steel composite doors. With its compact 30.5mm backset and 50mm case depth, it is the ideal choice for narrow-stile door profiles where installation space is limited.

This sashcase is designed to be operated by an oval profile cylinder (sold separately) and is fully compatible with unsprung lever handles. It features a reversible latchbolt, making it suitable for both left and right-hand hung doors.

The lock operates with a secure and intuitive mechanism: one full turn of the key locks the deadbolt, while one full turn of the key followed by depressing the lever handle unlocks it. For added convenience, the latchbolt can also be withdrawn directly using the key.

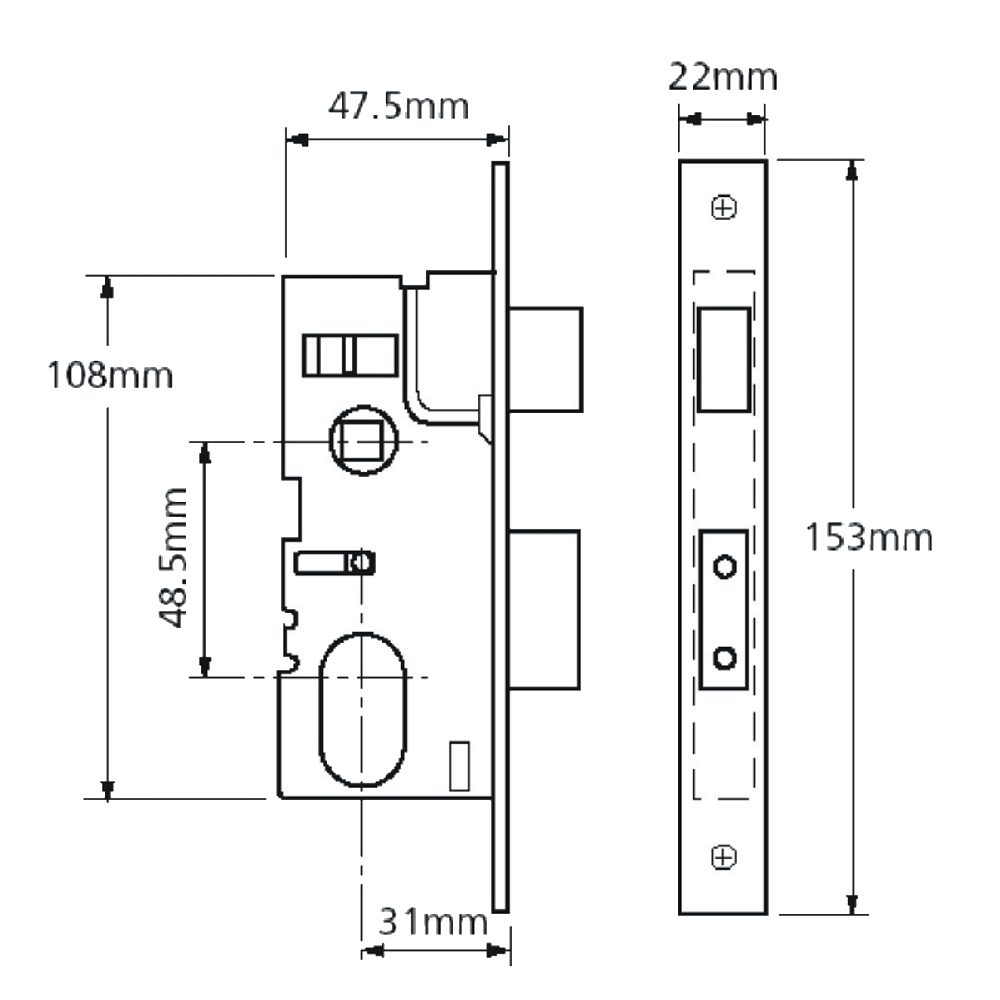

Technical Specifications

• Brand: Union
• Model: L2214
• Backset: 30.5mm
• Case Depth: 50mm
• Case Height: 108mm
• Case Width: 47mm
• Centres: 48mm
• Faceplate Width: 22mm
• Finish: Satin Chrome
• Bolt Throw: 11.5mm
• Mechanism: Oval Cylinder (cylinder not included)
• Operation: Latch & Deadbolt (reversible latchbolt)
• Spindle: Single

Key Features

• Metal Door Compatibility: Specifically designed for narrow-stile aluminium and steel composite doors.
• Reversible Latchbolt: Easily adjusted on-site to suit both left and right-hand hung doors.
• Unsprung Handle Friendly: Engineered for reliable use with unsprung lever handles.
• Convenient Key Operation: Latchbolt can be withdrawn directly by the key, with a secure one-turn locking mechanism.
• Durable Finish: Supplied with a high-quality Satin Chrome forend and faceplate.
