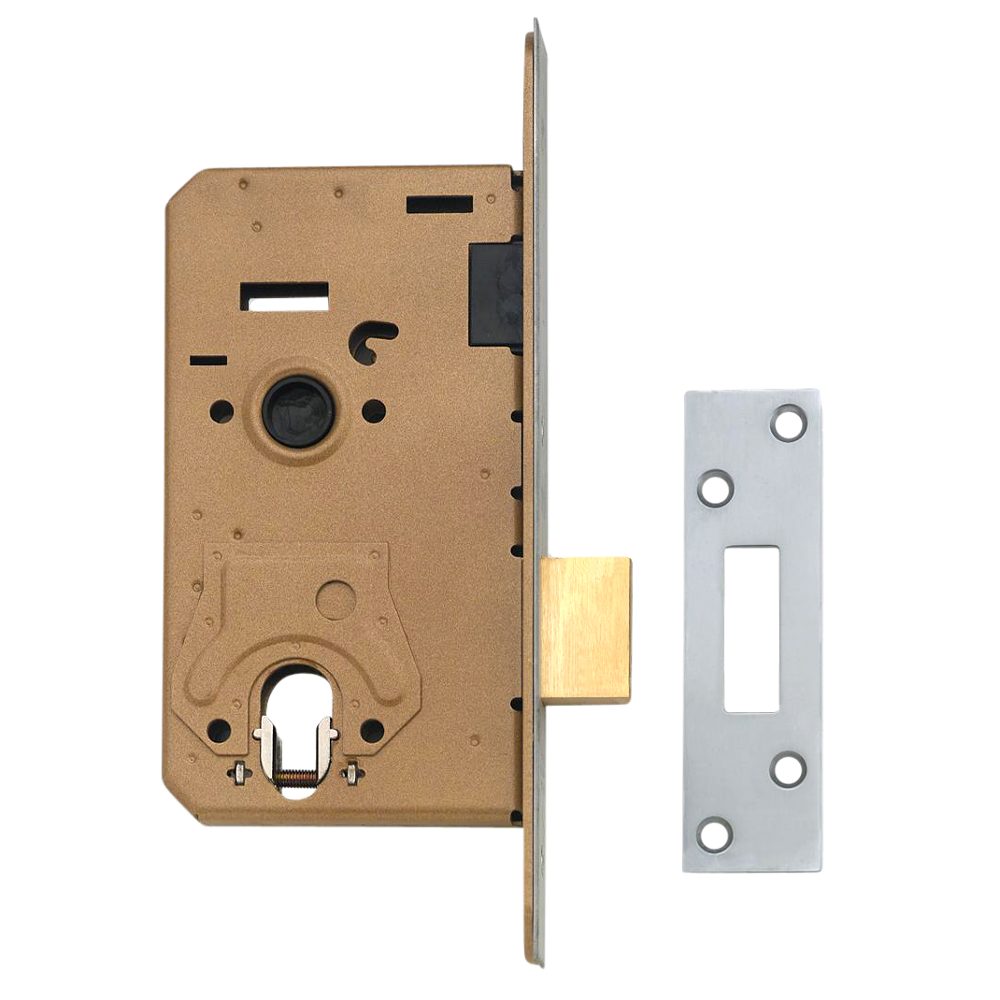

UNION L2170 Euro / Oval Deadcase

The UNION L2170 Euro / Oval Deadcase (part of the heavy-duty 2D2 Series) is a robust, UK-manufactured mortice deadlock case designed for high-traffic environments. This architectural-grade deadcase is pierced to accept both Euro profile and Oval profile cylinders, offering exceptional versatility for commercial and residential timber doors.

Engineered for durability, the lock features a solid brass deadbolt reinforced with hardened steel rollers to resist sawing attacks, providing a secure 21mm extended throw. The steel case is finished in a gold powder coat, complemented by a high-quality satin chrome forend and striking plate.

Please note that this is a case-only product; cylinders are not included and must be purchased separately. It is suitable for both left and right-hand hinged doors.

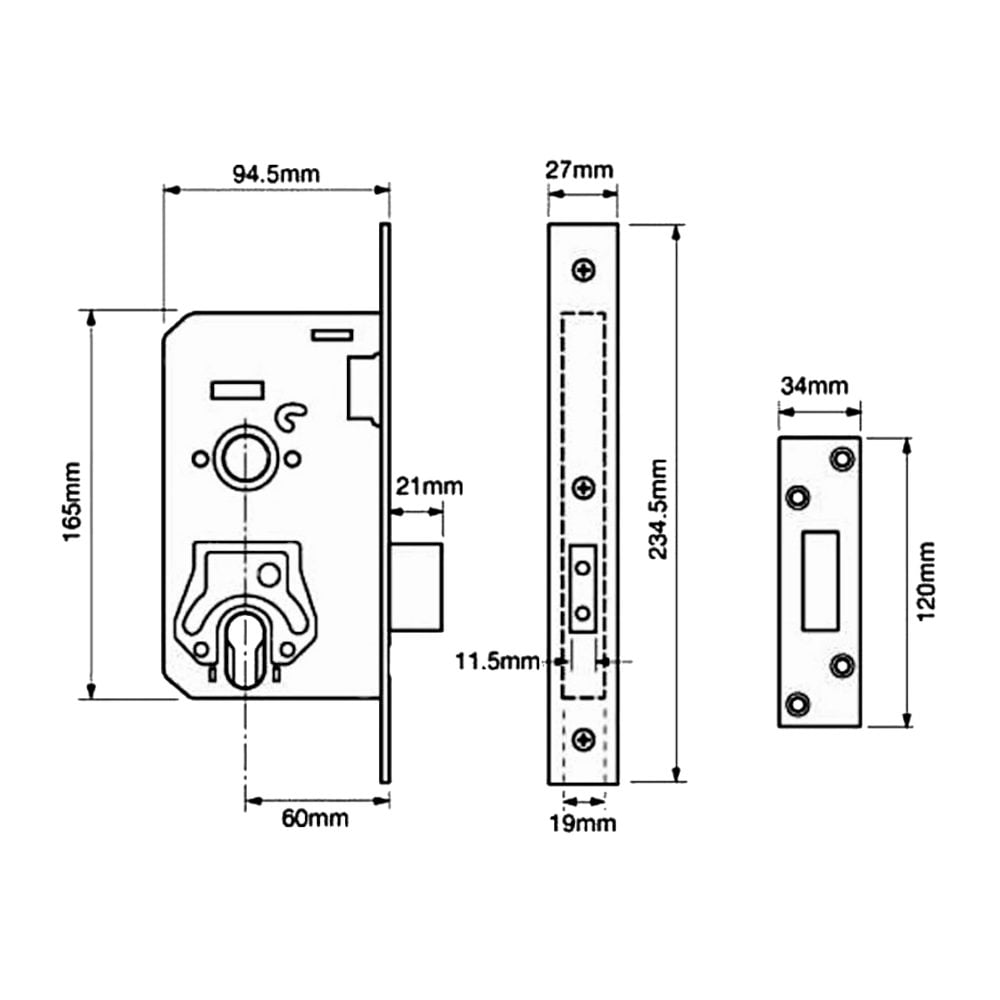

Technical Specifications

• Brand: Union
• Manufacturer Reference: L2170 (L9910)
• Case Depth: 94mm
• Backset: 60mm
• Case Height: 165mm
• Forend Length: 234mm
• Forend Width: 27mm
• Forend Finish: Satin Chrome
• Case Finish: Gold
• Mechanism: Euro / Oval Cylinder (not included)
• Deadbolt Throw: 21mm
• Weight: 930g

Key Features

• Dual Compatibility: Fully interchangeable, accepting both Euro and Oval profile cylinders.
• Heavy-Duty Performance: Part of the 2D2 Series, ideally suited for high-traffic areas.
• Enhanced Security: Features a brass deadbolt with hardened steel rollers to resist sawing.
• Extended Throw: Provides a robust 21mm bolt projection for secure locking.
• UK Manufactured: High-quality construction backed by a 10-year manufacturer's guarantee.
• Universal Handing: Suitable for both left and right-hand hinged timber doors.
