UNION L2144E Euro Deadcase

Union More Union Cylinder - Euro Lock Case

From

£116.38

Select size, finish, and quantity from the variant table.

View options

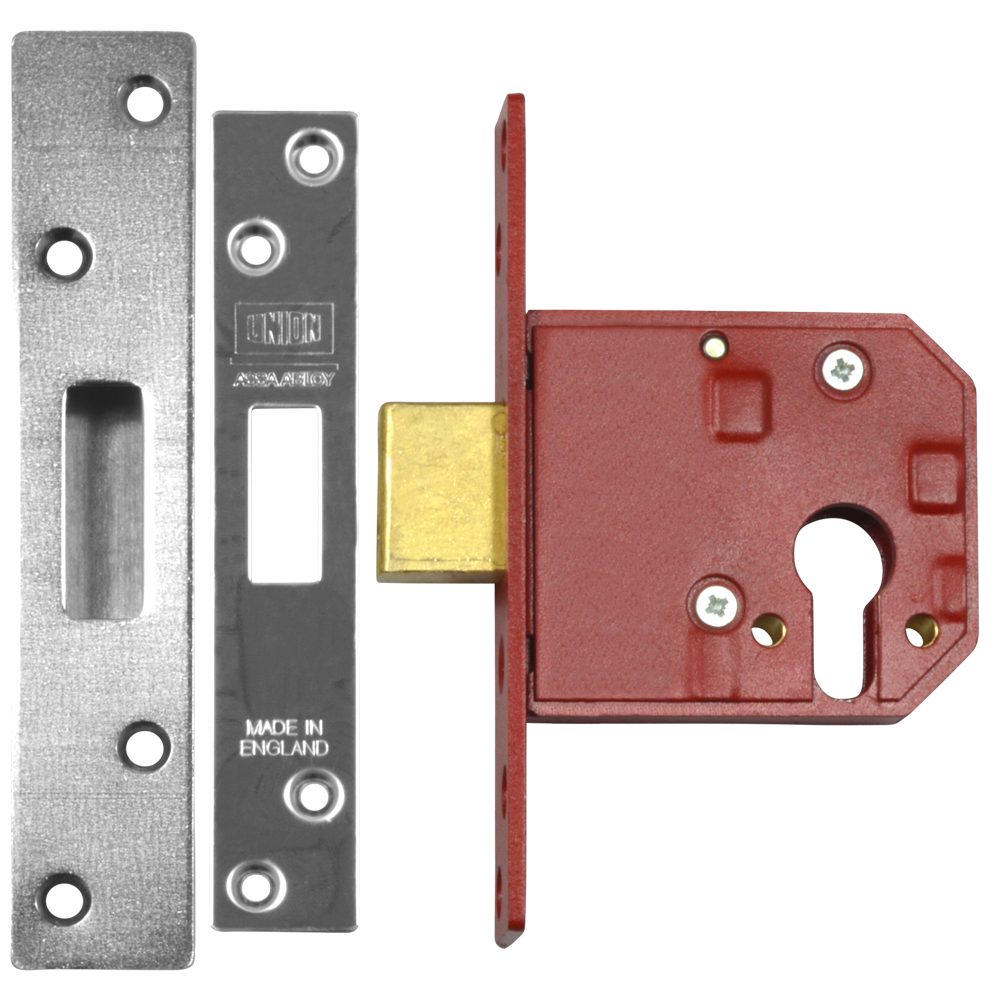

The UNION L2144E Euro Deadcase is a high-quality, durable euro profile mortice deadlock case designed for timber doors up to 54mm thick. Supplied as a case-only option, it allows you to easily integrate or reuse an existing Euro profile cylinder, saving you the hassle of changing keys.

This robust lock case features a 20mm deadbolt equipped with hardened steel rollers to provide excellent resistance against physical attacks. It is assessed to EN 1634-1 standards for use on 60-minute timber fire doors, making it a reliable choice for both residential and commercial applications. The lock also comes complete with a security box striking plate for added protection.

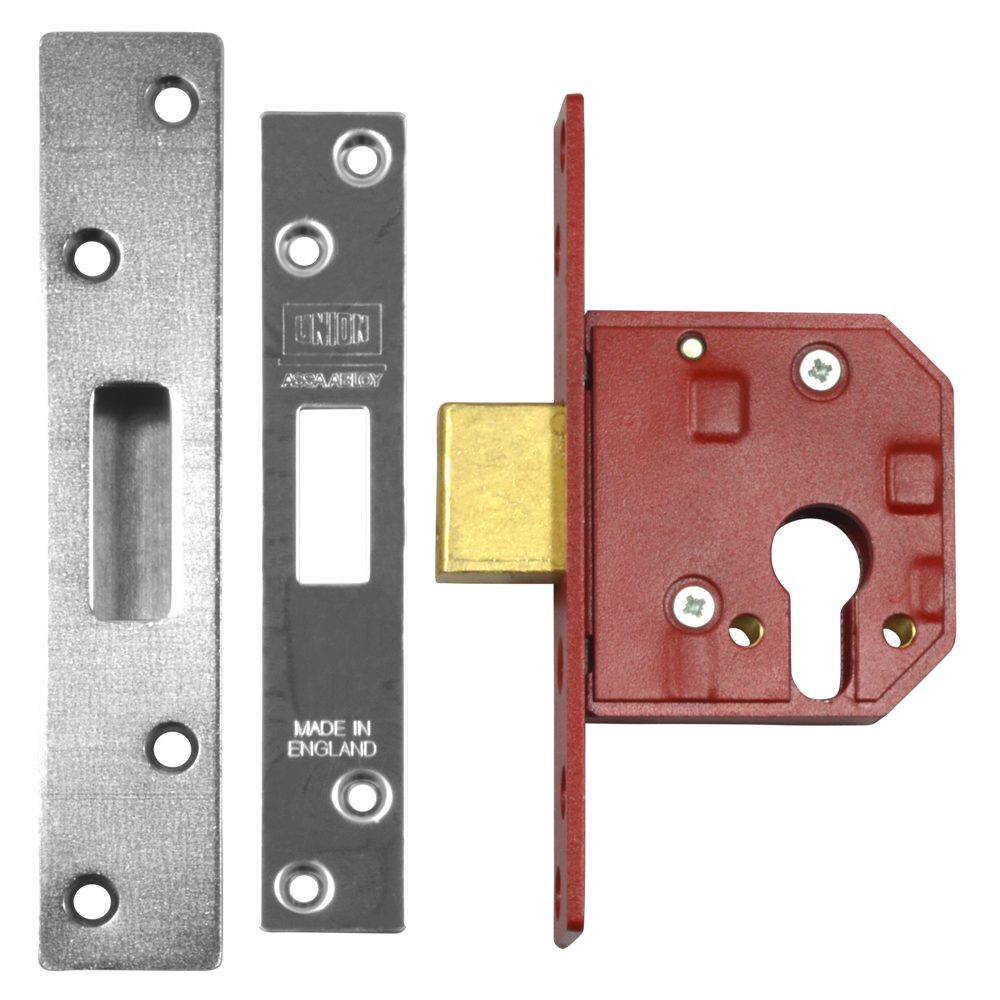

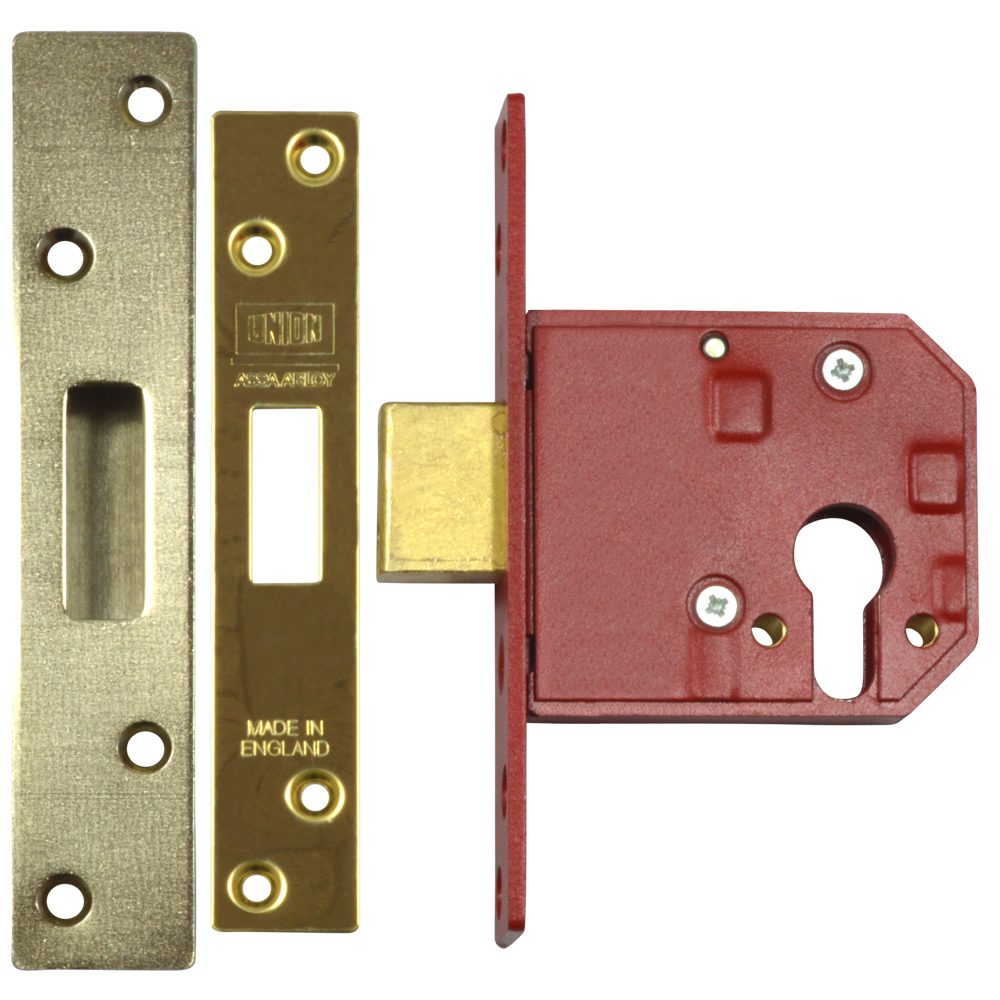

To suit your specific door requirements, this deadcase is available in multiple configurations. You can choose between 44mm or 57mm backsets (with corresponding case depths of 67mm or 80mm) and select either a Polished Lacquered Brass or Satin Chrome finish. Please select your preferred backset, case depth, and finish from the options below.

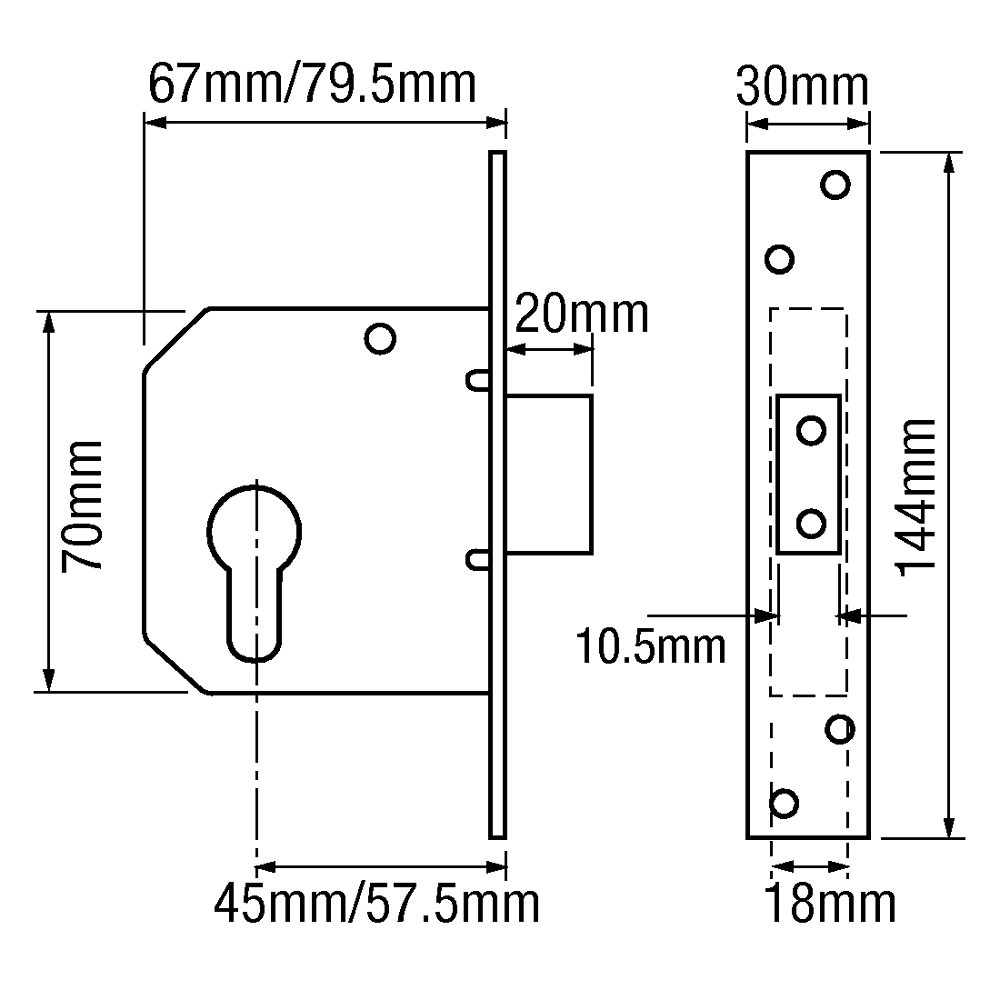

Technical Specifications

Brand: Union
Manufacturer Reference: L2144E
Mechanism: Euro Cylinder (cylinder sold separately)
Backset: 44mm or 57mm (please choose from the options below)
Case Depth: 67mm or 80mm (please choose from the options below)
Case Height: 71mm
Forend Length: 144mm
Forend Width: 26mm
Case Finish: Red
Forend Finish: Polished Lacquered Brass or Satin Chrome (please choose from the options below)
Suitable Door Thickness: Up to 54mm
Weight: 610g to 680g (please choose from the options below)
Standards: EN 1634-1 assessed for 60-minute timber fire doors

Key Features

Case Only Design: Allows you to select or reuse a Euro profile cylinder of your choice
Enhanced Security: Features a 20mm deadbolt with hardened steel rollers to resist sawing and physical attacks
Fire Rated: Assessed to EN 1634-1 for use on 60-minute timber fire doors
Security Box Striking Plate: Included as standard to provide additional strength and security
15-Year Guarantee: Backed by a manufacturer's 15-year guarantee for long-term peace of mind
Multiple Options: Available in a choice of backsets and finishes - please select from the options below
