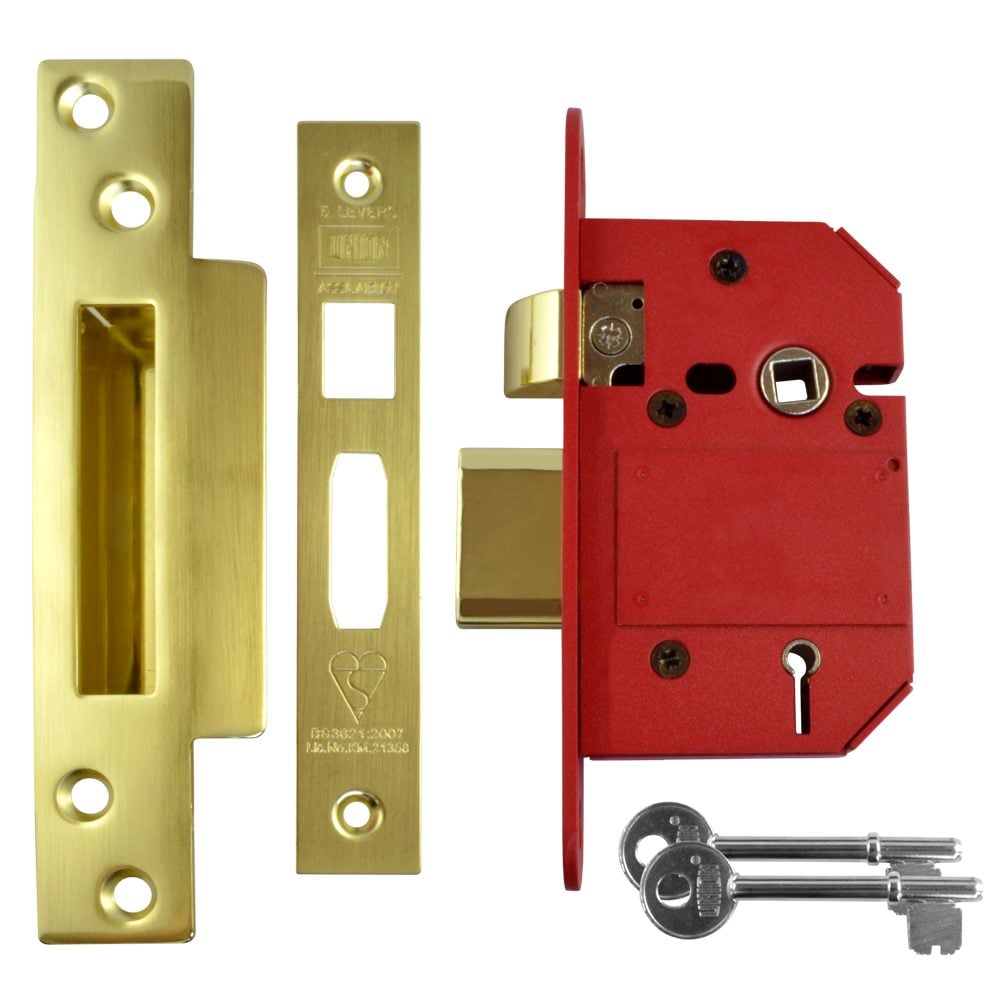

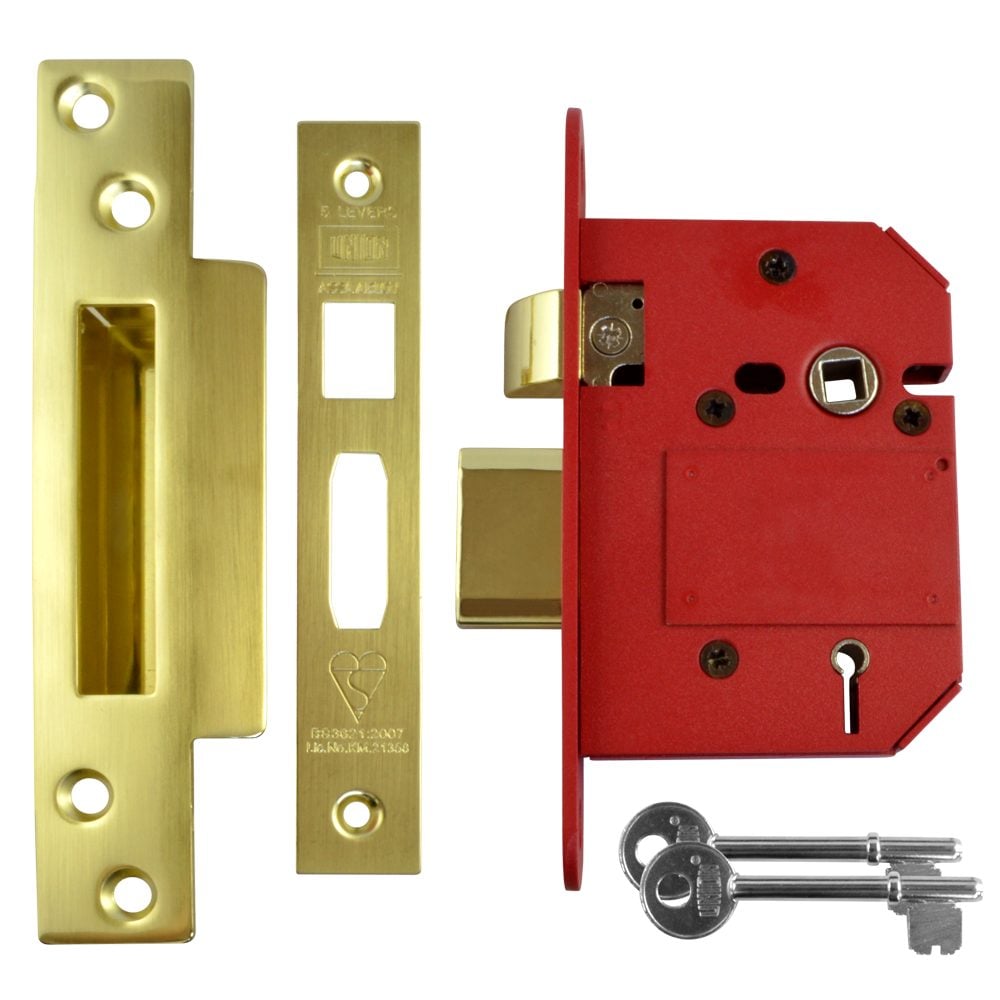

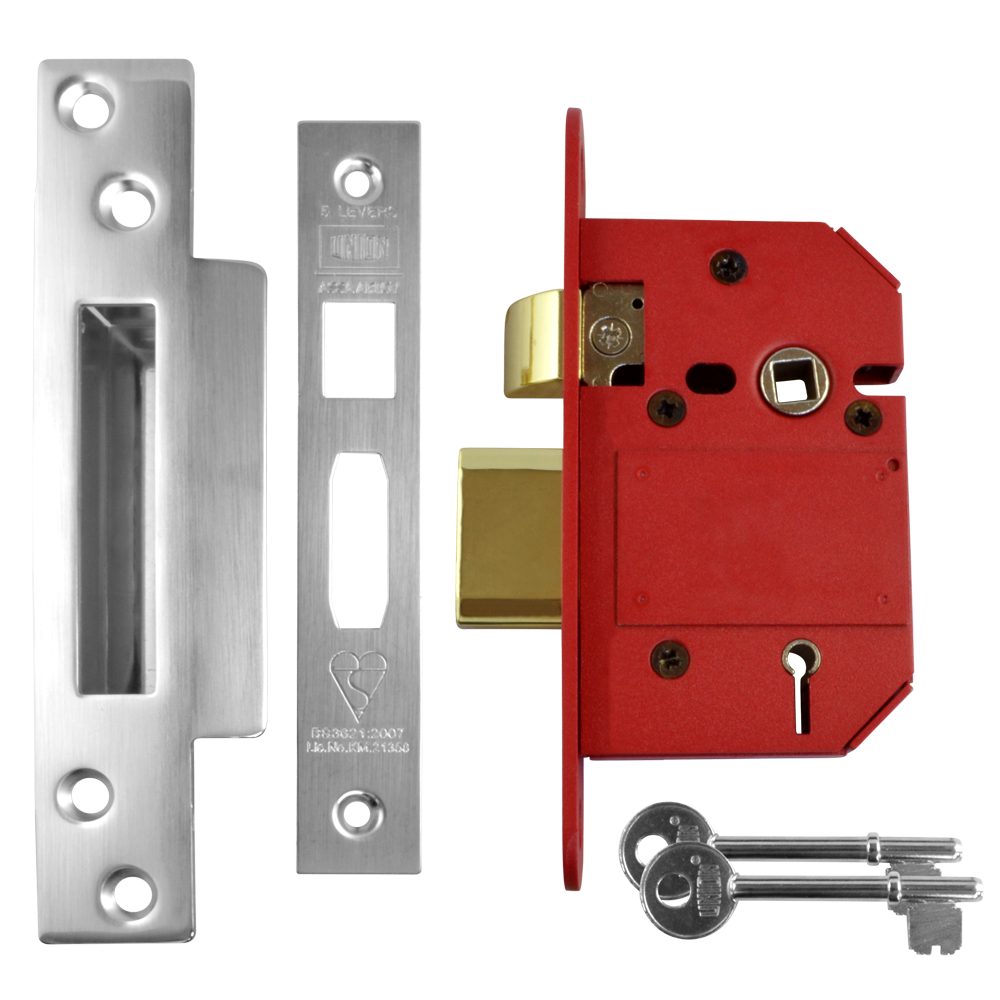

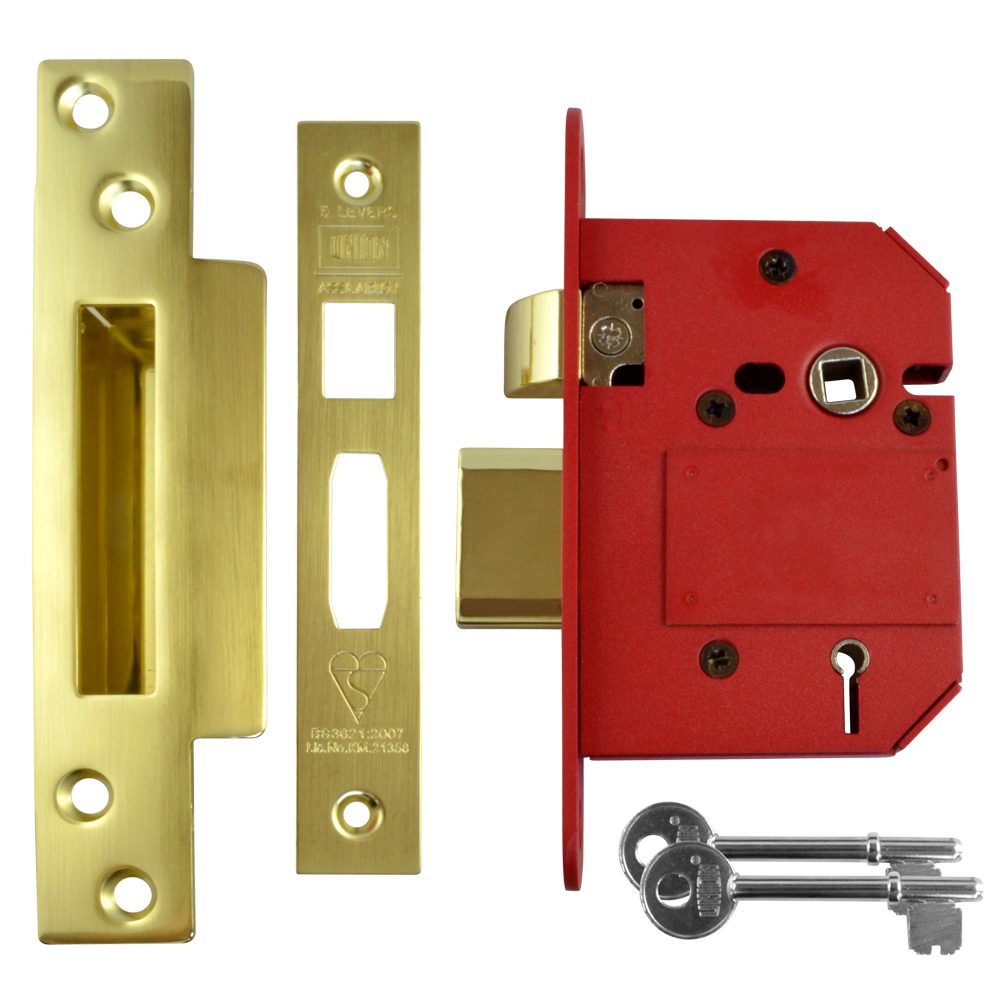

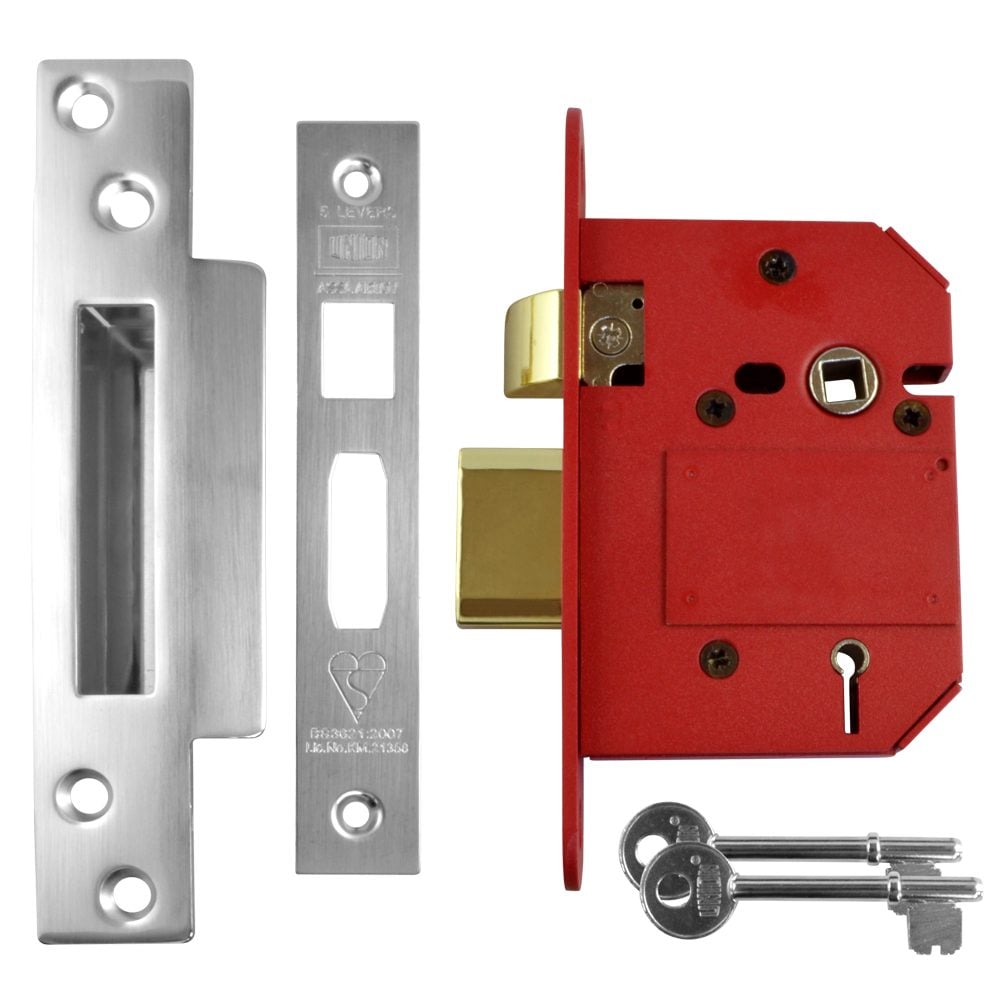

UNION J2200 StrongBOLT BS 5 Lever Sashlock

The UNION J2200 StrongBOLT BS 5 Lever Sashlock is a high-security mortice lock designed to provide exceptional protection for timber doors. Meeting the rigorous British Standard BS3621:2007, this sashlock is Secured by Design approved (Police Preferred Specification) and suitable for use on fire doors.

It features a 20mm deadbolt with a chamfered design, which significantly increases resistance to side load attacks and makes drilling more difficult. The lock is further protected by anti-pick, anti-saw, and anti-drill security features. Its radius inner forend and square faceplate ensure a neat, hassle-free installation, making it an ideal retro-fit for many existing UK mortice locks without the need for extensive carpentry.

This versatile sashlock is available in multiple backsets, case depths, finishes, and packaging types. Please choose your preferred options from the selection below.

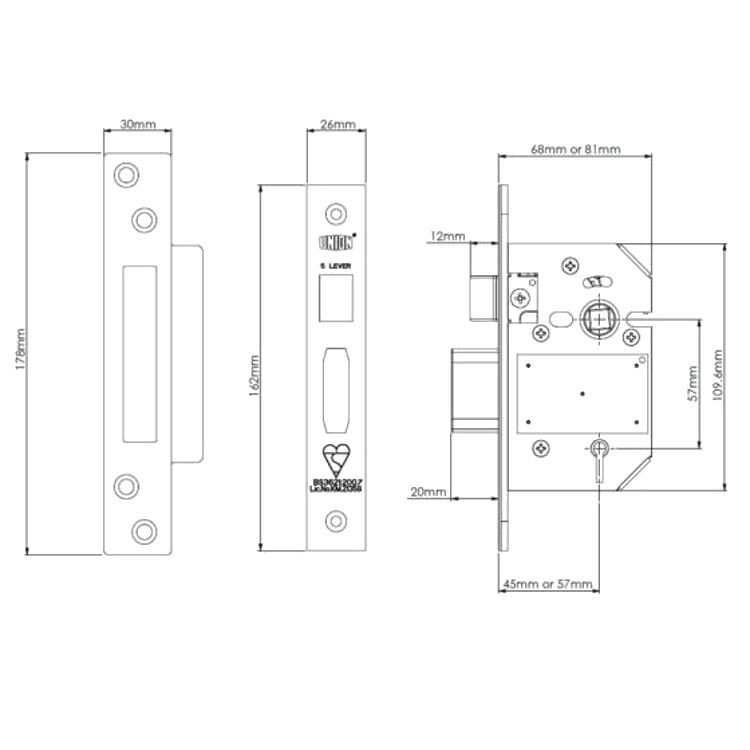

Technical Specifications

• Brand: Union
• Mechanism: 5 Lever BS
• Standards: BS EN 12209:2003, BS EN 1634-1, BS 3621:2007, CE Marked, Certifire, Secured by Design
• Backset: 45mm or 57mm (please choose from the options below)
• Case Depth: 64mm or 75mm (please choose from the options below)
• Centres: 57mm
• Bolt Throw: 20mm
• Spindle: 8mm
• Door Thickness: Suitable for timber doors up to 54mm thick
• Keys Supplied: 2
• Finishes: Polished Brass, Polished Lacquered Brass, or Satin Chrome (please choose from the options below)
• Packaging: Boxed or Visi (please choose from the options below)
• Weight: 860g to 950g (depending on selection)
• Fire Tested: 1 Hour Timber
• Guarantee: 10 Year

Key Features

• BS3621 Compliant: Meets British Standards and is Secured by Design approved for insurance compliance.
• Enhanced Attack Resistance: Features anti-pick, anti-saw, and anti-drill protection to deter forced entry.
• Chamfered Deadbolt: 20mm throw deadbolt with hardened steel rollers offers superior resistance against side load attacks.
• Easy Retro-Fitting: Designed to fit the footprint of common UK mortice locks, reducing the need for additional carpentry.
• Reversible Latch: Easily reversible radius latch bolt allows for quick handing adjustment on site.
• Fire Door Approved: Certifire approved and CE marked, suitable for use on 60-minute timber fire doors.
• 10-Year Guarantee: Backed by a manufacturer's 10-year guarantee for long-term peace of mind.
