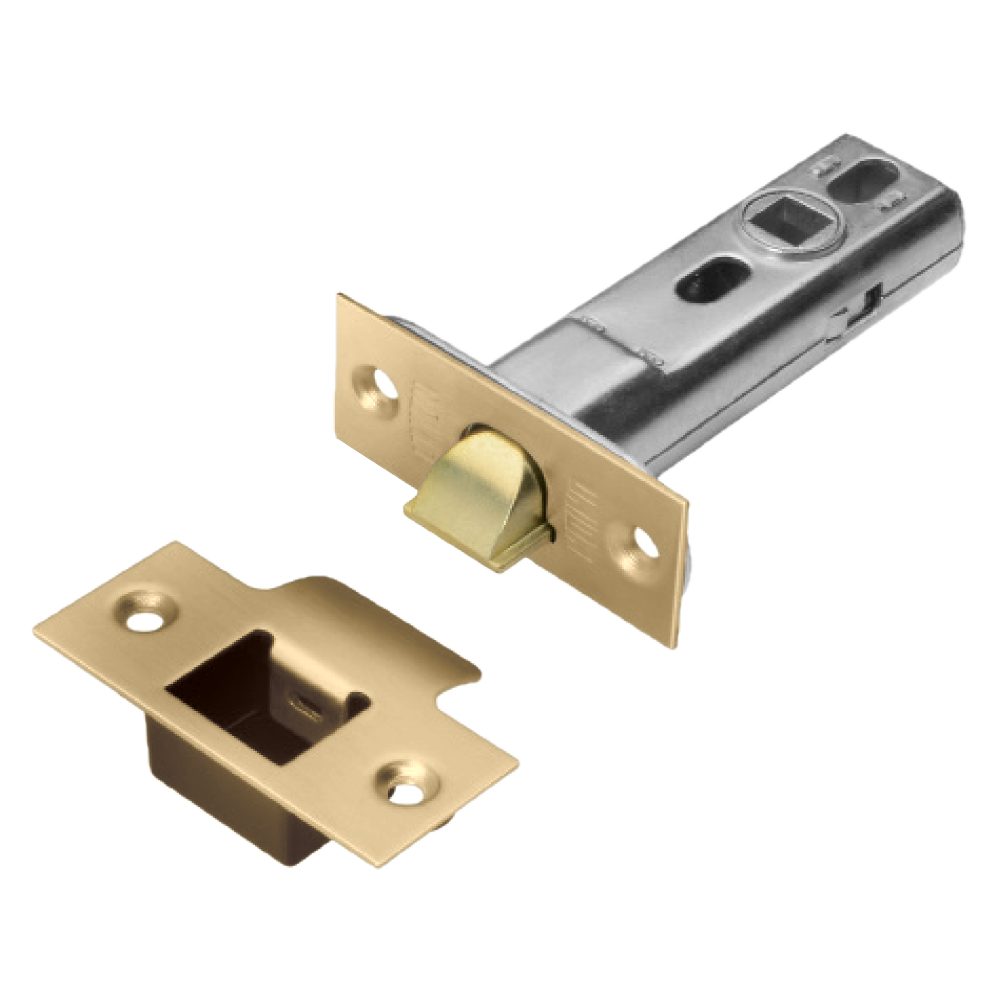

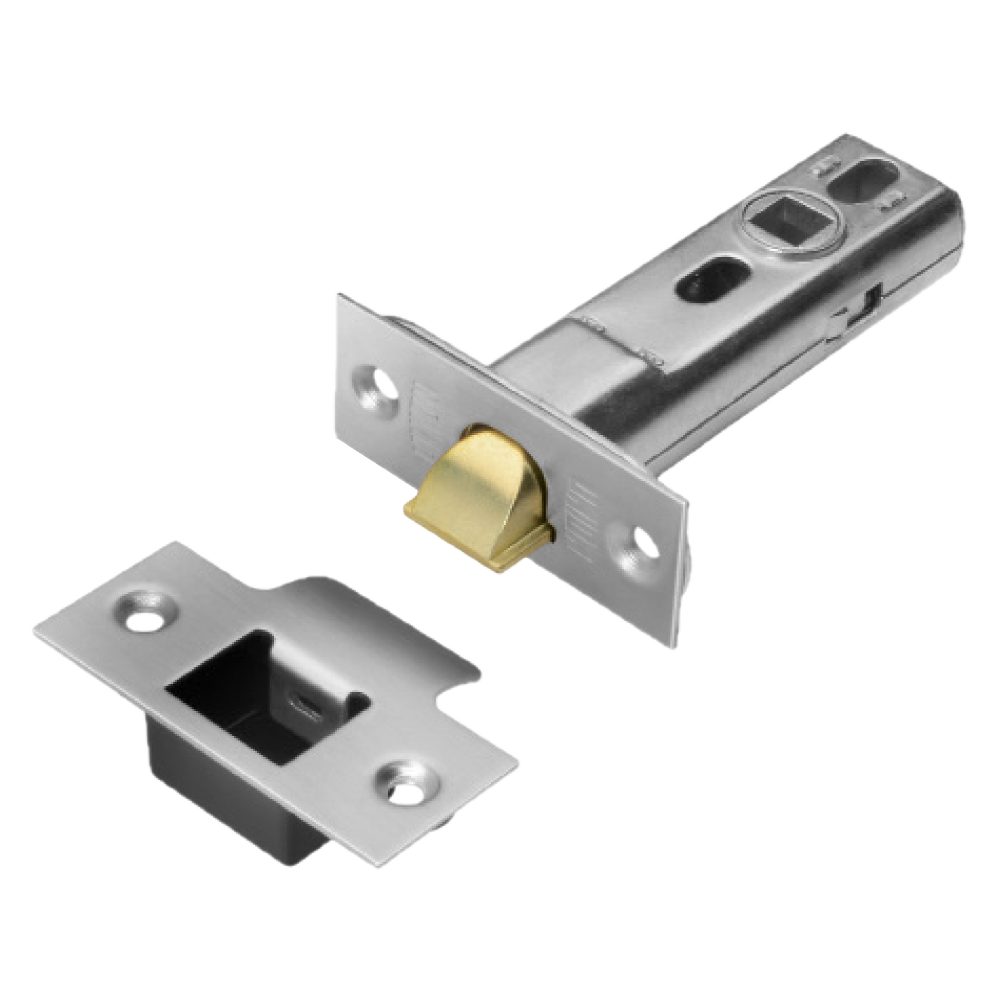

UNION HD26 Dual Finish Heavy Duty Tubular Latch

The UNION HD26 Dual Finish Heavy Duty Tubular Latch is a robust, high-performance latch designed to withstand the rigours of daily use in both commercial and residential environments. Built with a durable bevelled latch and a cast steel follower, this latch offers exceptional resistance to wear and tear.

This heavy-duty latch features a double-sprung mechanism that prevents handle drop and allows for universal handing, making it suitable for both left and right-handed doors. It is supplied as a dual-finish pack, containing both polished brass and stainless steel faceplates and adjustable strikes, giving you the flexibility to easily match your existing door hardware. Additionally, it is fully tested to BS EN 12209 and CE marked, making it suitable for use on 30 and 60-minute timber fire doors.

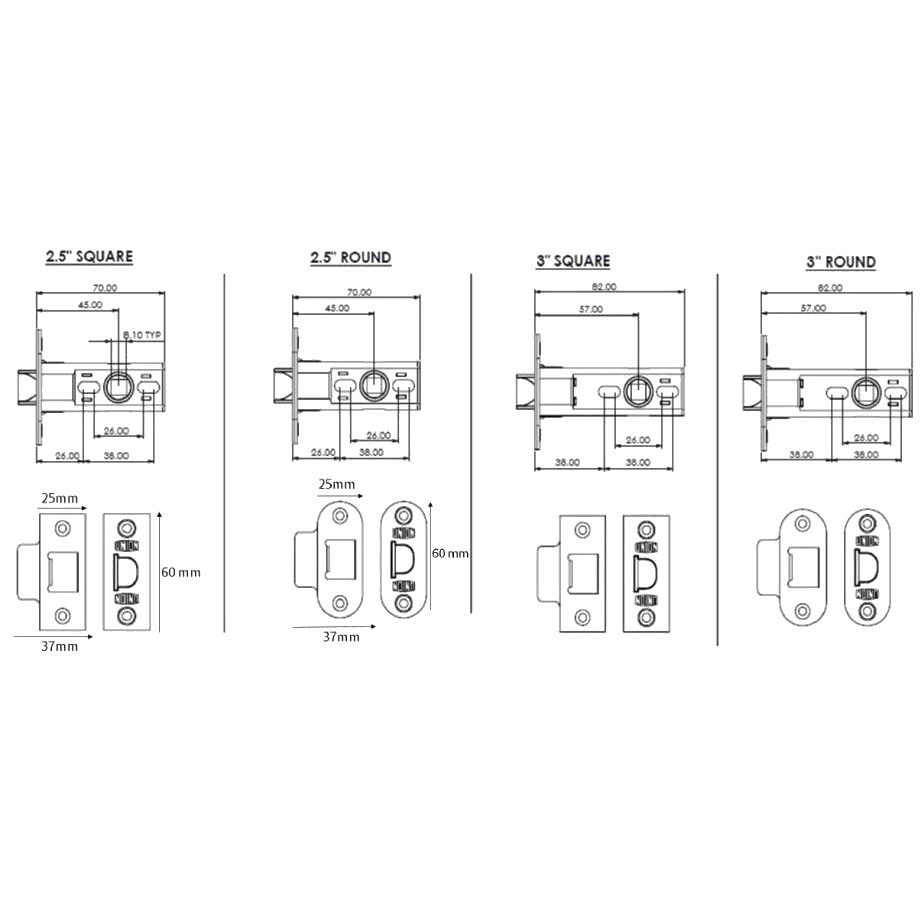

This latch is available in multiple configurations, including 70mm and 82mm case depths (with 45mm and 57mm backsets), a choice of radius or square forends, and either boxed or visi packaging. Please select your required specifications from the options below.

Technical Specifications

• Brand: Union
• Backset: 45mm or 57mm (please select from the options below)
• Case Depth: 70mm or 82mm (please select from the options below)

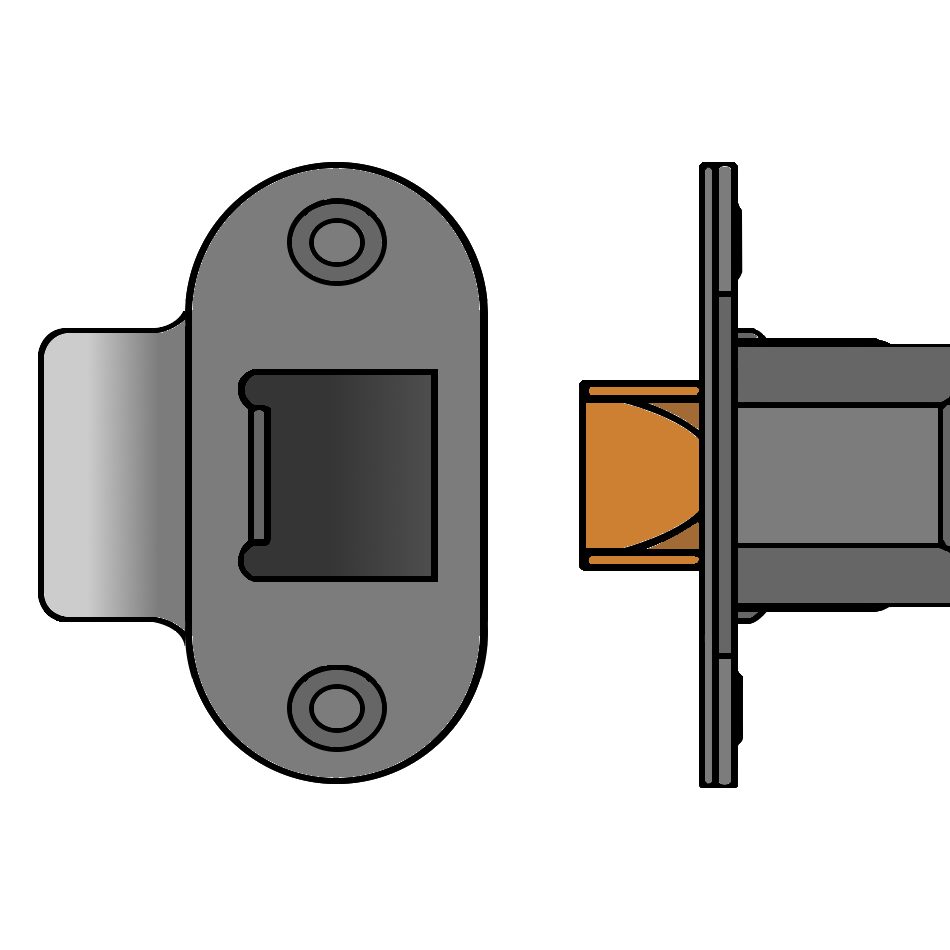

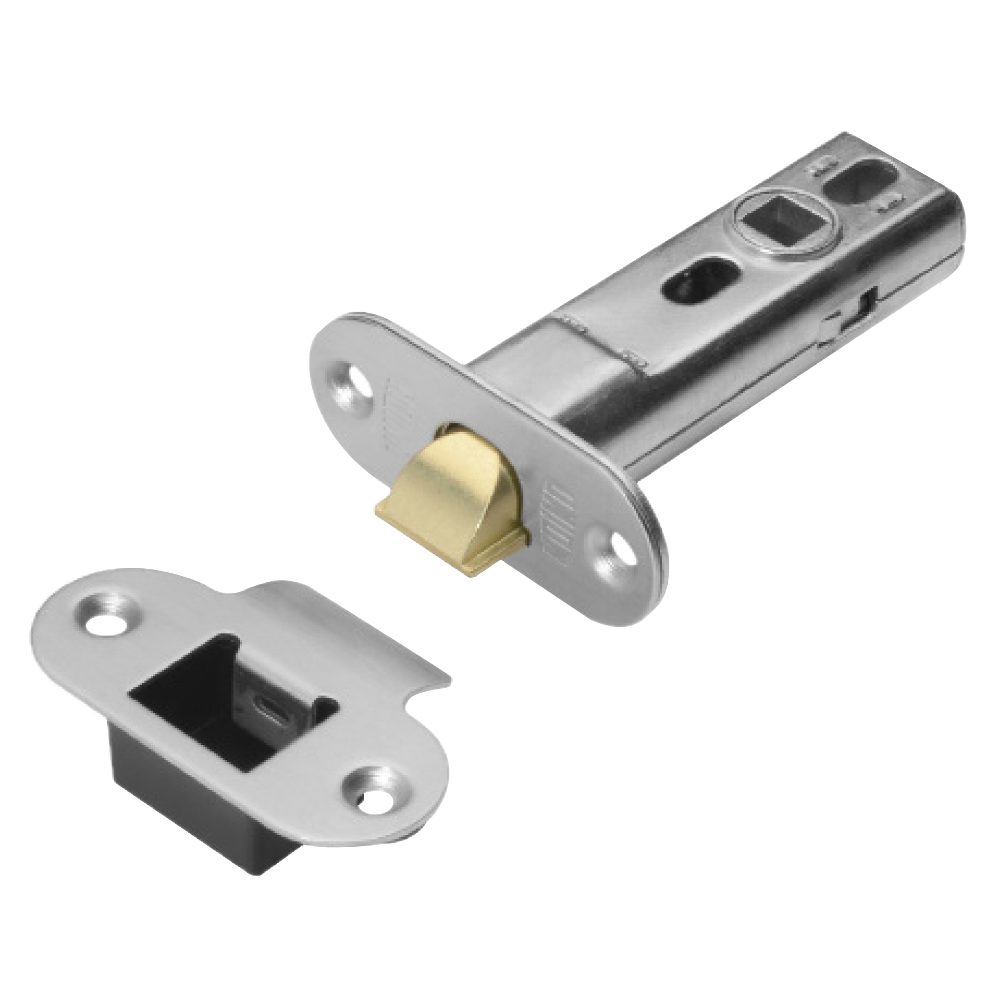

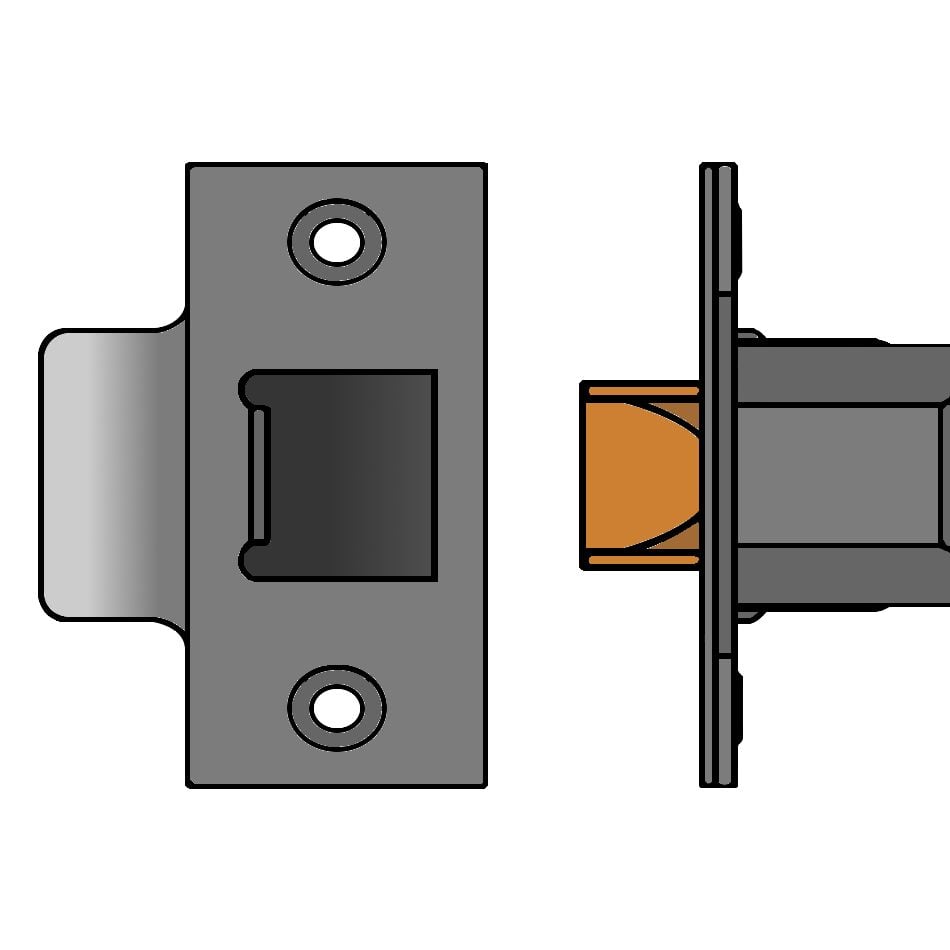

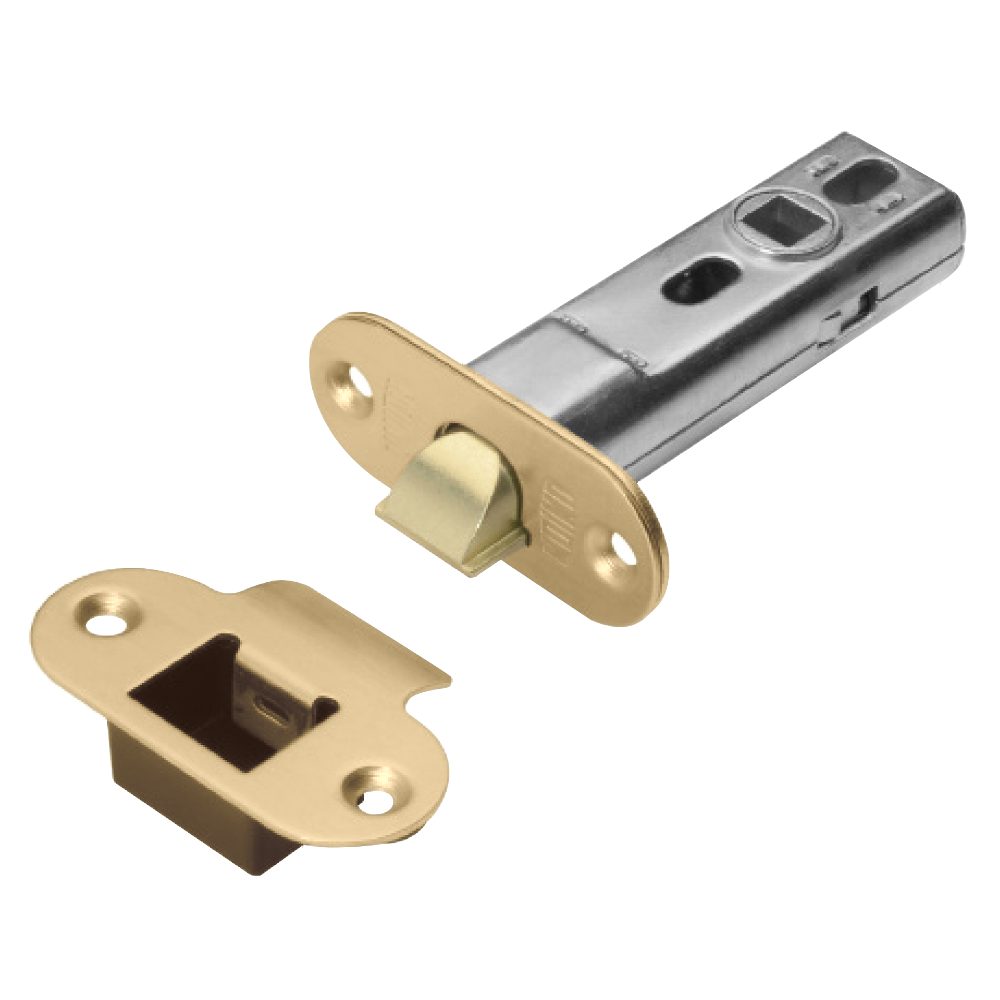

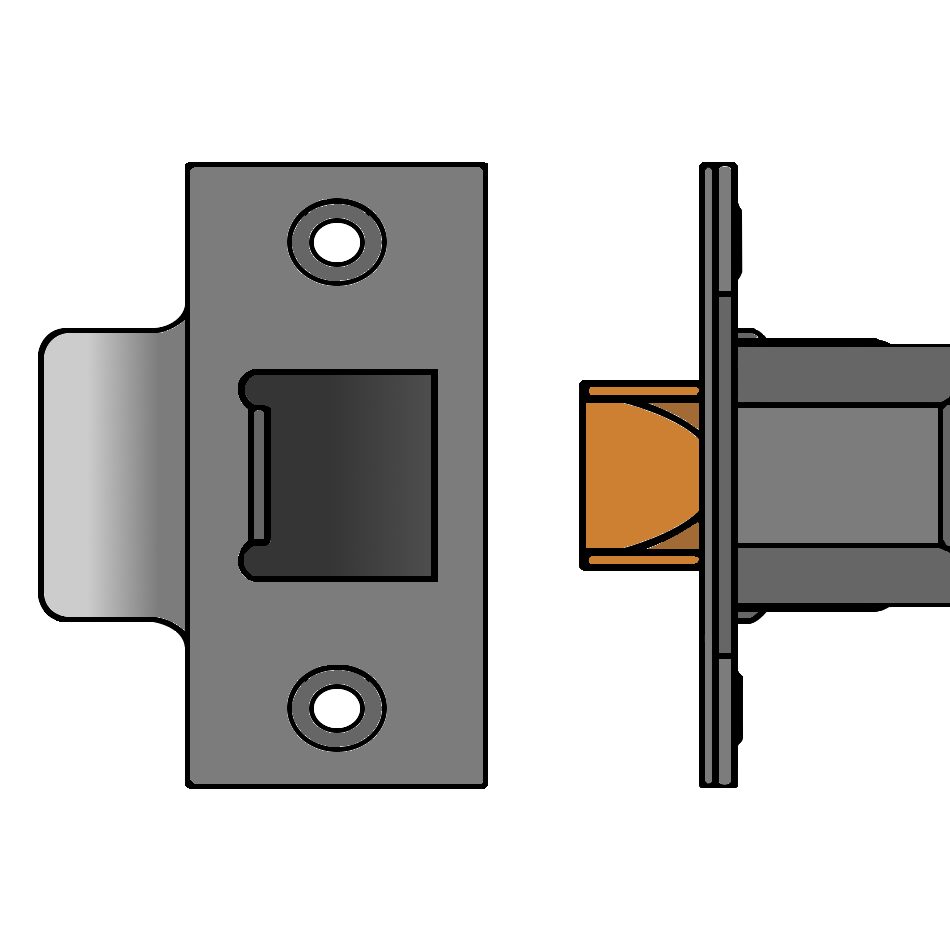

• Forend Shape: Radius or Square (please select from the options below)
• Packaging: Boxed or Visi (please select from the options below)
• Follower: 8mm cast steel
• Case Finish: Galvanised steel
• Forend Finish: Dual finish (Polished Brass and Stainless Steel supplied)
• Standards: Fully tested to BS EN 12209:2003, CE Marked (EC Certificate 0086-CPR-633283)
• Fire Rating: Suitable for 30 and 60-minute timber fire doors
• Handing: Reversible (universal handing)
• Guarantee: 10 Year

Key Features

• Heavy-Duty Construction: Features a durable bevelled latch and a cast steel follower for enhanced resistance against heavy use and abuse.
• Dual Finish Supplied: Comes complete with both polished brass and stainless steel faceplates and adjustable strikes to match your decor.
• Double Sprung: Specially sprung to prevent lever handle drop and ensure smooth, reliable operation.
• Fire Door Approved: Certified for use on 30 and 60-minute timber fire doors.
• Bolt-Through Fixing: Case is pierced to accept bolt-through door furniture for a more secure, long-lasting installation.
