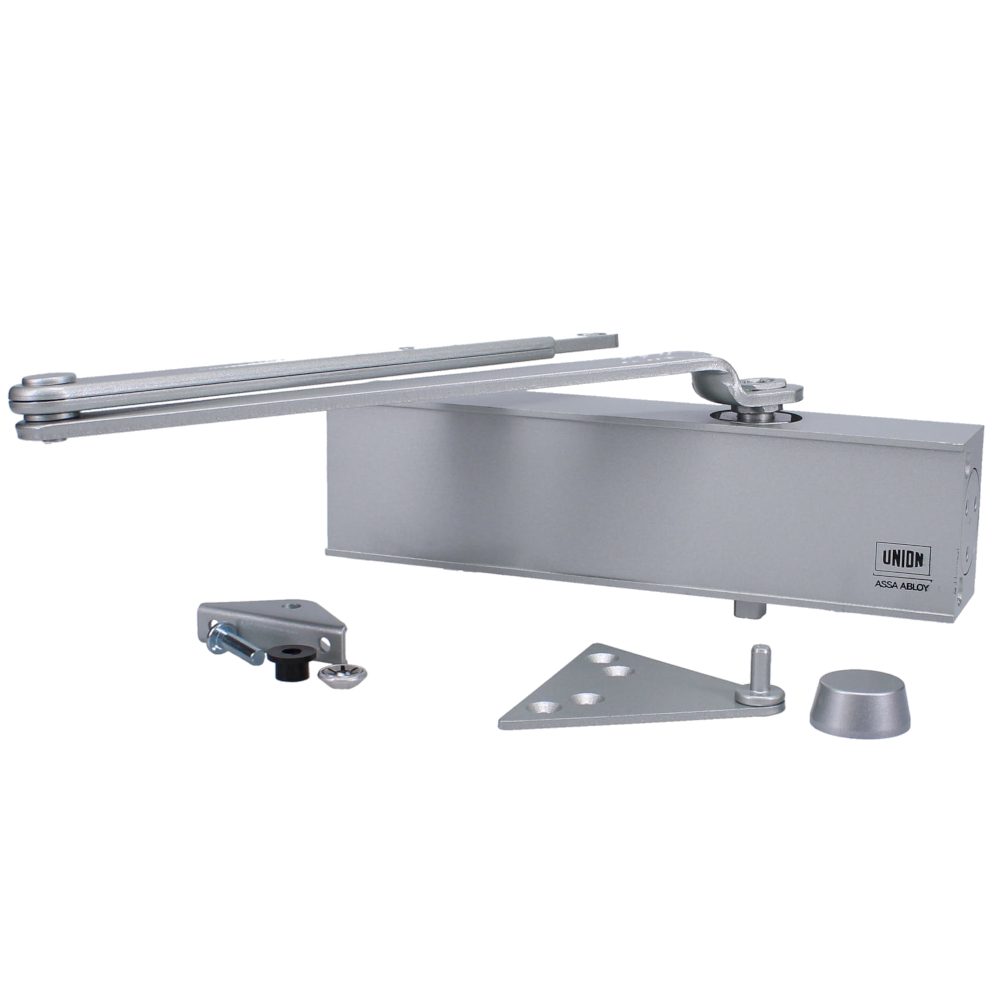

UNION CE24V Size 2-4 Door Closer

The UNION CE24V is a stylish, robust, and highly adjustable overhead rack and pinion door closer, ideal for both retrofitting and new installations. Certifire approved and CE Marked to BS EN 1154 in all three mounting positions (regular, transom, and parallel arm), it is assessed for FD30, FD60, and FD120 timber fire doors with intumescent protection.

With variable closing power (sizes 2 to 4), this door closer is suitable for internal timber doors up to 1100mm wide and weighing up to 80kg. It features an adjustable closing speed, latching action, and backcheck to prevent forceful opening. The unit is fully reversible and comes complete with all required fixings.

Please note that this door closer is available in multiple manufacturer references, weights, and barcodes. Please select your preferred options from the choices below.

Technical Specifications

• Brand: Union
• Mechanism: Rack and pinion
• Strength Size: EN 2 to 4 (variable)
• Max Door Width: 1100mm
• Max Door Weight: 80kg
• Body Width: 233mm
• Body Depth: 60.5mm
• Material: Aluminium
• Handing: Reversible
• Fire Rating: Assessed for FD30, FD60, and FD120 timber fire doors (up to 2 hours)
• Standards: BS EN 1154, CE Marked, Certifire approved
• Manufacturer Reference: Multiple options available (please choose from the options below)
• Weight: 2.33kg to 2.4kg (please choose from the options below)
• Barcode: Multiple options available (please choose from the options below)

Key Features

• Highly Adjustable: Features adjustable closing speed, latching action, and backcheck for complete control.

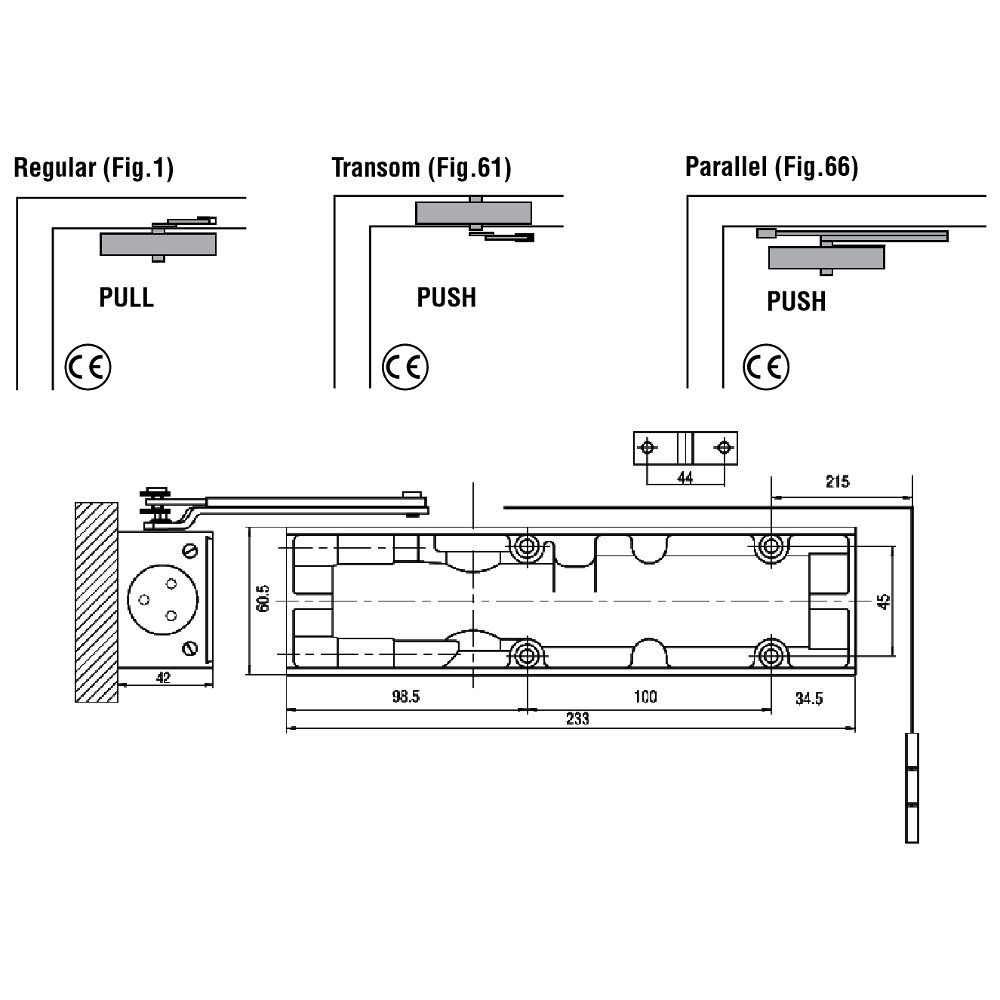

• Universal Fitting: Fully tested and approved for installation in regular (fig 1), transom (fig 61), or parallel arm (fig 66) positions.
• Fire Safety Approved: Certifire approved and CE Marked for timber fire doors up to 120 minutes.
• Easy Retrofitting: Designed for easy installation and adjustment, making it an ideal replacement closer.
• Peace of Mind: Backed by a 10-year manufacturer's guarantee.
