UNION C-Series 3C10 Euro Deadcase

Union C-Series More Union C-Series Cylinder - Euro Lock Case

From

£164.30

Select size, finish, and quantity from the variant table.

View options

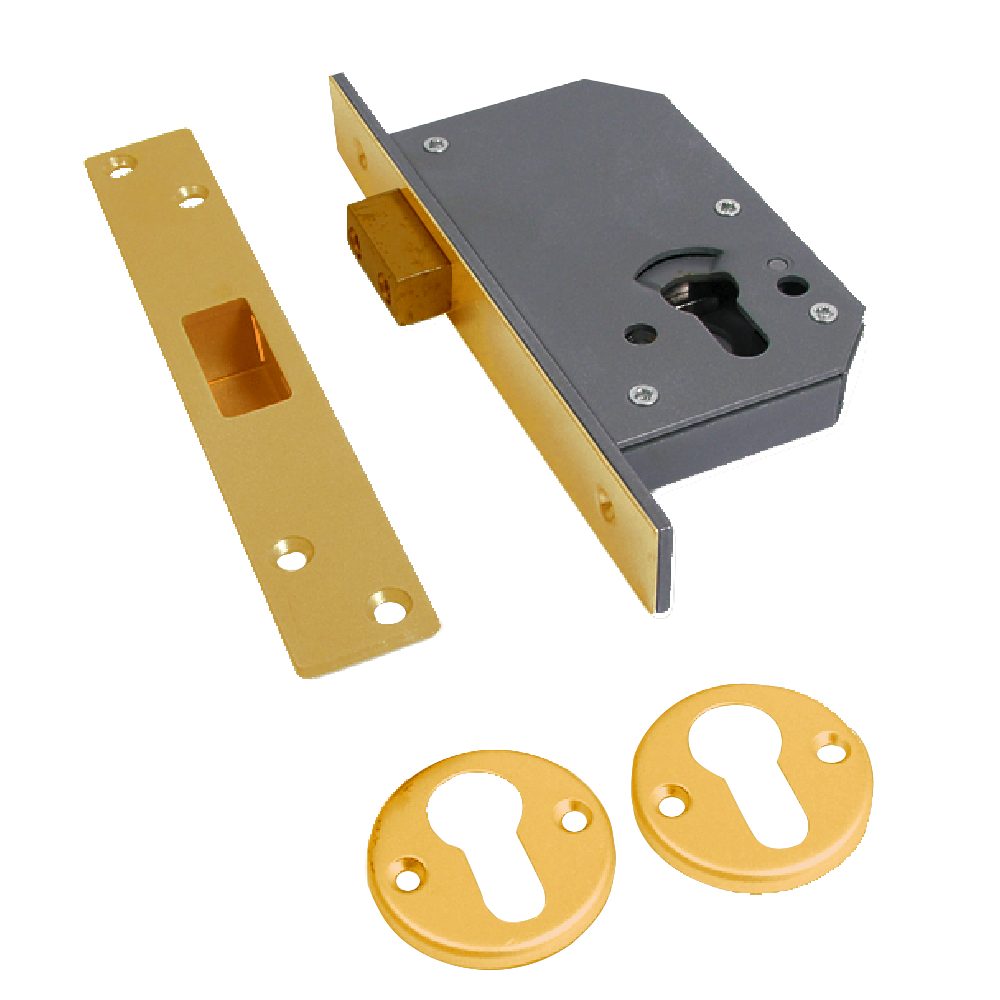

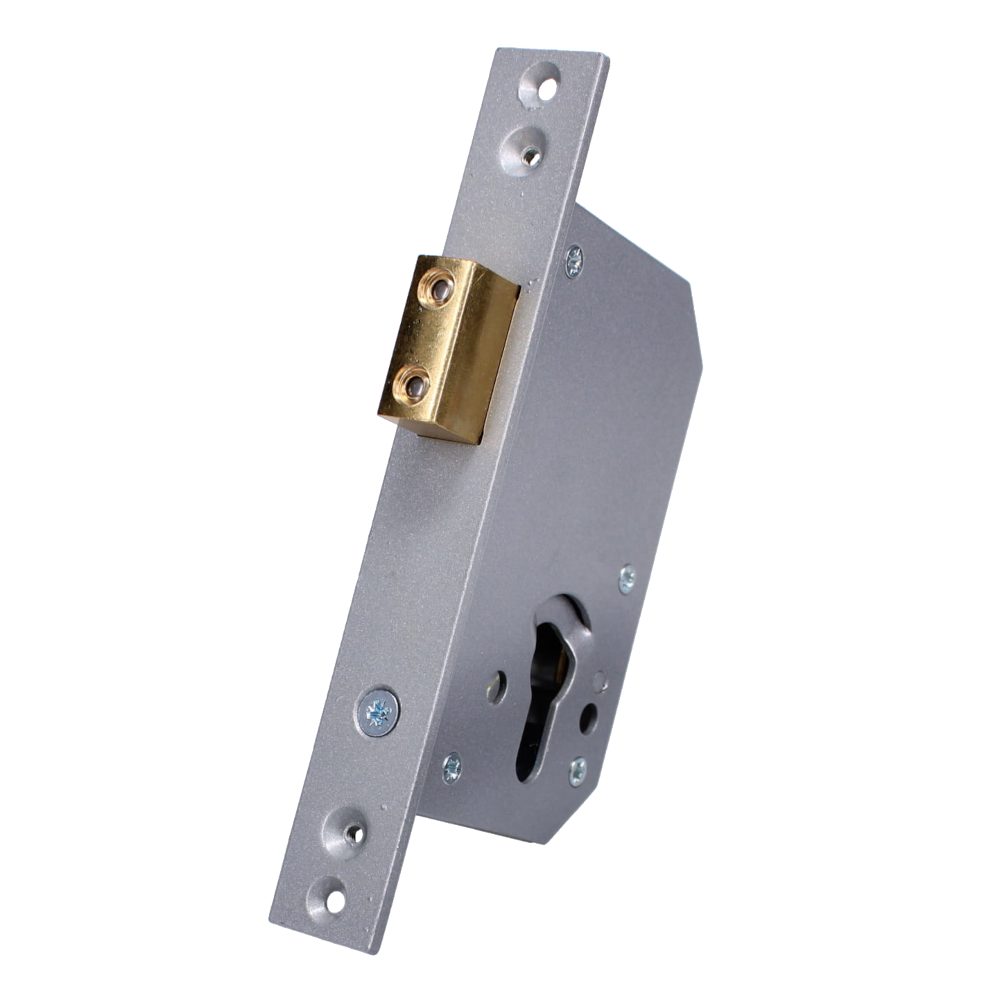

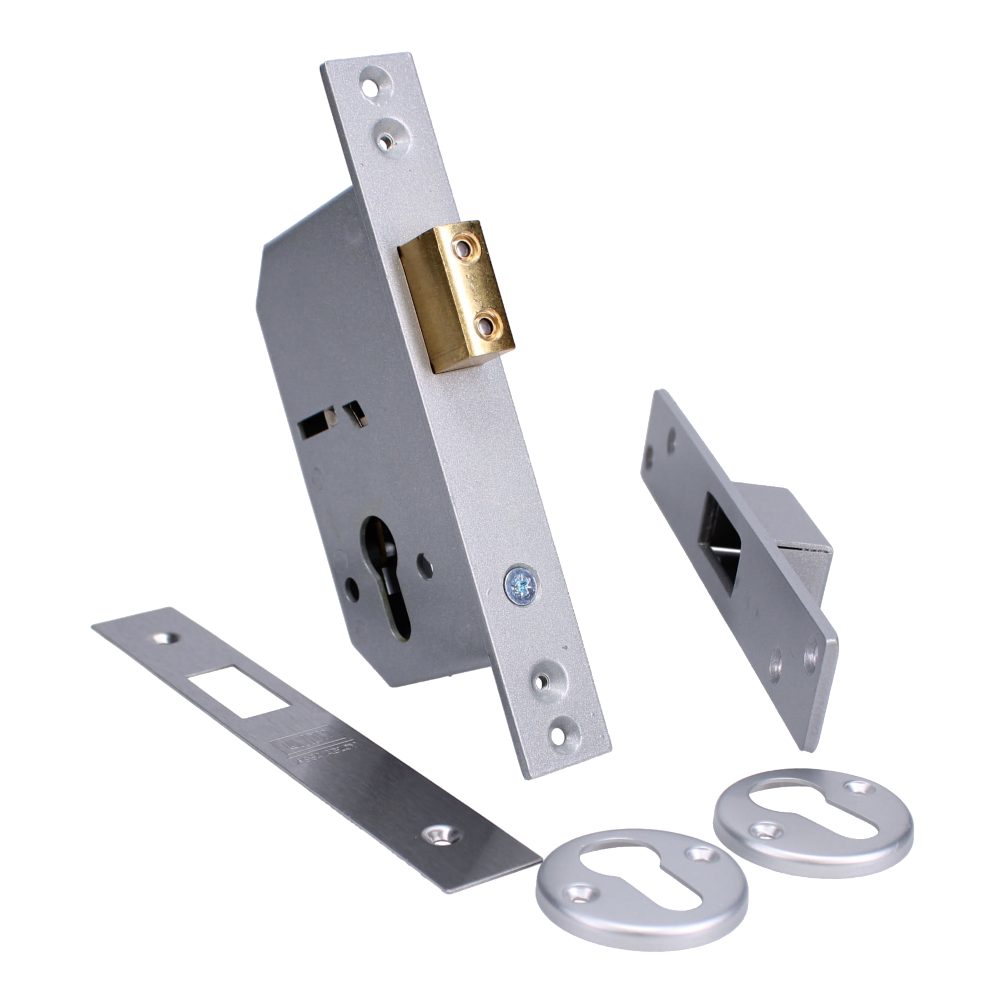

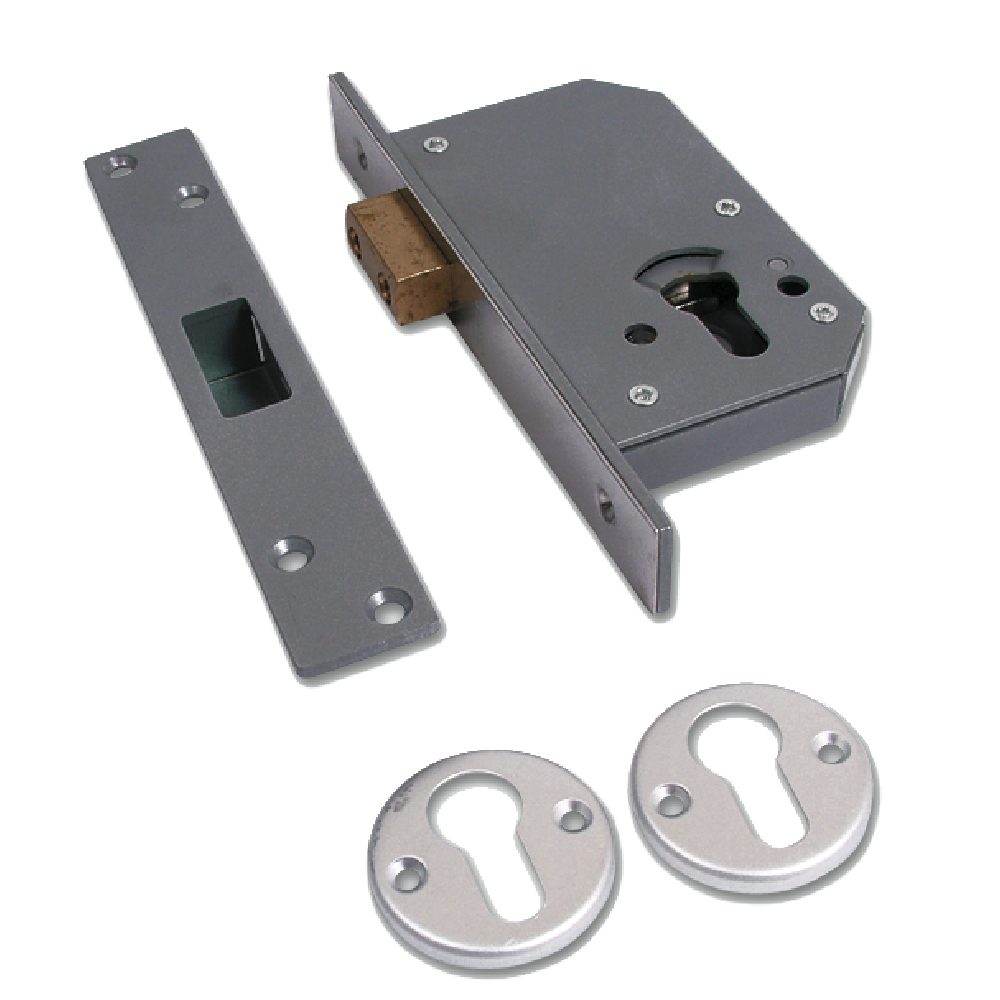

The UNION C-Series 3C10 Euro Deadcase (formerly known as Chubb) is a heavy-duty Euro profile cylinder mortice deadlock case. Designed for robust security, this lock case features an extra-long deadbolt and is suitable for timber doors over 40mm thick. It is fully compliant with EN 1634-1 for use on 60-minute timber fire doors, making it an excellent choice for both commercial and residential applications.

Please note that this is the lock case only; Euro profile cylinders are sold separately. Within the case, two independently operated levers control the deadlocking of the bolt, frustrating manipulation attempts to bypass the cylinder. It also comes with an extended box strike for additional strength and security.

This deadlock case is available in multiple finishes and configurations. You can choose between Polished Brass and Satin Chrome finishes (with matching forend and case finishes), as well as a bolt throw of either 14mm or 20mm. Please select your preferred finish and bolt throw options from the choices below.

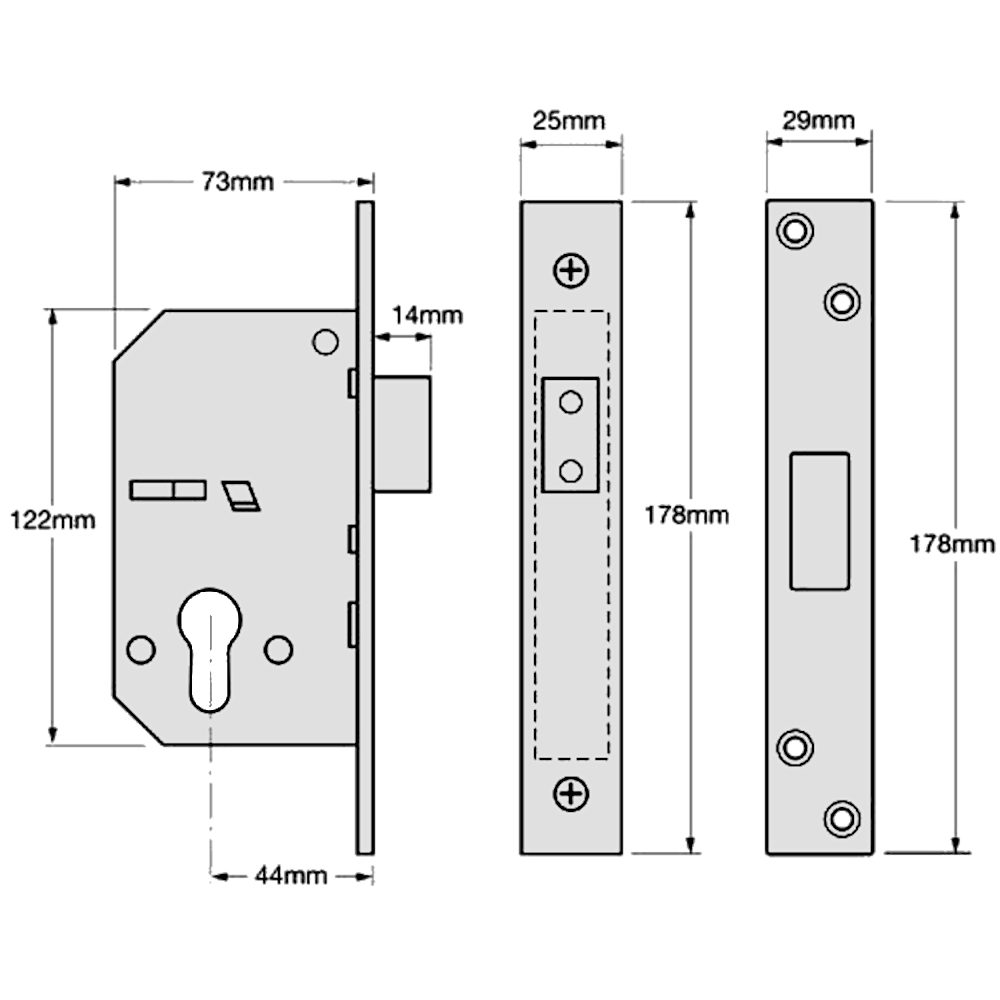

Technical Specifications

Brand: UNION C-Series (formerly Chubb)
Manufacturer Reference: 3C10
Mechanism: Euro Cylinder (case only, cylinder sold separately)
Backset: 44mm
Case Depth: 73mm
Case Height: 123mm
Forend Length: 178mm
Forend Width: 25mm
Bolt Throw: 14mm or 20mm (please choose from the options below)
Finish: Polished Brass or Satin Chrome (please choose from the options below)
Forend Finish: Polished Brass or Satin Chrome (please choose from the options below)
Case Finish: Polished Brass or Silver (please choose from the options below)
Weight: 950g
Fire Door Suitability: EN 1634-1 compliant for 60-minute timber fire doors

Key Features

Robust Security: Heavy-duty Euro profile mortice deadlock case designed to resist forced entry.
Anti-Manipulation Design: Two independently operated levers within the case control deadlocking to prevent bypass manipulation.
Extended Box Strike: Supplied with an extended box strike for enhanced frame protection and strength.
Fire Rated: Certified to EN 1634-1 standards for use on 60-minute timber fire doors.
15-Year Guarantee: Backed by a manufacturer's 15-year guarantee for long-term peace of mind.
Versatile Options: Available in multiple finishes and bolt throw lengths to suit your door furniture and security needs - please select from the options below.
