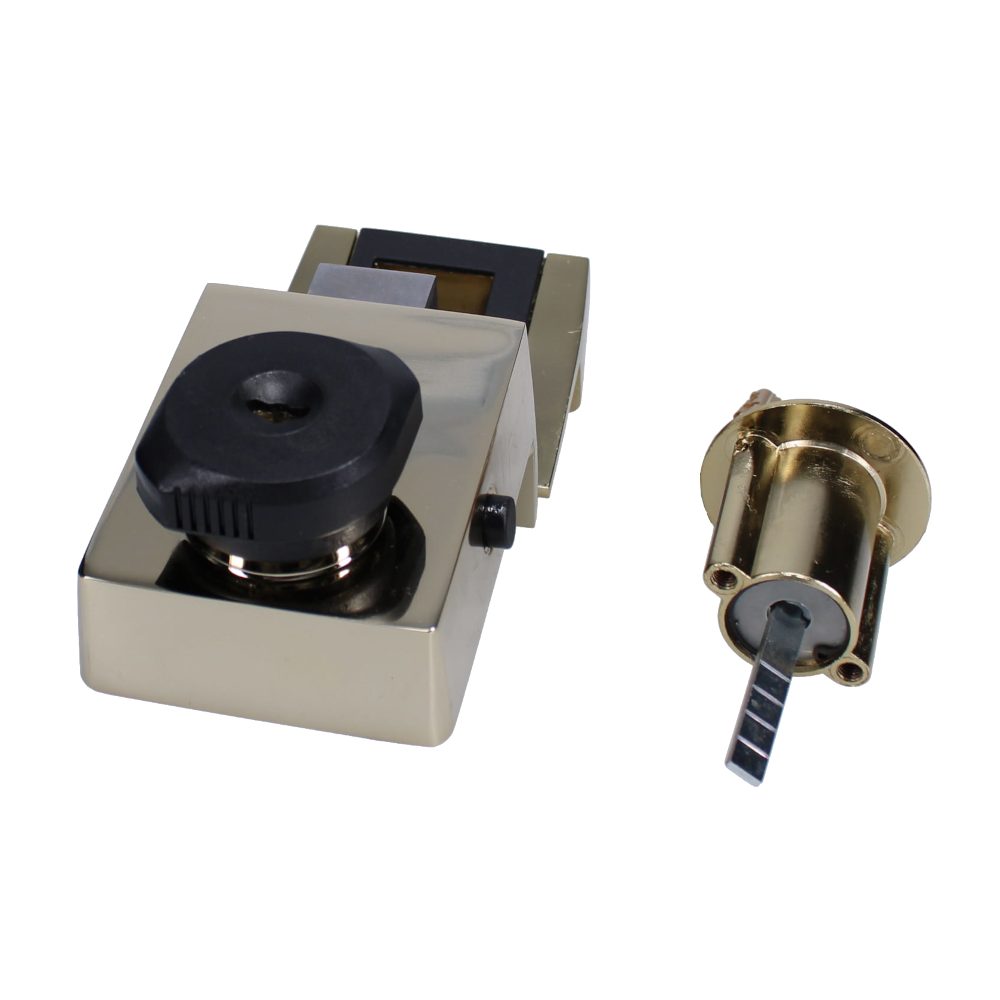

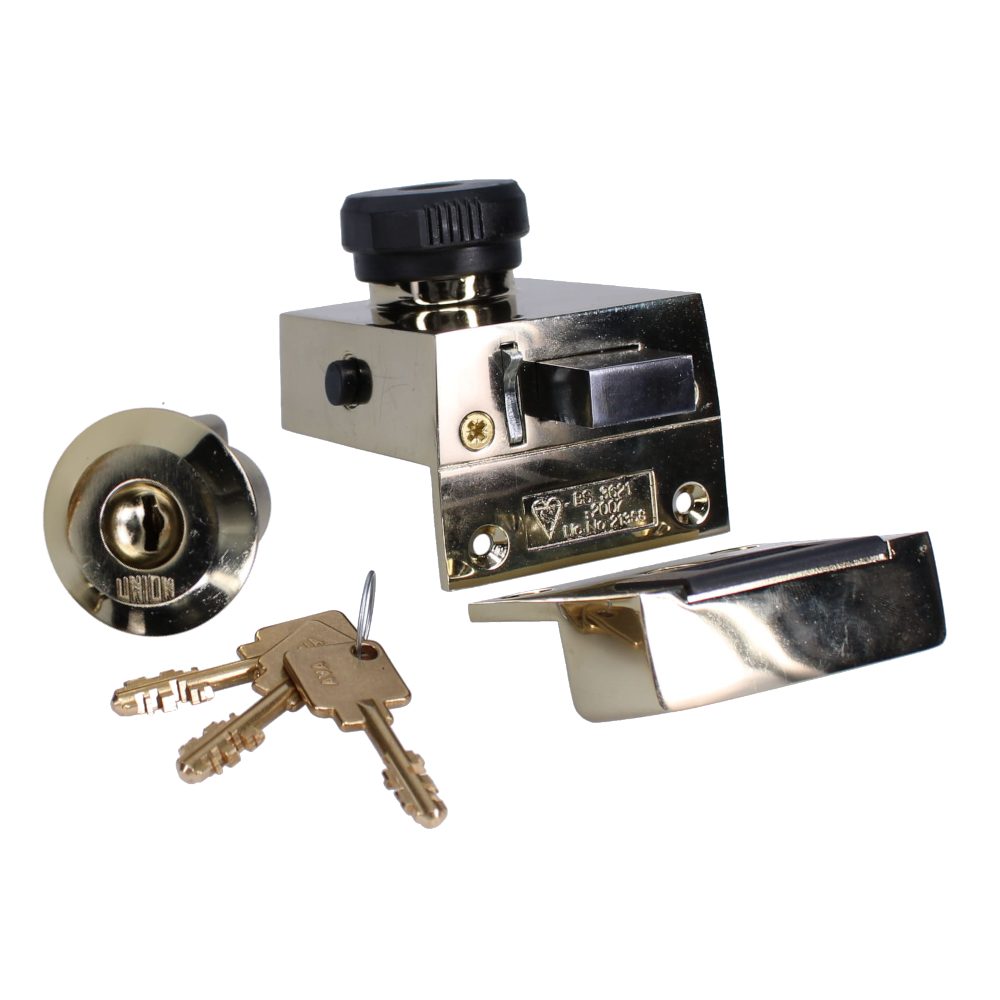

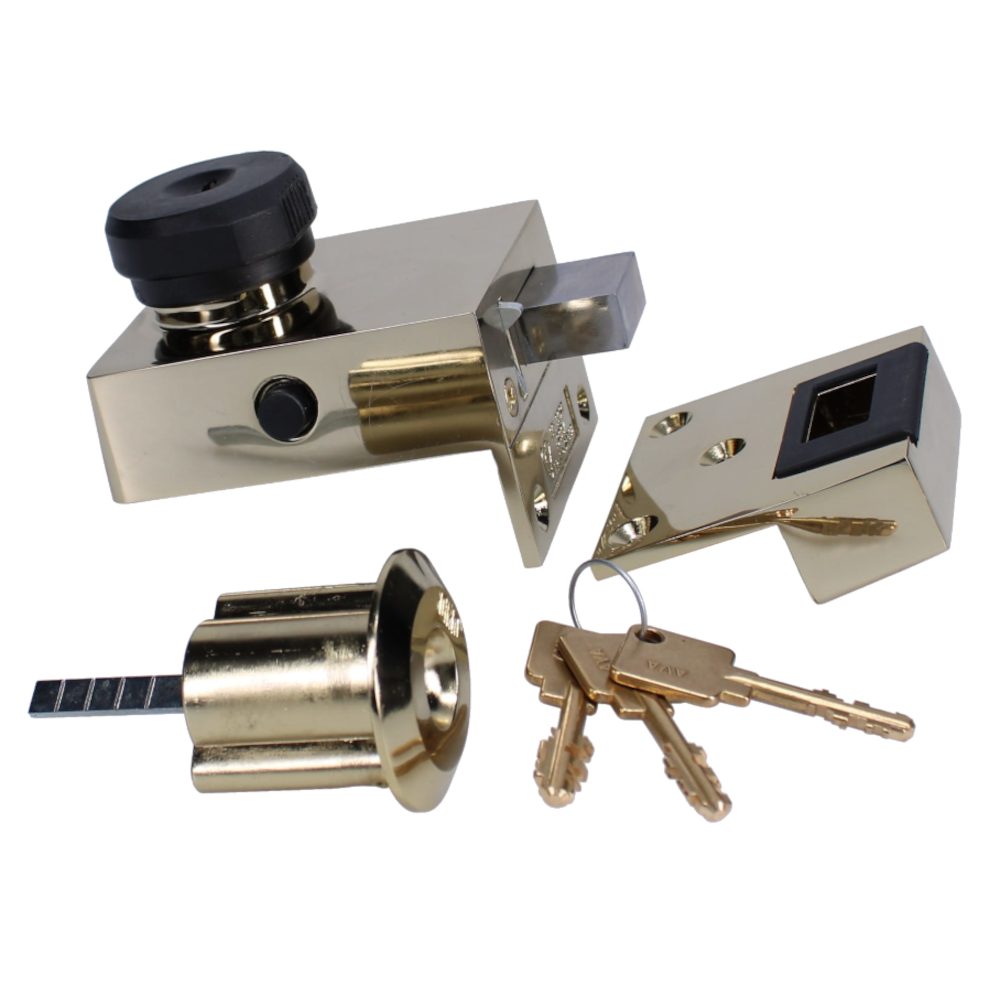

UNION 4L67E Auto Deadlocking AVA Rimlock

The UNION 4L67E Auto Deadlocking AVA Rimlock is a high-security rim night latch designed to offer exceptional protection for inward-opening timber doors. It is particularly well-suited for glass-panelled doors, as the internal handle can be key-locked to prevent unauthorised entry in the event of a glass breakage.

This robust rimlock features a 20mm hardened steel deadbolt that automatically deadlocks upon closing, providing immediate physical security. The outer cylinder and lockcase are protected against drill attacks by hardened steel plates and pins, while the specialised 10-disc AVA cylinder mechanism is engineered to resist torque attacks, picking, and manipulation. It is operated by key from the outside and a key-lockable knob from the inside, and comes supplied with 3 keys.

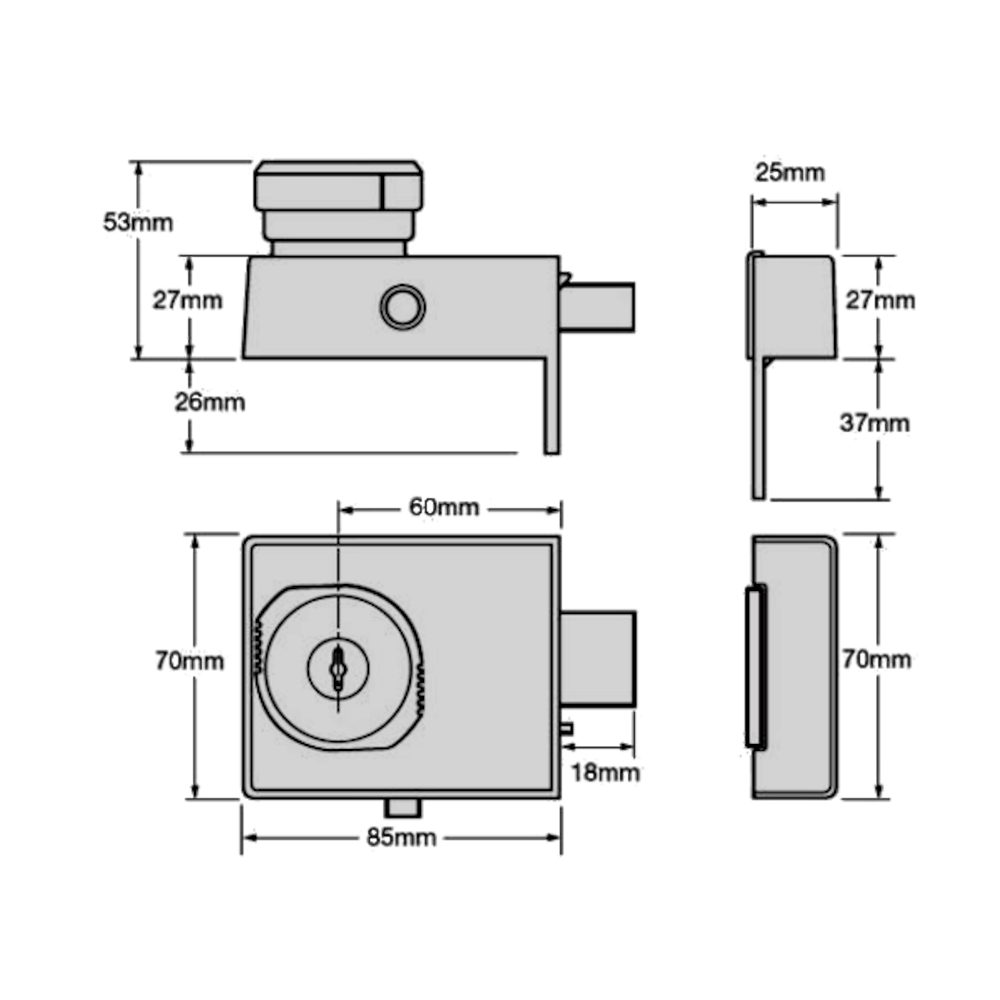

Technical Specifications

• Brand: Union
• Backset: 60mm
• Bolt Throw: 20mm
• Door Thickness: 38mm to 57mm
• Handing: Inward opening, left or right hinged
• Mechanism: 10-disc AVA cylinder
• Keys Supplied: 3
• Standards: BS EN 3621, Secured by Design
• Finish: Polished Brass

Key Features

• Automatic Deadlocking: The 20mm hardened steel deadbolt automatically deadlocks upon closing for instant security.
• Glass Panel Security: Key-lockable internal knob prevents unauthorised opening if adjacent glass is smashed.
• High-Security Cylinder: 10-disc AVA cylinder mechanism provides excellent resistance to picking and torque attacks.
• Drill & Attack Resistant: Hardened steel plates and pins protect the outer cylinder and lockcase from drill, saw, and force attacks.
• Police & Insurance Approved: Certified to BS EN 3621 and approved by Secured by Design (SBD).
