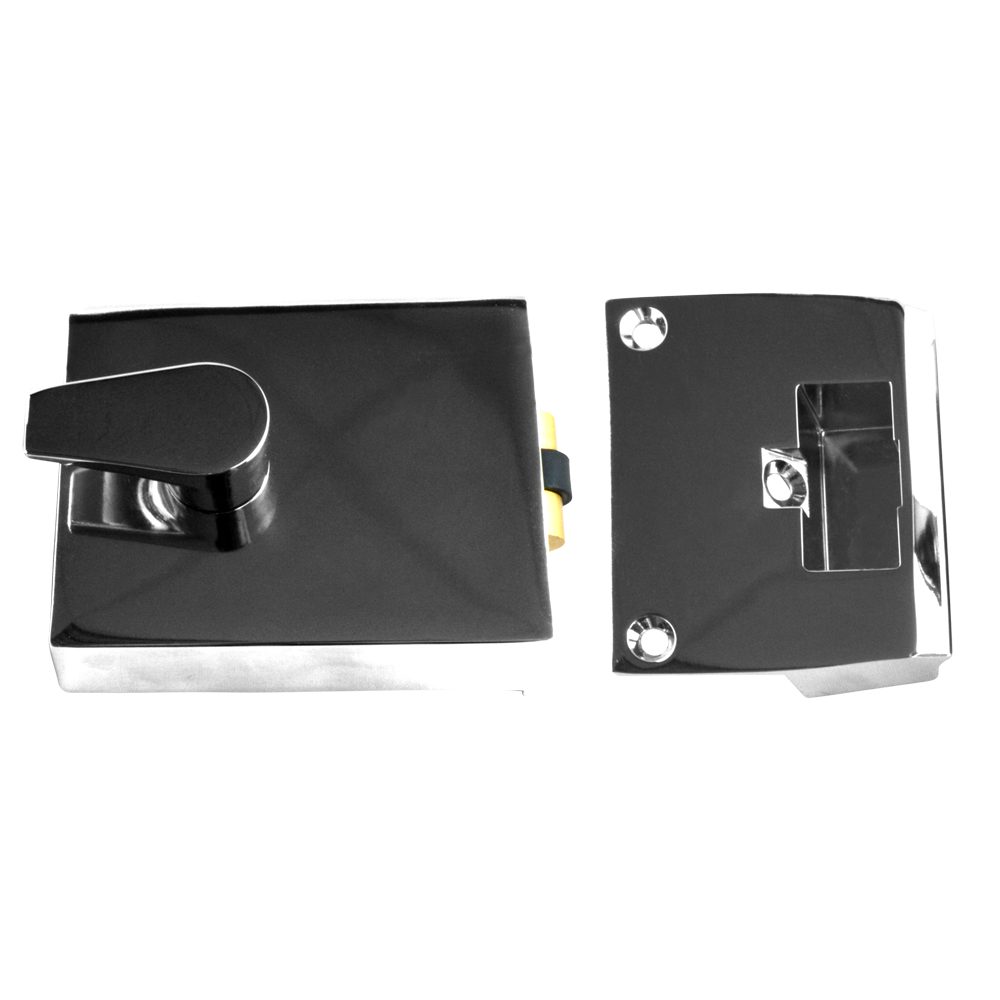

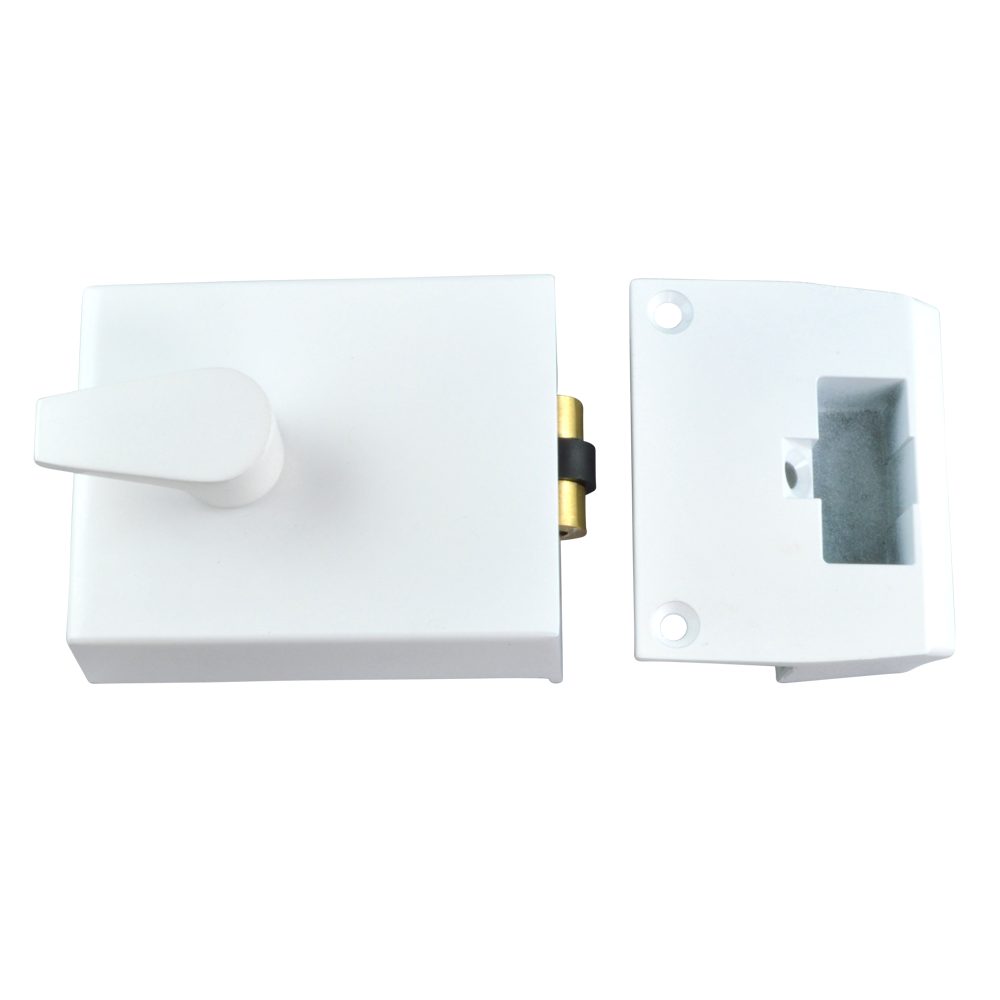

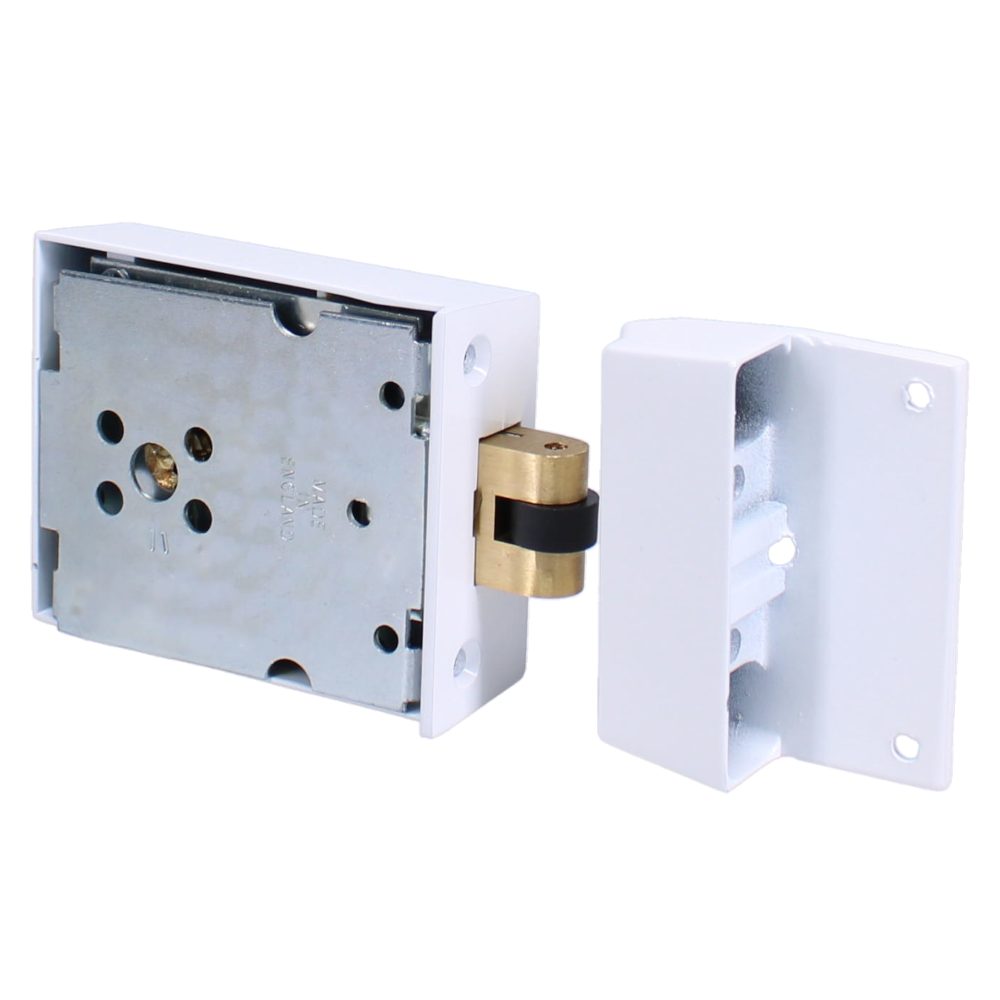

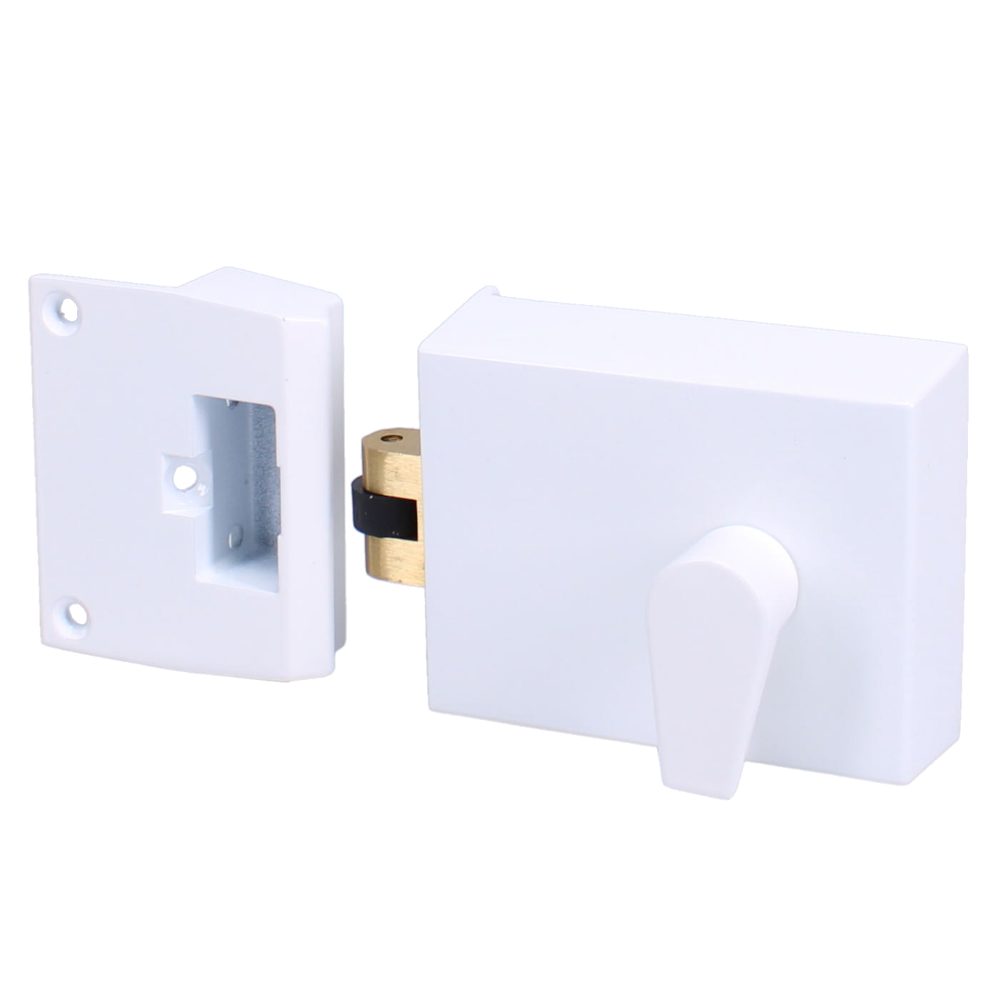

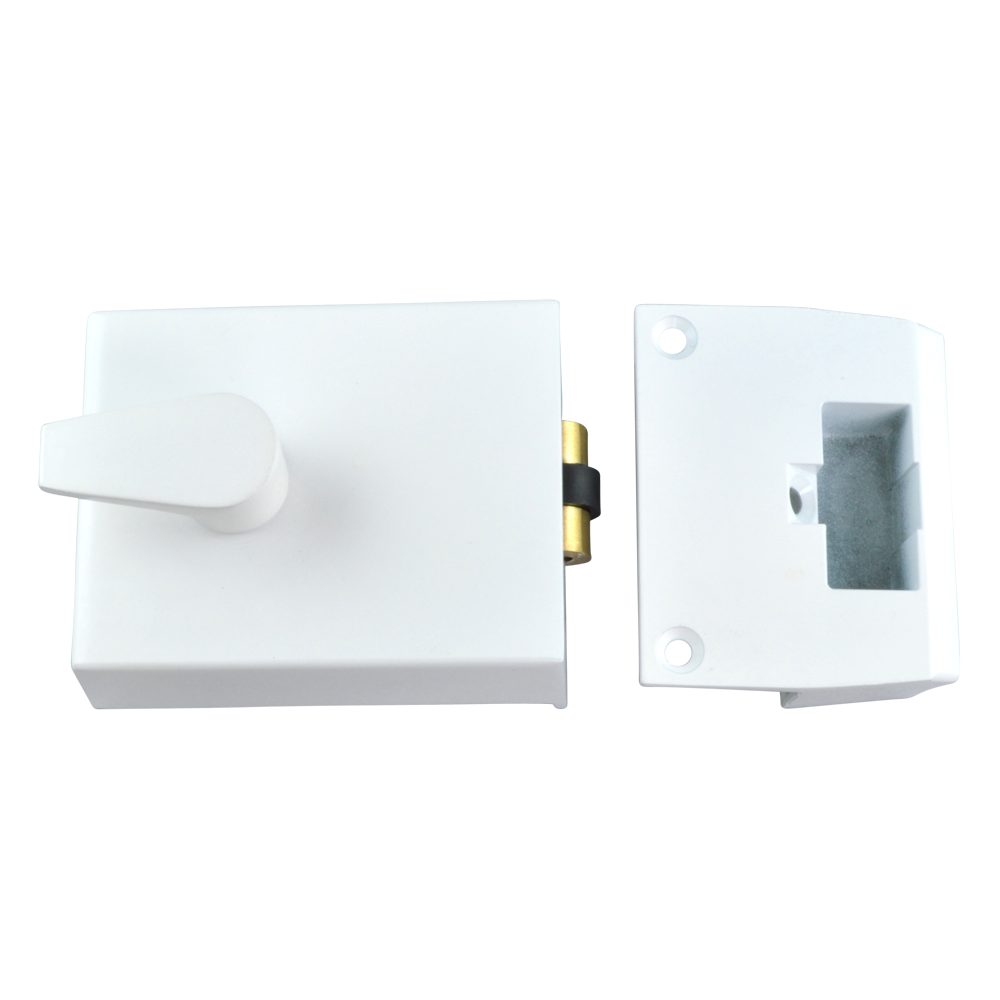

UNION 1158 Rollerbolt Nightlatch

The UNION 1158 Rollerbolt Nightlatch is a highly versatile and reliable rim lock designed specifically for timber doors. Combining the day-to-day convenience of a push-pull roller catch with the robust security of a deadlocking bolt, it is an ideal hardware solution for both residential and light commercial environments.

For daily use, the roller bolt operates with a simple push or pull action. When full security is required, the bolt can be locked in position (deadlocked) using a key from the outside or by lifting the internal handle to the vertical position. The bolt extends from 8mm to 19mm when fully thrown.

Please note that this nightlatch is not suitable for glass-panelled doors. It is manufactured in the UK and comes backed by a 10-year manufacturer's guarantee.

This product is available in multiple finishes, including Chrome Plated, Satin Chrome, and White, with weights ranging from 730g to 740g. Please select your preferred finish and options from the choices below.

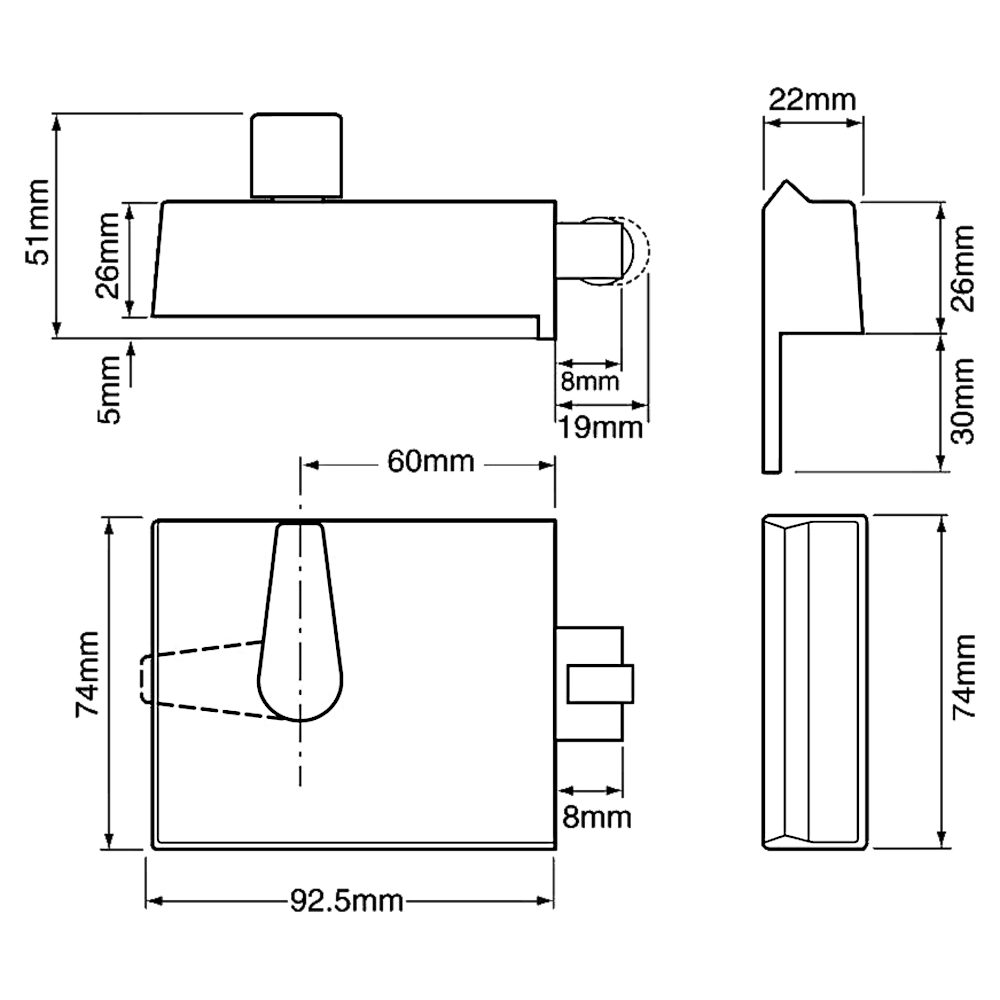

Technical Specifications

• Brand: UNION
• Manufacturer Reference: L1158
• Backset: 60mm
• Case Height: 74mm
• Case Width: 92.5mm
• Door Thickness: Suitable for timber doors from 35mm to 60mm thick
• Handle Projection: 20mm
• Bolt Extension: Extends from 8mm to 19mm when thrown
• Keying: Keyed to differ (Master Keying available as a special order)
• Finishes Available: Chrome Plated, Satin Chrome, or White (please select from the options below)
• Weight: 730g to 740g (please select from the options below)
• Pack Quantity: 1
• Packaging: Boxed

Key Features

• Dual Functionality: Combines a convenient push-pull roller catch for daytime use with a secure deadlock when fully thrown
• Flexible Operation: Bolt can be locked or unlocked via key from the outside and handle from the inside
• Internal Lockout: Lift the internal handle to lock the roller bolt in position
• UK Manufactured: High-quality construction built to last
• 10-Year Guarantee: Backed by UNION's robust 10-year warranty
• Multiple Finishes: Available in a choice of finishes to suit your door's aesthetic (please choose from the options below)
