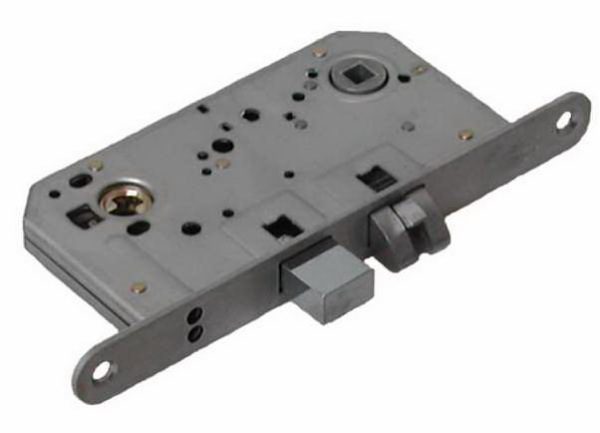

Trioving 5316/8 LH & RH lock cases

The TrioVing 5316/8 stainless steel lock cases are high-quality mechanical lockcases designed for heavy-duty use on premium Scandinavian doors and marine applications. This lockcase is the direct replacement for the discontinued TrioVing 5212 lockcase.

Constructed from durable stainless steel, it is highly resistant to corrosion, making it ideal for marine environments and demanding exterior or interior doors. It features an anti-friction latch bolt and is designed to be used in conjunction with the 5520 cylinder lock and the 5541 thumbturn.

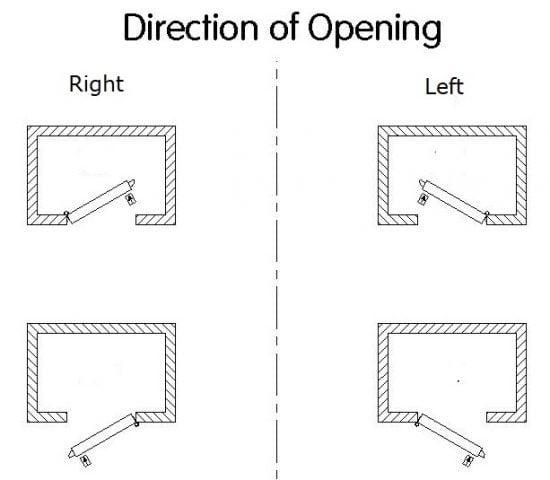

These lockcases are handed based on the direction your door opens. Both Left Hand and Right Hand options are available; please choose your required handing from the options below.

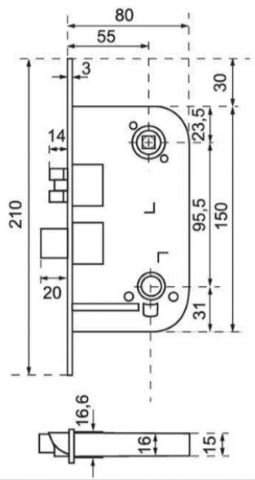

Technical Specifications

• Brand: TrioVing
• Backset: 55mm
• Lockcase Height: 150mm
• Lockcase Length: 80mm
• Lockcase Width: 16mm
• Finish: Stainless Steel
• Handing: Left Hand or Right Hand (please select below)
• Weight: 596g

Key Features

• Direct Replacement: Directly replaces the discontinued TrioVing 5212 lockcase.
• Marine Grade: Durable stainless steel construction, highly suitable for marine and corrosive environments.
• Versatile Application: Commonly used on high-end Scandinavian doors, both interior and exterior.
• System Compatibility: Designed for use with the 5520 cylinder lock and 5541 thumbturn.
• Handing Options: Available in both Left Hand and Right Hand configurations to suit your door's opening direction.
