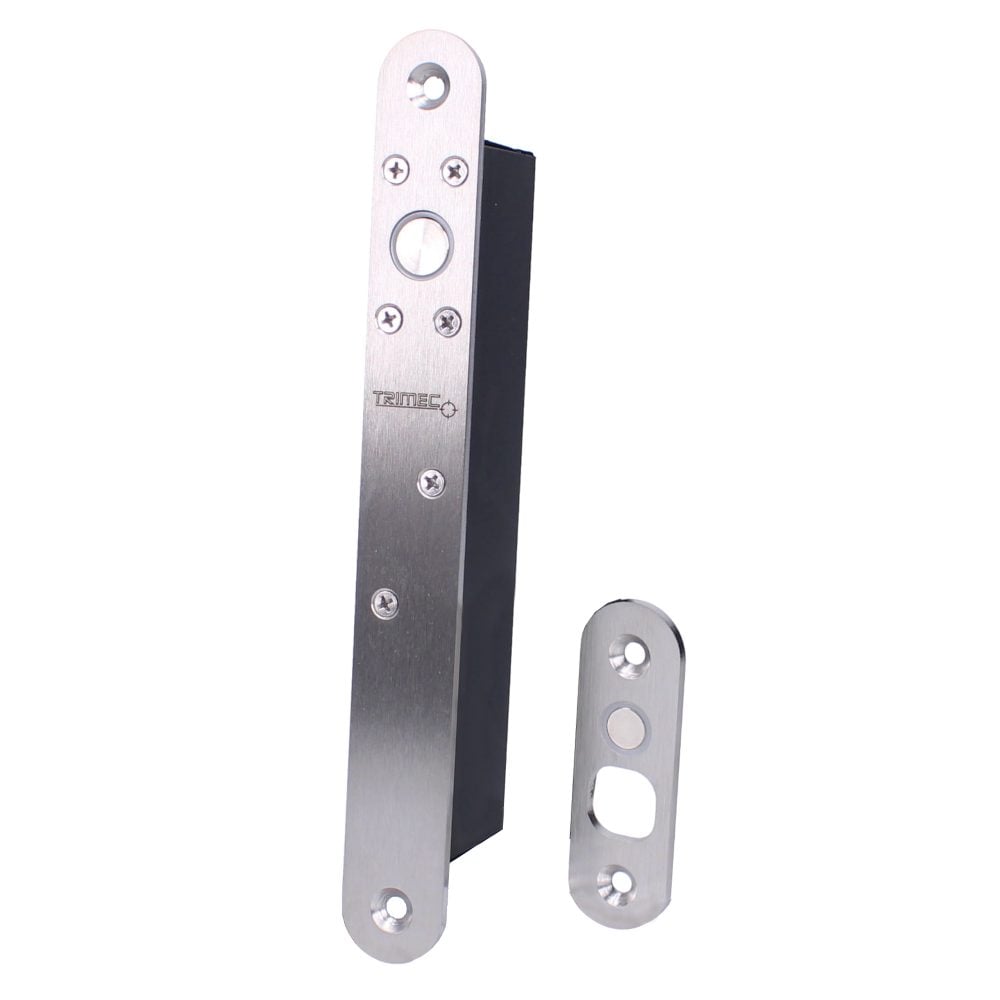

TRIMEC TB/JLR25R Mortice Solenoid Bolt

The Trimec TB/JLR25R Mortice Solenoid Bolt is a high-performance, monitored electric locking solution designed for both timber and metal doors. Engineered for reliability and versatility, this solenoid bolt offers a robust holding force of 1000kg (2200lbs), making it an excellent choice for securing commercial and residential access points.

With its non-handed, site-reversible design, the TB/JLR25R can be installed either vertically or horizontally to suit your specific door configuration. It features a cam-operated bolt with a 14mm throw and is continuously rated, ensuring long-term durability under constant use. Operating on a dual 12/24V DC input voltage, it functions as a fail-unlocked (fail-safe) device, ensuring safety by unlocking automatically in the event of a power failure. The unit is finished in a clean satin anodised aluminium, blending seamlessly into modern door frames.

Technical Specifications

• Manufacturer Reference: TB/JLR25R (Part Number: L9451)
• Fitting: Mortice
• Application: Metal and timber doors
• Input Voltage: 12/24V DC
• Current Consumption: Pull 1.0A, Holding 0.25A
• Operation: Fail Unlocked (Fail Safe)
• Monitoring: Yes
• Holding Force: 1000kg / 2200lbs
• Bolt Throw: 14mm
• Bolt Diameter: 13mm
• Body Dimensions: 164mm (H) x 22mm (W) x 39mm (D)
• Faceplate Dimensions: 210mm (H) x 25mm (W)
• Finish: Satin Anodised Aluminium
• Handing: Non-handed (site reversible)
• Weight: 430g
• Guarantee: 5 Year

Key Features

• High Security: Provides a strong holding force of up to 1000kg for reliable door security.
• Versatile Installation: Can be mounted either vertically or horizontally to fit various timber and metal door setups.
• Fail-Safe Operation: Fail-unlocked configuration ensures doors release safely during power cuts.

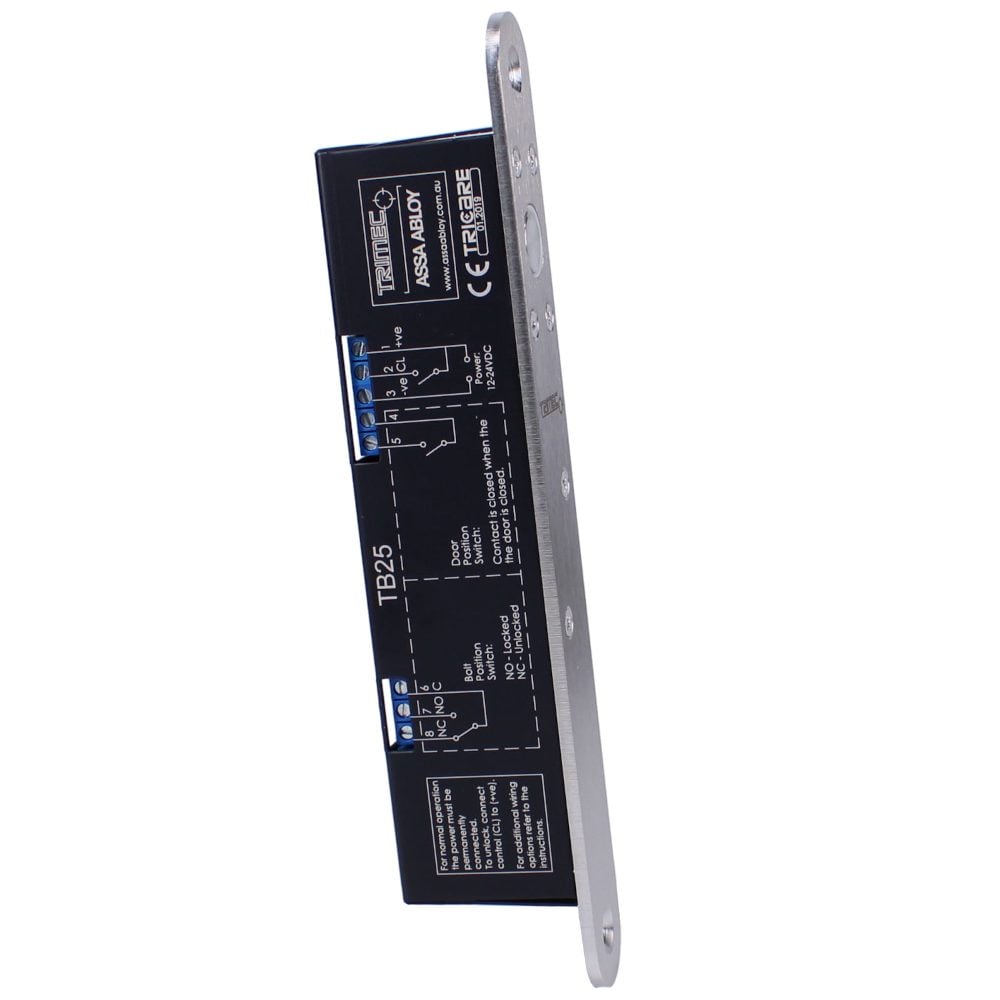

• Integrated Monitoring: Built-in monitoring allows for easy integration with access control and security systems.
• Continuously Rated: Designed for continuous duty cycle operation without overheating.
• Durable Finish: Satin anodised aluminium faceplate offers a clean, professional aesthetic and corrosion resistance.
• Five-Year Guarantee: Backed by a manufacturer's 5-year guarantee for peace of mind.
