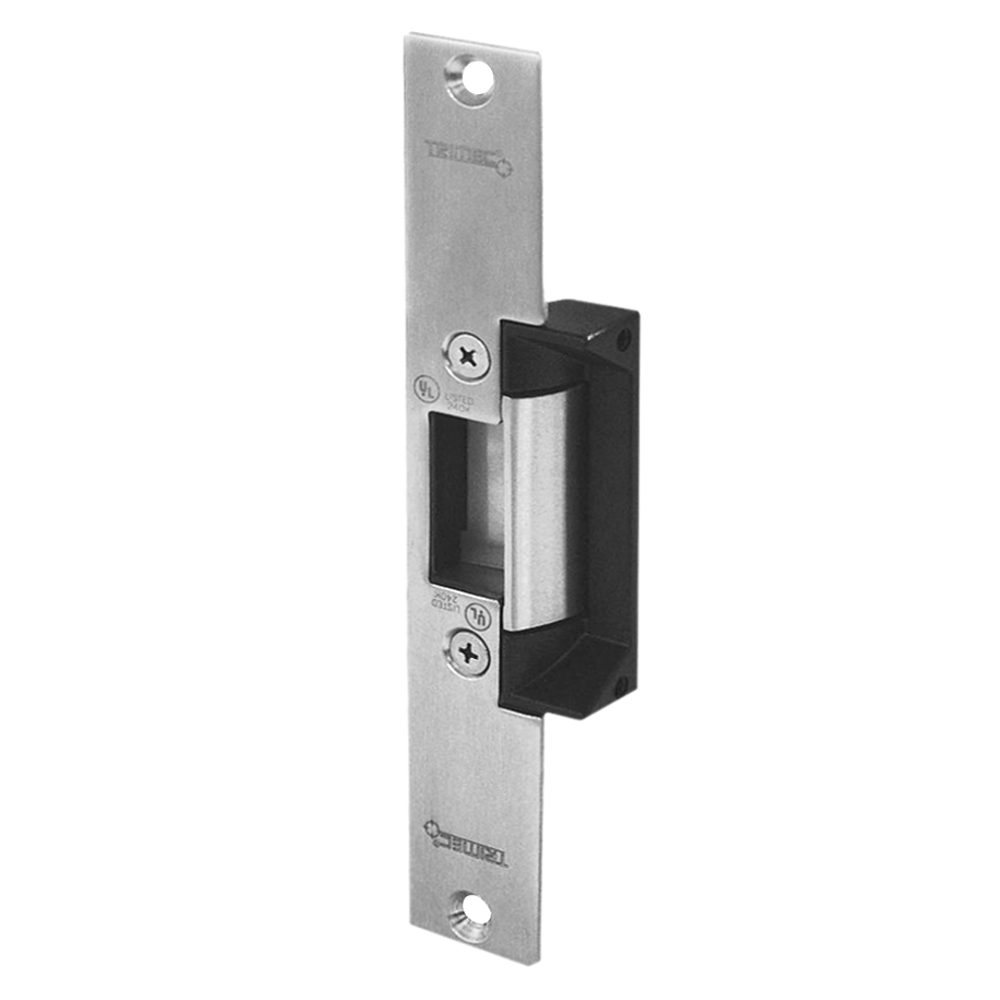

TRIMEC ES110 Series Mortice Release - Timber

The Trimec ES110 Series Mortice Release is a cost-effective, robust electric strike designed for timber door frames. Featuring a solid one-piece cast aluminium body and a stainless steel striker, it offers a high level of security and reliability. With a deeper-than-normal strike-keeper area, the ES110 is designed to work with an extensive range of locks, making it suitable for various access control installations.

This versatile electric strike is site-reversible, allowing you to easily switch between fail-safe and fail-secure modes during installation. It is IP56 weather-resistant as standard, making it ideal for both internal and external doors, including high-traffic or exposed areas.

This product is available in multiple configurations. Please choose your preferred faceplate height (ranging from short 123mm/124mm to long 201mm), faceplate width (32mm or 36mm), input voltage (12/24V DC or 24V DC), manufacturer reference (110111-160M, 110112-140M, or TS113B), and weight (220g or 390g) from the options below.

Technical Specifications

• Body Height: 70mm
• Jaw Dimensions: 38mm (H) x 17mm (W) x 15mm (D)
• Holding Force: 680kg (1500lbs)
• IP Rating: IP56
• Operating Temperature: -20°C to 60°C
• Handing: Reversible
• Standards: CE Marked
• Guarantee: Tricare 5-Year Warranty

Key Features

• Solid one-piece cast aluminium body with a stainless steel striker for extra strength and durability
• Deeper strike-keeper area compatible with a wide range of locks
• Fail-safe / fail-secure mode is easily changeable on-site
• IP56 weather-resistant rating makes it suitable for external and exposed environments
• Supplied with an installation template for straightforward fitting
• Suitable for an 18mm latch with a 3mm door gap
