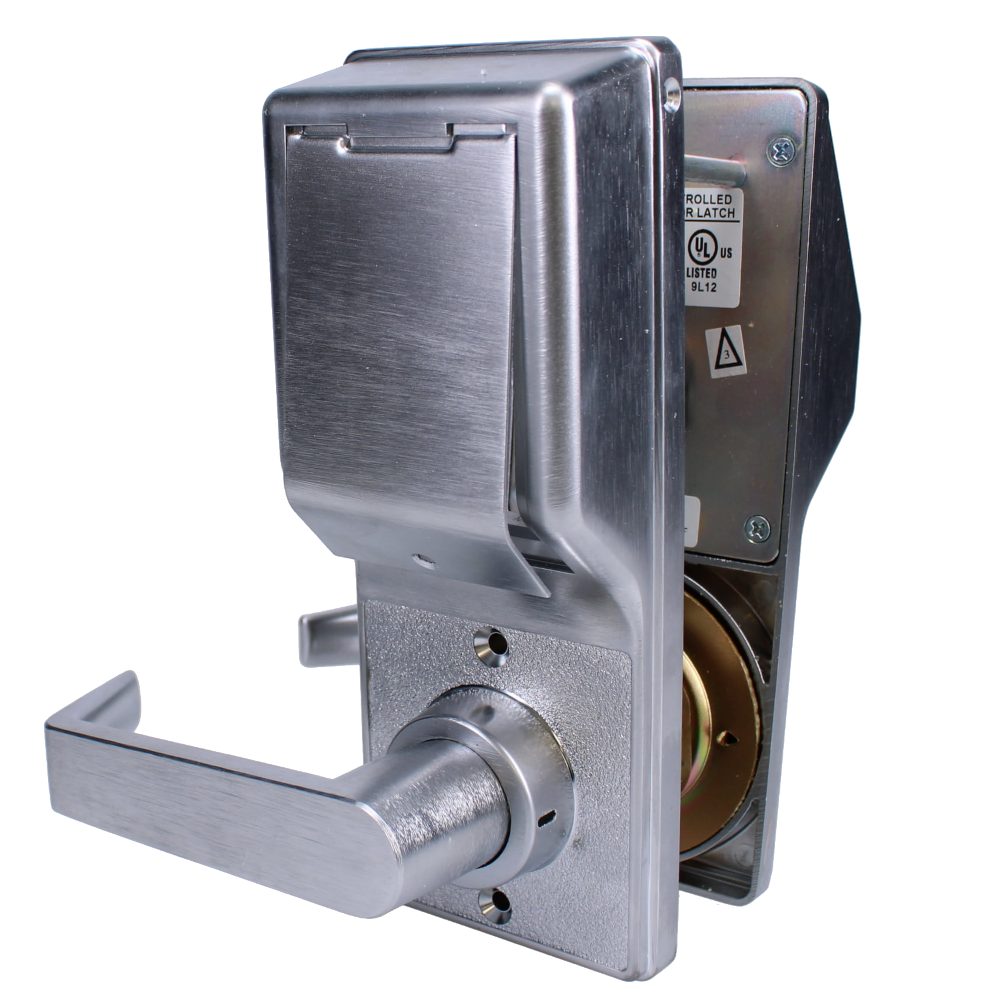

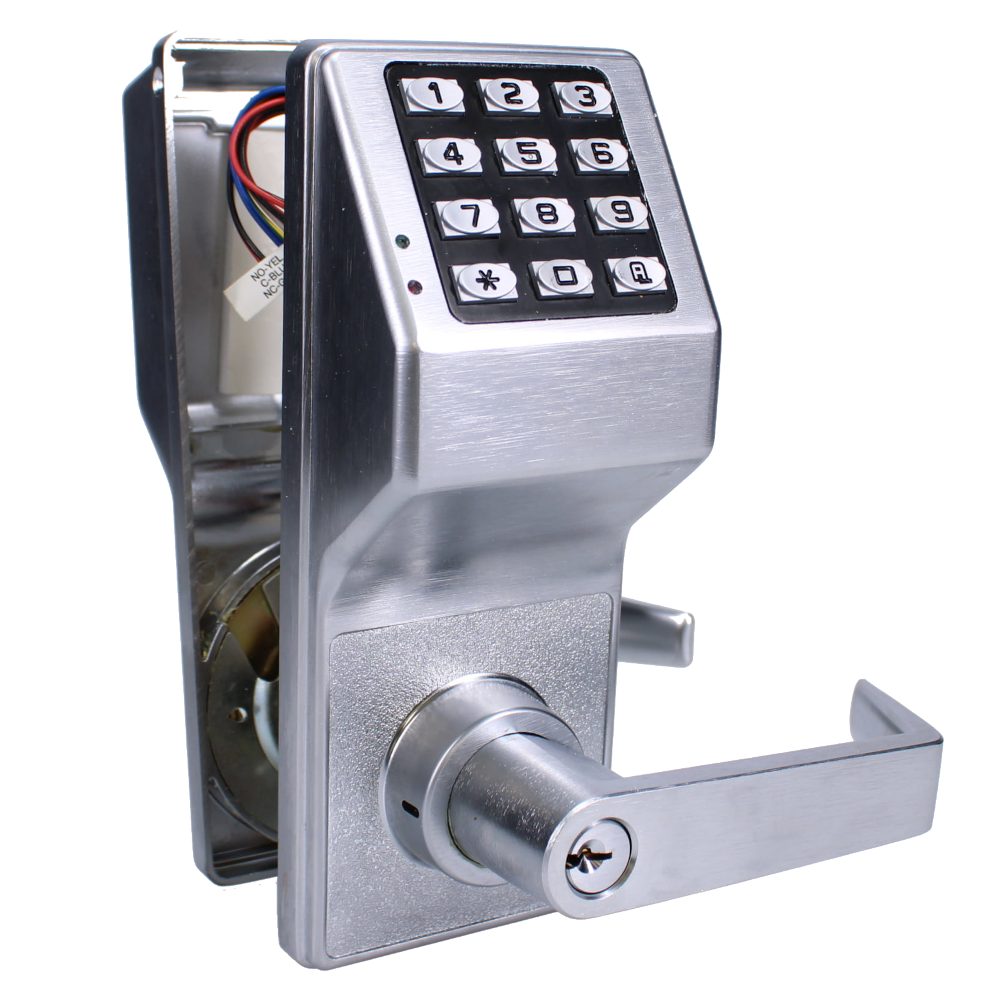

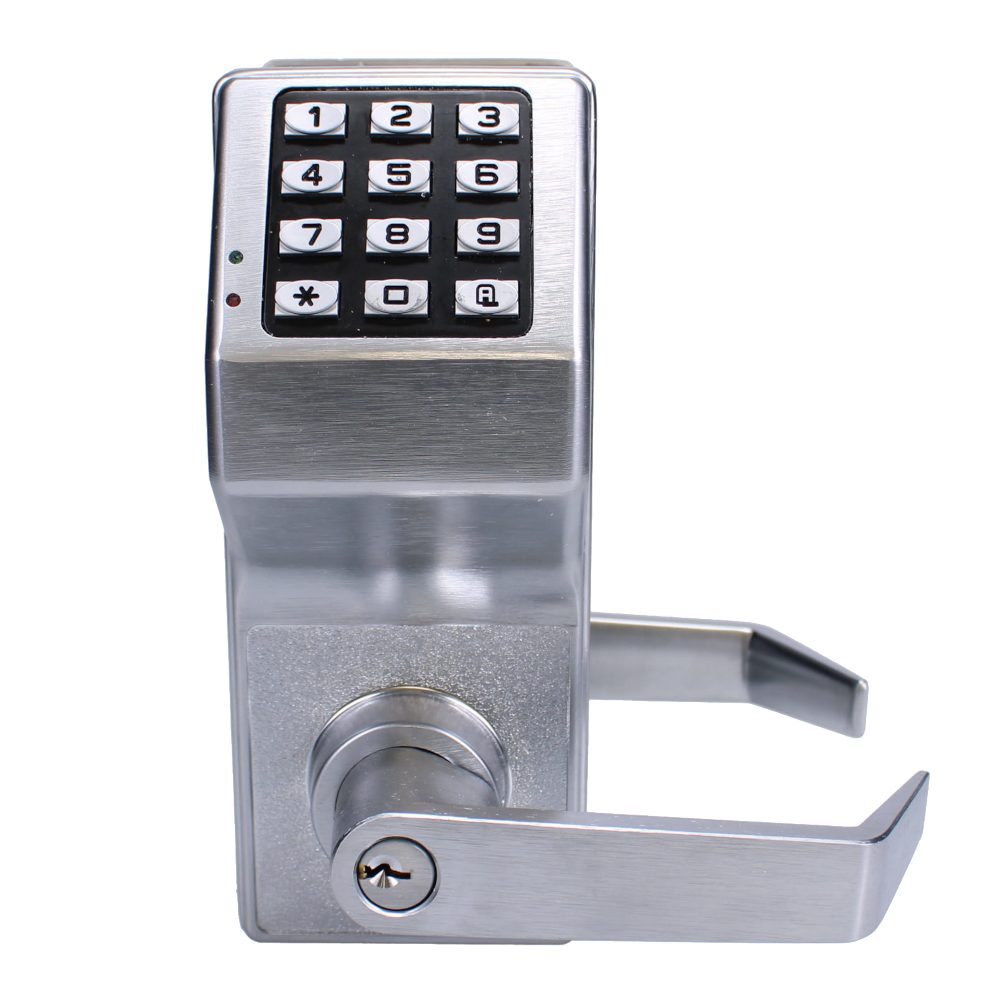

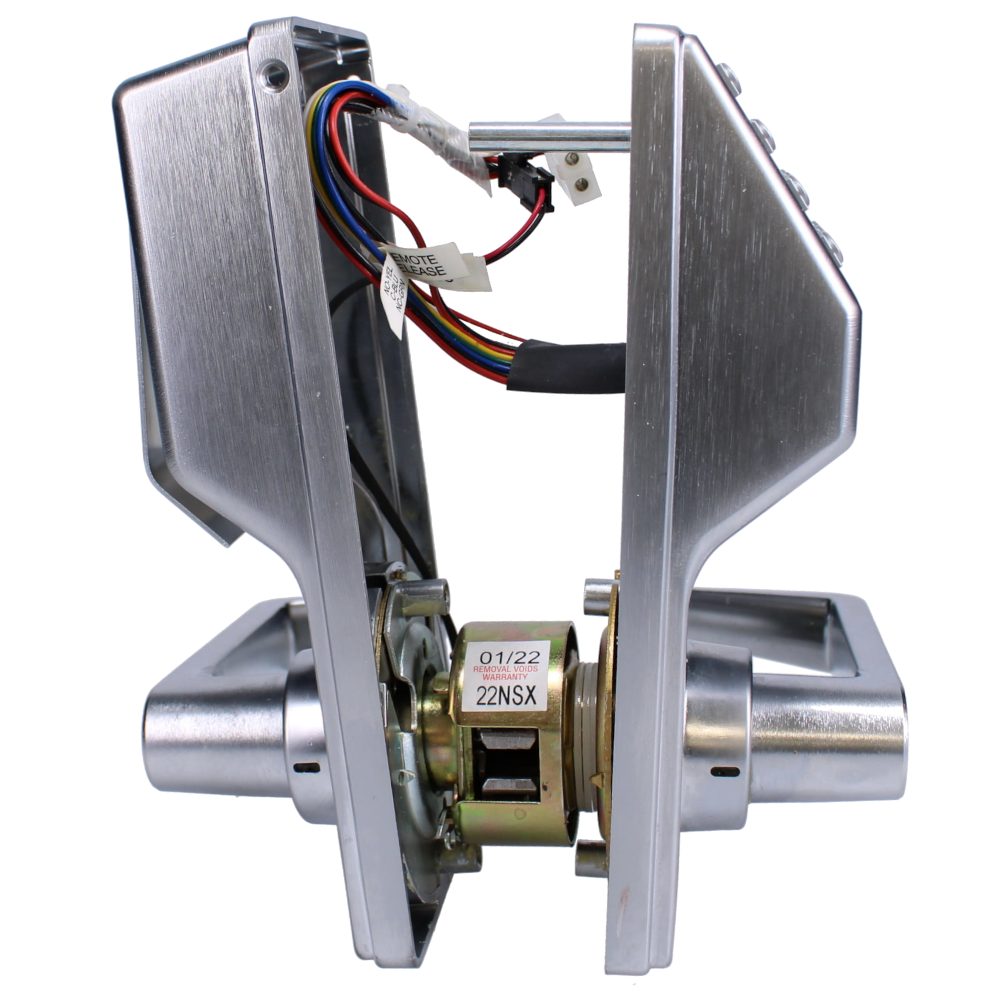

TRILOGY ALARM LOCK DL2700WP Battery Operated Digital Lock

The Trilogy Alarm Lock DL2700WP is a high-performance, weather-resistant, battery-operated digital cylindrical lock designed for robust access control. Perfect for both indoor and outdoor applications, this standalone electronic lock features a water-sealed design (IP55 rated on the front) and operates reliably in extreme temperatures ranging from -35°C to 66°C.

Engineered with a rugged clutch mechanism and a vandal-proof all-metal keypad, the DL2700WP ensures dependable security and durability. It supports multi-level user codes, including 1 master, 10 managers, 90 users, and 3 service codes, which can be programmed directly via the 12-button keypad. The lock offers versatile operation, including a convenient passage mode, 2-wire remote override, and mechanical key override with two keys supplied. On the inside, it features a lever handle for free exit, while the outside lever is activated by entering a code or using the key.

This model is non-handed and fully reversible, making installation straightforward. It is available in multiple configurations to suit different door thicknesses, manufacturer references, and barcodes. Please choose your preferred options from the selection below to find the perfect fit for your installation.

Technical Specifications

• Brand: Alarm Lock
• Mechanism: Electronic Digital
• Backset: 70mm
• Required Case Depth: 85mm
• Door Thickness: 42mm to 47mm or 54mm to 57mm (please choose from the options below)
• Finish: Satin Chrome
• IP Rating: IP55 (Front Only)
• Operating Temperature: -35°C to 66°C
• Power Supply: 5 x AA batteries (providing up to 120,000 operations)
• Low Battery Warning: Yes
• Key Override: Yes (supplied with 2 keys)
• Handing: Reversible (non-handed)
• Code Length: 3 to 6 digits
• User Capacity: 90 user codes (plus master, manager, and service codes)
• Time Delay: 5 to 20 seconds
• Manufacturer Reference: DL2700WP-26D or DL2700WP-26D/W54 (please choose from the options below)
• Barcode: 785026022266 or 785026069933 (please choose from the options below)
• Guarantee: 2 Year

Key Features

• Weather-Resistant Design: Water-sealed front housing with an IP55 rating, suitable for outdoor use in extreme temperatures.
• Vandal-Proof Keypad: Rugged all-metal 12-button keypad with a dependable clutch mechanism to reduce wear and tear.
• Flexible Access Control: Supports multi-level user codes, including individual, group, or total user lockout.
• Easy Passage Mode: Quick passage mode activation by a manager or master code for unrestricted access when needed.
• Dual Override Capability: Features both a mechanical key override and a 2-wire remote override for ultimate flexibility.
• Simple Installation: Non-handed, fully reversible design that fits standard door preparations.
