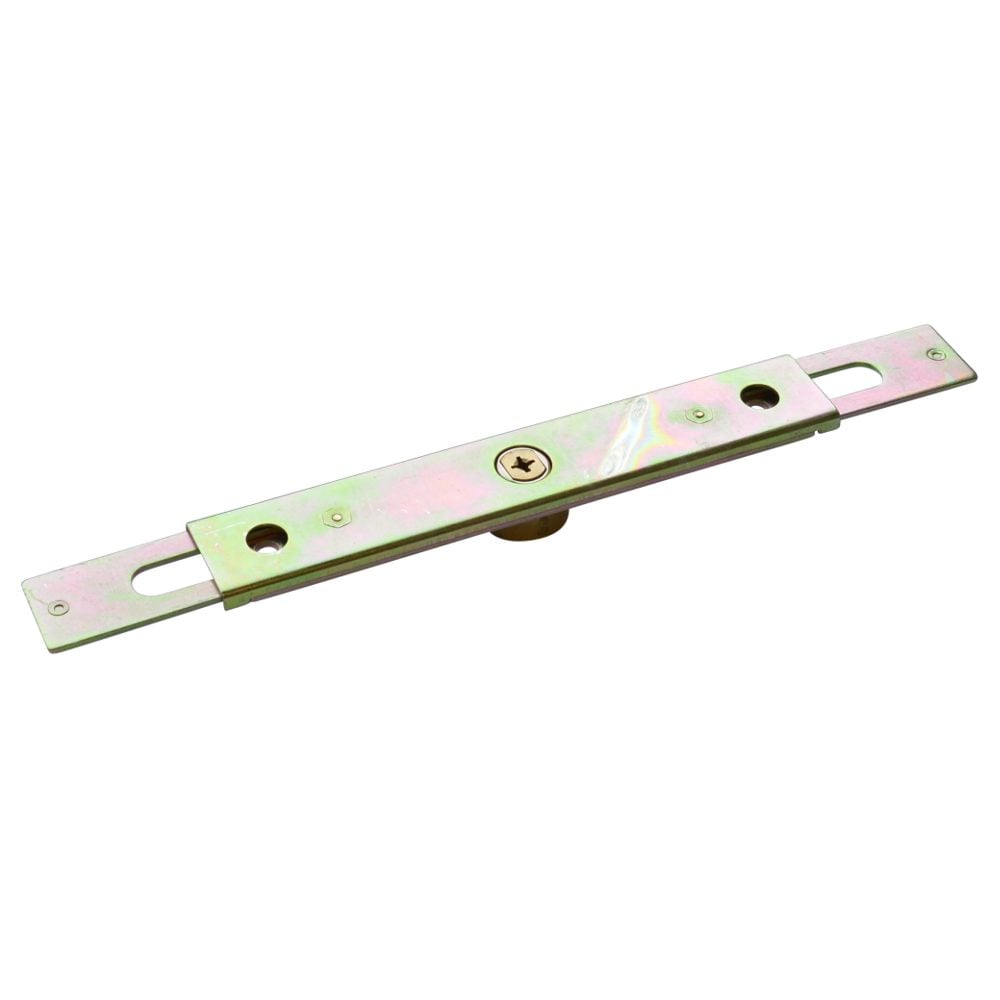

Tessi 6440 Ultra Narrow Central Shutter Lock

The Tessi 6440 Ultra Narrow Central Shutter Lock is a compact and reliable security solution designed specifically for roller shutters and gates. Engineered for installations where space is at a premium, its ultra-narrow profile allows it to fit seamlessly into tight shutter channels.

Typically mounted in the centre on the inside of the door, this lock features dual-extending side arms. When the key is turned, both arms shoot outwards to connect with the shutter's locking bars, securely anchoring the shutter into both sides of the frame for enhanced protection. The polished brass cylinder protrudes through the door, offering smooth and convenient key access from the exterior.

Supplied complete with two keys, the Tessi 6440 is an ideal choice for securing commercial or domestic roller shutter doors.

Technical Specifications

• Brand: Tessi
• Manufacturer Reference: 6440
• Body Length: 202mm
• Body Width: 30mm
• Body Depth: 10mm
• Bolt Centres: 190mm
• Screw Centres: 142mm
• Overall Bolt Size: 190mm (withdrawn) to 253mm (extended)
• Cylinder Finish: Polished Brass
• Cylinder Projection: 12mm
• Handing: Central (dual bolt shoot)
• Keys Supplied: 2

Key Features

• Ultra-Narrow Design: Compact 30mm width profile ideal for narrow shutter channels and tight spaces.
• Dual Bolt Shoot: Both side arms extend simultaneously to lock the shutter securely into both sides of the frame.
• Central Installation: Designed for mounting in the centre on the inside of the door.
• Convenient Access: Cylinder protrudes through the door to allow easy key operation from the outside.
• Complete Package: Supplied with two keys for immediate use.
