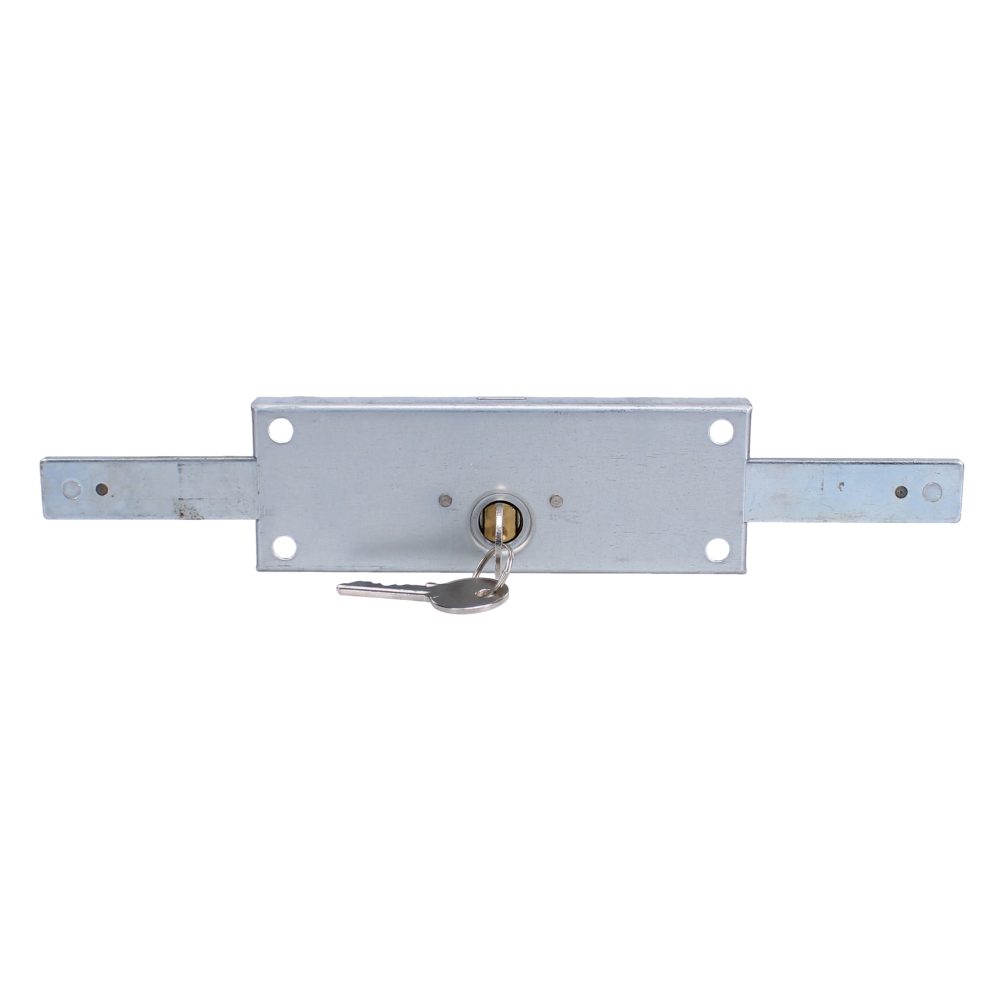

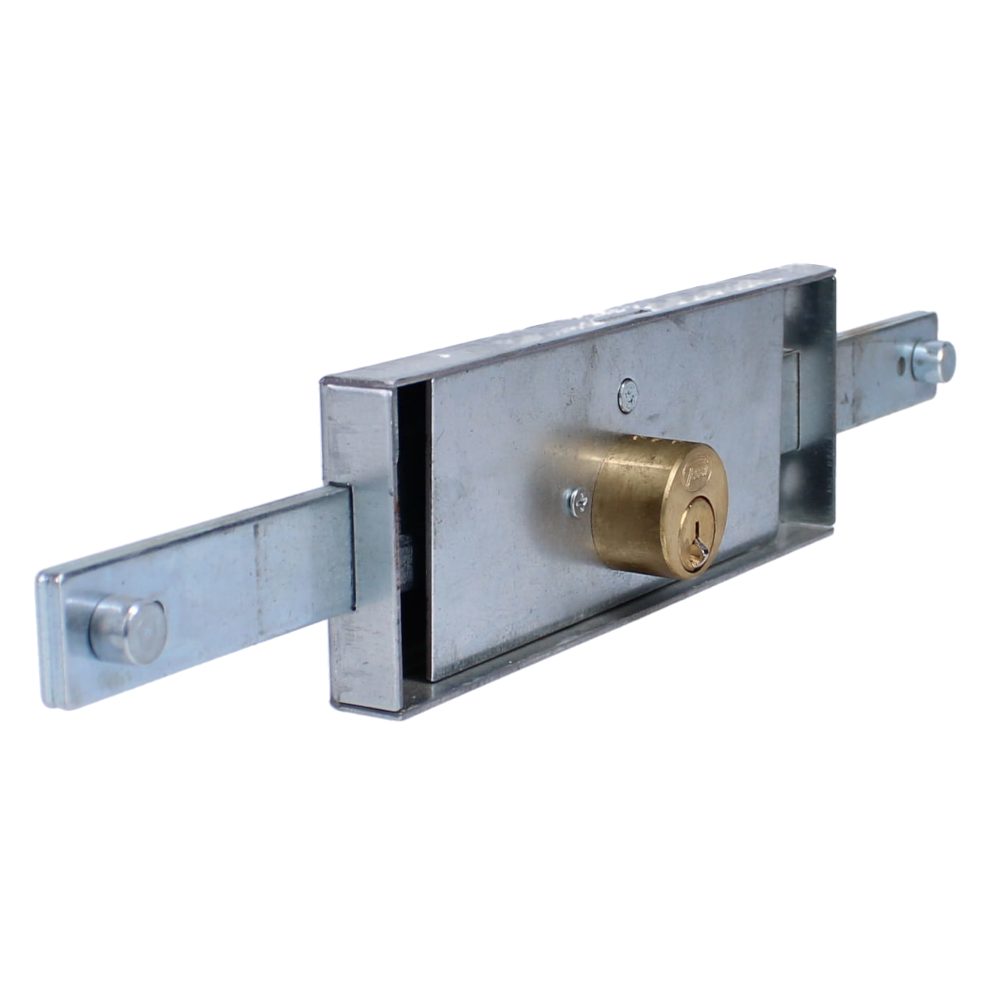

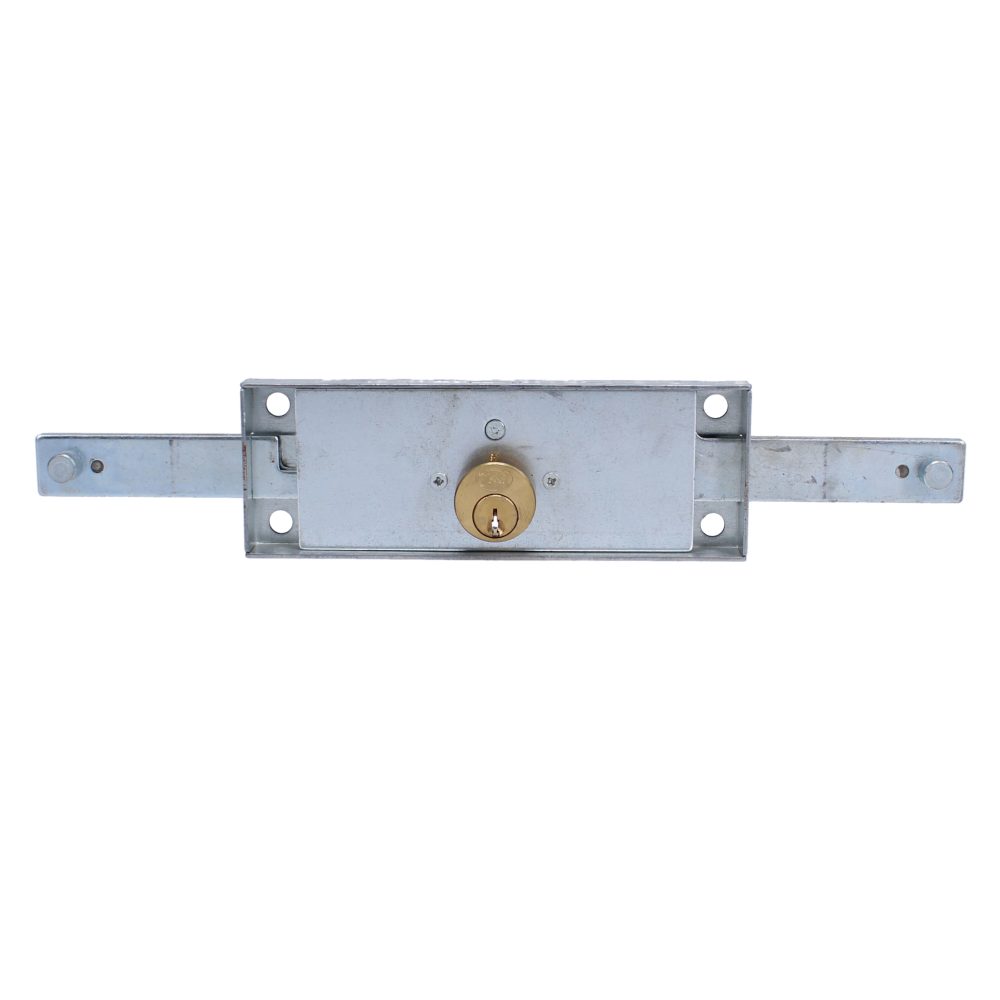

Tessi 6410 Central Shutter Lock

The Tessi 6410 Central Shutter Lock is a reliable security solution designed for installation in the centre of roller shutter doors. When the key is turned, both side arms extend to link with the shutter's locking bars, securing the shutter firmly into both sides of the frame for enhanced protection.

The lock case is mounted on the inside of the door, with the polished brass cylinder protruding through to the outside to allow convenient key access. It is easy to install and comes supplied with two keys as standard. This lock is ideal for securing commercial premises, garages, and domestic roller shutters.

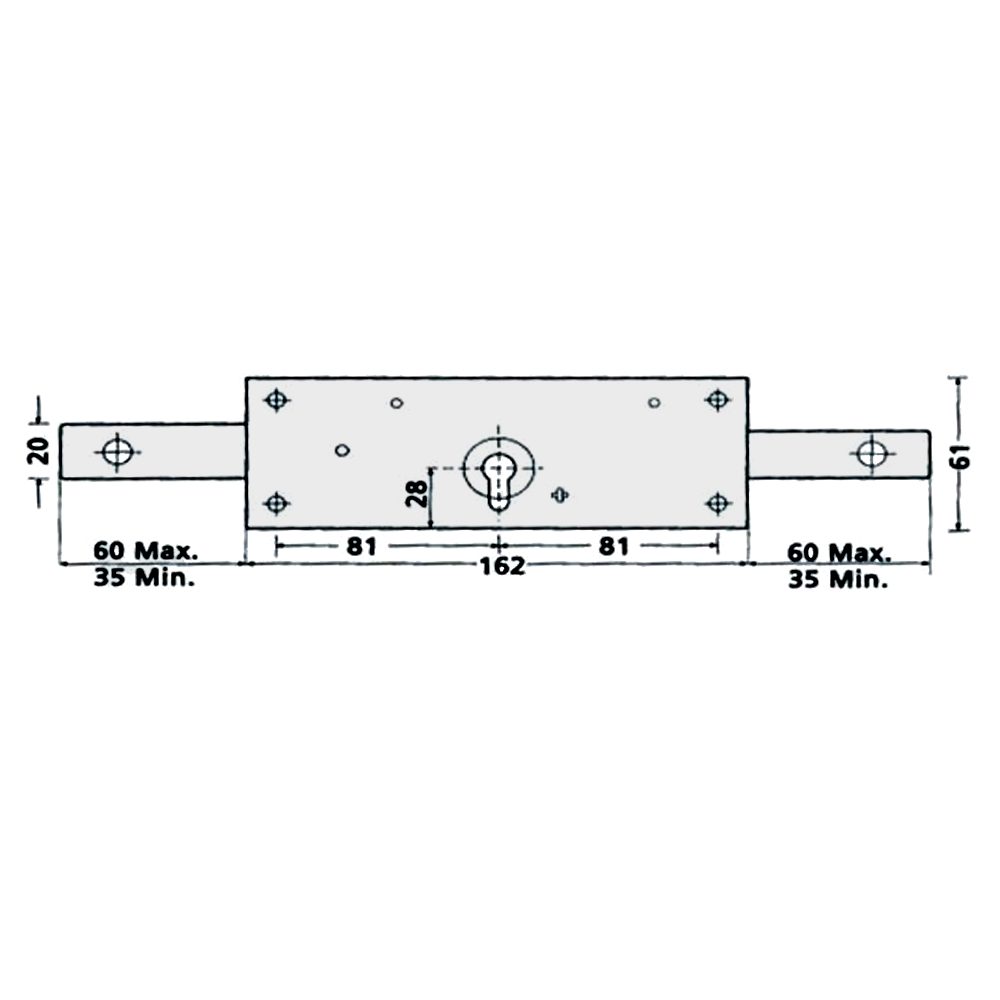

Technical Specifications

• Brand: Tessi
• Manufacturer Reference: 6410 (L9388)
• Cylinder Finish: Polished Brass
• Cylinder Projection: 12mm
• Bolt Throw: 22mm
• Overall Bolt Size: 67mm extended, 45mm withdrawn
• Width: 55mm
• Depth: 15mm
• Handing: Centre (bolt shoots both sides)
• Keying: Keyed to differ (in-house key cutting and keyed alike options available)
• Keys Supplied: 2

Key Features

• Dual-Side Locking: Both side arms extend simultaneously to lock the shutter into both sides of the frame for enhanced security.
• Internal Installation: The lock case mounts on the inside of the door with the cylinder protruding, protecting the main mechanism from tampering.
• Simple Key Operation: Turn the key to extend and retract the locking arms.
• Easy to Install: Straightforward to fit on standard roller shutters and gates.
• Supplied with Keys: Includes 2 keys as standard.
