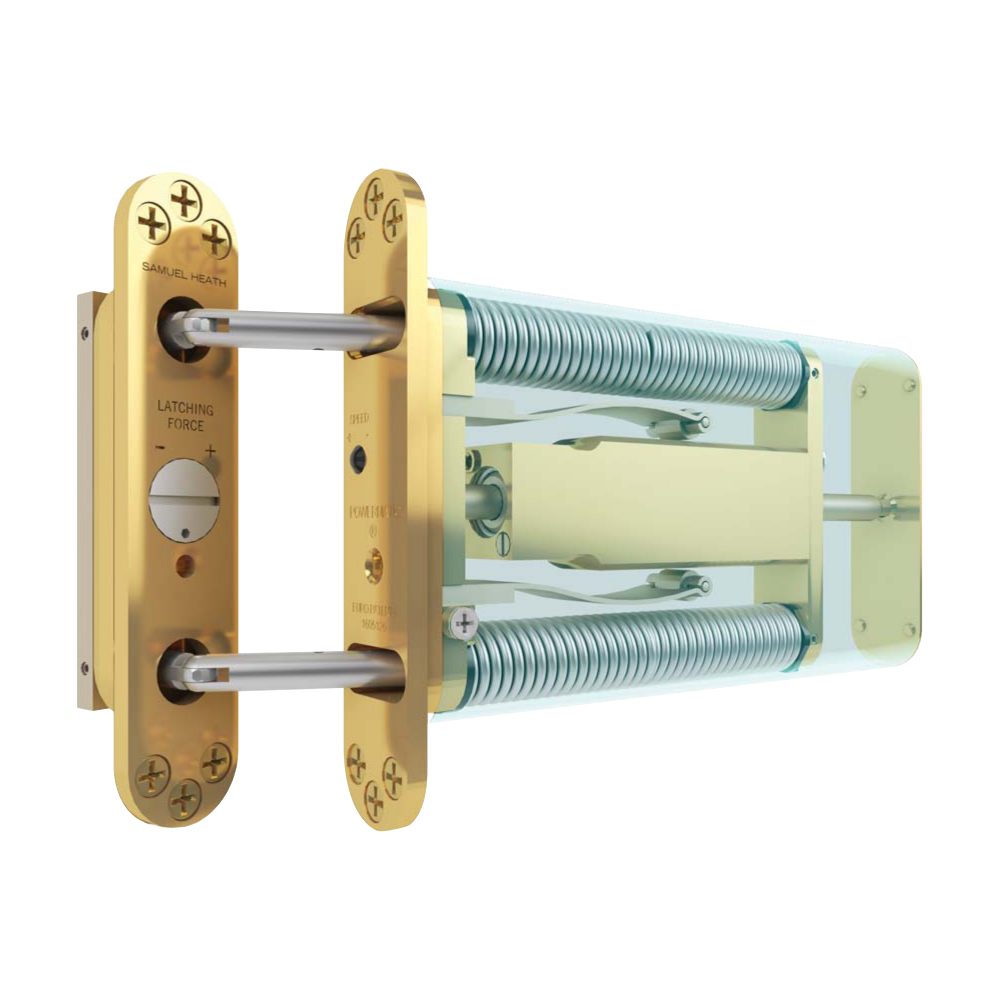

SAMUEL HEATH Powermatic R100 Concealed Door Closer

The Samuel Heath Powermatic R100 is one of the world’s most advanced controlled, concealed door closers. Designed to be jamb-mounted, this high-performance unit is completely invisible when the door is closed, making it the perfect choice for projects where clean aesthetics and architectural integrity are paramount.

This reliable door closer is highly versatile, making it ideal for both fire and non-fire door applications across social housing, hotels, educational facilities, and healthcare environments. It is suitable for both latched and unlatched installations, offering exceptional control and smooth operation.

The Powermatic R100 is available in a choice of high-quality finishes, including Polished Brass, Chrome Plated, and Satin Chrome, to complement your existing door hardware. Each finish option features a unique barcode, manufacturer reference, and standard certification profile. Please select your preferred finish, barcode, manufacturer reference, and standards from the options below.

Technical Specifications

• Brand: Samuel Heath
• Door Weight Capacity: Up to 80kg
• Maximum Door Width: 950mm (BS EN 1154 size 3 test door 60kg)
• Operating Temperature: -15°C to 40°C
• Product Weight: 1.8kg
• Fire Protection: Certifire CF370 Certificate

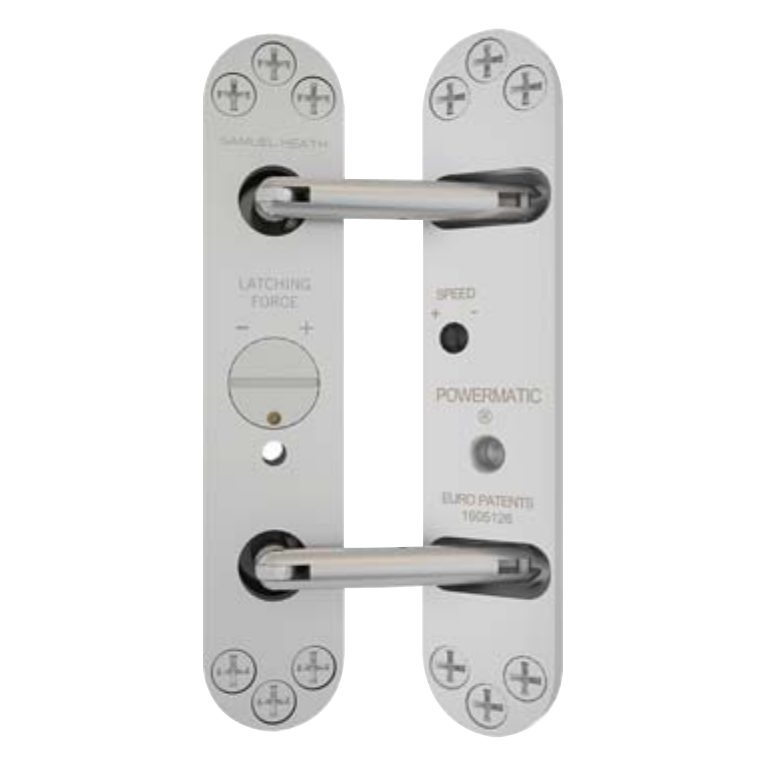

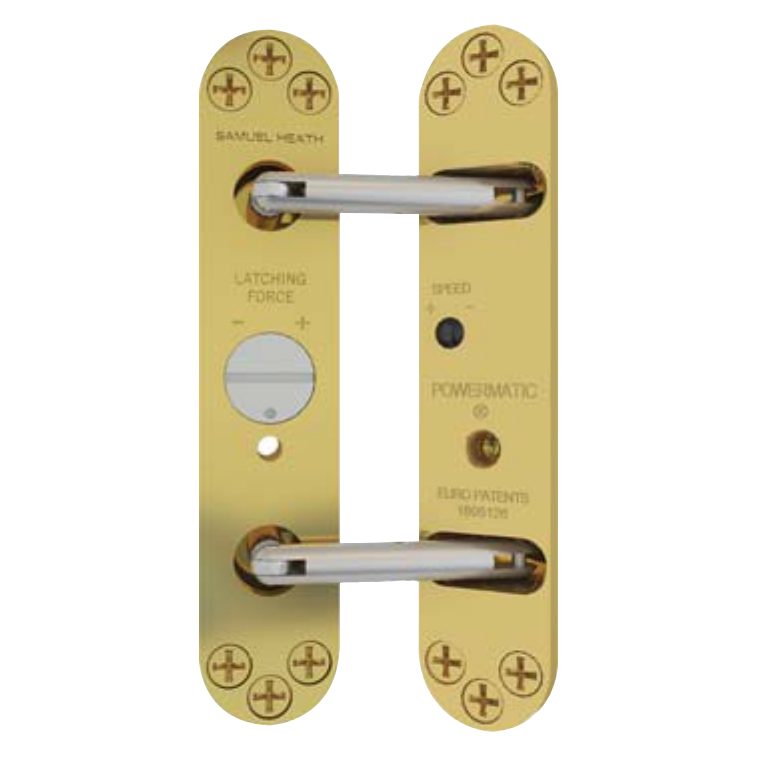

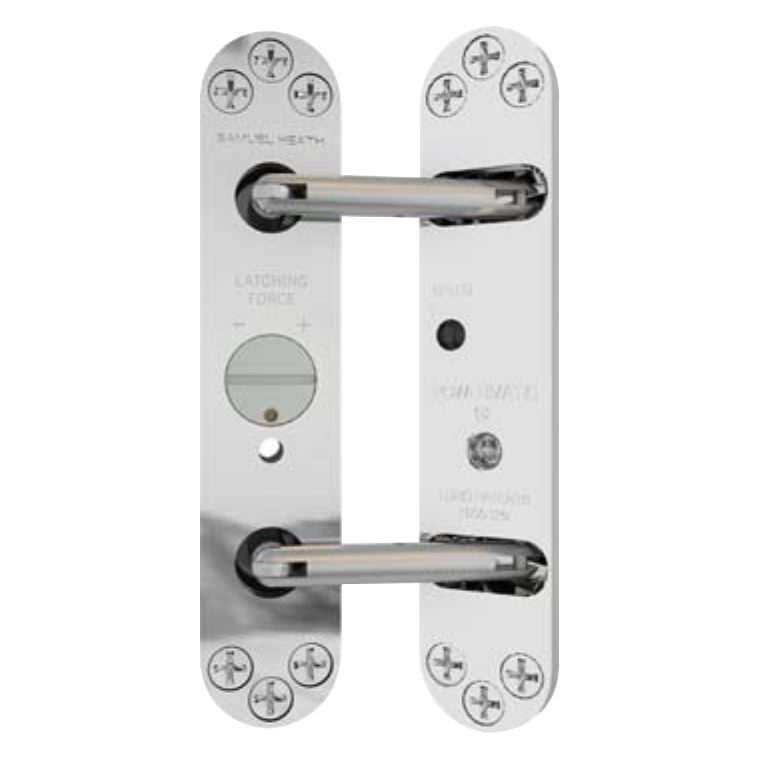

• Finishes: Polished Brass, Chrome Plated, or Satin Chrome (please choose from the options below)
• Barcodes: Multiple options available (please choose from the options below)
• Manufacturer References: POWERMATIC BRASS R100, POWERMATIC CP R100, or POWERMATIC SCP R100 (please choose from the options below)
• Standards: BS EN 1154:1997, BS EN 1154, BS EN 1634-1, BS EN 1634, CE Marked, Certifire, BS EN 476 (please choose from the options below)

Key Features

• Concealed Design: Jamb-mounted and completely invisible when the door is closed, preserving clean door aesthetics.
• Twin Power Mechanism: Features a unique twin-power mechanism for reliable and controlled closing.
• Adjustable Action: Fully adjustable closing speed and power latching action to suit your installation requirements.
• Versatile Application: Ideal for both latched and unlatched installations on fire and non-fire doors in social housing, hotels, education, and healthcare.
• 10-Year Guarantee: Backed by a 10-year manufacturer's guarantee for long-term peace of mind.
