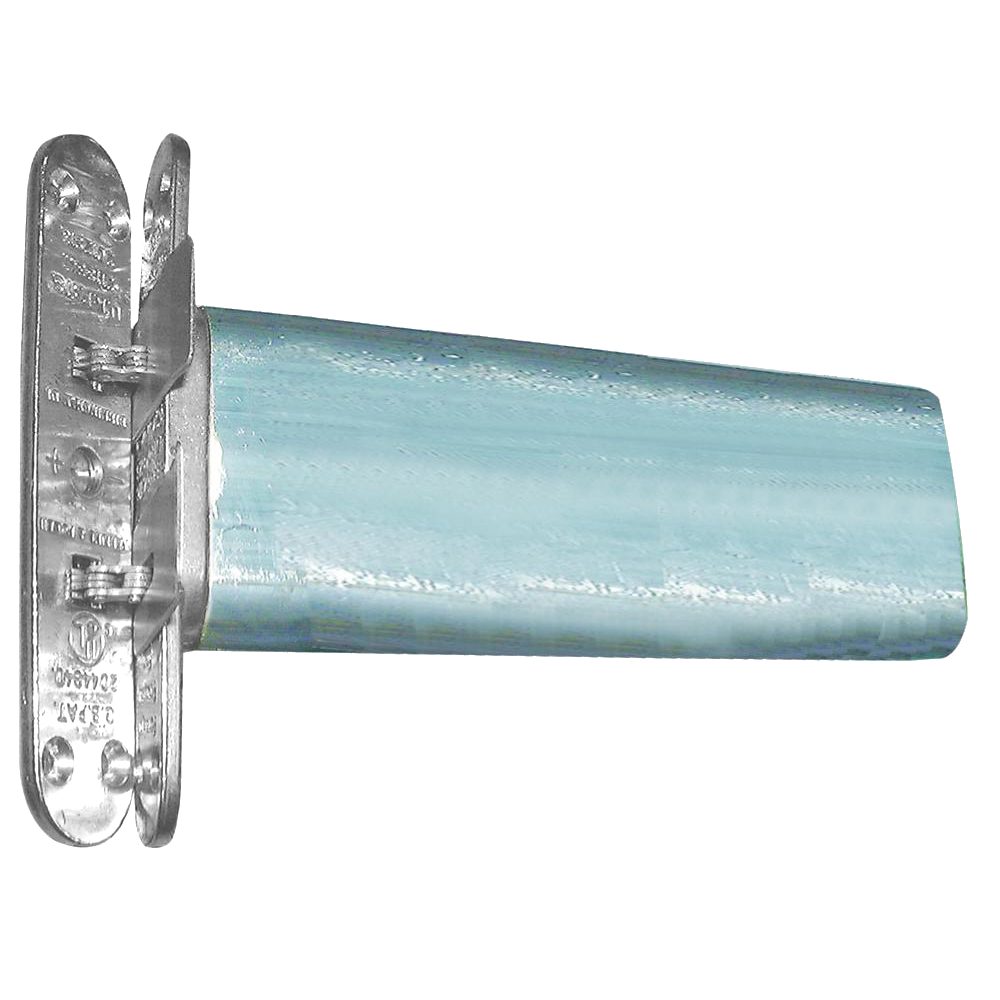

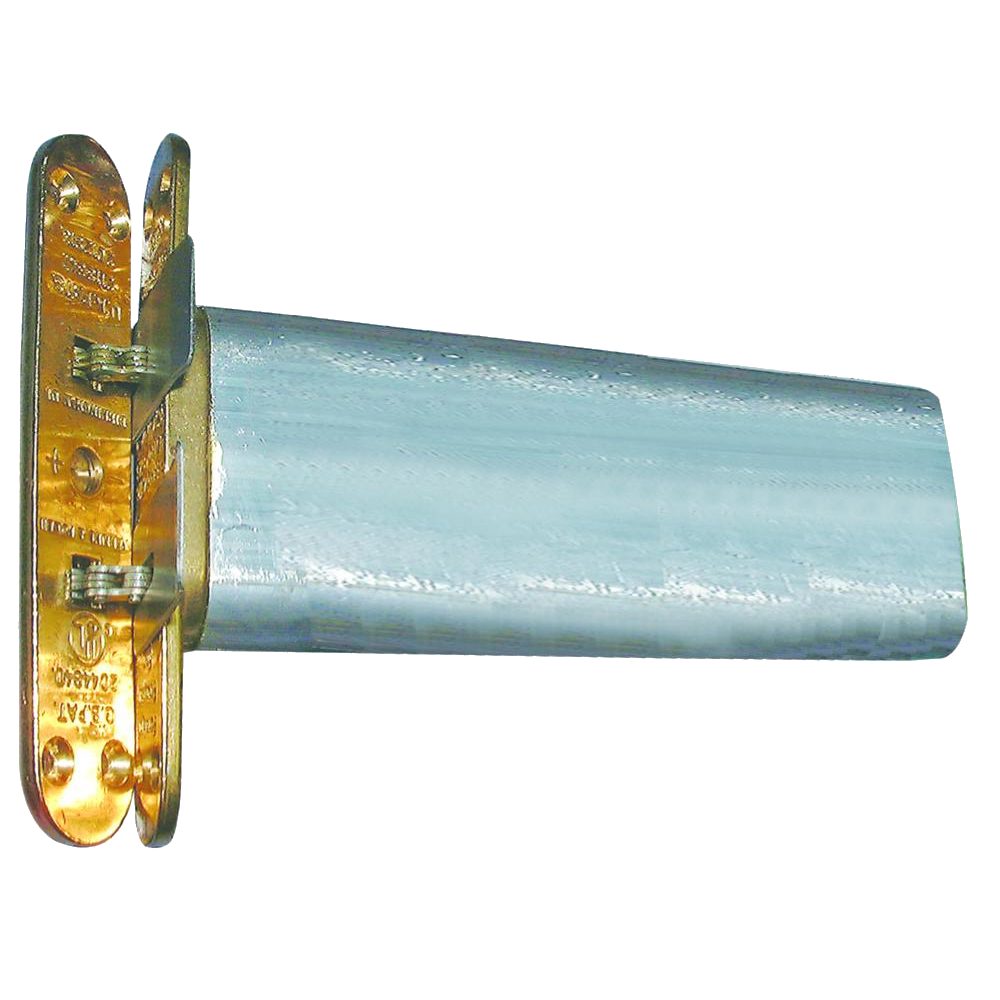

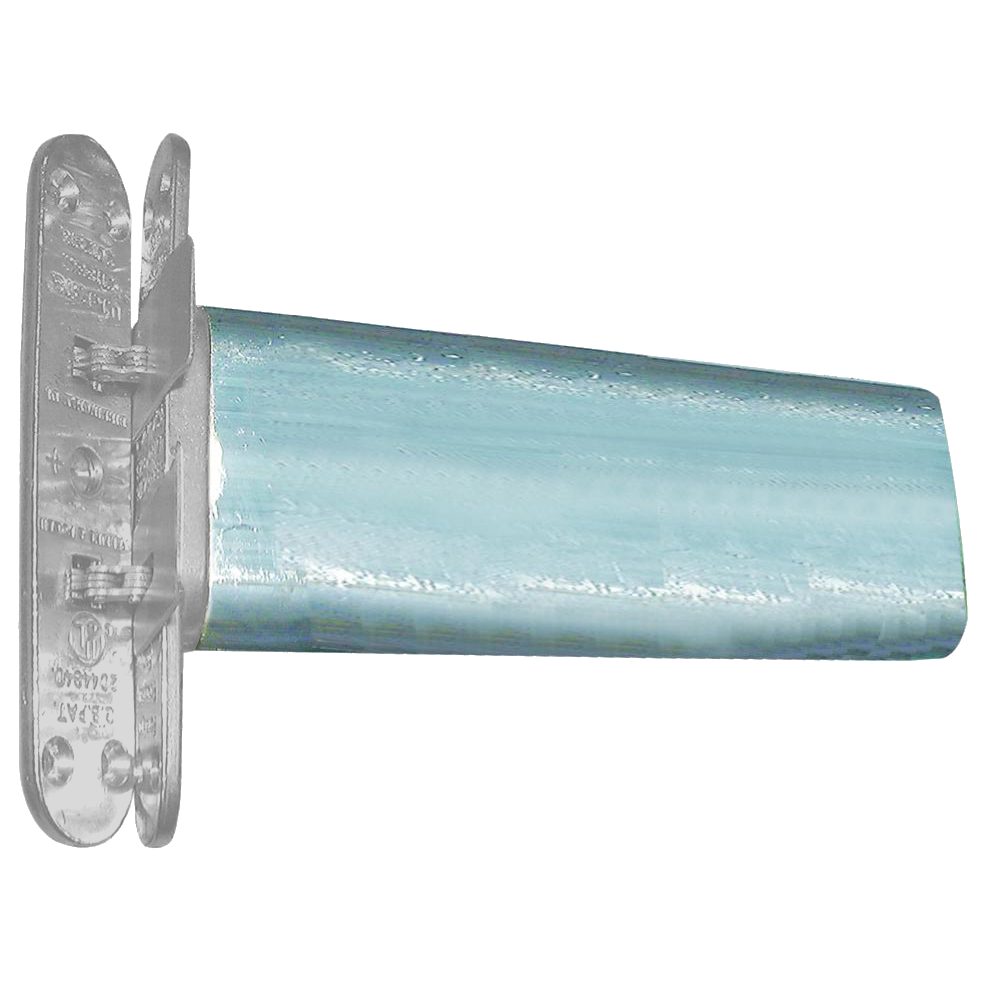

SAMUEL HEATH Perkomatic R85 Concealed Door Closer

The Samuel Heath Perkomatic R85 is a premium uncontrolled concealed door closer designed to offer outstanding durability and performance. Housed in a lightweight aluminium casing, this hydraulic mechanism is fully concealed within the door and frame, providing enhanced aesthetics and reducing the risk of vandalism. It is ideal for light to medium use on internal doors.

The precision-engineered chain ensures a smooth and lasting service, while the hydraulic mechanism can be easily adjusted to deliver the desired latching action for your specific application. It has been tested to withstand 500,000 open and close cycles and is suitable for doors weighing up to 75kg.

This product is available in multiple finishes (including Polished Brass, Chrome Plated, and Satin Chrome), weights (ranging from 800g to 910g), manufacturer references (R85, R85CP, or R85SCP), and barcodes. Please choose your preferred options from the selection below. Each unit is supplied complete with fixing screws and full fitting instructions.

Technical Specifications

• Brand: Samuel Heath
• Manufacturer Reference: R85, R85CP, or R85SCP (please choose from the options below)
• Finish: Polished Brass, Chrome Plated, or Satin Chrome (please choose from the options below)
• Weight: 800g to 910g (please choose from the options below)
• Barcode: Multiple options available (please choose from the options below)
• Max Door Weight: 75kg (165 lbs)
• Length: 16.8cm
• Diameter: 60mm
• Plate Height: 121mm
• Plate Width: 25mm
• Standards: BS EN 1634-1, BS EN 1634, ISO 9001:2015, BS EN 476
• Fire Tested: 1/2 to 1 hour to BS476 (does not affect latched 1/2 hour and 1 hour fire door integrity)
• Adjustable Latch Action: Yes
• Pack Quantity: 1
• Packaging: Boxed

Key Features

• Concealed Design: Offers enhanced aesthetics and significantly reduces the opportunity for vandalism.
• Adjustable Latching: Hydraulic mechanism can be easily adjusted to provide the desired latching action.
• High Durability: Tested to withstand 500,000 open and close cycles.
• Smooth Operation: Precision-engineered chain ensures smooth, lasting, and controlled closing.
• Complete Kit: Supplied with fixing screws and full fitting instructions.
• Versatile Application: Designed for light to medium use on internal doors up to 75kg.
