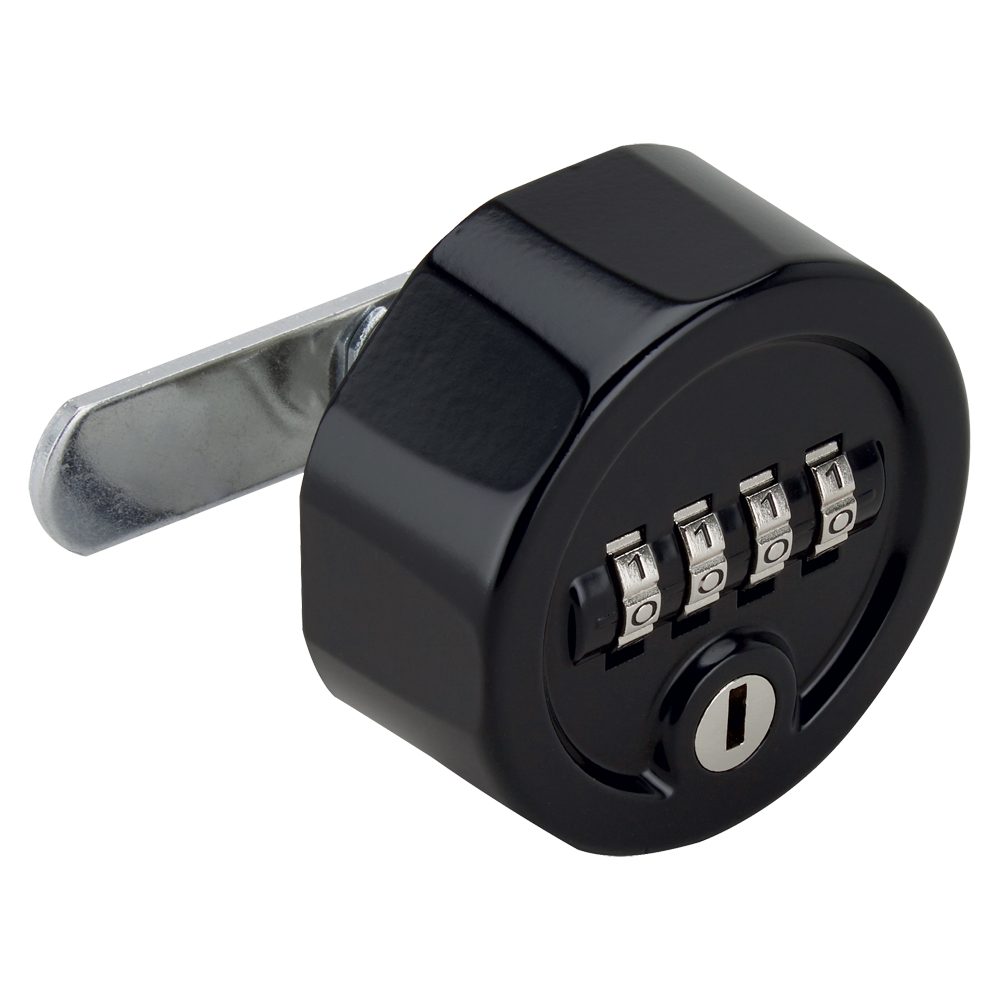

RONIS C4S Combination Cam Lock With Key Override

The RONIS C4S Combination Cam Lock is a highly secure, keyless locking solution designed for lockers, cabinets, and cupboards in dry indoor environments. Offering a modern alternative to traditional key-operated locks, it is ideal for use in schools, offices, and leisure facilities.

This robust lock features a 4-wheel combination mechanism providing up to 10,000 unique, user-resettable codes. It is equipped with a patent-protected detector plate, allowing forgotten codes to be quickly identified and reset using a master override key (available separately). The user-friendly design includes a shaped dial edge for a comfortable grip, and it is secured firmly in place with a standard nut fixing.

Please note that the override/reset key is not supplied as standard and must be ordered separately.

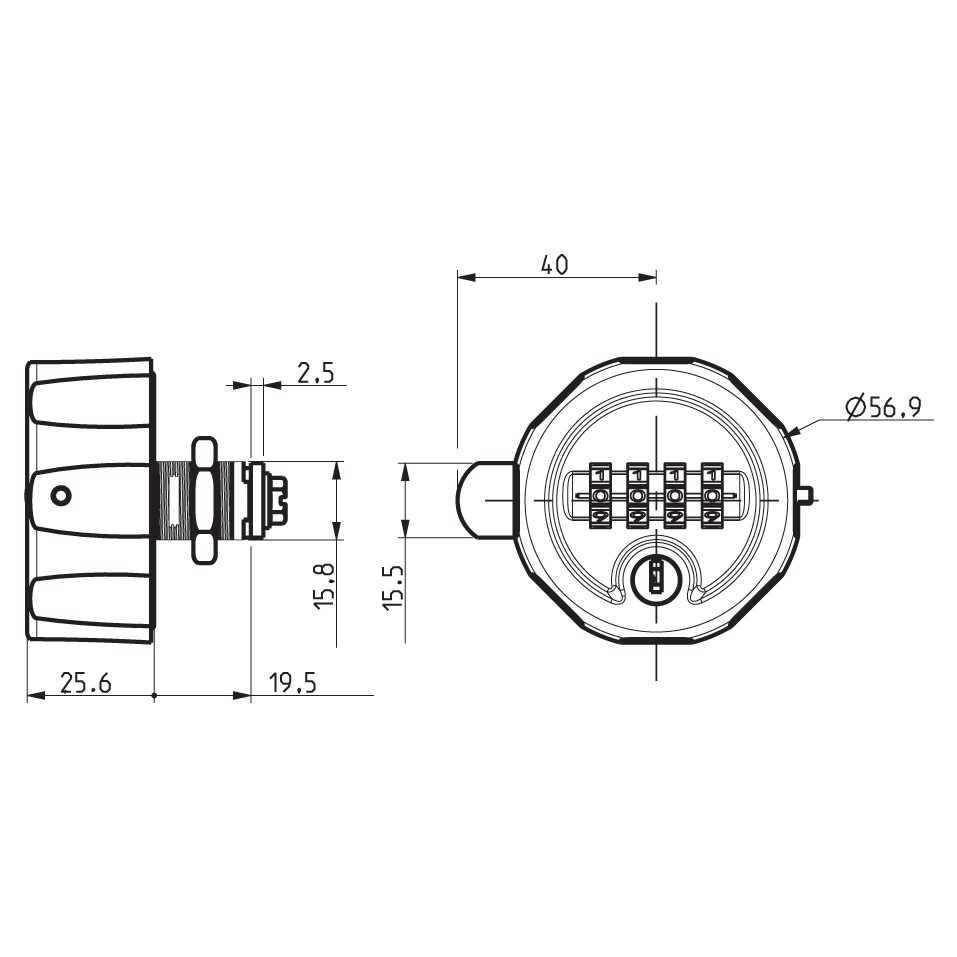

Technical Specifications

• Body Length: 19.5mm

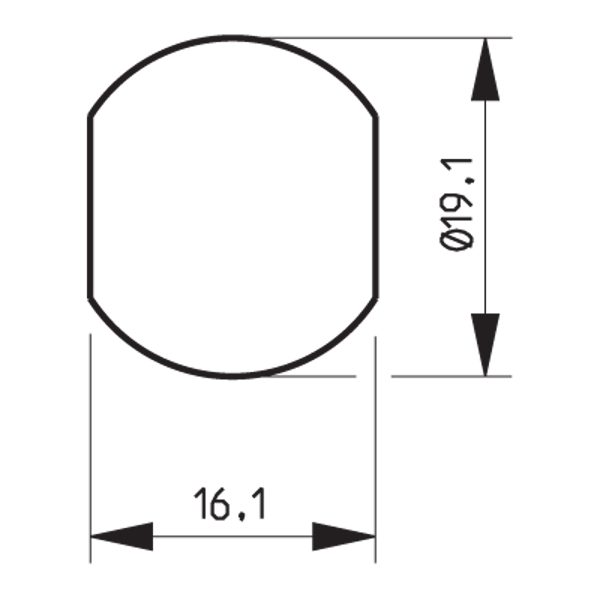

• Body Diameter: 19.1mm
• Head Diameter: 56.9mm
• Finish: Black
• Fixing Type: Nut fixing
• Cam Type: 40mm straight cam
• Rotation: 90° clockwise
• Mechanism: 4-wheel combination
• Keys Supplied: 0 (Override key sold separately)

Key Features

• Keyless Convenience: 4-wheel dial eliminates the need for physical keys, reducing the risk of lost keys.
• High Security: Offers up to 10,000 possible combinations for enhanced security.

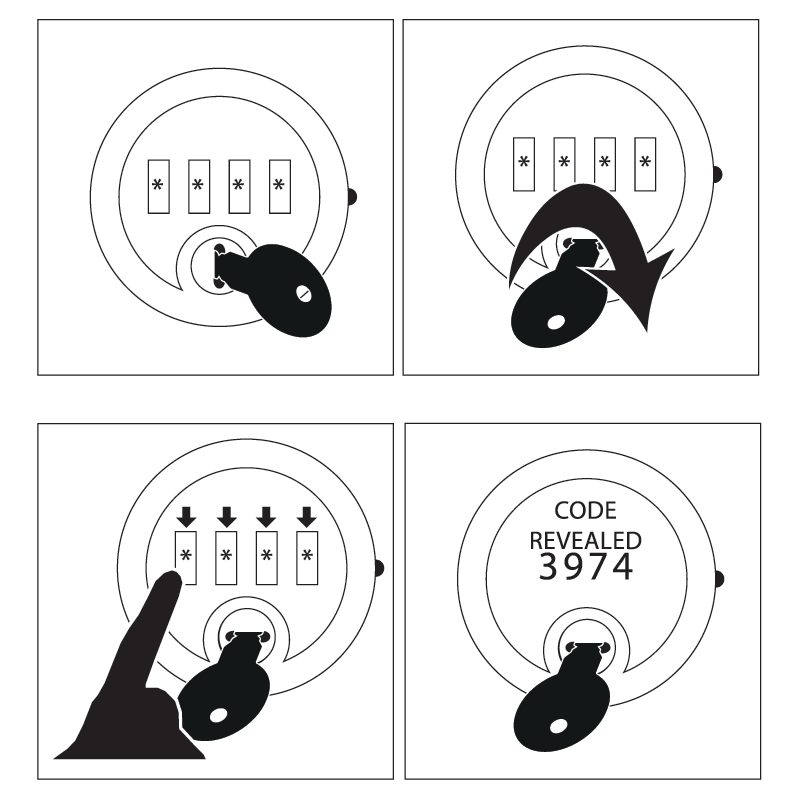

• Key Override & Code Finder: Patent-protected detector plate allows forgotten codes to be retrieved in seconds using the master override key.
• Easy Code Reprogramming: Simple code change mechanism allows users to quickly update combinations on-site.
• Ergonomic Design: Shaped dial edge ensures an easy grip, even with wet hands.
• Simple Installation: Nut fixing design allows for quick installation and retrofitting into standard panel holes.
